Molding Installation

• Be sure the alignment marks on the molding line up with the alignment marks on the windshield.
• Attach the molding with adhesive tape.
• Attach the molding seals to the molding.

Molding adhesive tape: Thickness 0.8 mm (0.03 in.)

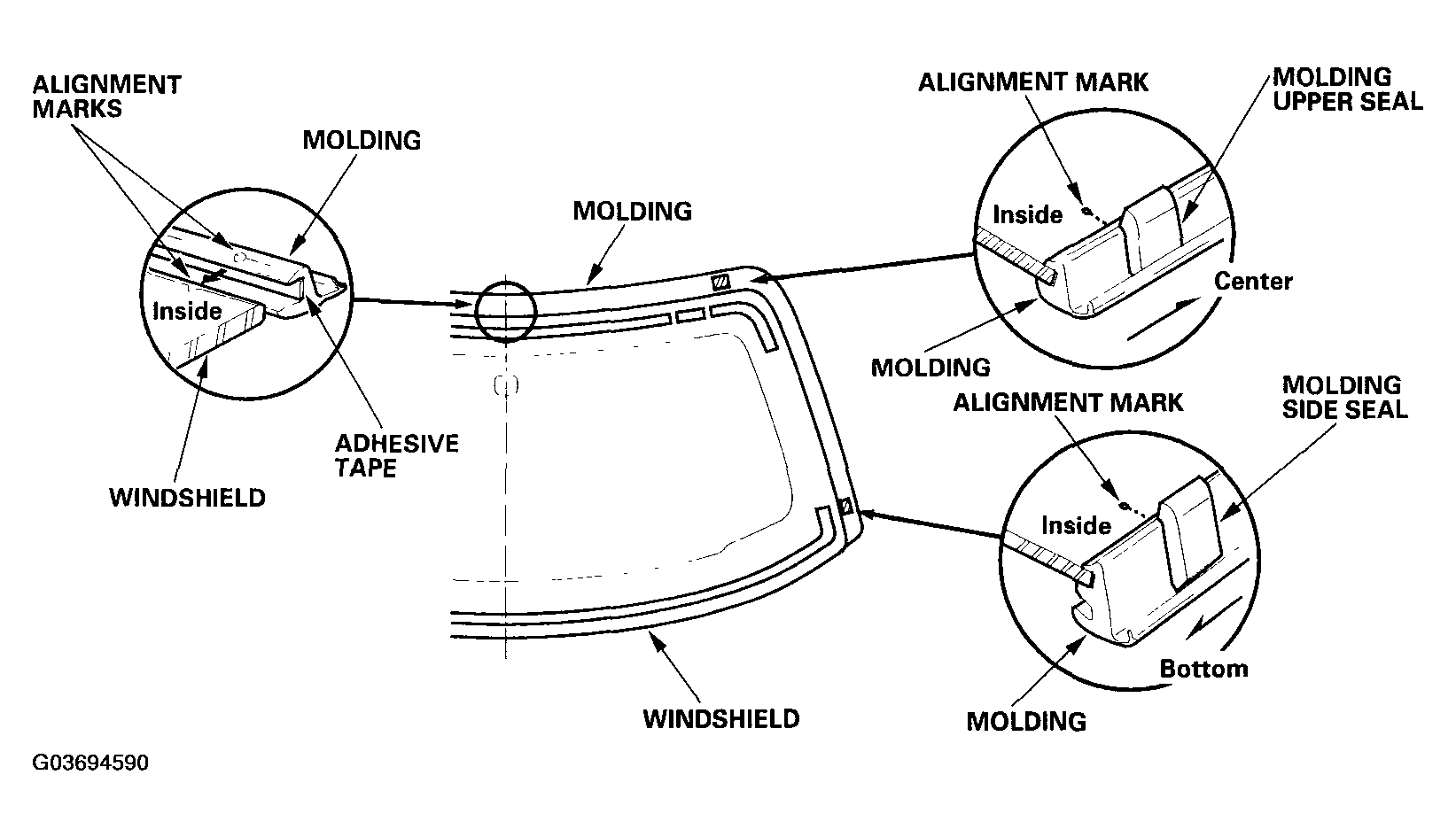

Fig 1: Identifying Molding With Adhesive Tape

Courtesy of AMERICAN HONDA MOTOR CO., INC.
