Wheel Sensor Replacement

NOTE: Install the sensors carefully to avoid twisting the wires.

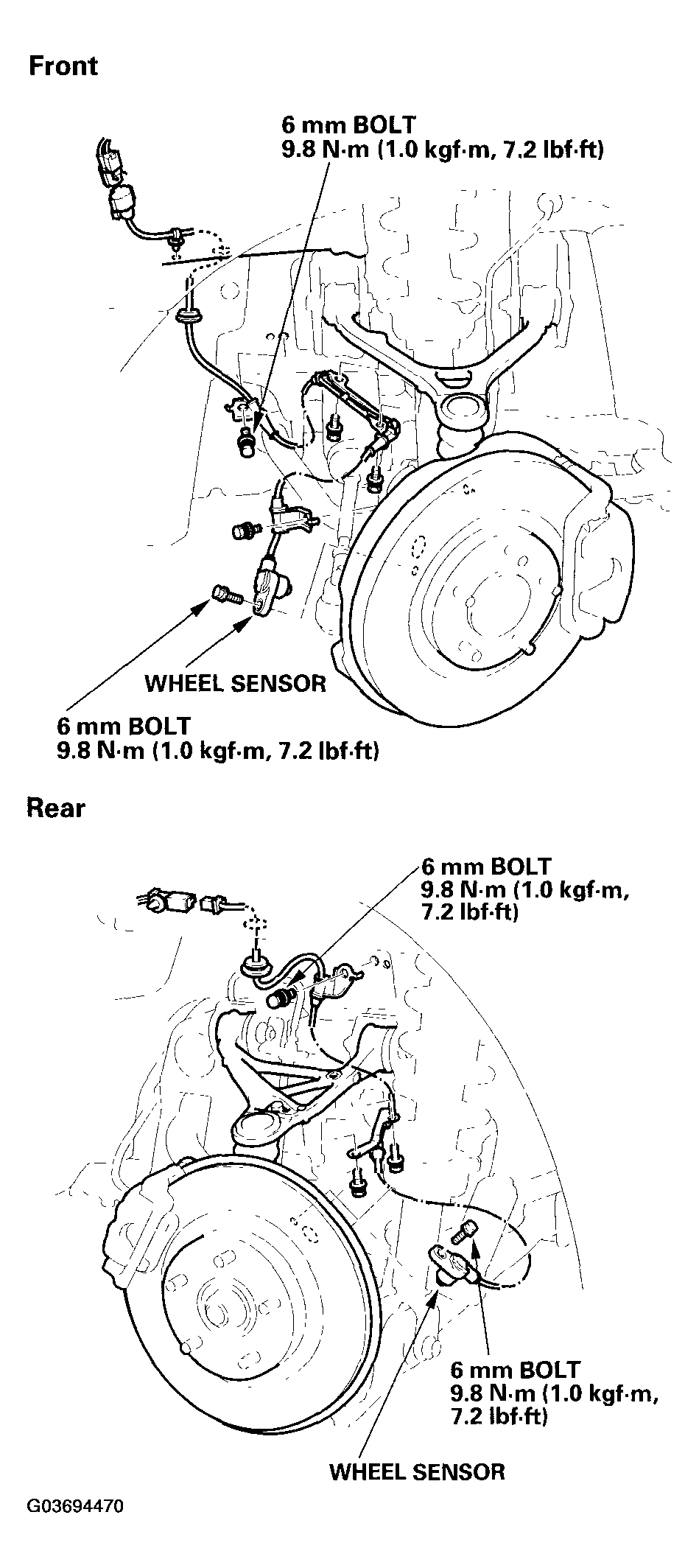

Fig 1: Loosening Torque Of Wheel Sensor Bolts With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
