2000-2005 Models

  1. Drain the engine coolant (see COOLANT REPLACEMENT ).
  2. Disconnect the radiator fan switch connector, then remove the radiator fan switch (A).

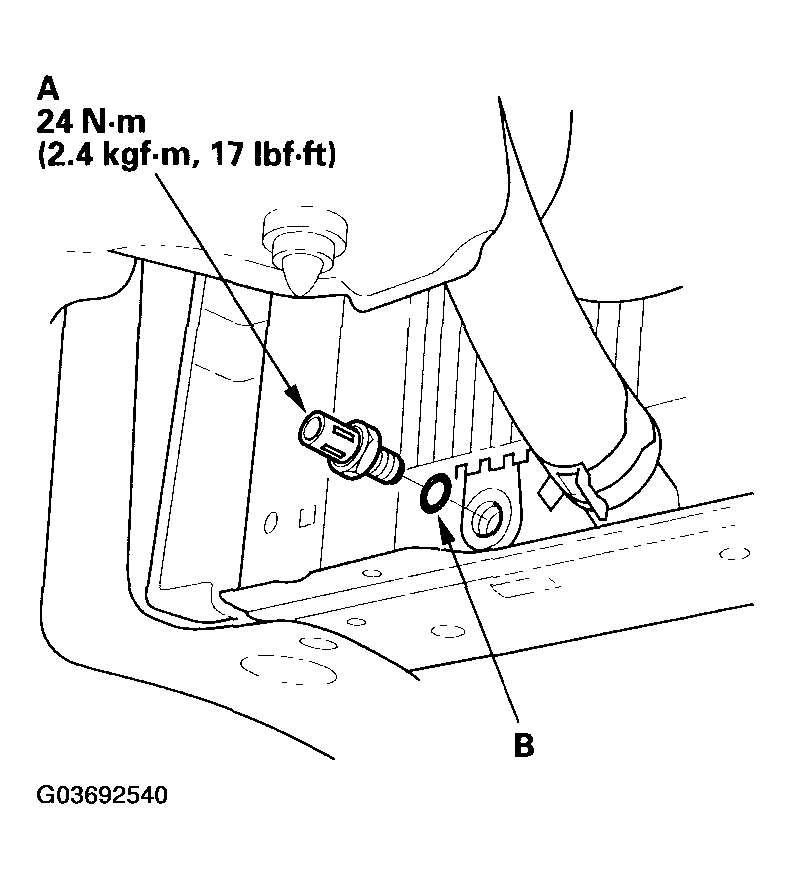

    Fig 1: Radiator Fan Switch Connector With Torque Specifications
    G03692540Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the radiator fan switch with a new O-ring (B).
  4. Refill the radiator with engine coolant, then bleed the air from the cooling system (see step 8 on COOLANT REPLACEMENT ).
