All Models

  1. Remove diode (rectifier) assembly from generator. Check for continuity in both directions by reversing test probes between terminal "B" and terminals P1 , P2 , P3 and P4 . Check for continuity in both directions between diode terminal "E" (ground) and terminals P1 , P2 , P3 and P4 . See Fig 1 .
  2. All diodes should show continuity in one direction and no continuity in opposite direction. If any diode does not test as specified, replace entire diode (rectifier) assembly.

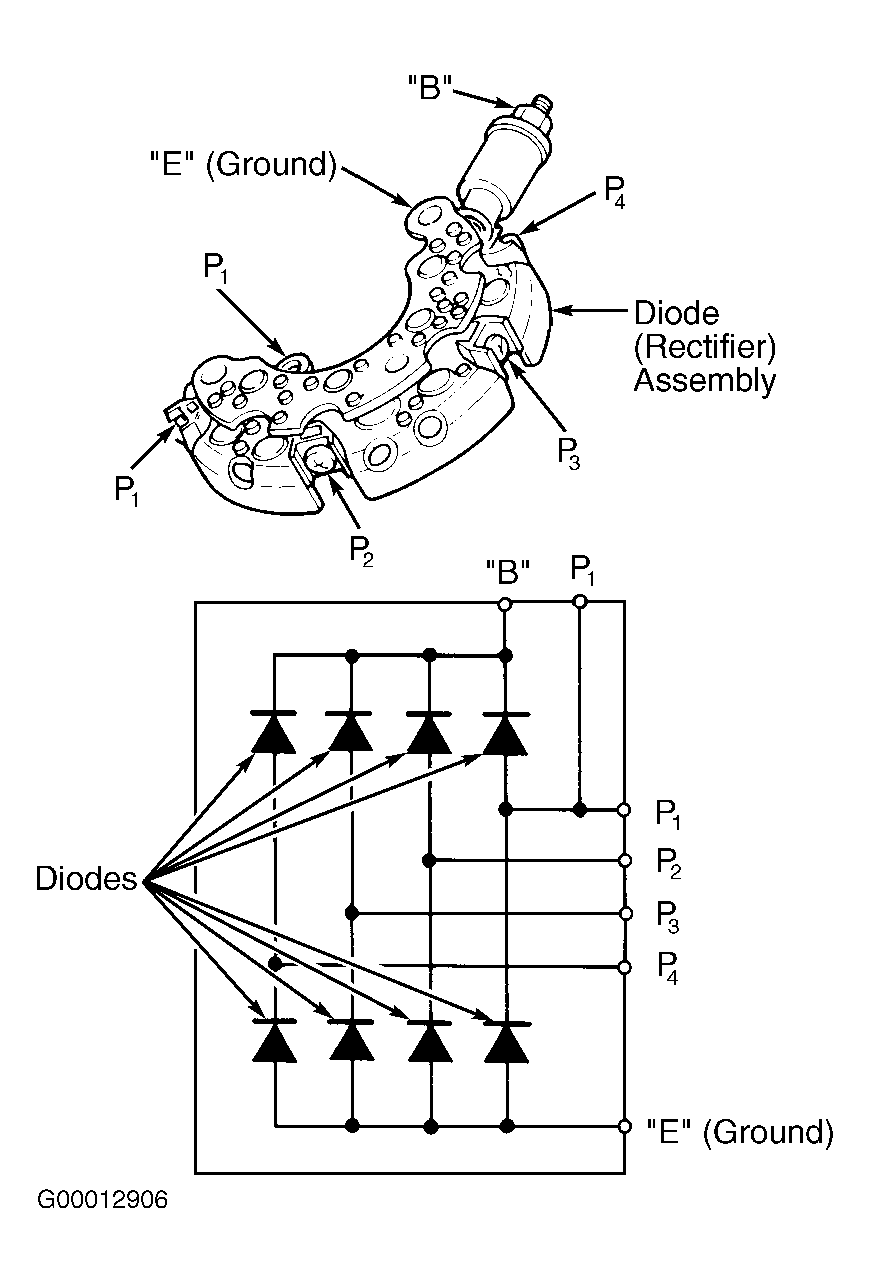

Fig 1: Testing Diode (Rectifier) Assembly (Typical)
G00012906Courtesy of AMERICAN HONDA MOTOR CO., INC.
