Vacuum Diagrams: Introduction

This article contains underhood views or schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection in BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses, which cause driveability and/or computer-indicated malfunctions.

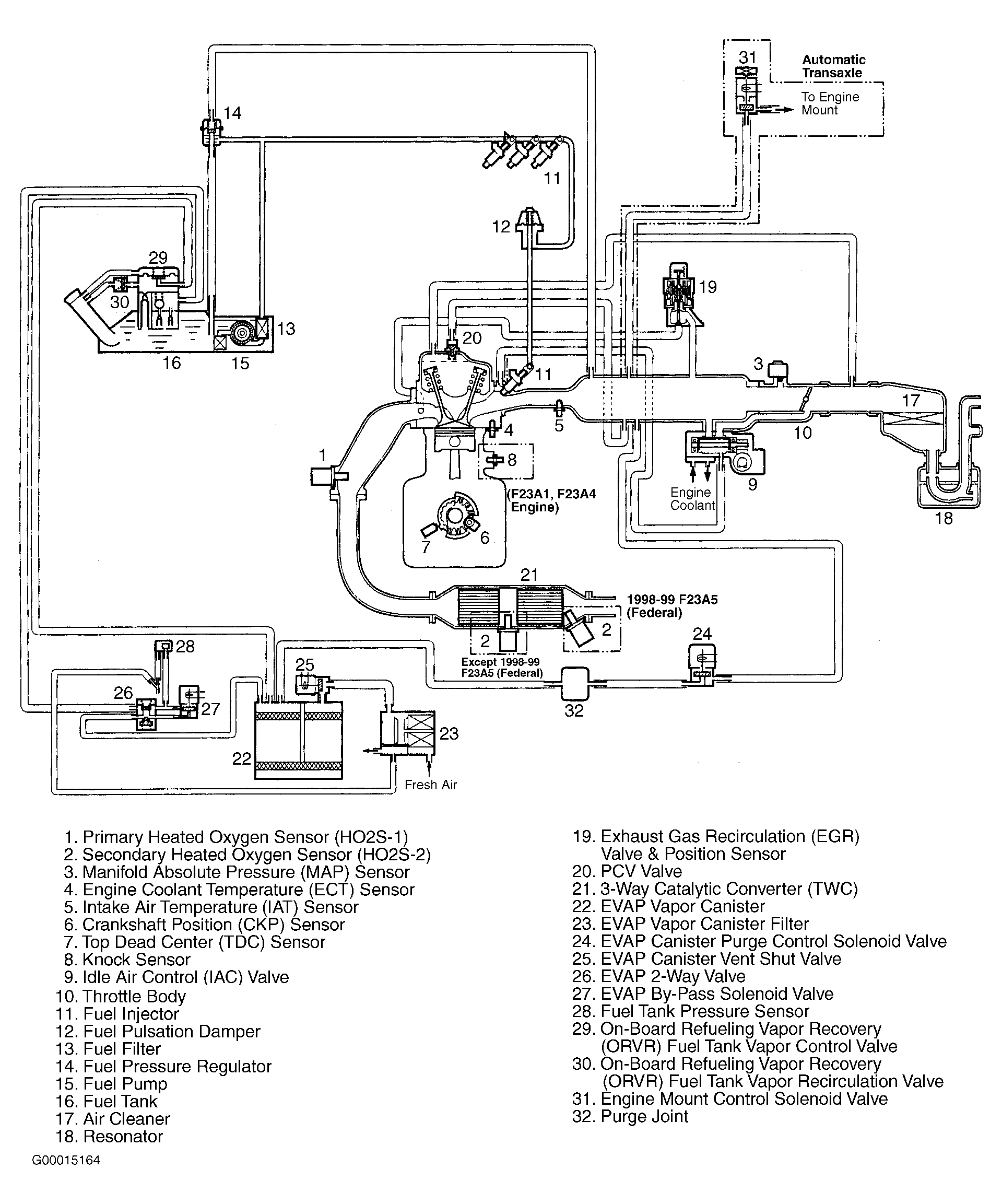

Fig 1: Vacuum Diagram (Accord 2.3L)

G00015164

Courtesy of AMERICAN HONDA MOTOR CO., INC.

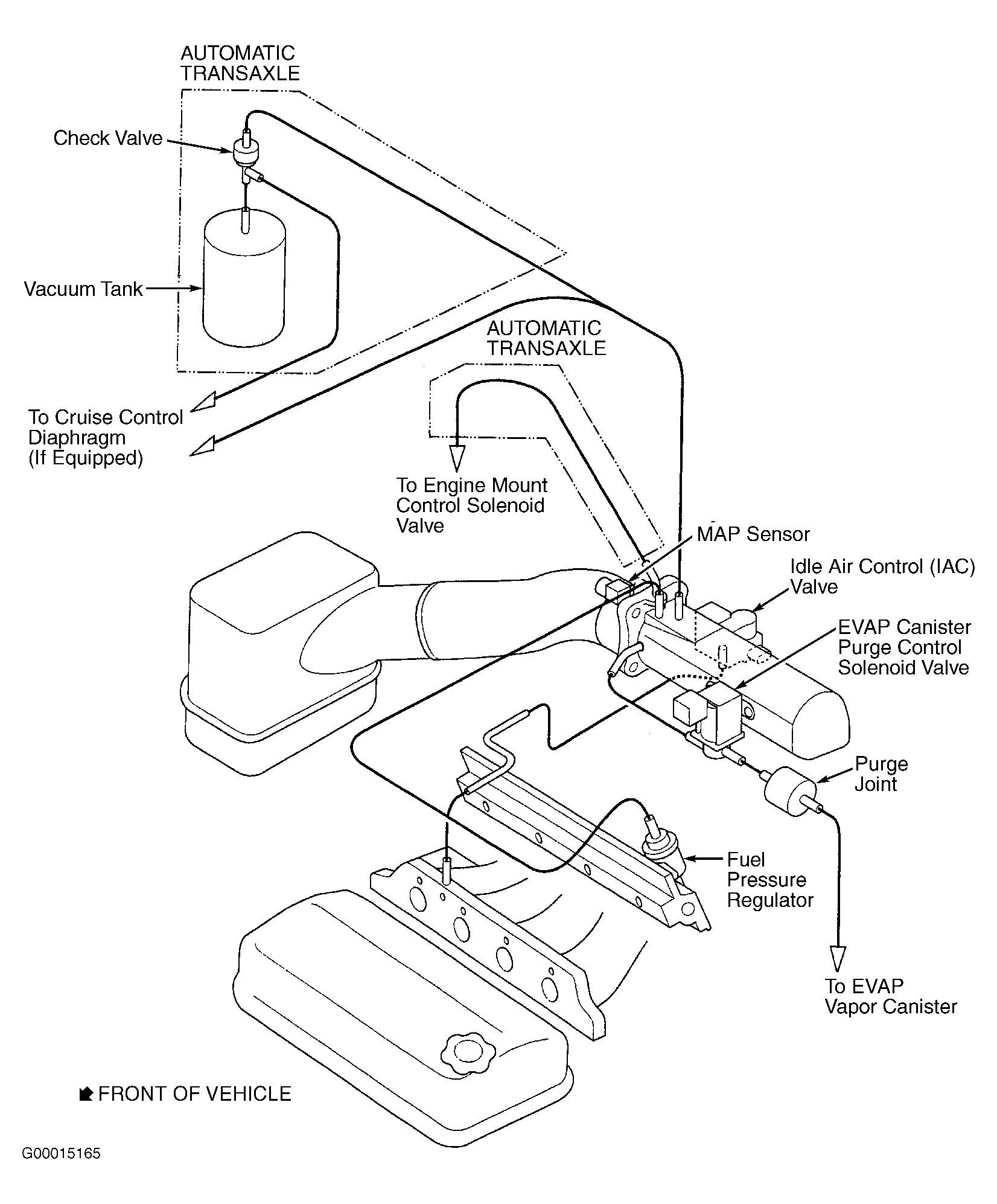

Fig 2: Vacuum Hose Routing (Accord 2.3L)

G00015165

Courtesy of AMERICAN HONDA MOTOR CO., INC.

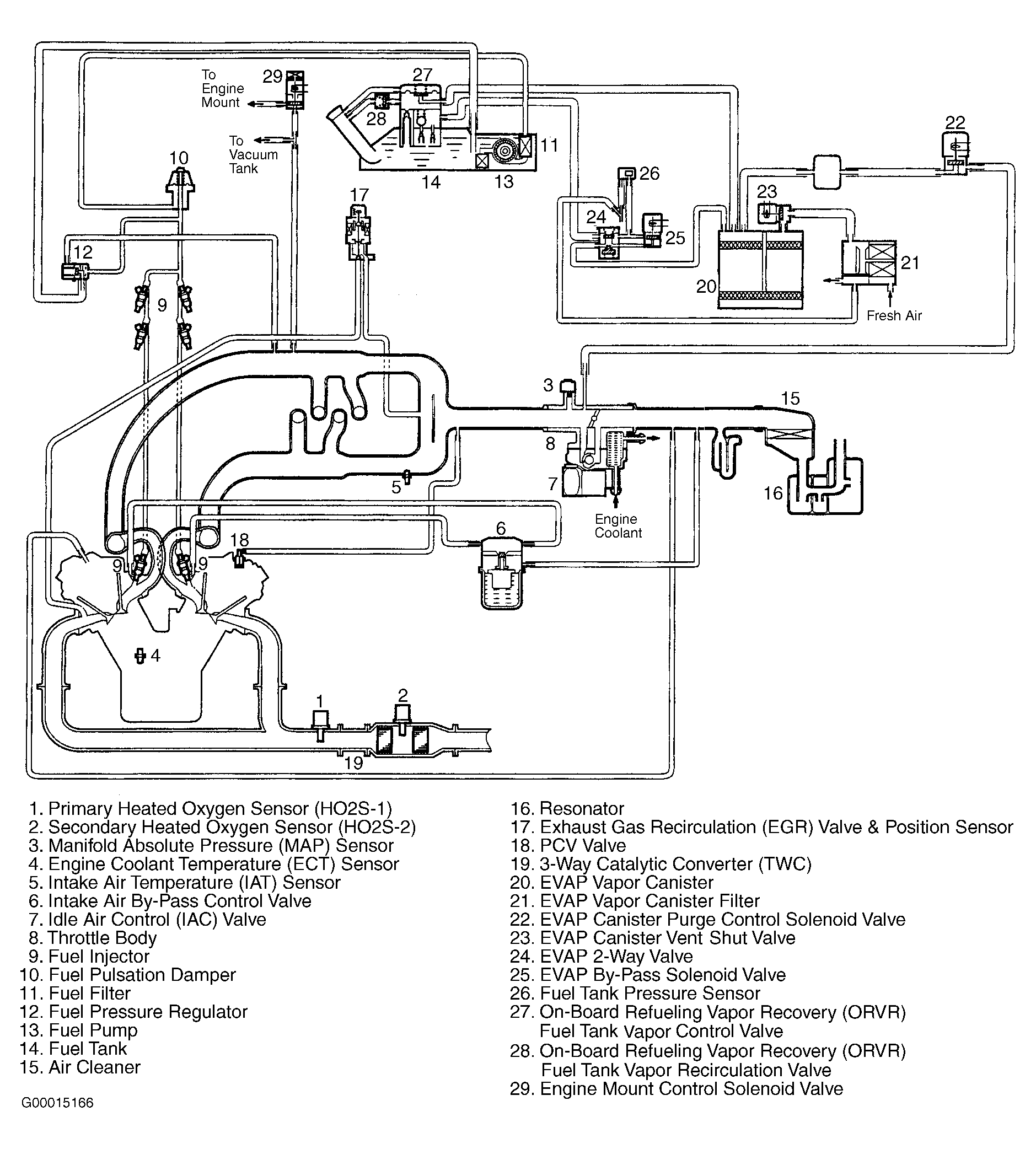

Fig 3: Vacuum Diagram (Accord 3.0L)

G00015166

Courtesy of AMERICAN HONDA MOTOR CO., INC.

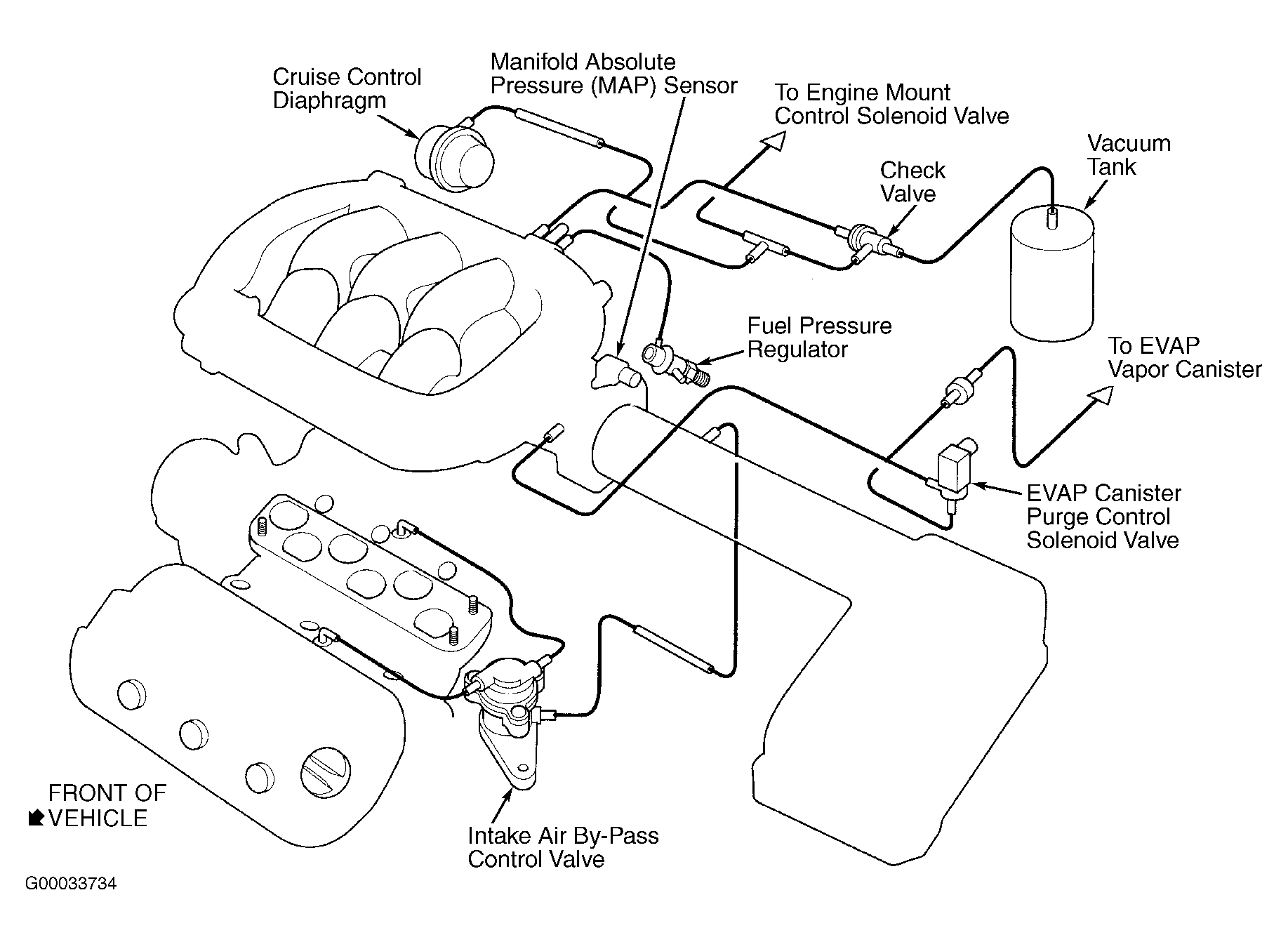

Fig 4: Vacuum Hose Routing (Accord 3.0L)

G00033734

Courtesy of AMERICAN HONDA MOTOR CO., INC.

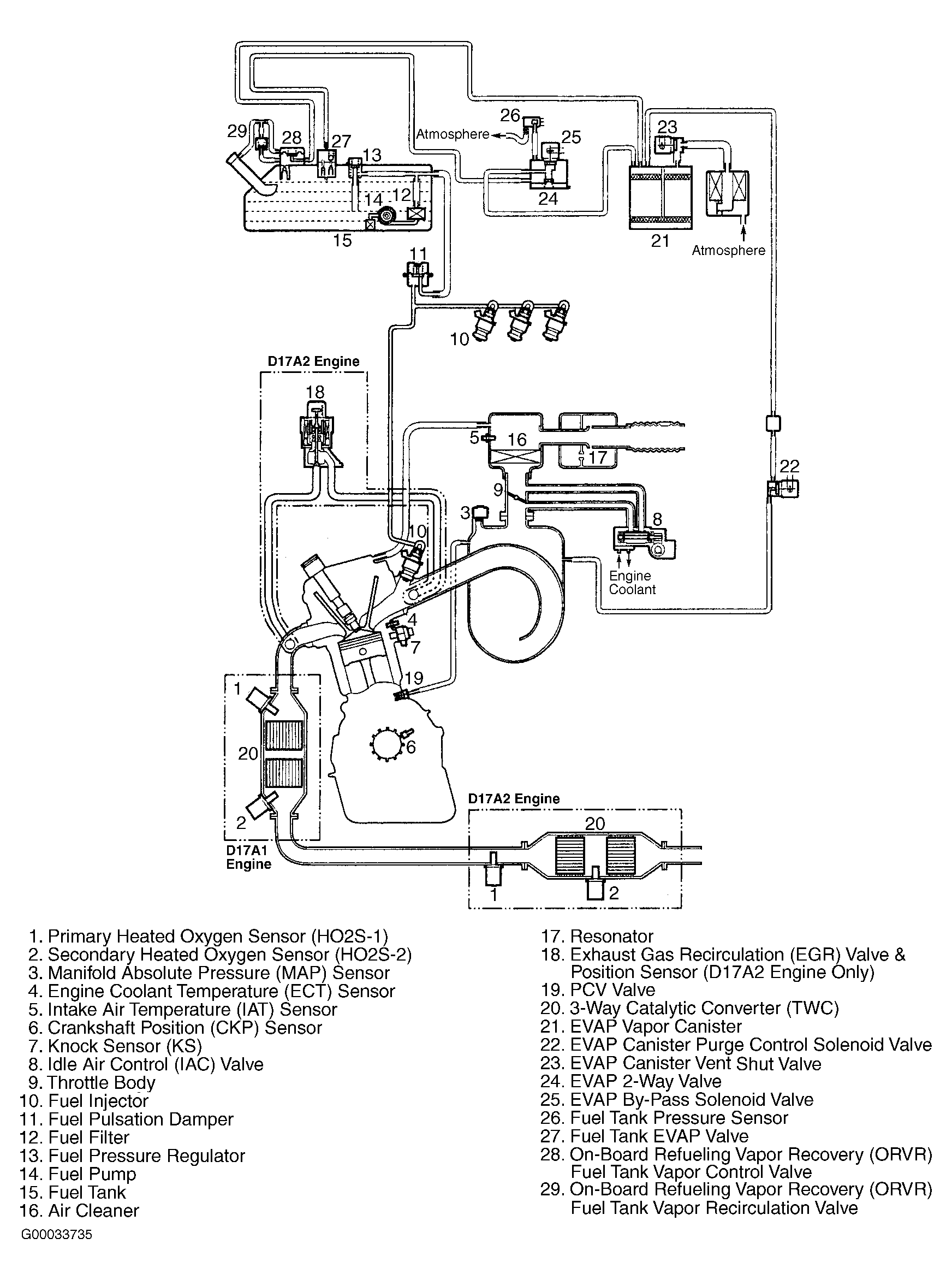

Fig 5: Vacuum Diagram (Civic 1.7L)

G00033735

Courtesy of AMERICAN HONDA MOTOR CO., INC.

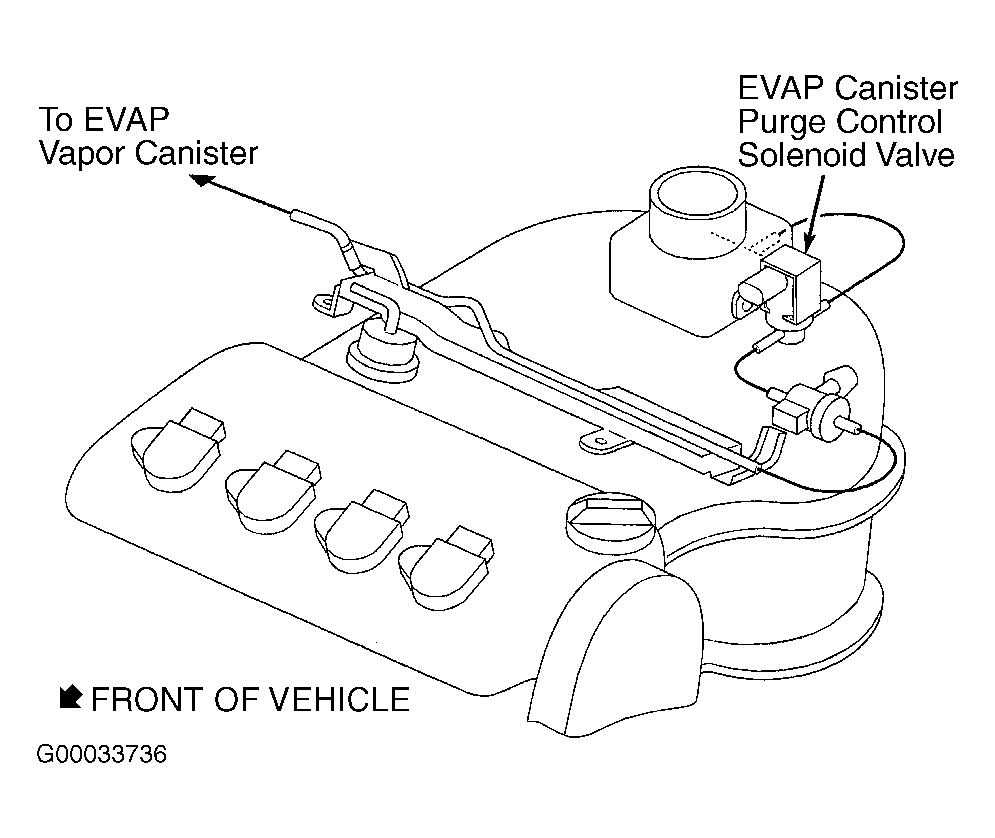

Fig 6: Vacuum Hose Routing (Civic 1.7L)

G00033736

Courtesy of AMERICAN HONDA MOTOR CO., INC.

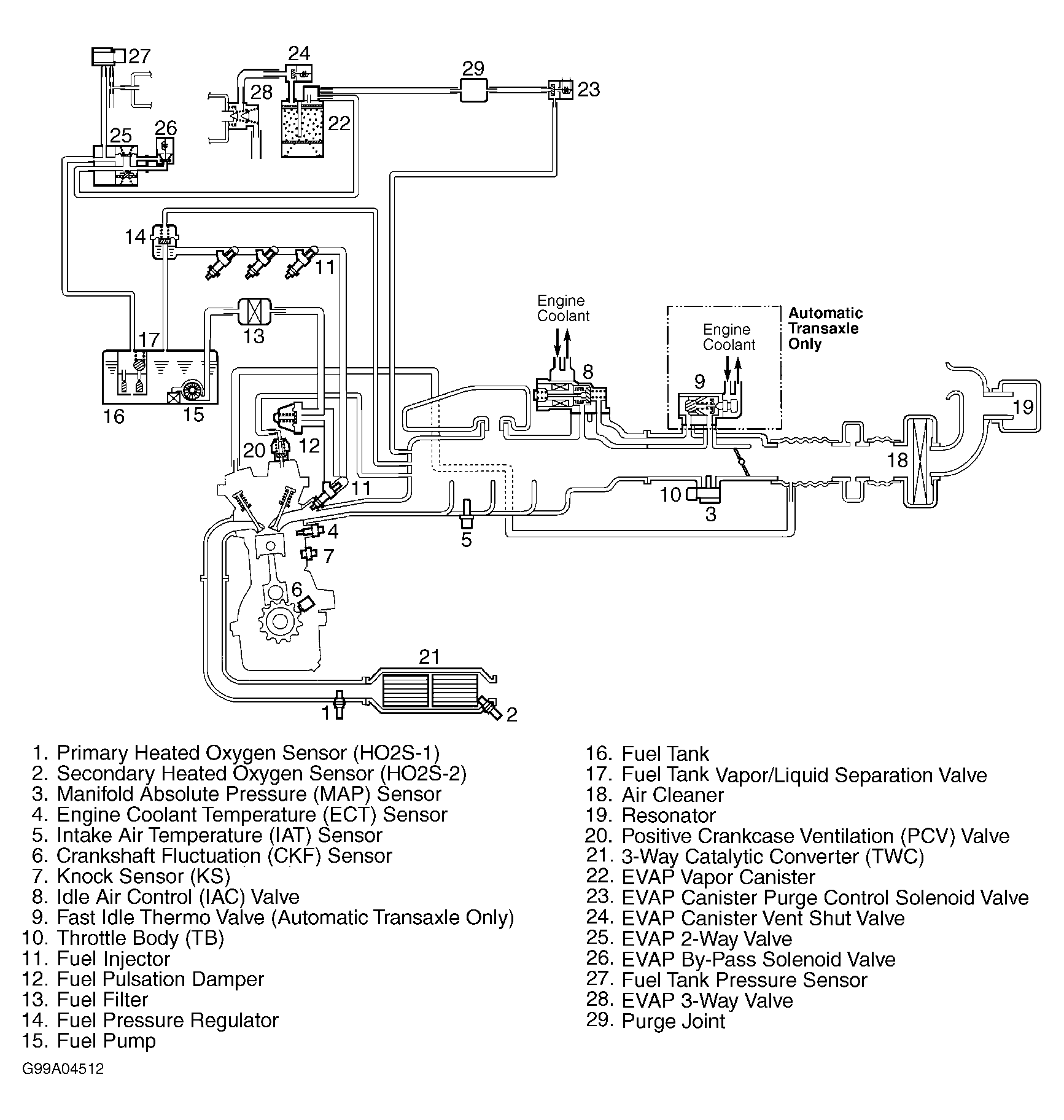

Fig 7: Vacuum Diagram (CR-V)

G99A04512

Courtesy of AMERICAN HONDA MOTOR CO., INC.

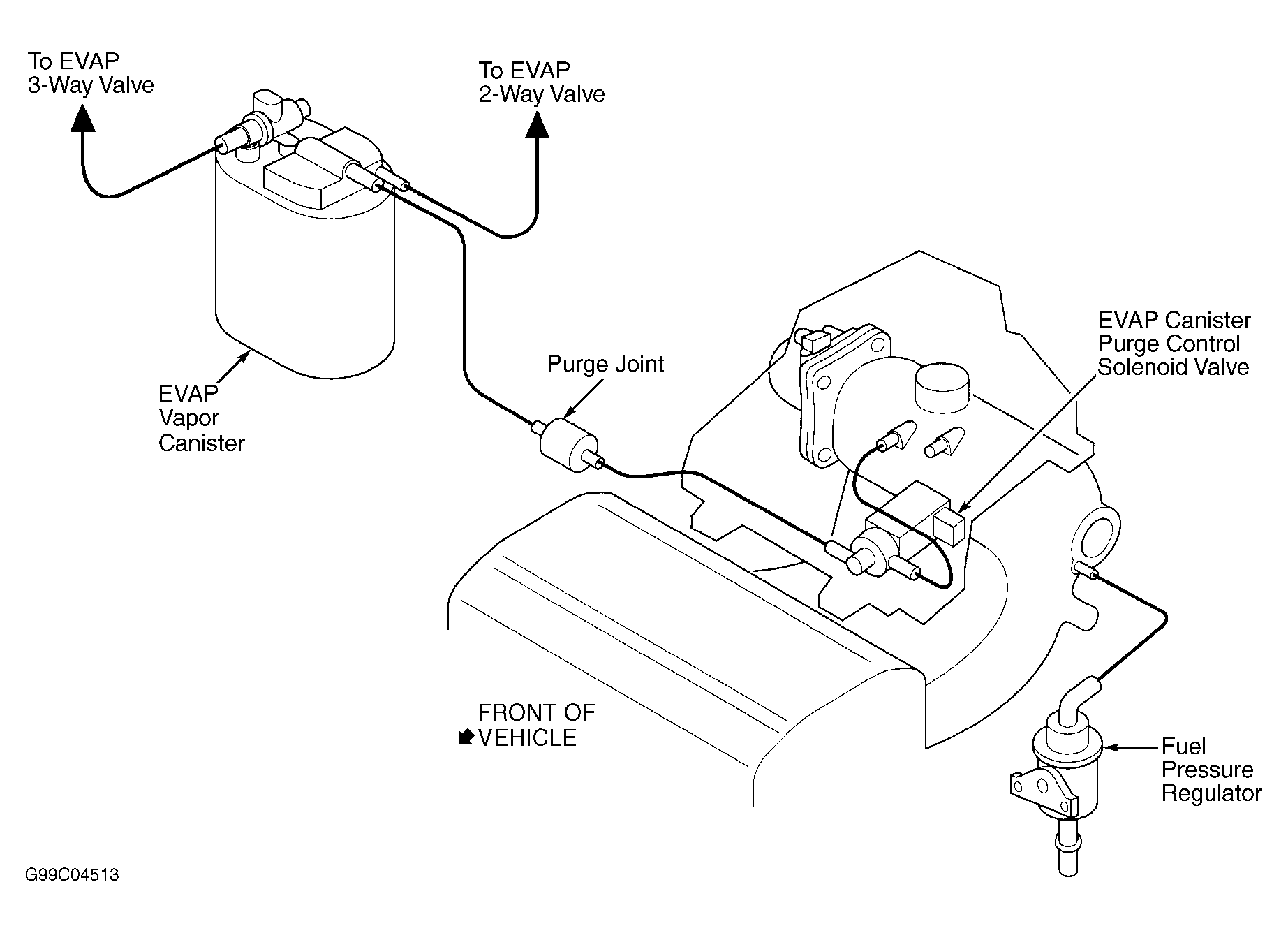

Fig 8: Vacuum Hose Routing (CR-V)

G99C04513

Courtesy of AMERICAN HONDA MOTOR CO., INC.

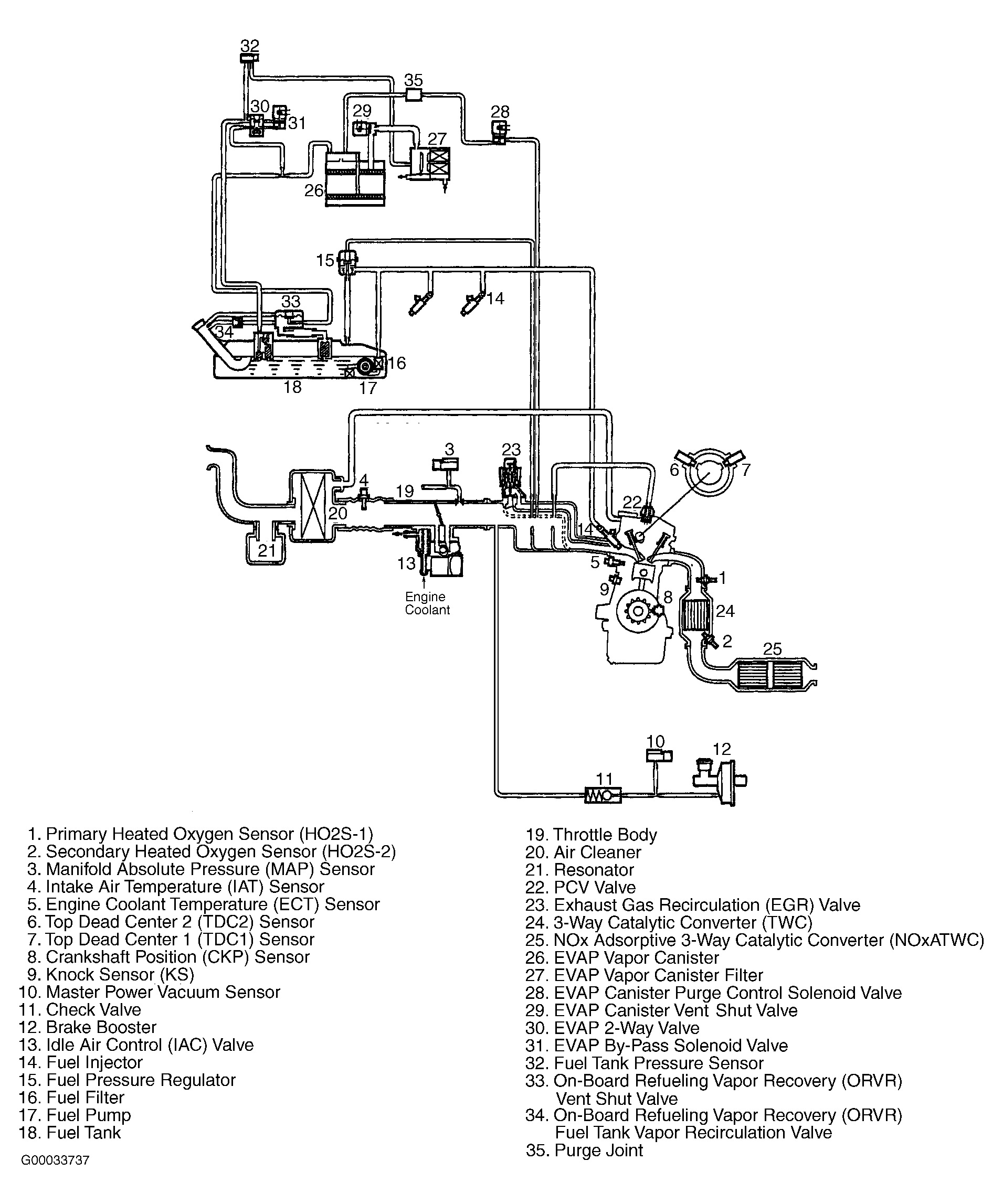

Fig 9: Vacuum Diagram (2000 & 2001 Insight 1.0L)

G00033737

Courtesy of AMERICAN HONDA MOTOR CO., INC.

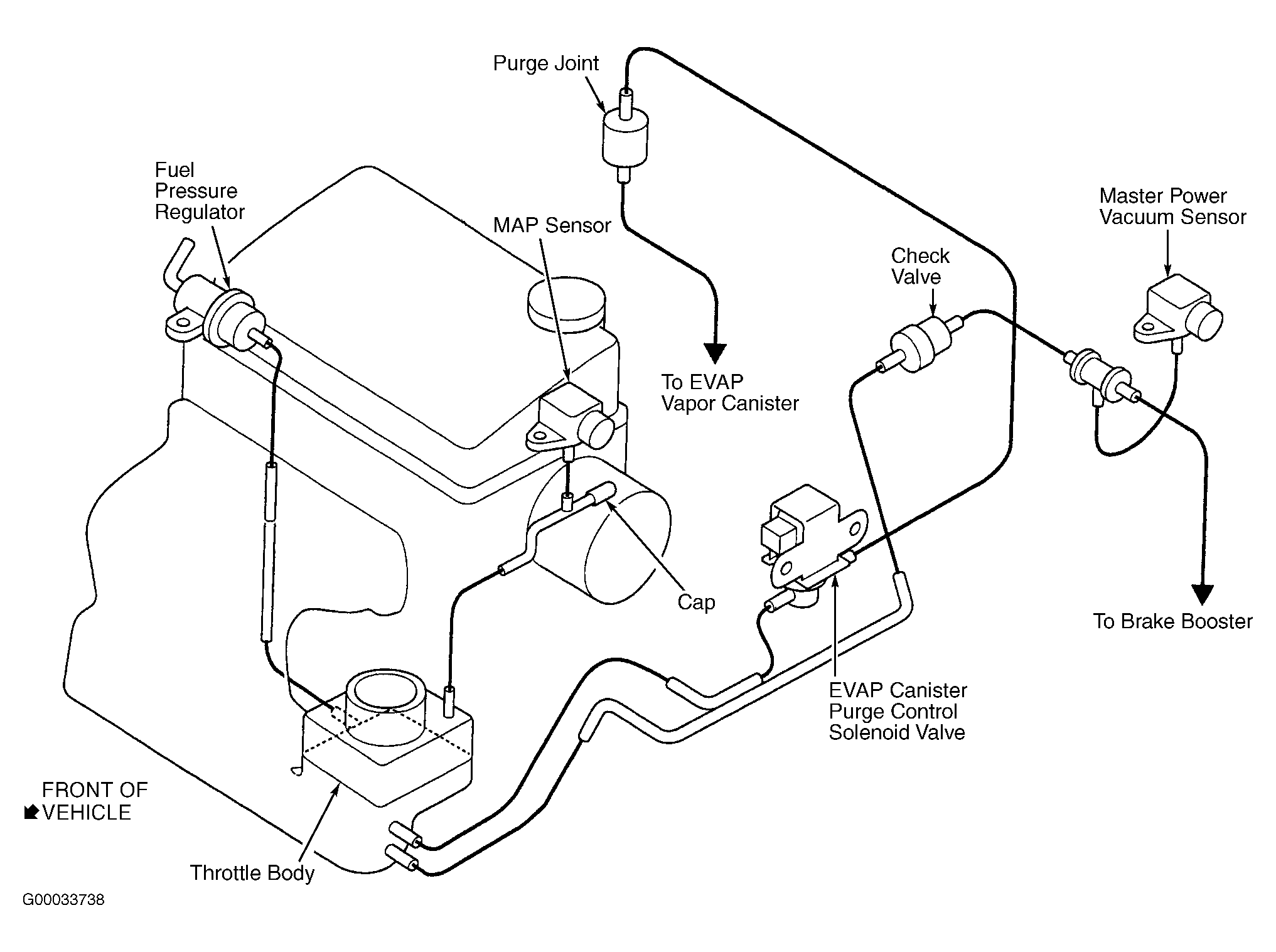

Fig 10: Vacuum Hose Routing (2000 & 2001 Insight 1.0L)

G00033738

Courtesy of AMERICAN HONDA MOTOR CO., INC.

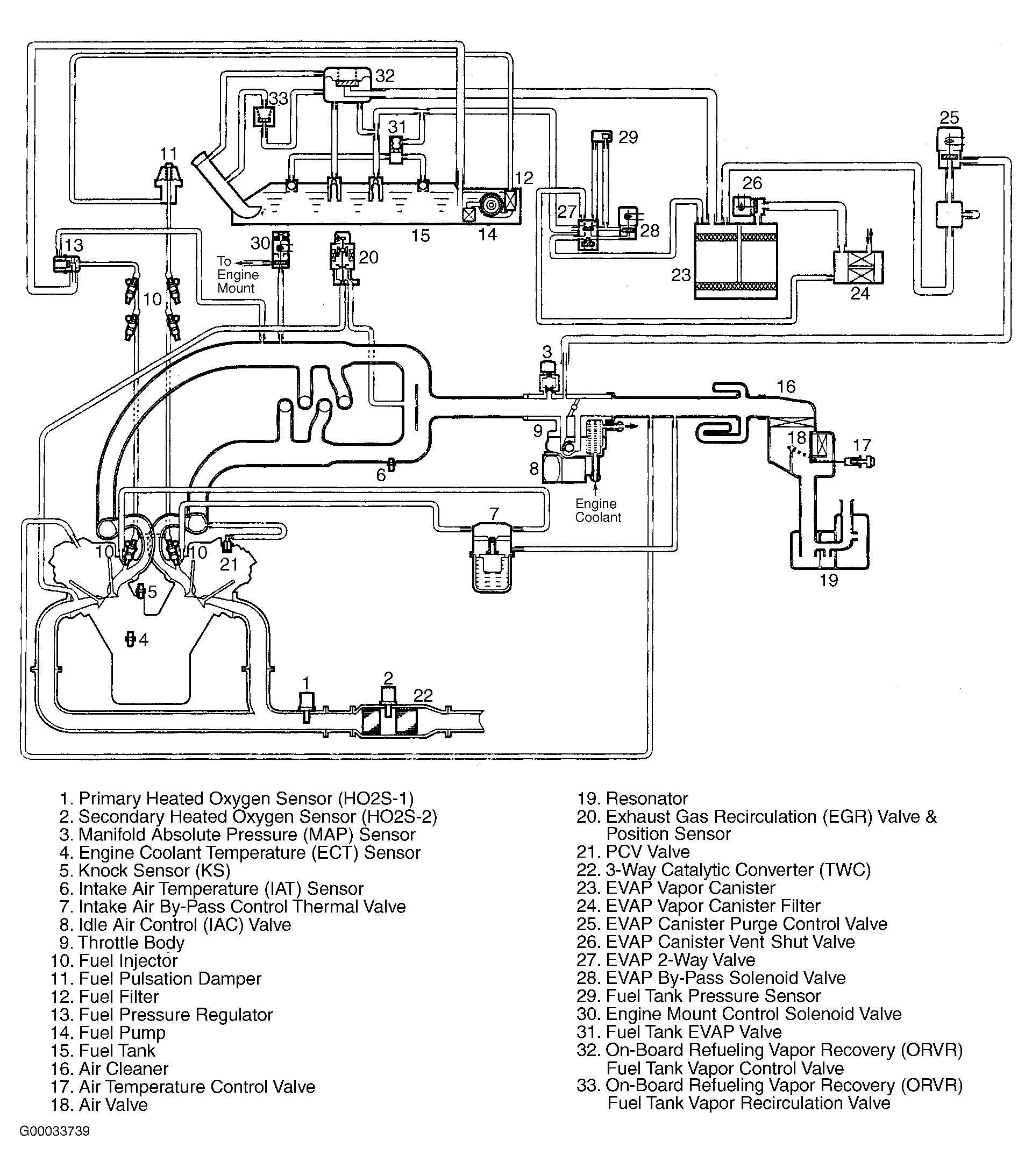

Fig 11: Vacuum Diagram (Odyssey)

G00033739

Courtesy of AMERICAN HONDA MOTOR CO., INC.

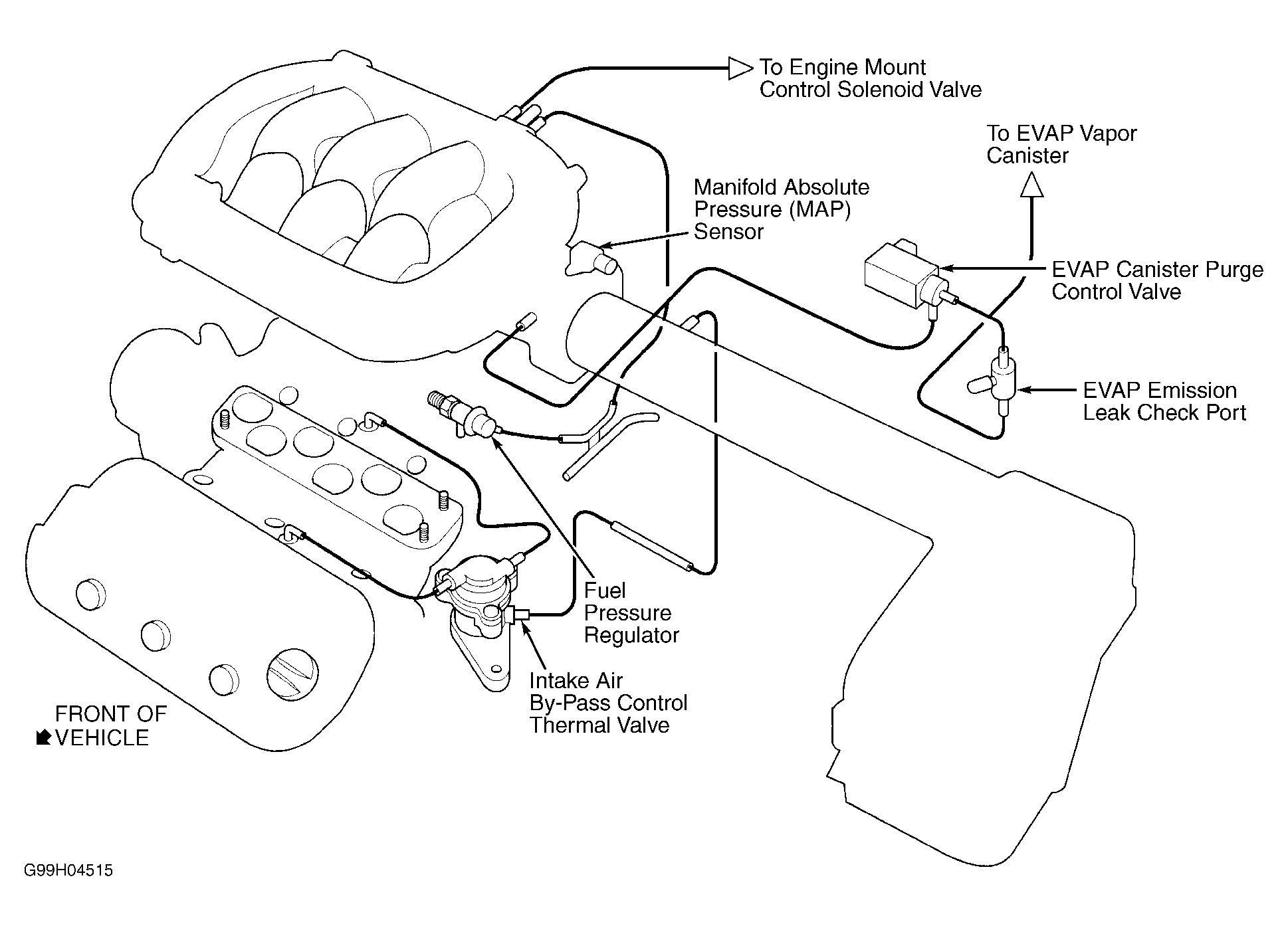

Fig 12: Vacuum Hose Routing (Odyssey)

G99H04515

Courtesy of AMERICAN HONDA MOTOR CO., INC.

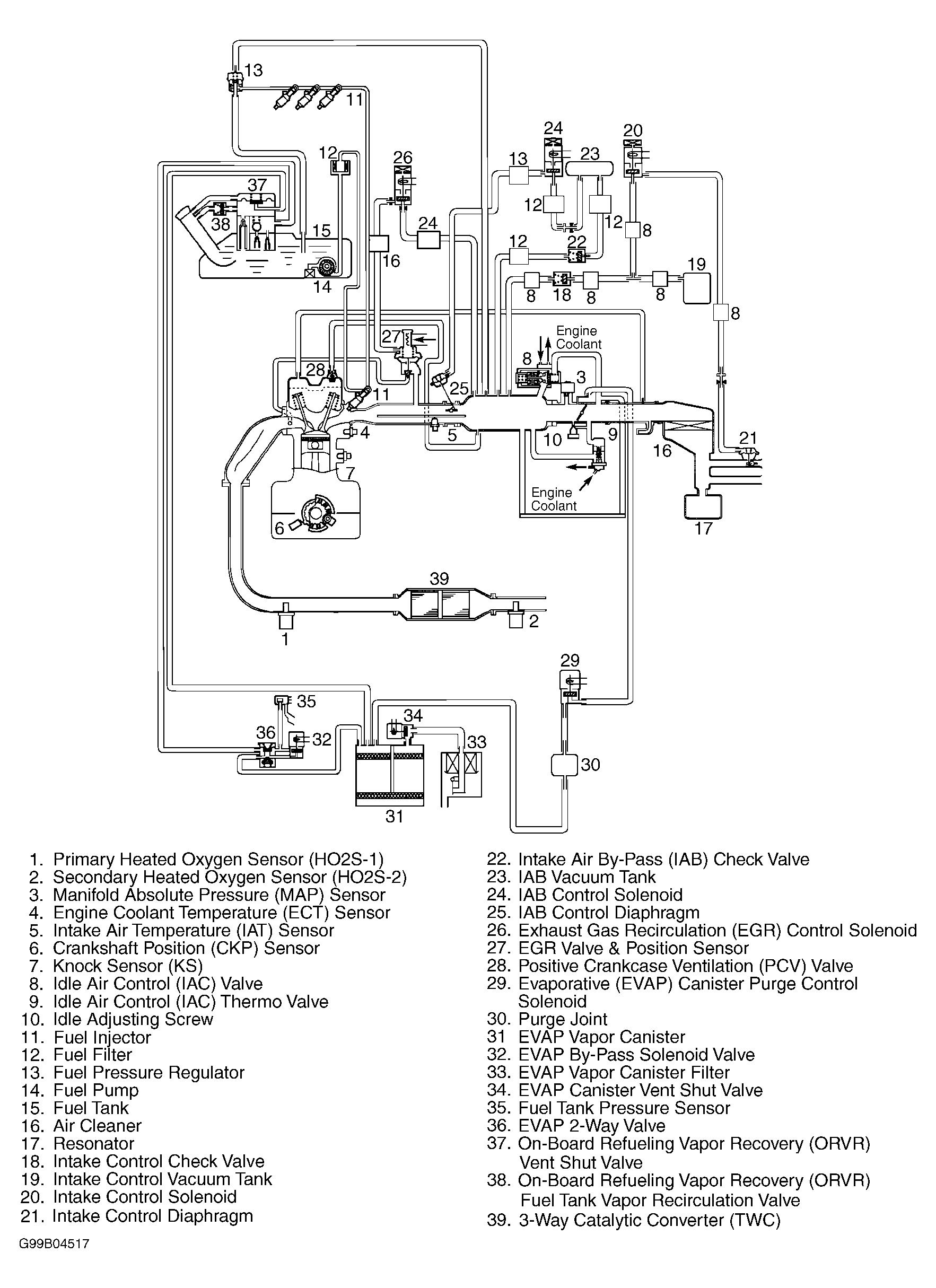

Fig 13: Vacuum Diagram (Prelude)

G99B04517

Courtesy of AMERICAN HONDA MOTOR CO., INC.

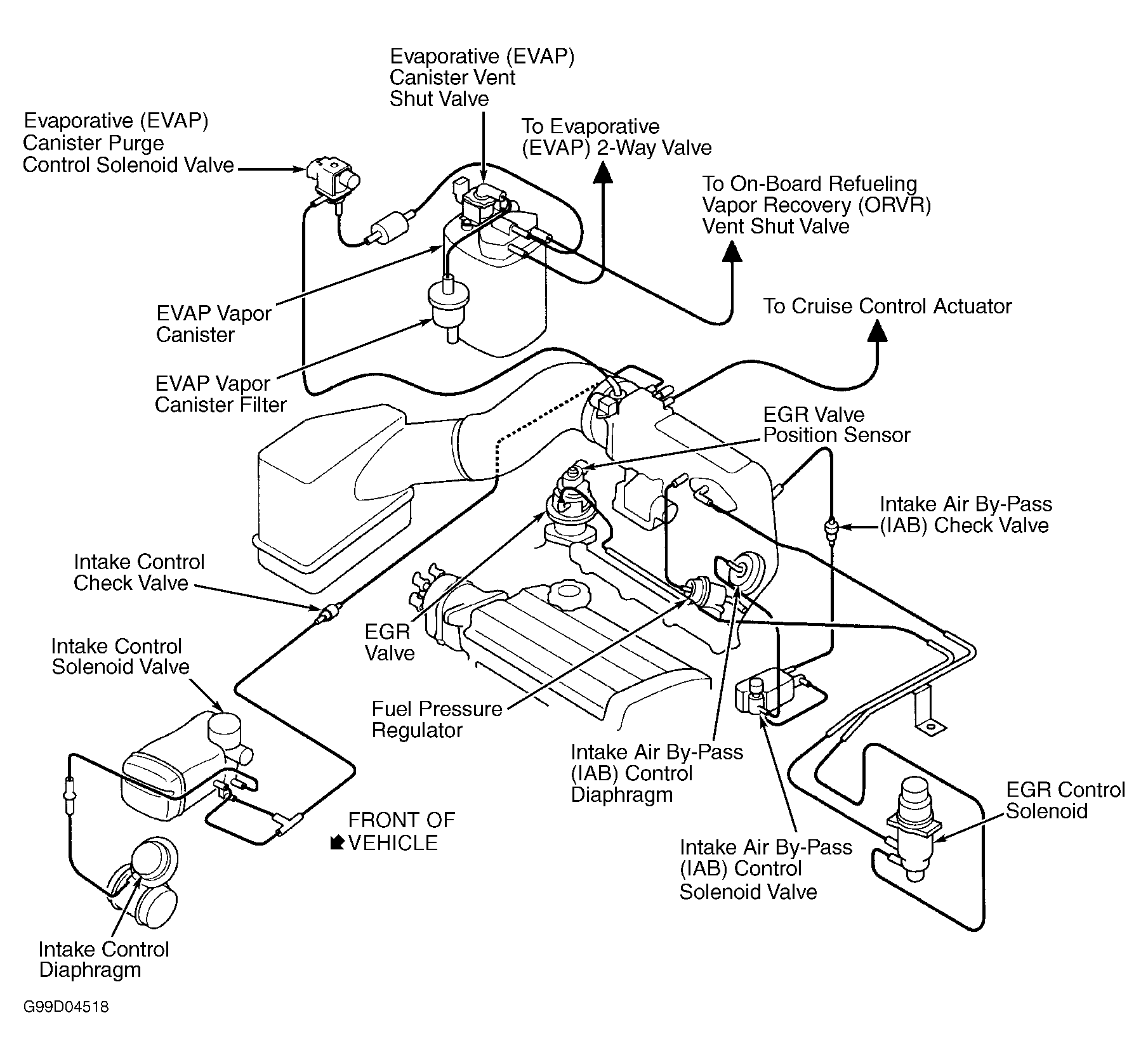

Fig 14: Vacuum Hose Routing (Prelude)

G99D04518

Courtesy of AMERICAN HONDA MOTOR CO., INC.

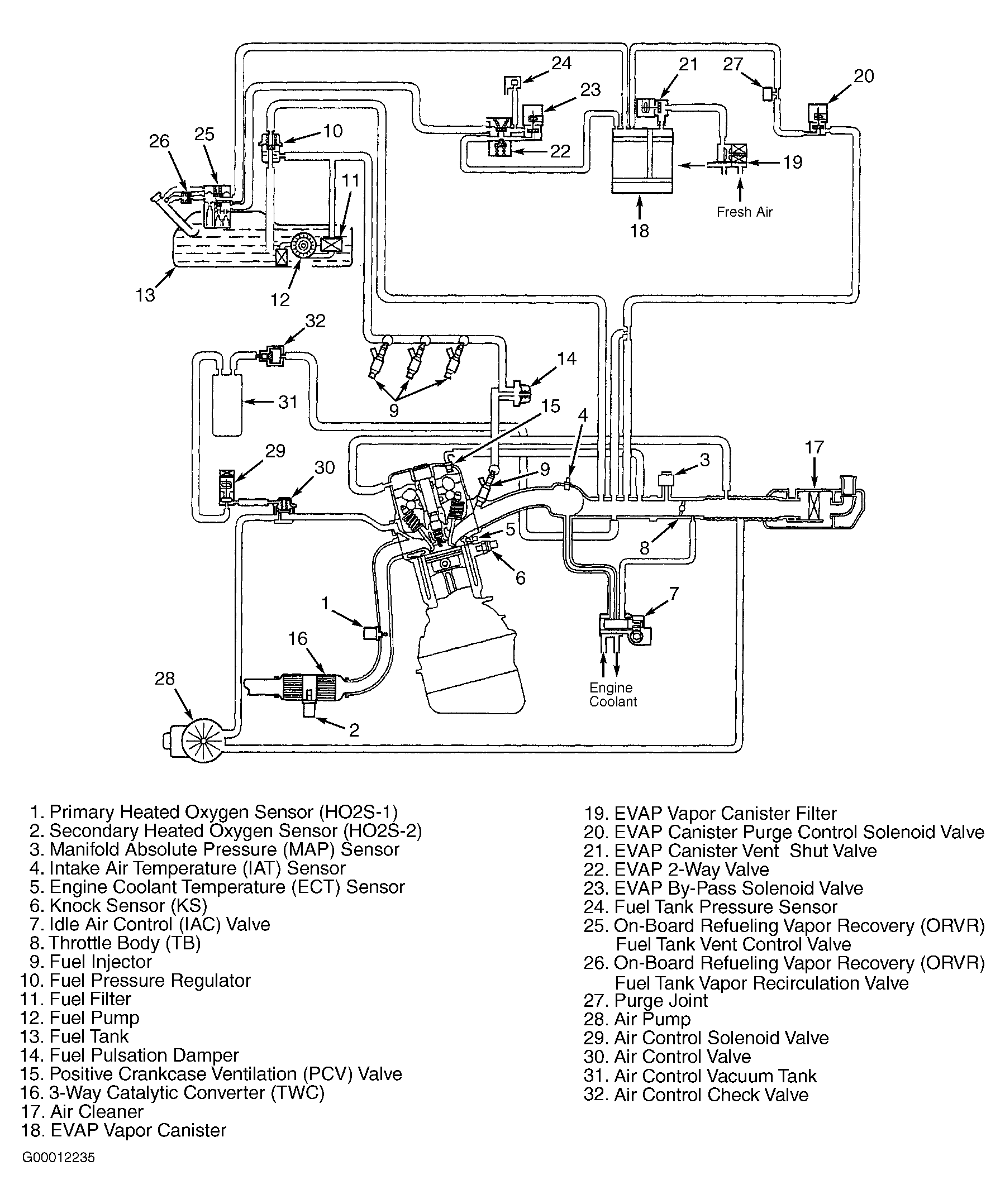

Fig 15: Vacuum Diagram (S2000)

G00012235

Courtesy of AMERICAN HONDA MOTOR CO., INC.

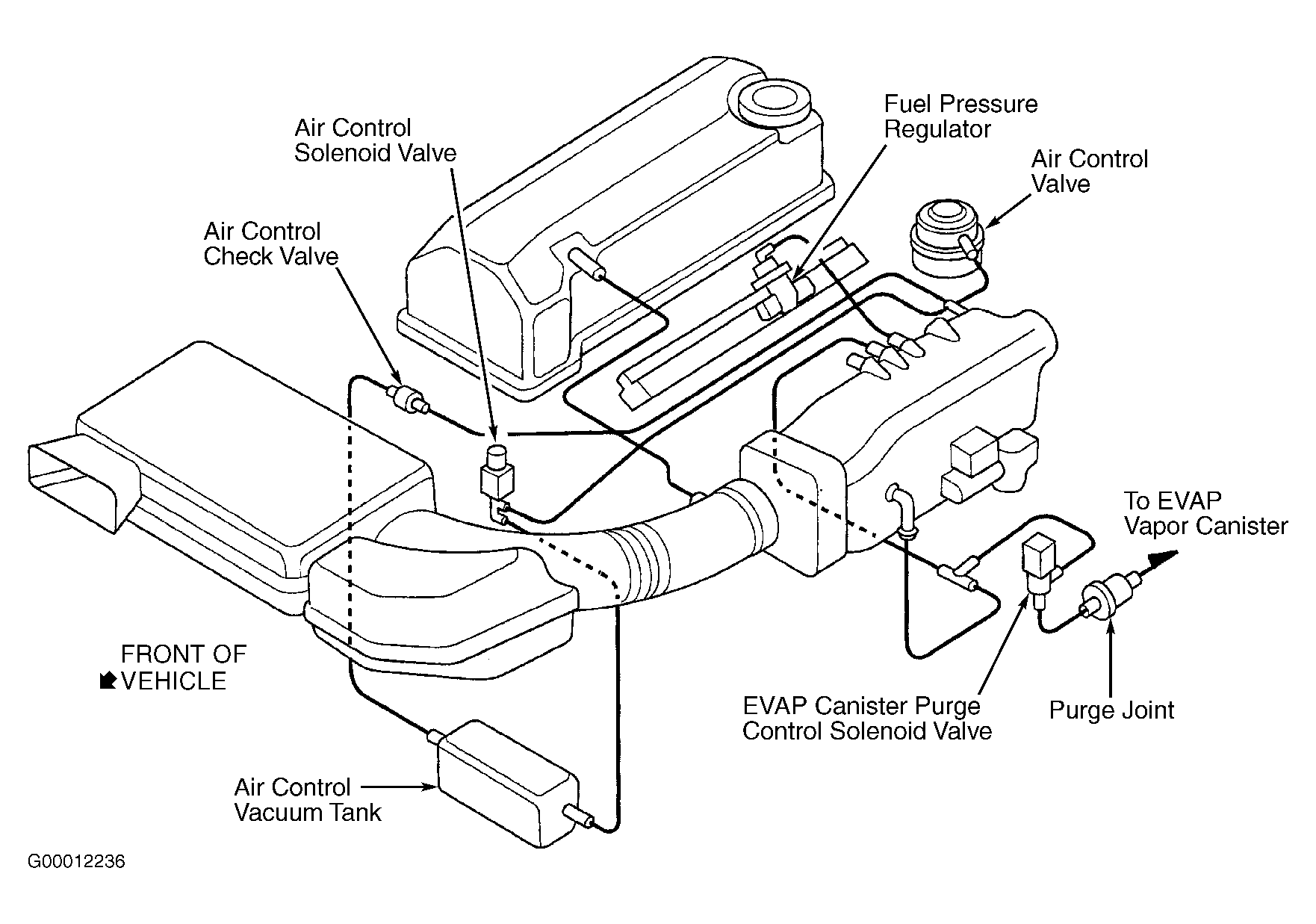

Fig 16: Vacuum Hose Routing (S2000)

G00012236

Courtesy of AMERICAN HONDA MOTOR CO., INC.
