Toe-In Adjustment: Insight

  1. Secure steering wheel in straight-ahead position. Check rear wheel toe-in. See WHEEL ALIGNMENT SPECIFICATIONS  . If rear toe-in is not within specification, check for bent or damaged suspension components. Replace faulty components. Recheck rear toe-in.
  2. Measure front toe-in. See WHEEL ALIGNMENT SPECIFICATIONS  . If adjustment is needed, loosen inner tie rod lock nut, then loosen outer tie rod lock nut while holding tie rod end. See Fig 1 .

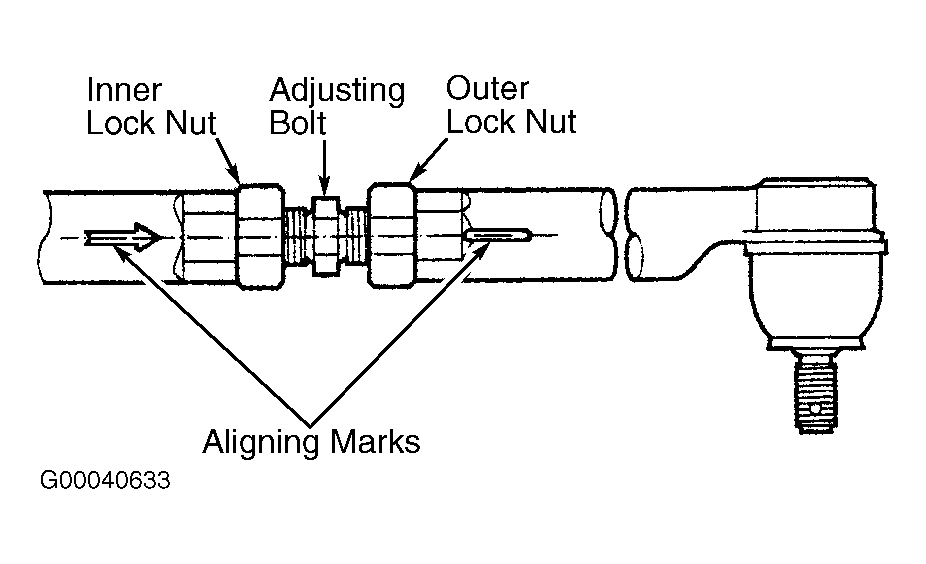

    Fig 1: Adjusting Front Toe-In (Insight)
    G00040633Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Adjust front toe-in by rotating adjusting nut until front toe-in is correct. Tighten inner and outer tie rod lock nuts, ensure that aligning marks on tie rod end are aligned. Adjust position of tire rod end if necessary, ensure toe-in setting does not change. Tighten lock nuts to specification. See TORQUE SPECIFICATIONS  .
