Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

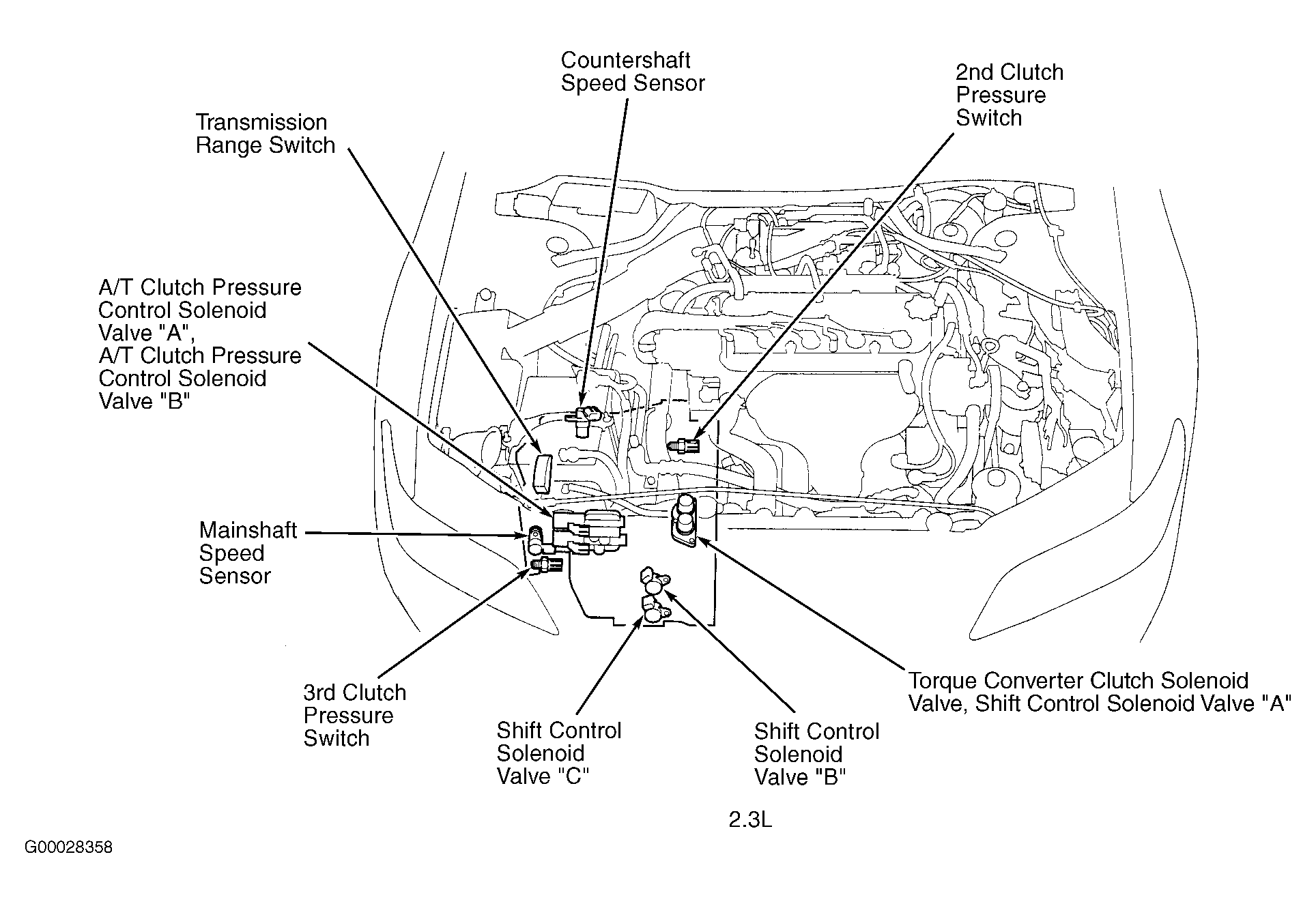

Fig 1: Engine Compartment (2.3L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Engine Knock Sensor (2.3L)

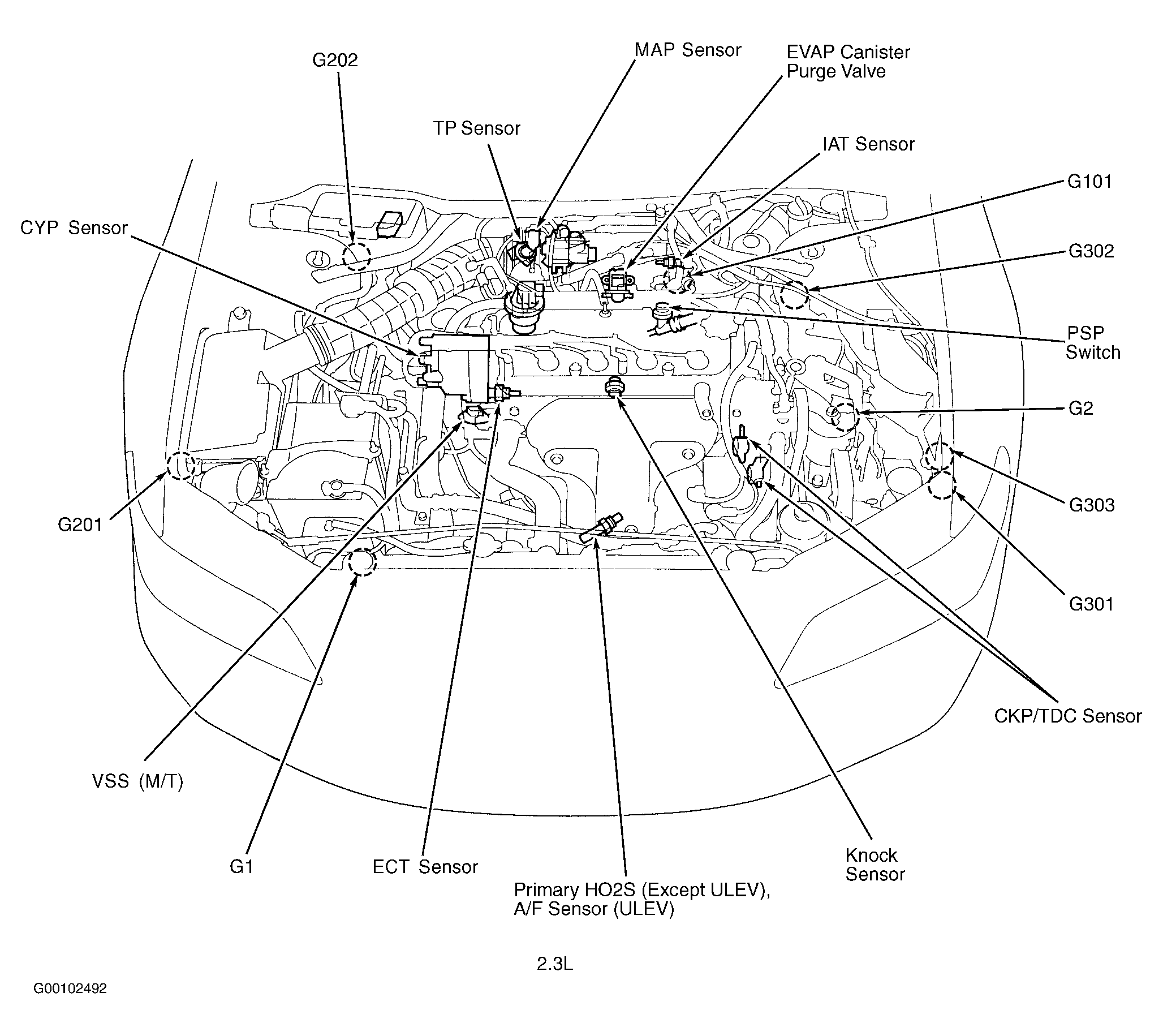

Fig 3: Engine Compartment (2.3L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

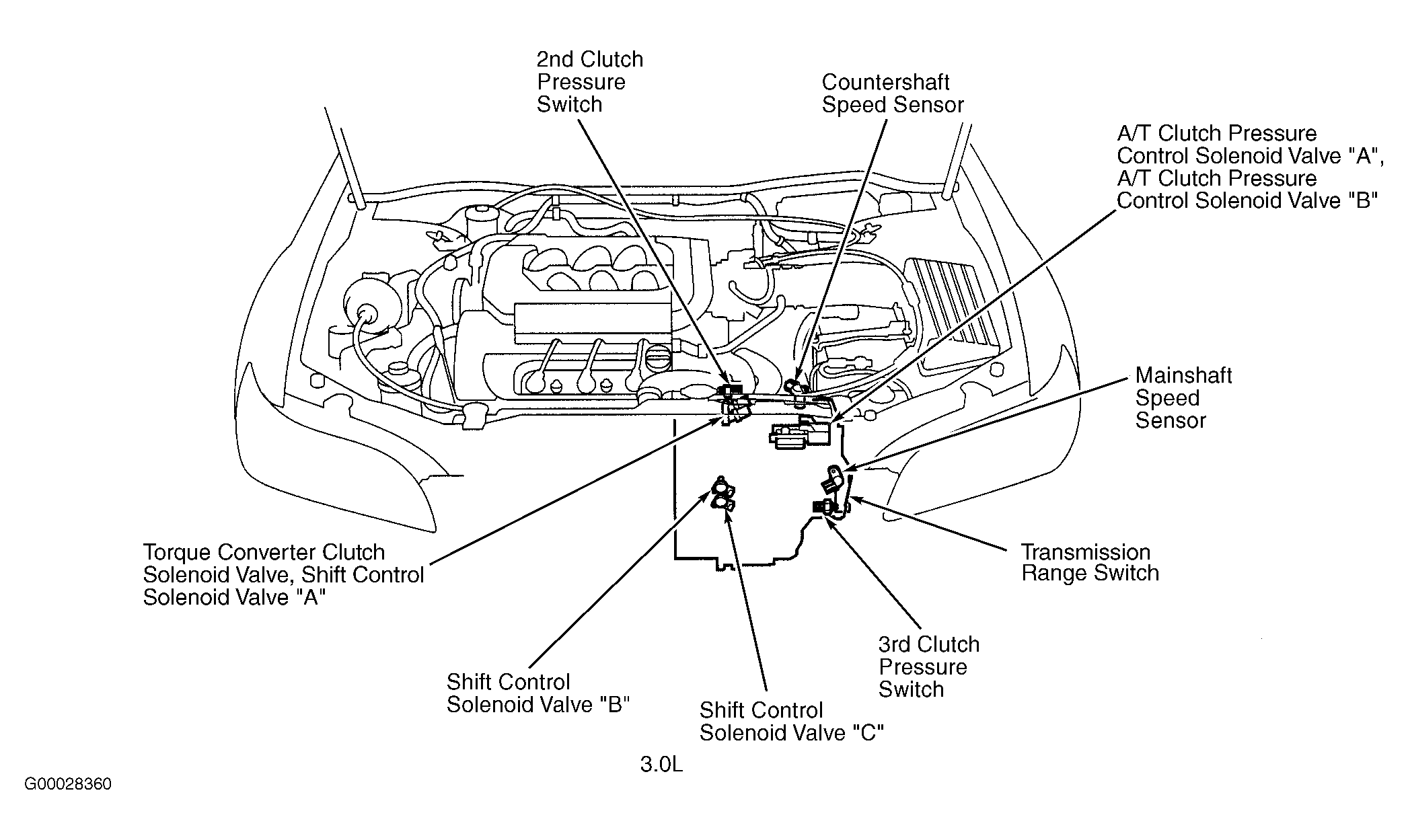

Fig 4: Engine Compartment (3.0L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

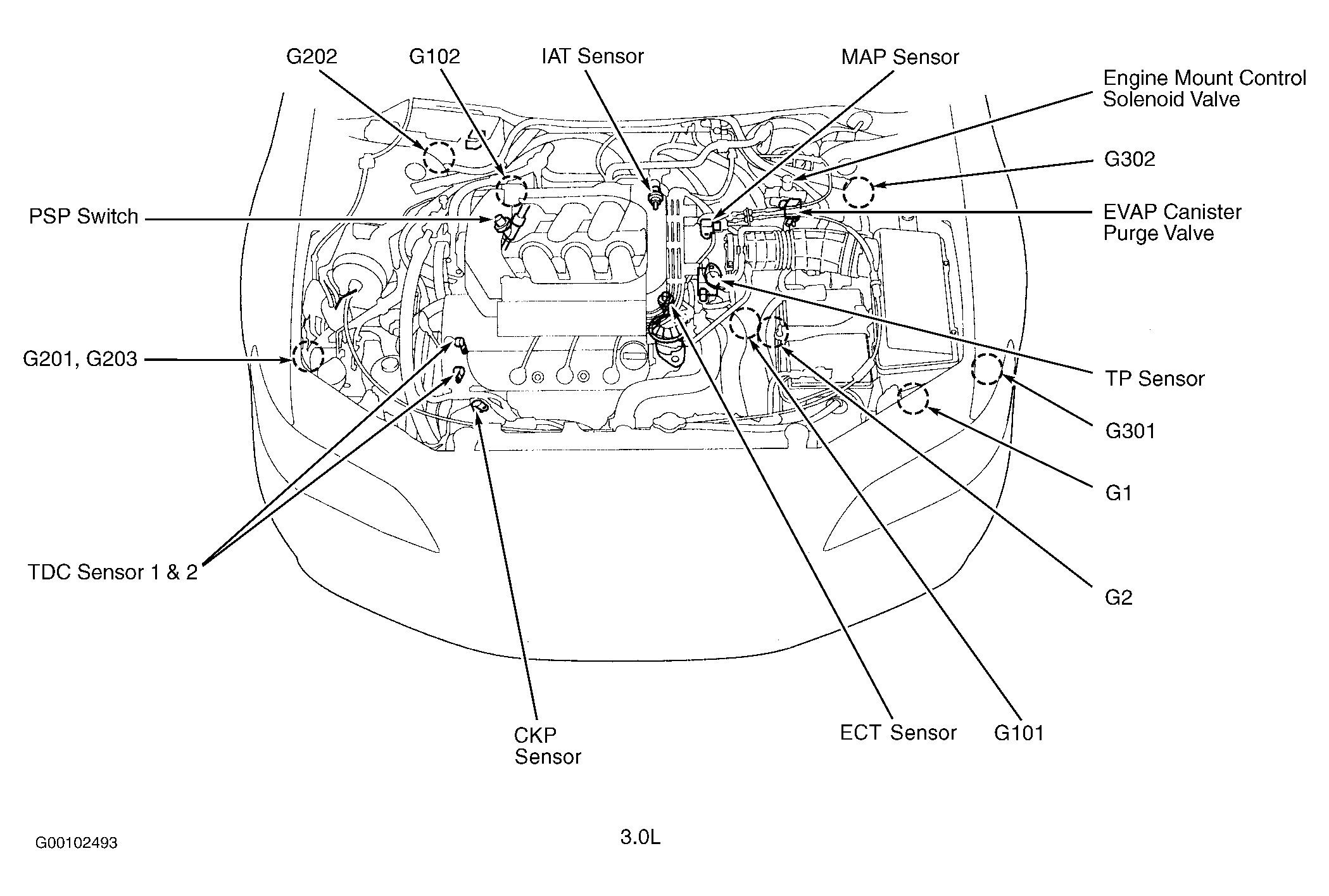

Fig 5: Engine Compartment (3.0L)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Right Side Of Dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Rear Of Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Left Side Of Dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.

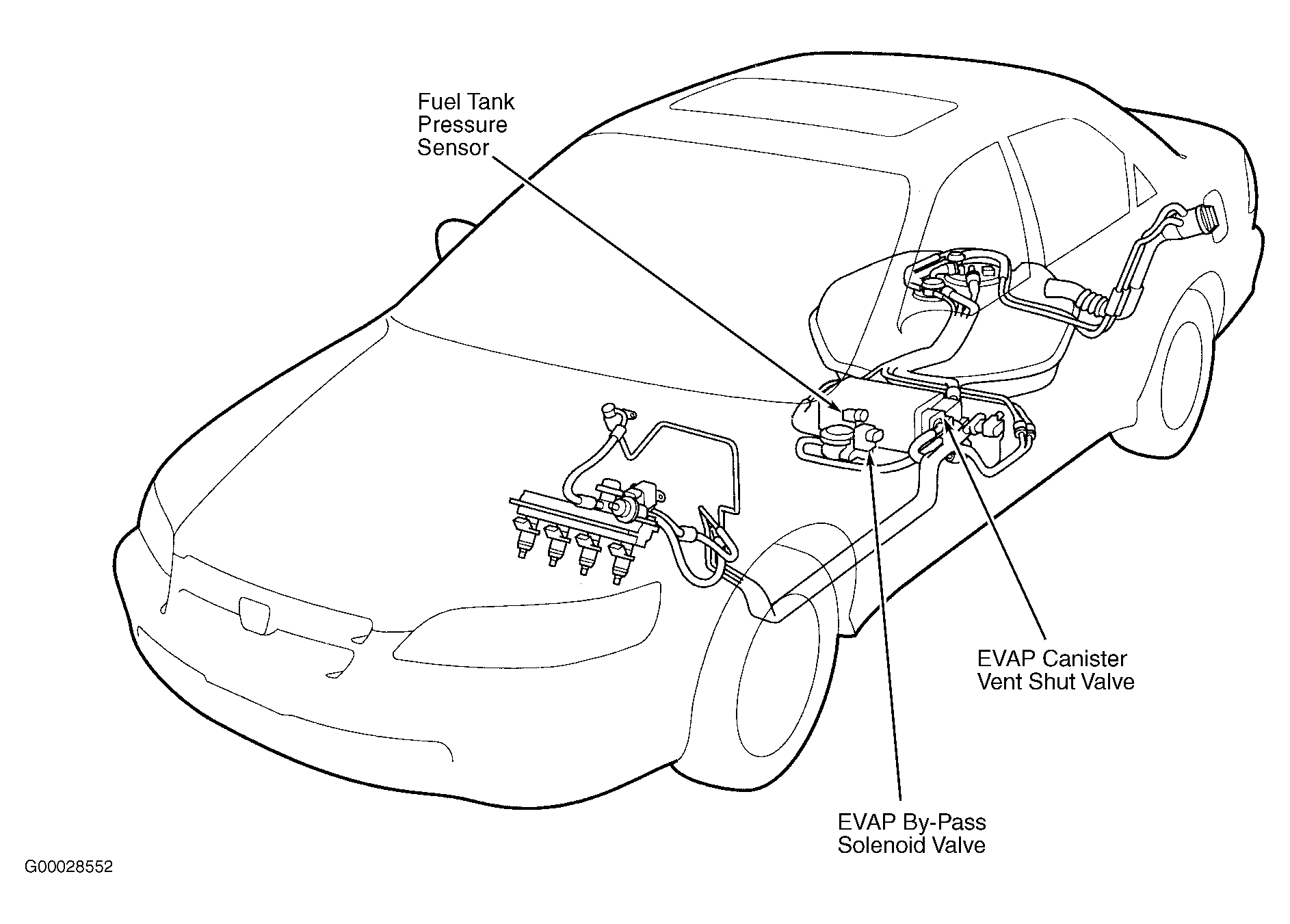

Fig 9: Vehicle Overview

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Behind lower Left dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.
