Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

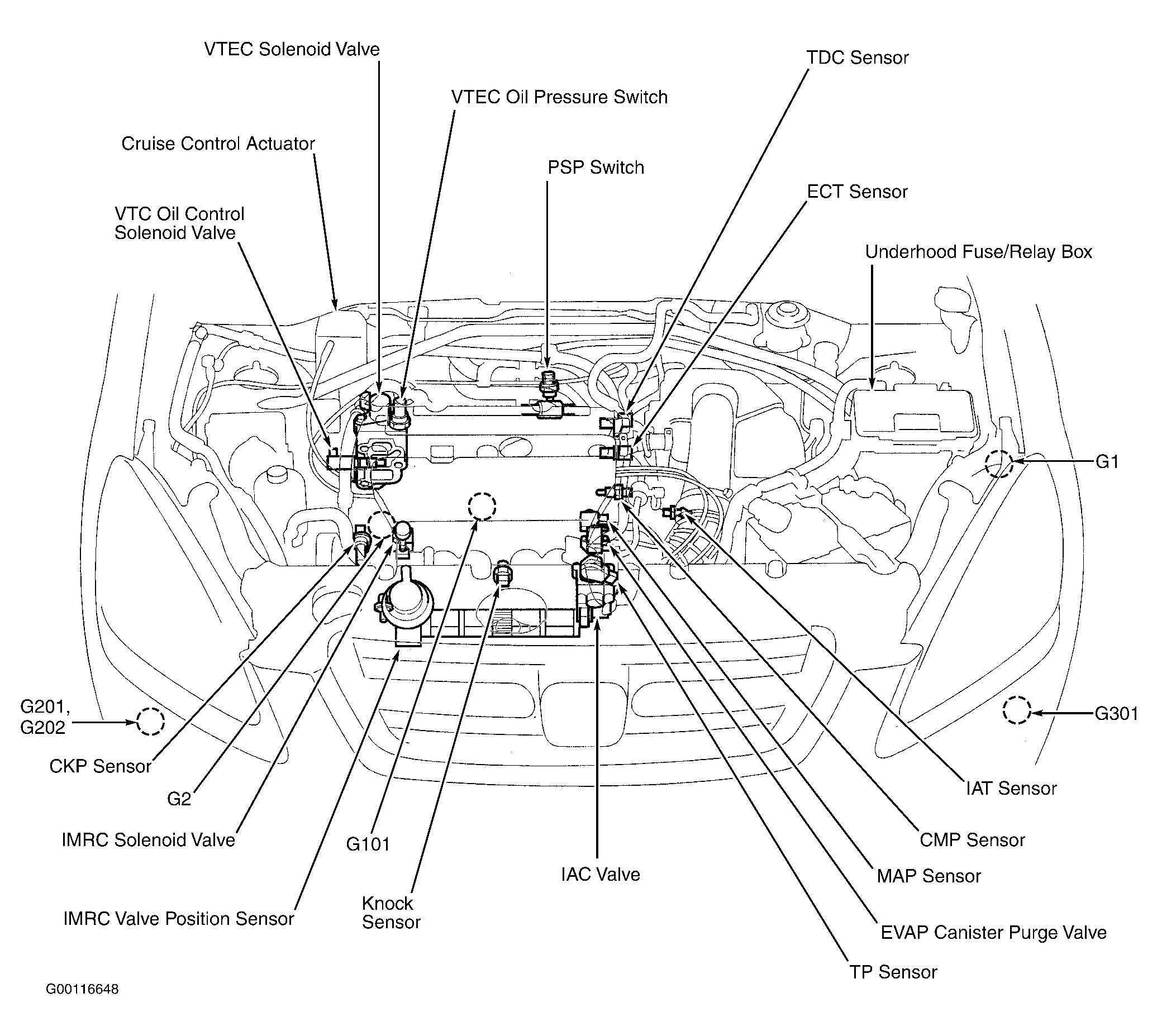

Fig 1: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

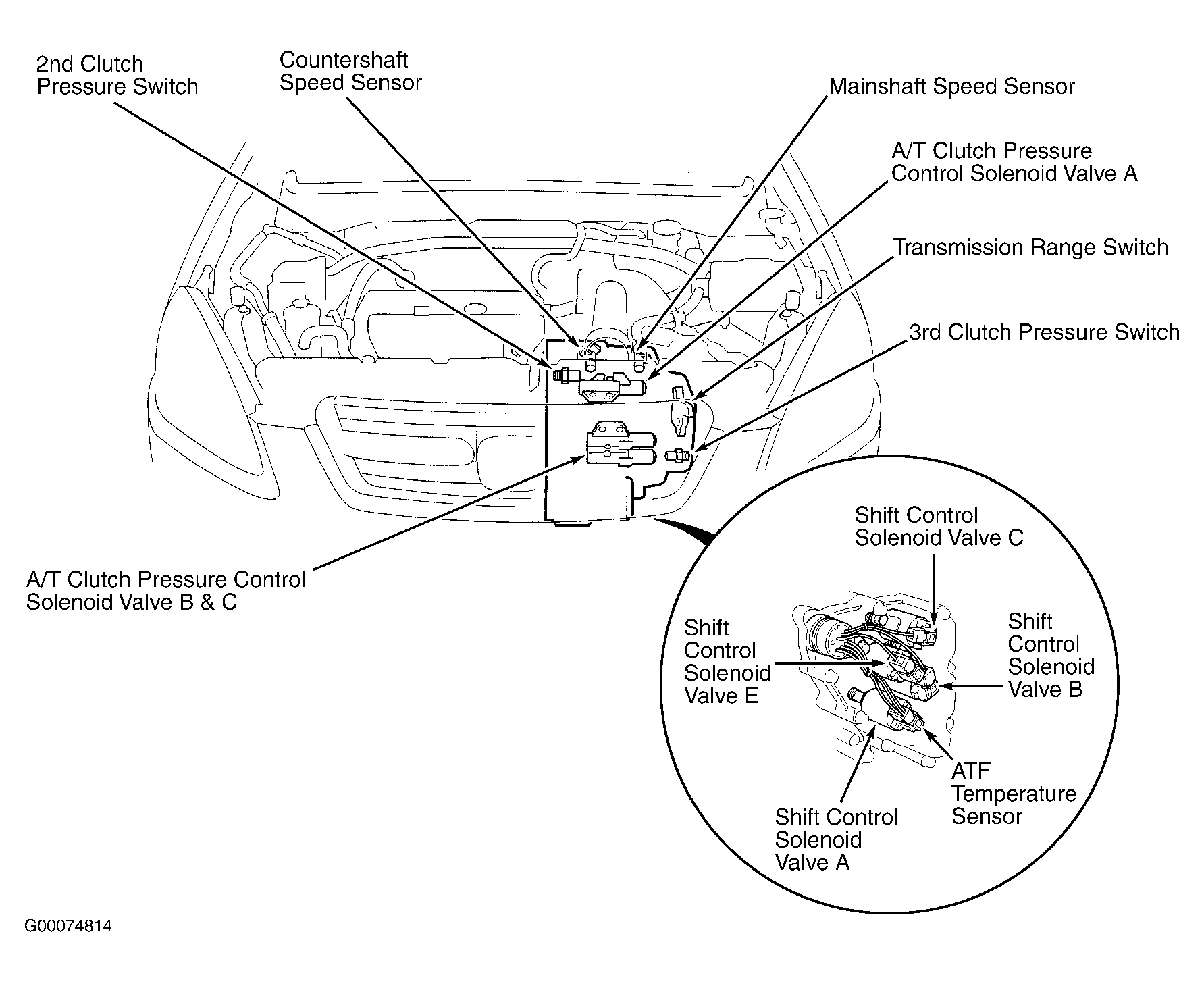

Fig 2: Transaxle

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Left Side Of Dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.

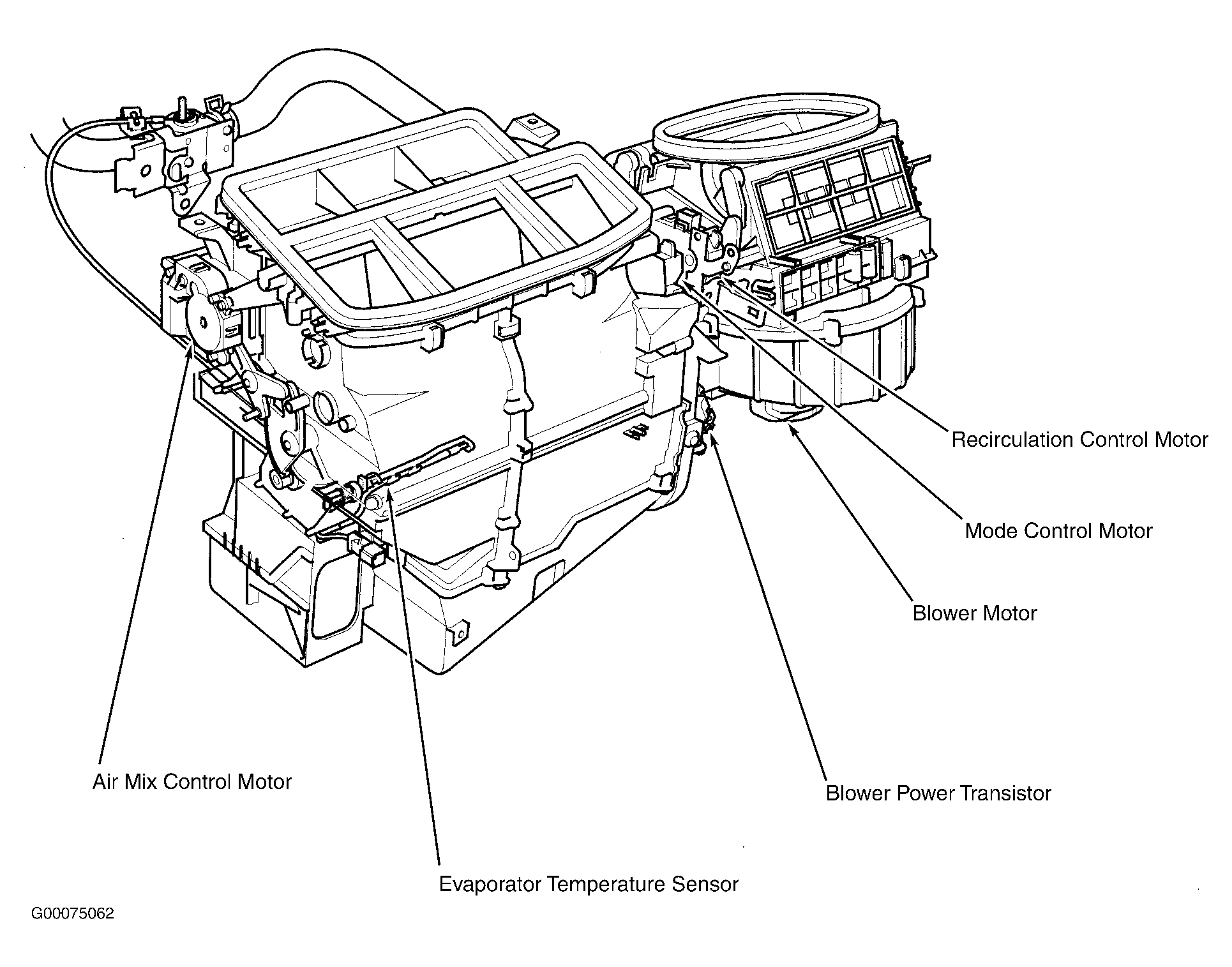

Fig 5: Heater Unit/Core

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Underhood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

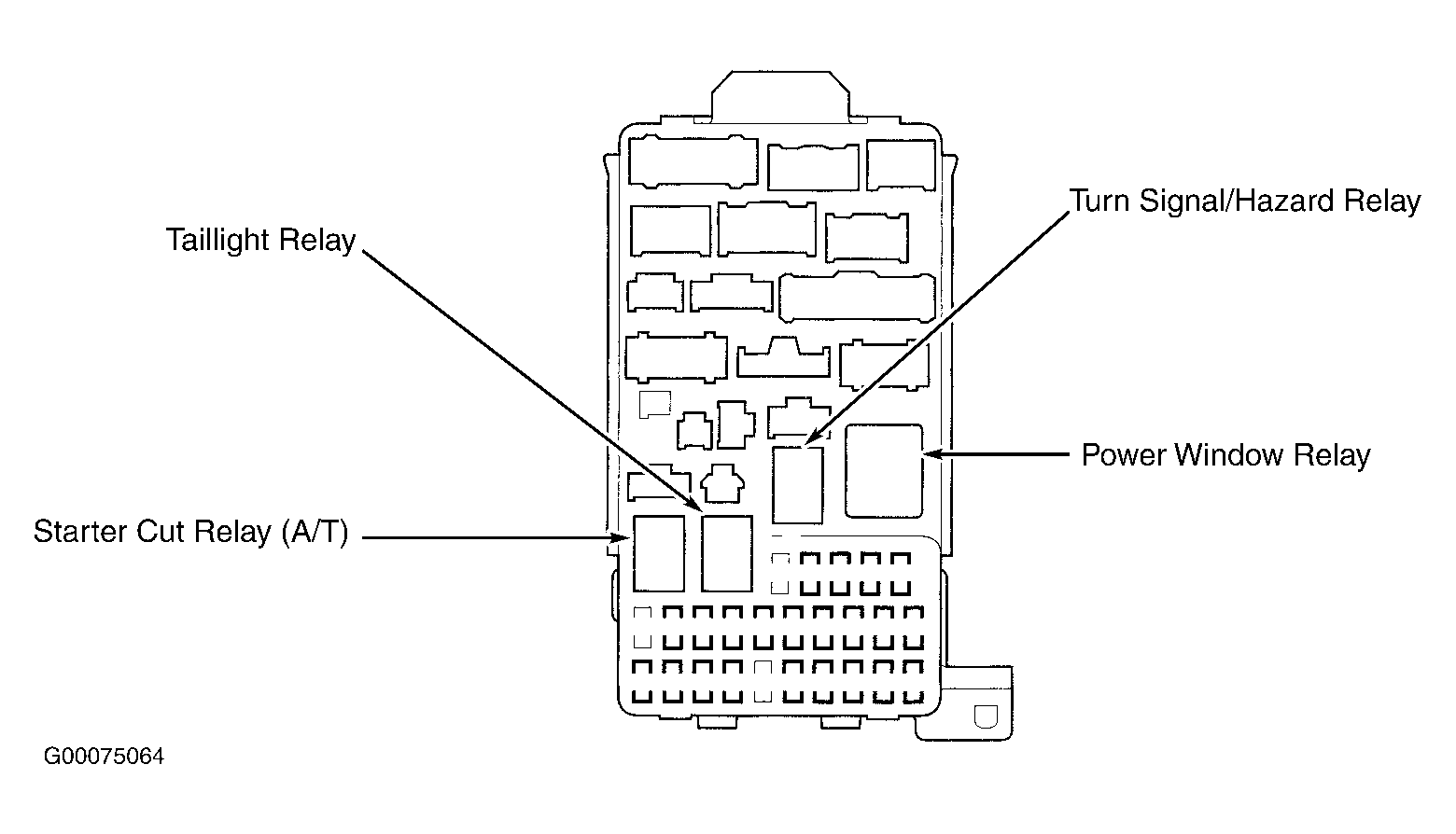

Fig 7: Underdash Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.
