Overrunning Clutch Test

  1. While holding the drive gear (A), turn the gear shaft (B) clockwise. See Fig 1. Check that the drive gear comes out to the other end. If the drive gear does not move smoothly, replace the gear cover assembly.
  2. While holding the drive gear, turn the gear shaft counterclockwise. The gear shaft should rotate freely. If the gear shaft does not rotate smoothly, replace the gear cover assembly.
  3. If the starter drive gear is worn or damaged, replace the overrunning clutch assembly; the gear is not available separately. Check the condition of the torque converter ring gear to see if the teeth are damaged.

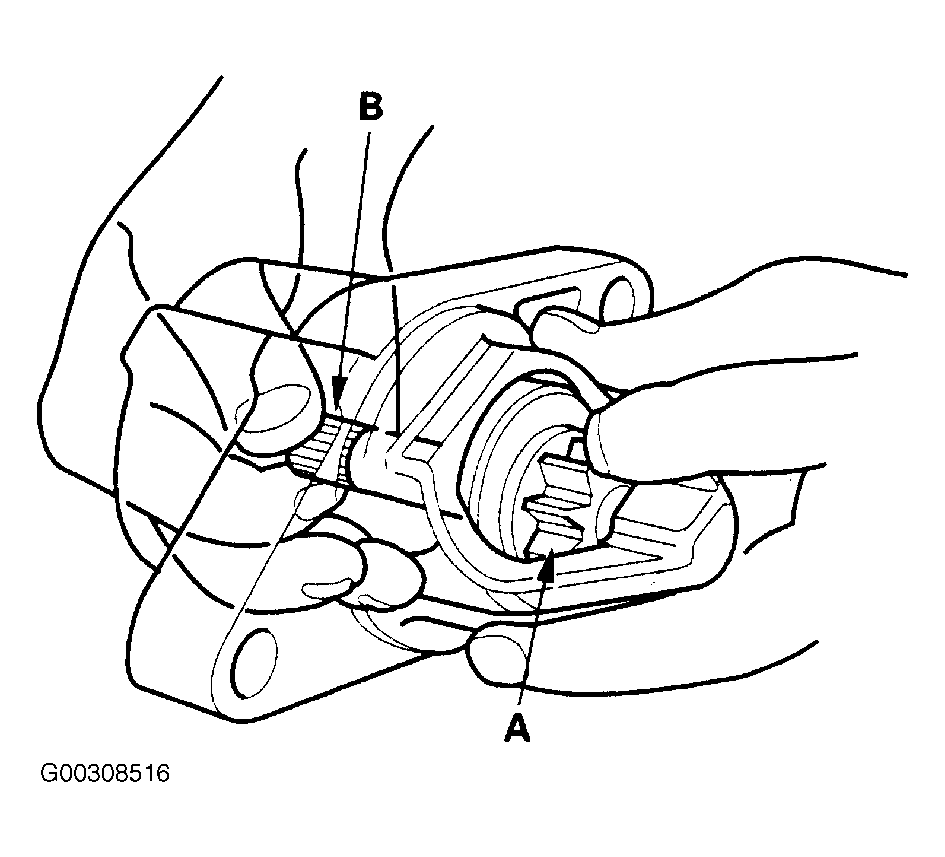

Fig 1: Inspecting Overrunning Clutch
G00308516Courtesy of AMERICAN HONDA MOTOR CO., INC.
