Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

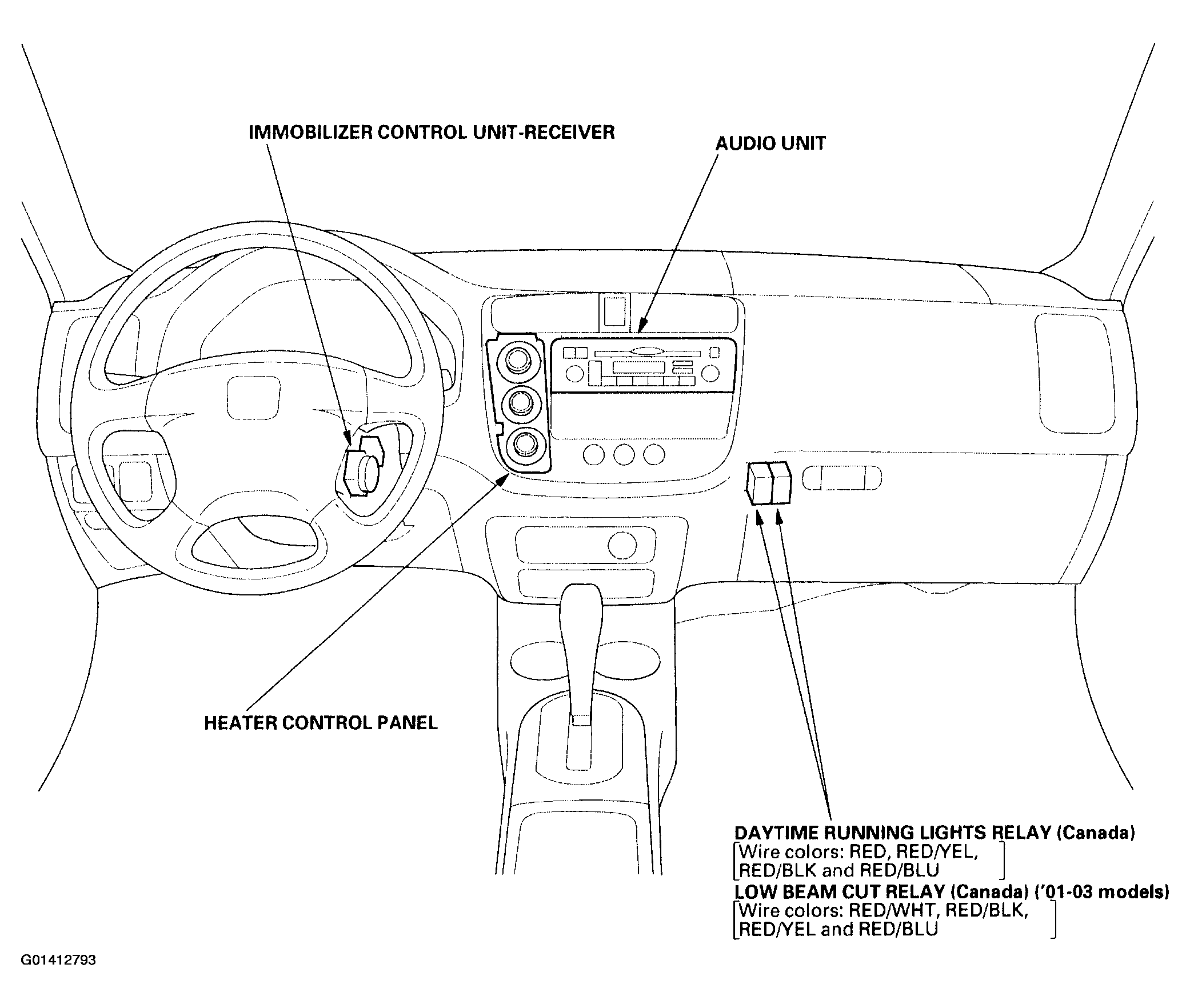

Fig 2: Dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.

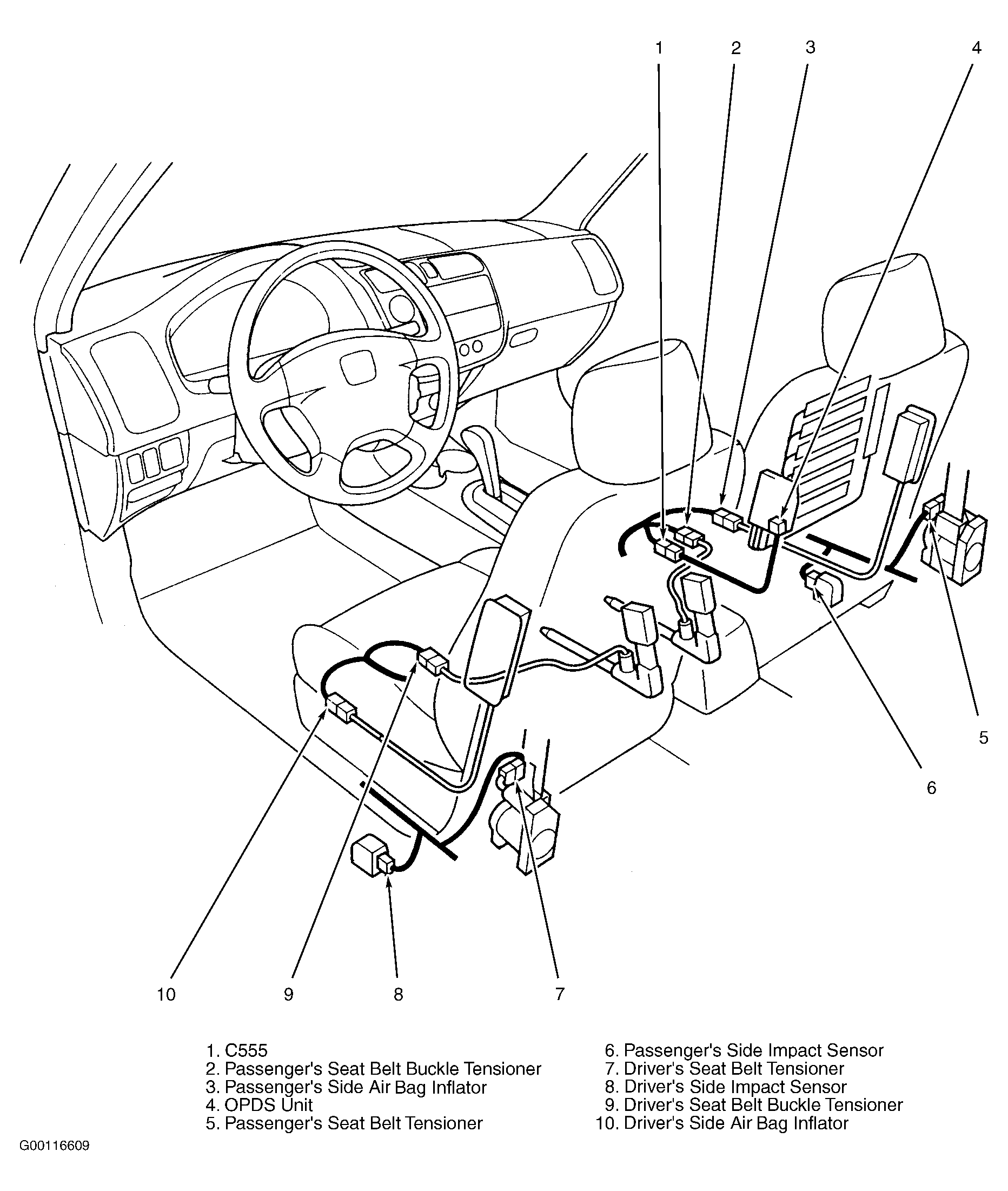

Fig 3: Interior

Courtesy of AMERICAN HONDA MOTOR CO., INC.

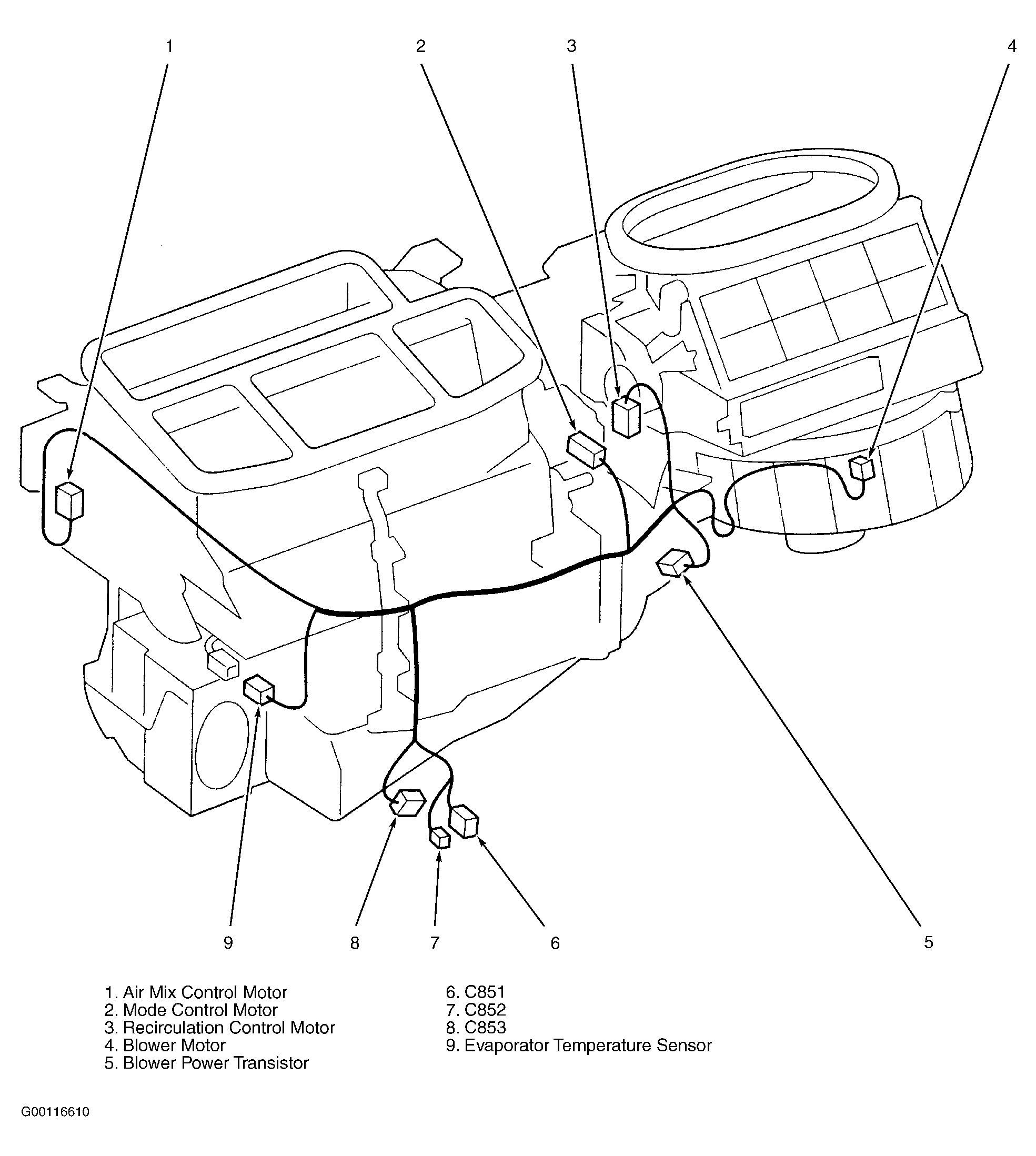

Fig 4: HVAC Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

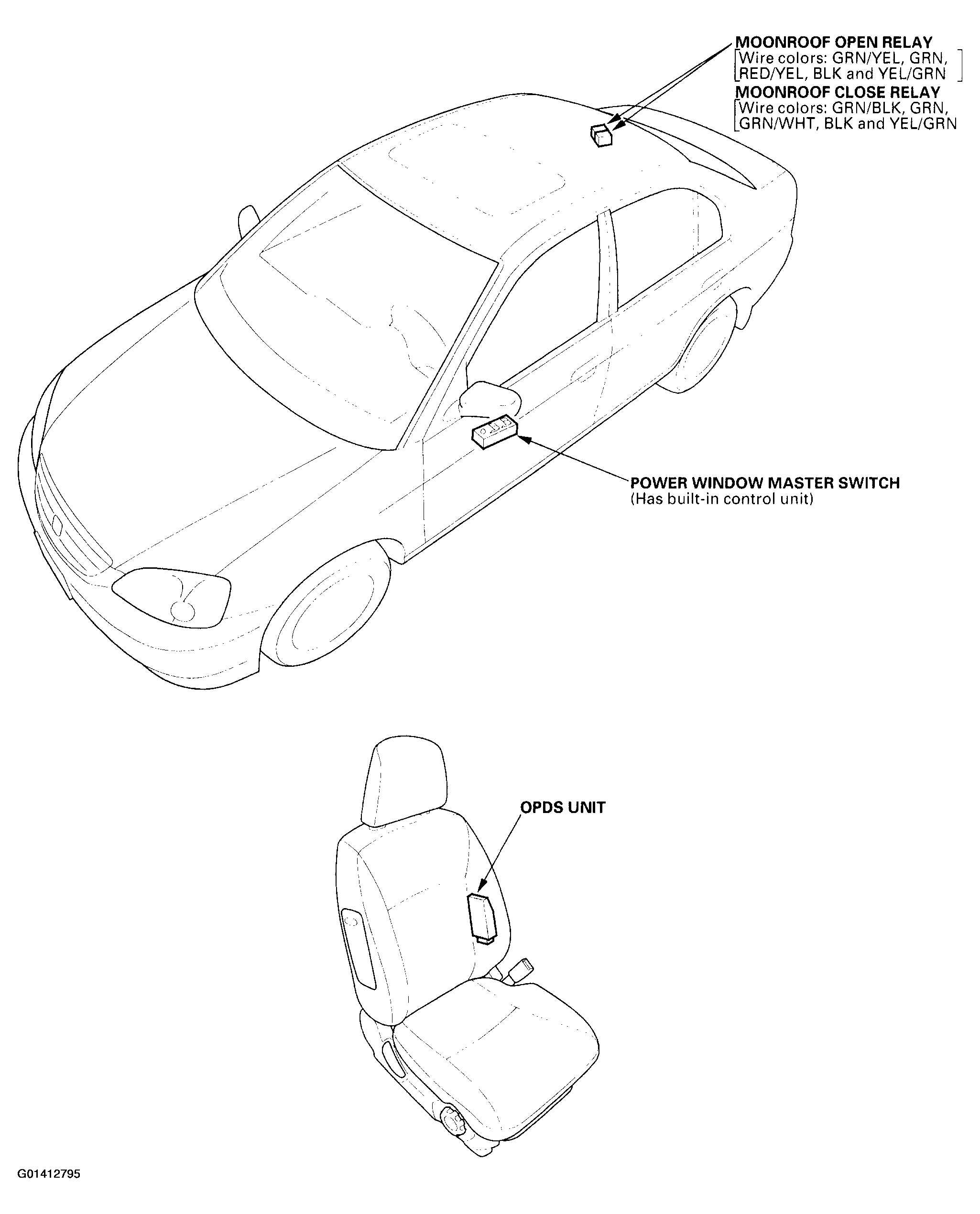

Fig 5: Door, Roof & Seat Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

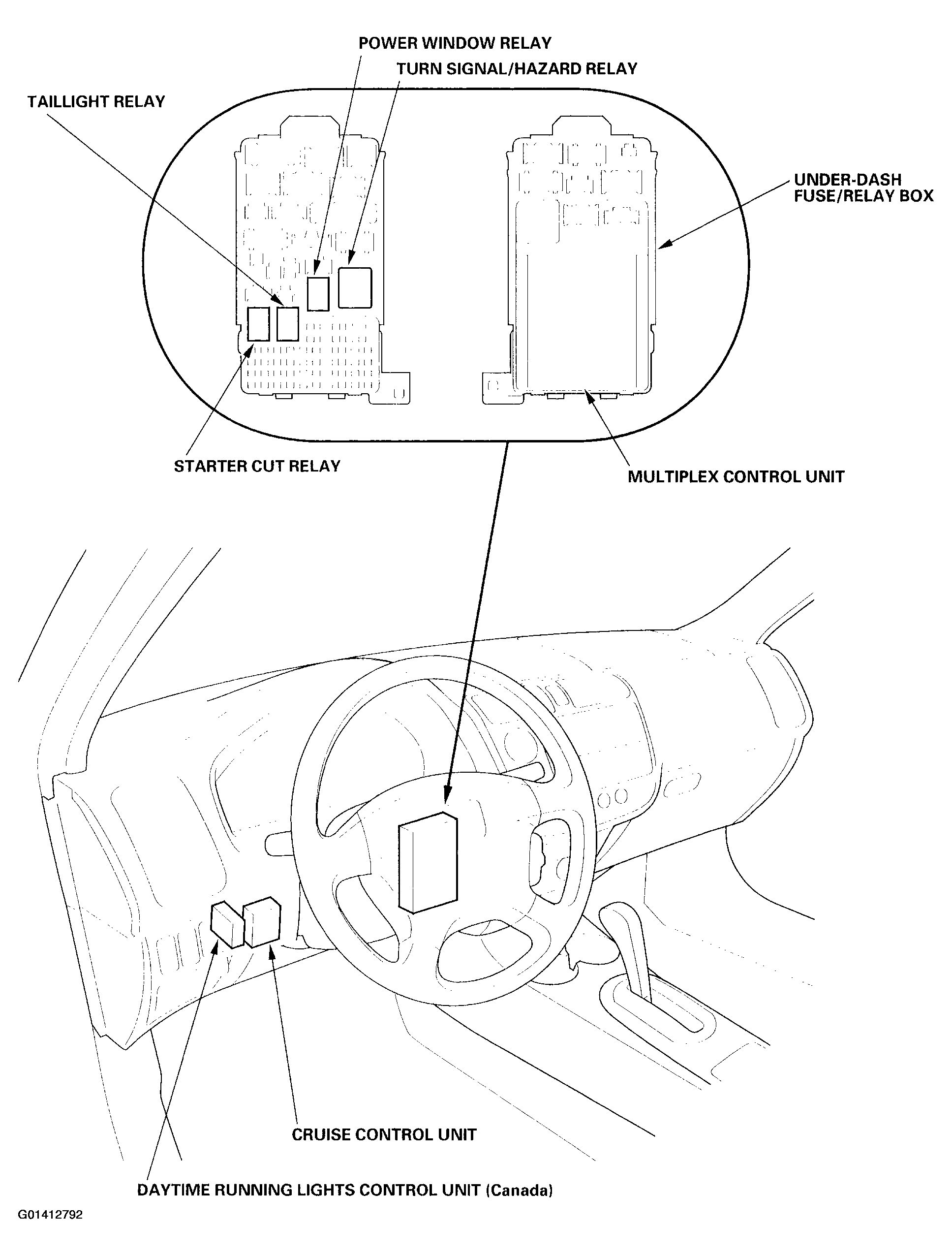

Fig 6: Under-Dash Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Under-Dash Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

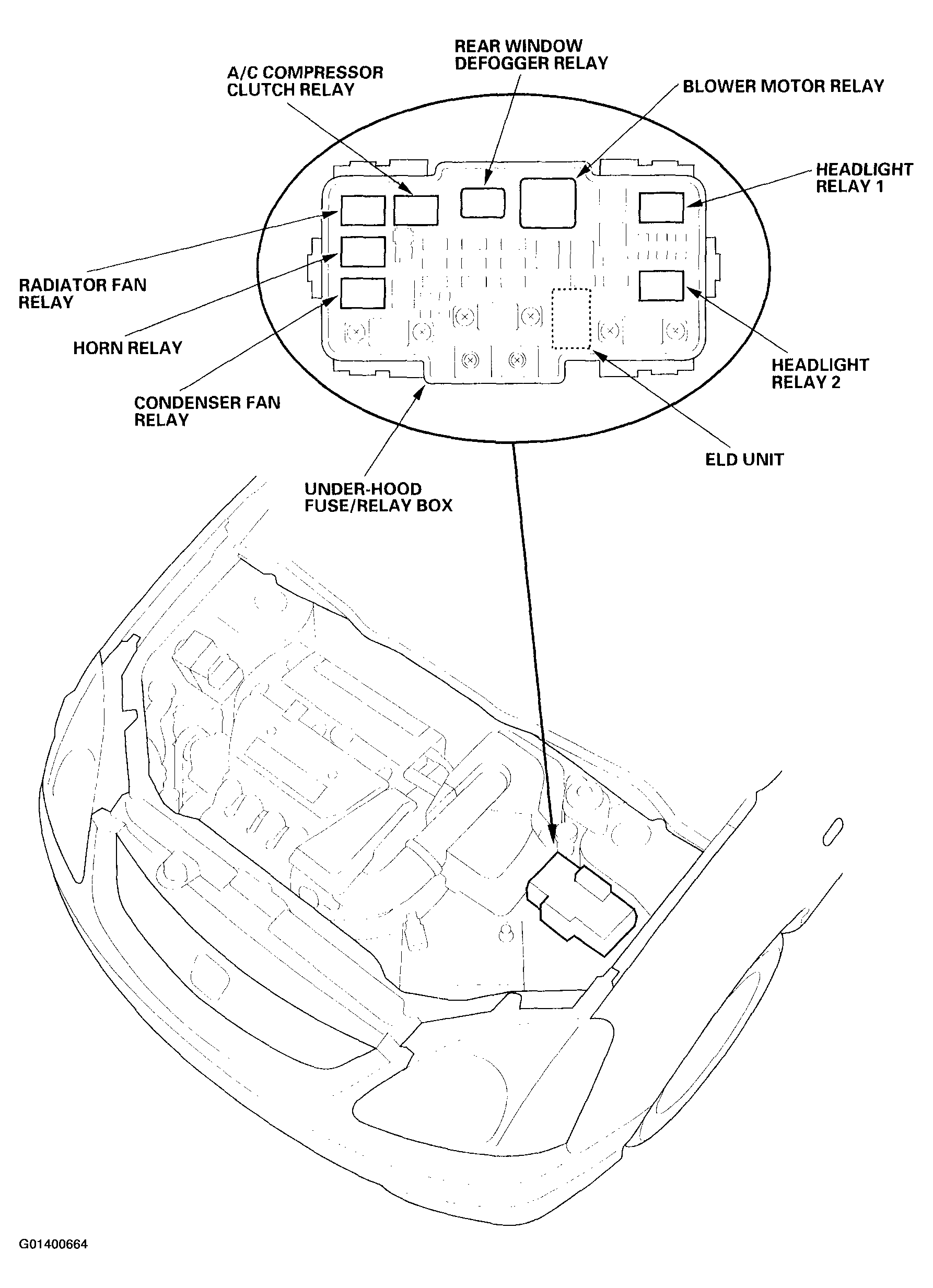

Fig 8: Under-Hood Fuse/Relay Box (All Except GX, Hatchback & Hybrid)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

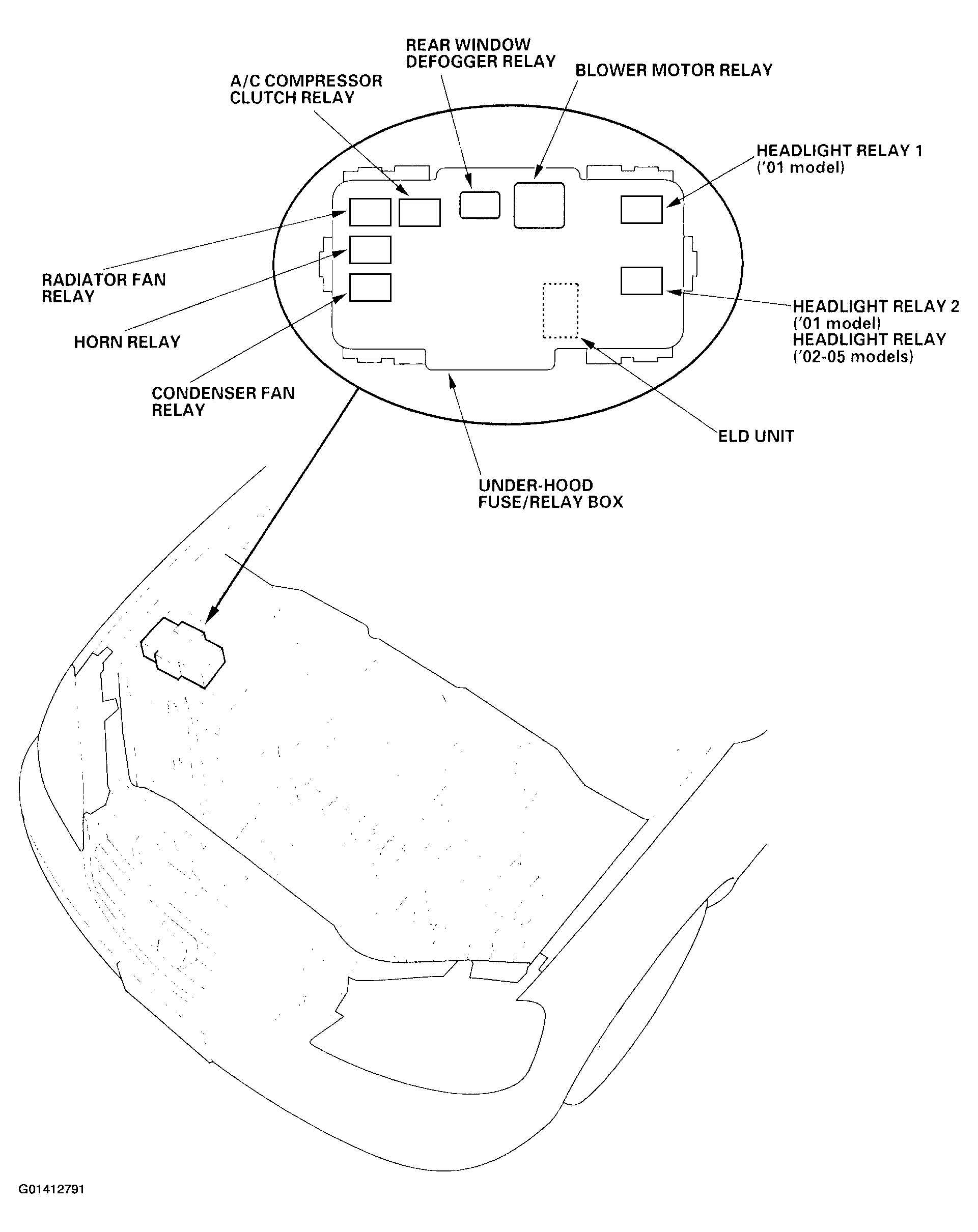

Fig 9: Under-Hood Fuse/Relay Box (Hatchback)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
