Home >> Honda >> 2002 >> Civic Si >> Repair and Diagnosis >> Engine Performance >> System >> Intake Air System (Hatchback) >> Air Cleaner Element Replacement

Air Cleaner Element Replacement

  1. Disconnect the PCV hose (A).

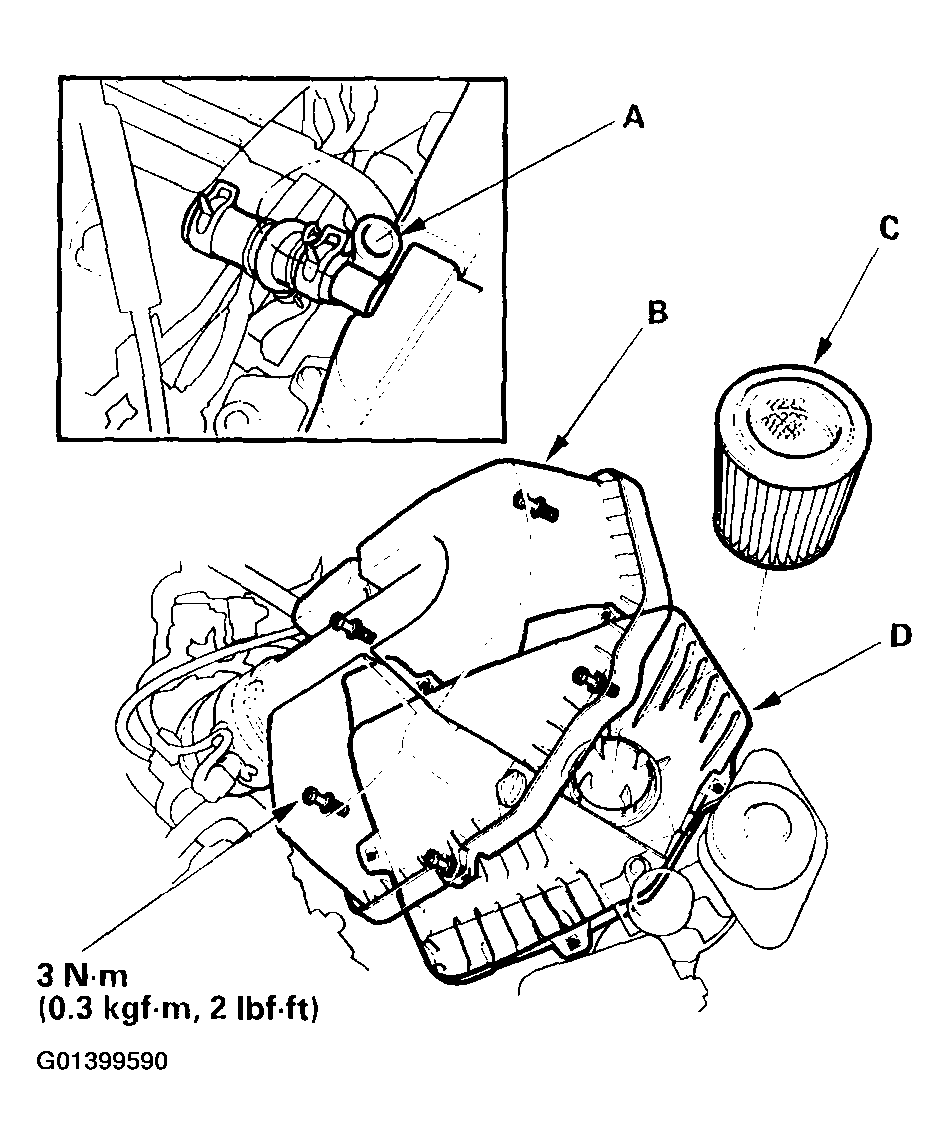

    Fig 1: Removing The Air Cleaner Element
    G01399590Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Open the air cleaner housing cover (B).
  3. Remove the air cleaner (C) from the air cleaner housing (D).
  4. Install in the reverse order of removal.
