Throttle Body Disassembly/Reassembly

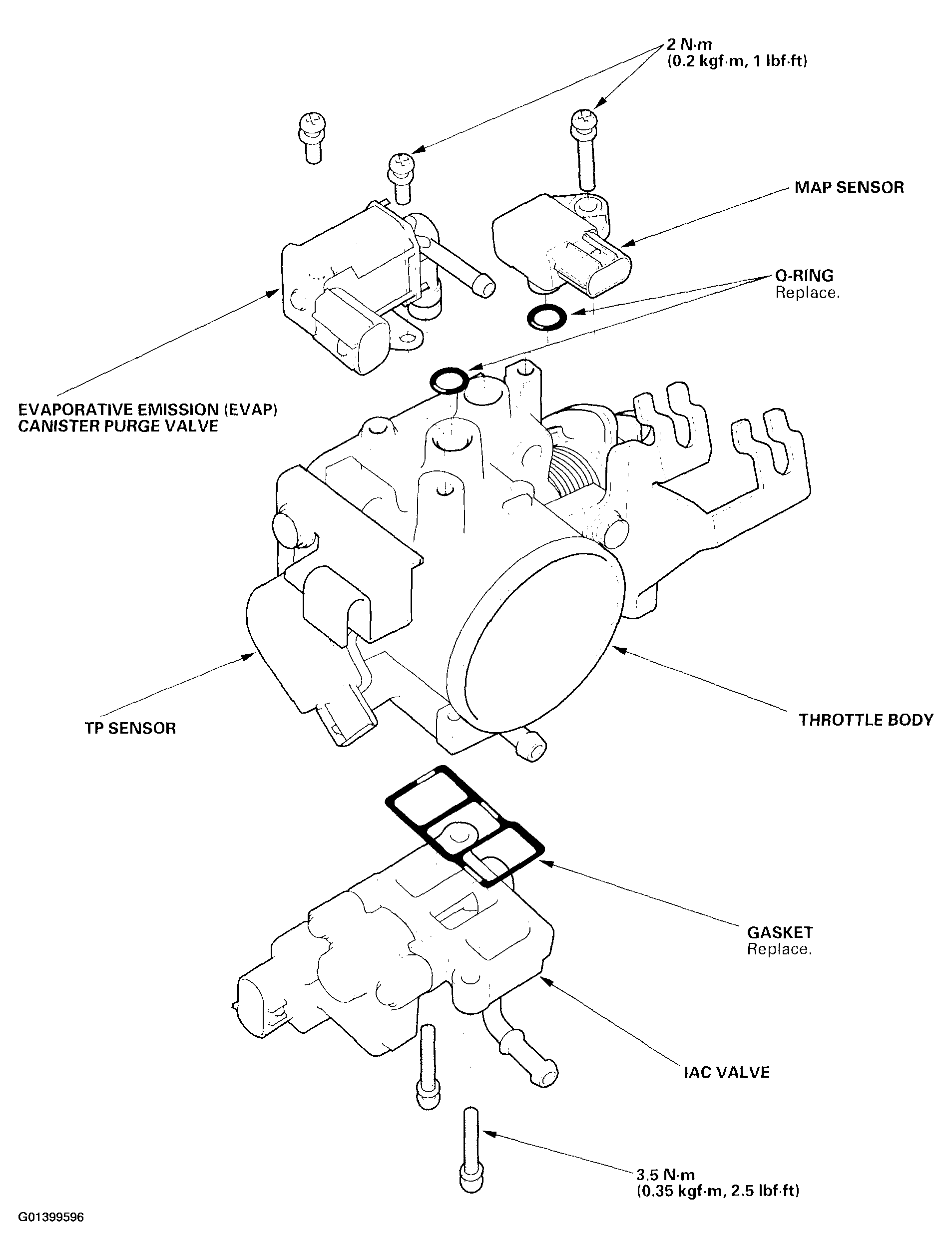

Fig 1: Exploded View Of Throttle Body

G01399596

Courtesy of AMERICAN HONDA MOTOR CO., INC.
