Navigation Display Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the climate control panel (see CLIMATE CONTROL PANEL REMOVAL AND INSTALLATION ).

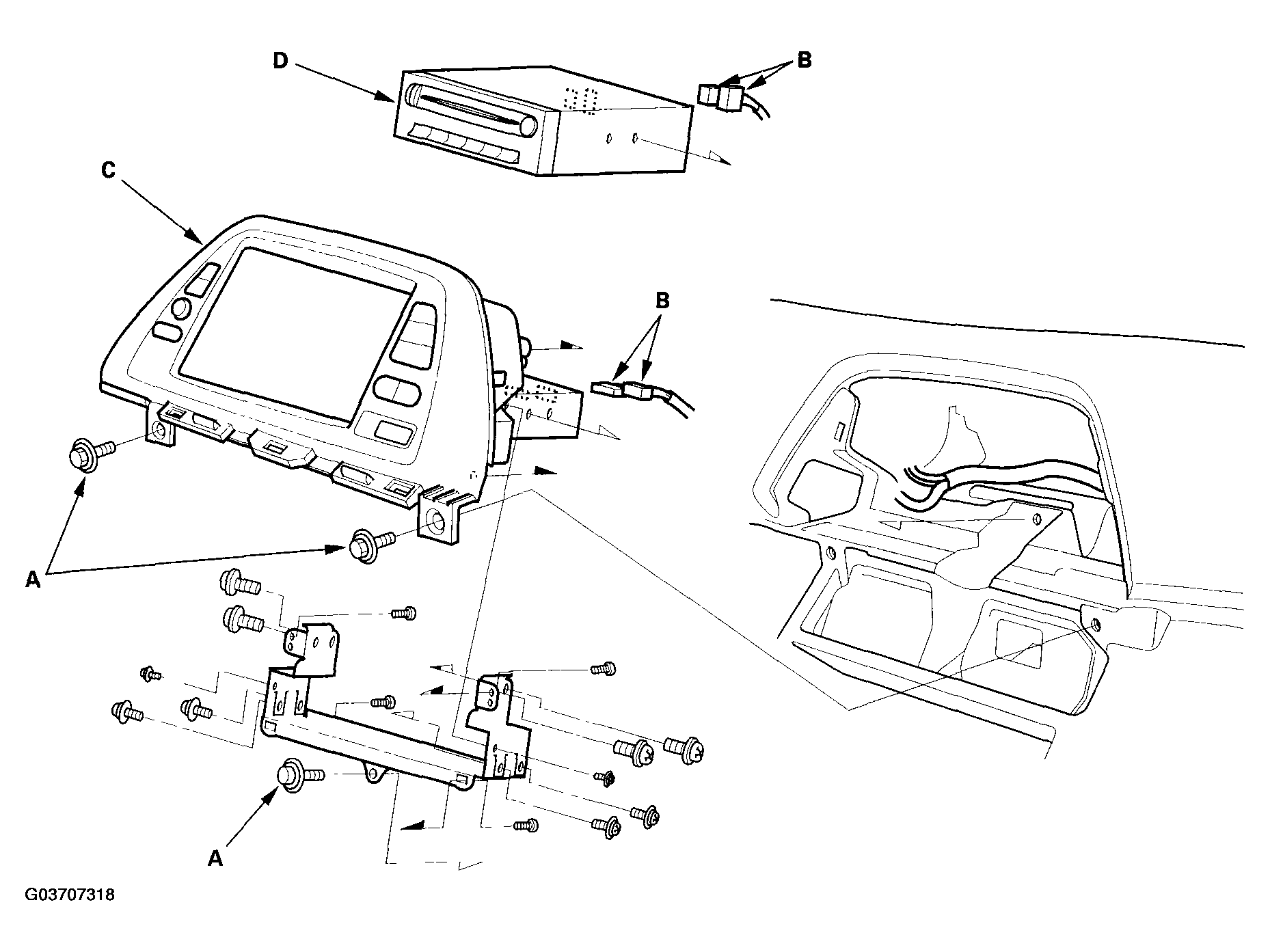

  2. Remove the three bolts (A) and disconnect the four connectors (B), and then remove the navigation display (C) with the CD changer (D).
    Fig 1: Removing Navigation Display With CD Changer
    G03707318Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Separate the navigation display and the CD changer from the bracket.
  4. Install in the reverse order of removal.
