Navigation Unit Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the navigation unit is replaced or disconnected, a map matching must be done (see AFTER SERVICING PROCEDURES-MAP MATCHING ).

Remove the DVD disc from the navigation unit (see DVD-ROM REPLACEMENT ).
Turn the ignition switch off.
Raise the driver's seat all the way up, then move it all the way forward.
Remove the driver's seat rear riser cover (see step 6 in FRONT SEAT REMOVAL/INSTALLATION ).
Lift up the rear of the seat connectors mounting clip (A), and disconnect the navigation unit connectors (B).

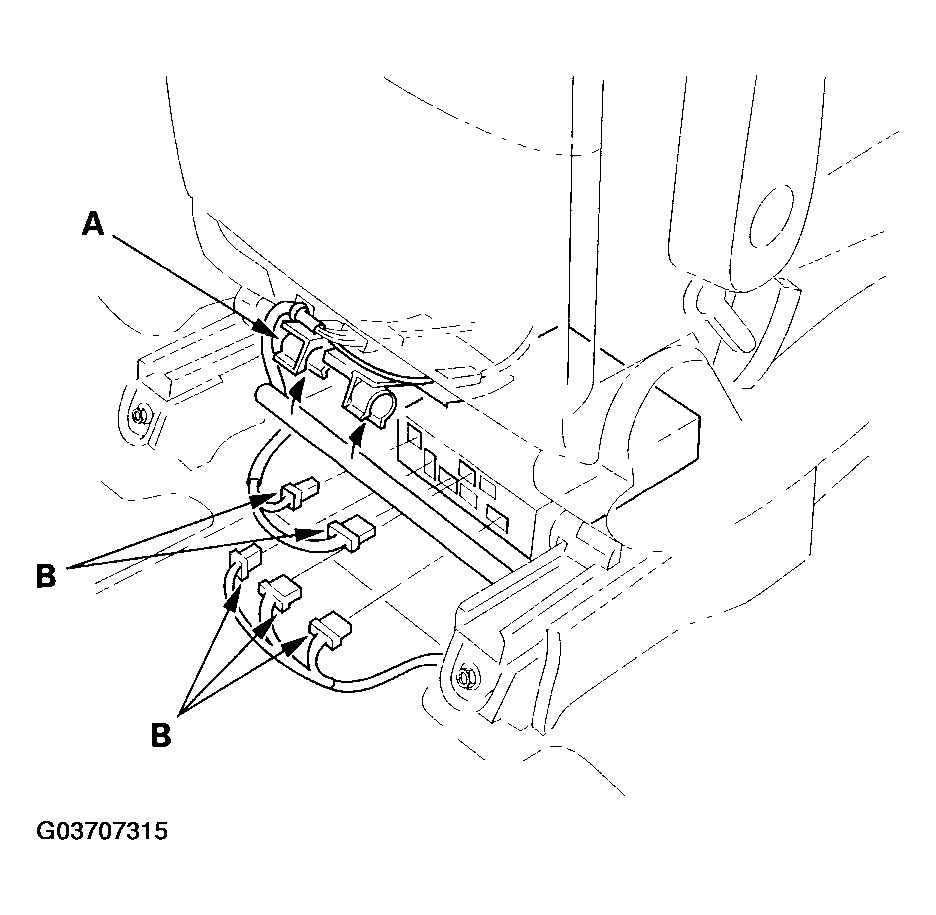

Fig 1: Lifting Up Rear Seat Connectors Mounting Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Move the driver's seat all the way back, and remove the four mounting nuts (A), then remove the navigation unit (B) with brackets (C) from the driver's seat.

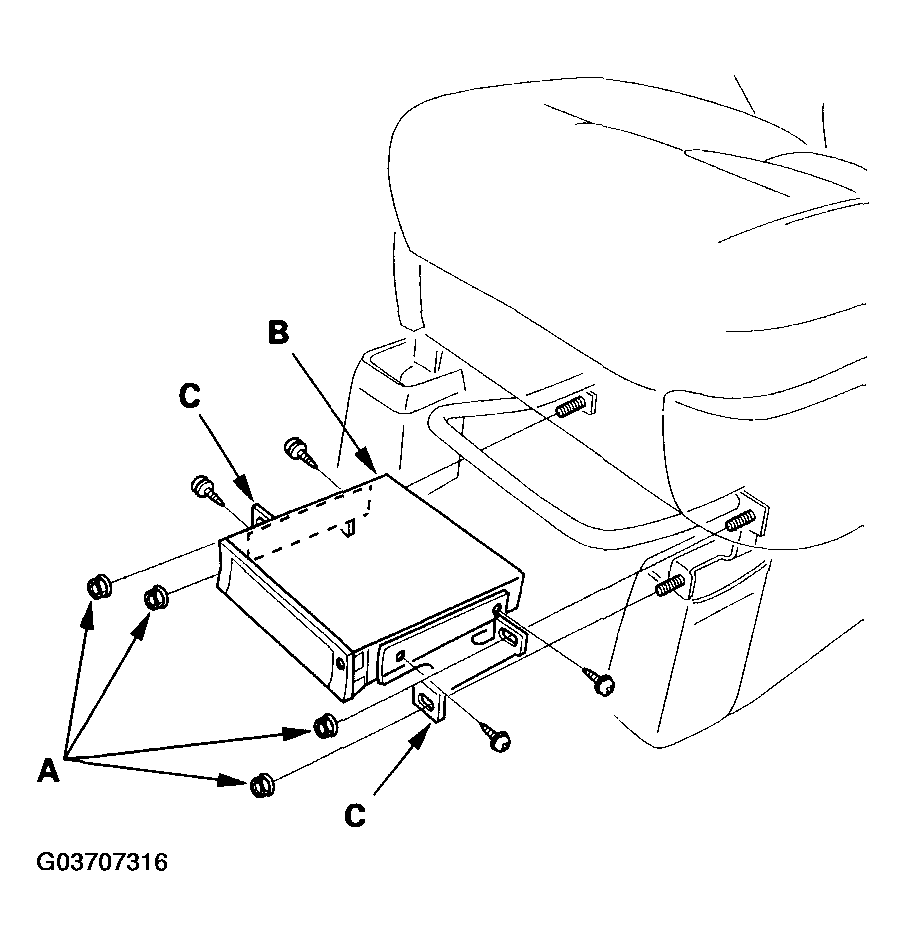

Fig 2: Removing Navigation Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bracket from the navigation unit.
Install the reverse order of removal.
