Voice Control Switch Removal/Installation

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the voice control switch cover (A) from left side of the steering wheel.

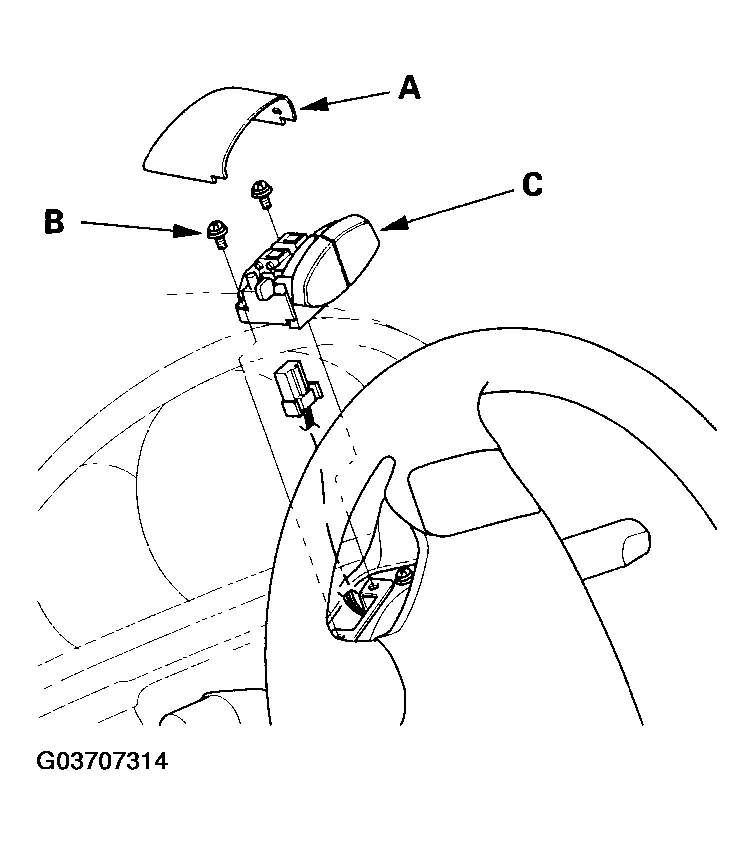

    Fig 1: Removing Voice Control Switch Cover
    G03707314Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the two screws (B) from the voice control switch (C), then remove the voice control switch.
  3. Disconnect the voice control switch connector.
  4. Install in the reverse order of removal.
