Display Unit Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).
  2. Remove the radio bracket (A) from the dashboard.

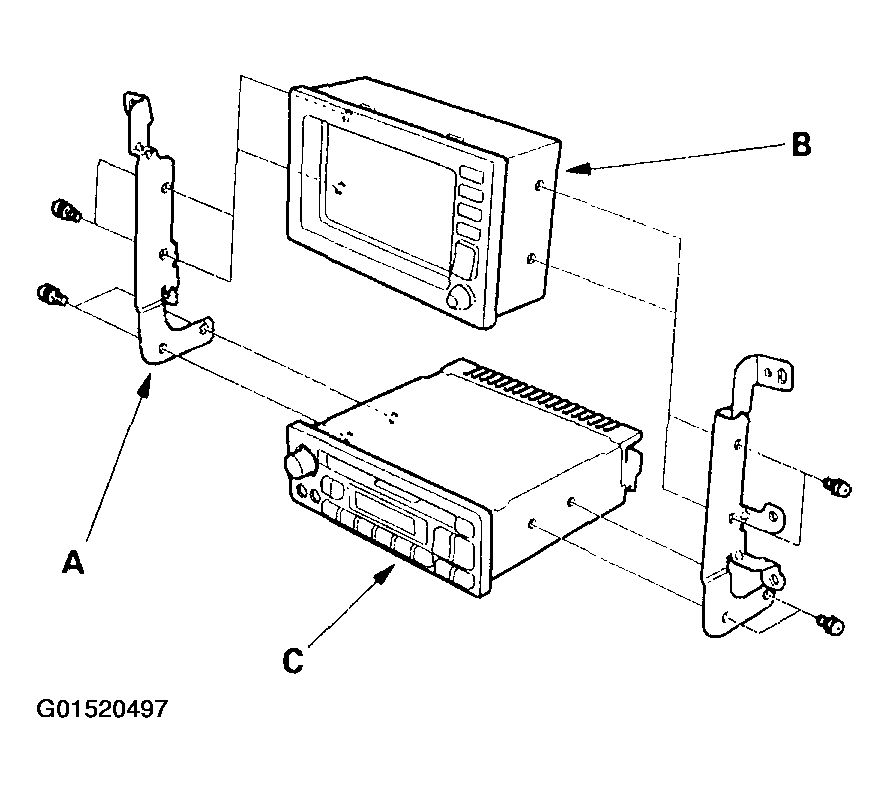

    Fig 1: Removing Radio Bracket From Dashboard
    G01520497Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the display unit (B) and audio unit (C) from the radio bracket.
  4. Install in the reverse order of removal.
