Navigation Unit Removal/Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the navigation unit guard (A) from the bracket.

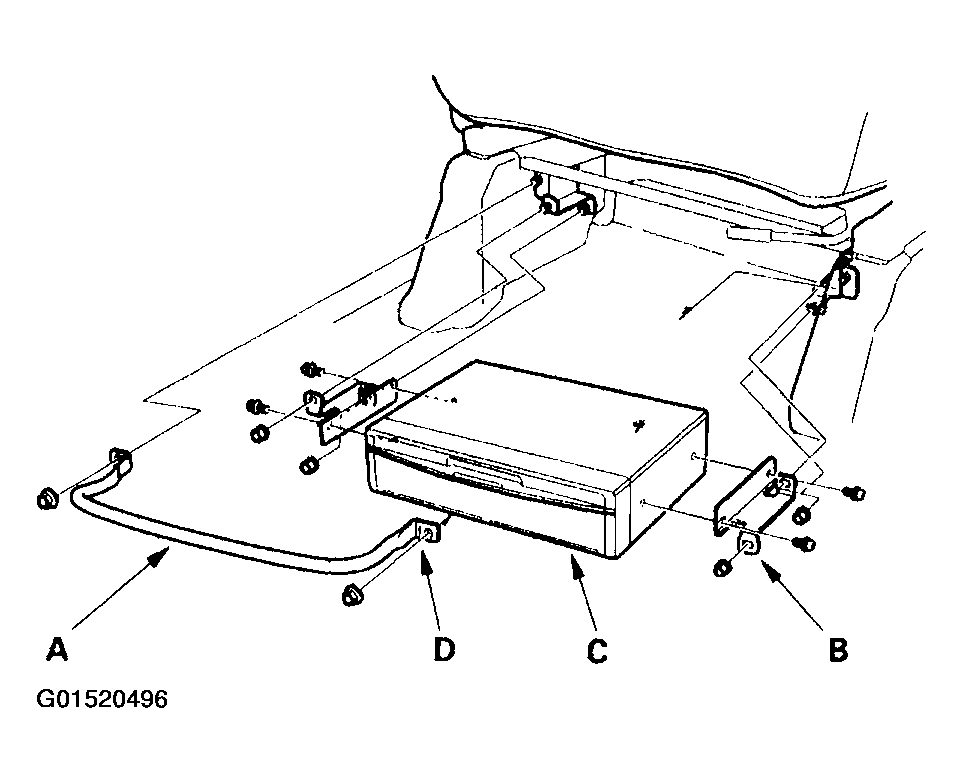

    Fig 1: Removing Navigation Unit Guard From Bracket
    G01520496Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the navigation unit bracket (B) from the passenger's seat.
  3. Remove the navigation unit (C) from the bracket.
  4. Install the parts in the reverse order of removal.
    NOTE: Install the navigation unit guard with the arrow (D) pointing up.
