Display Unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

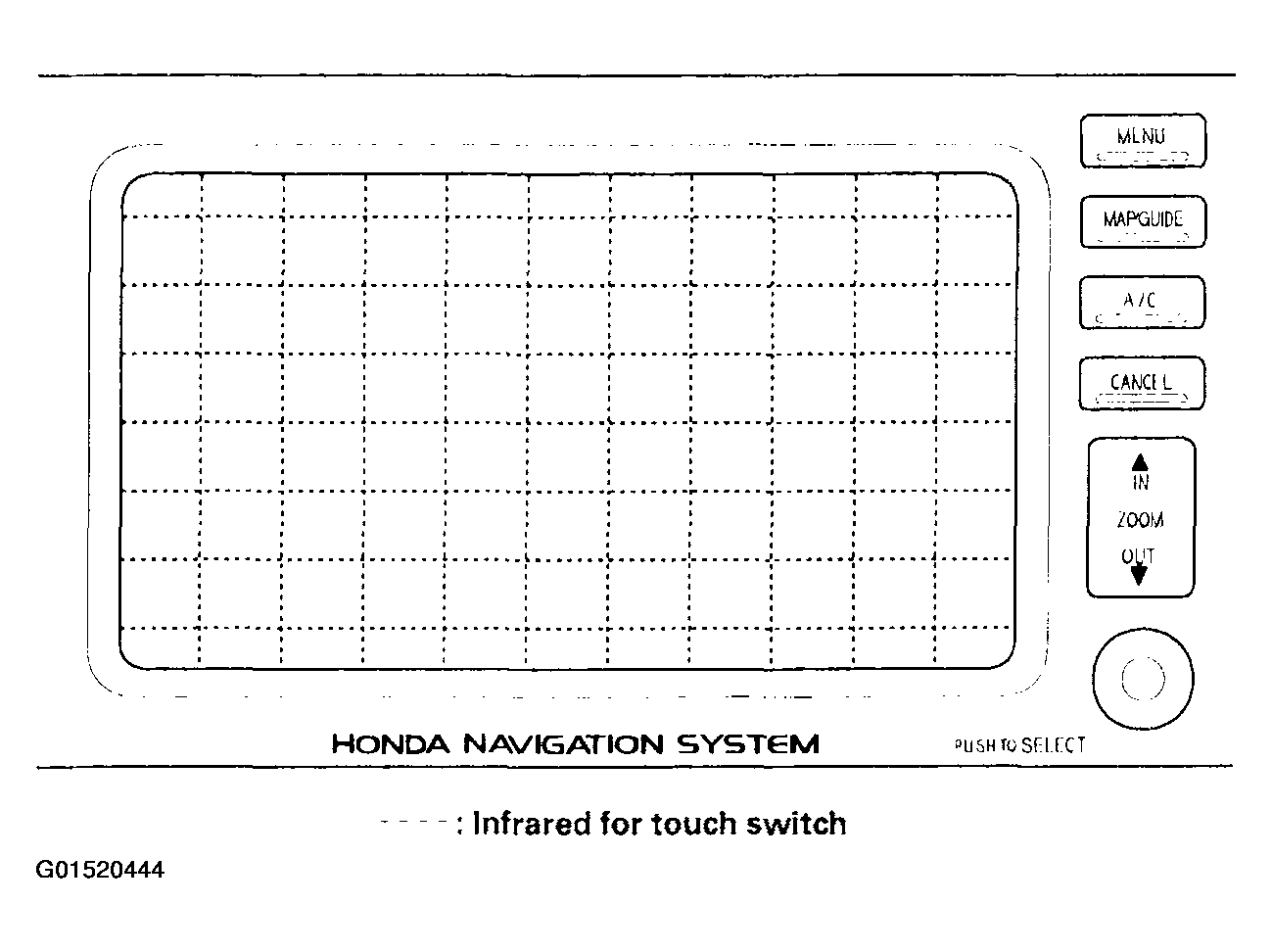

The display unit uses liquid crystal display (LCD). The LCD is a 6-inch-wide, thin film transistor (TFT), stripe type with 280,800 picture elements, The color film and fluorescent light are laid out on the back of the liquid crystal film. The touch sensor on the front of the LCD is an infrared type with 10 vertical and 7 horizontal infrared rays to produce 70 sensing points. The display unit transmits the signal from each operation key and the touch switches to the navigation unit.
