Navigation Function

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The navigation system is composed of the navigation unit, the vehicle speed pulse (VSP) sensor, the GPS antenna, and the display unit.

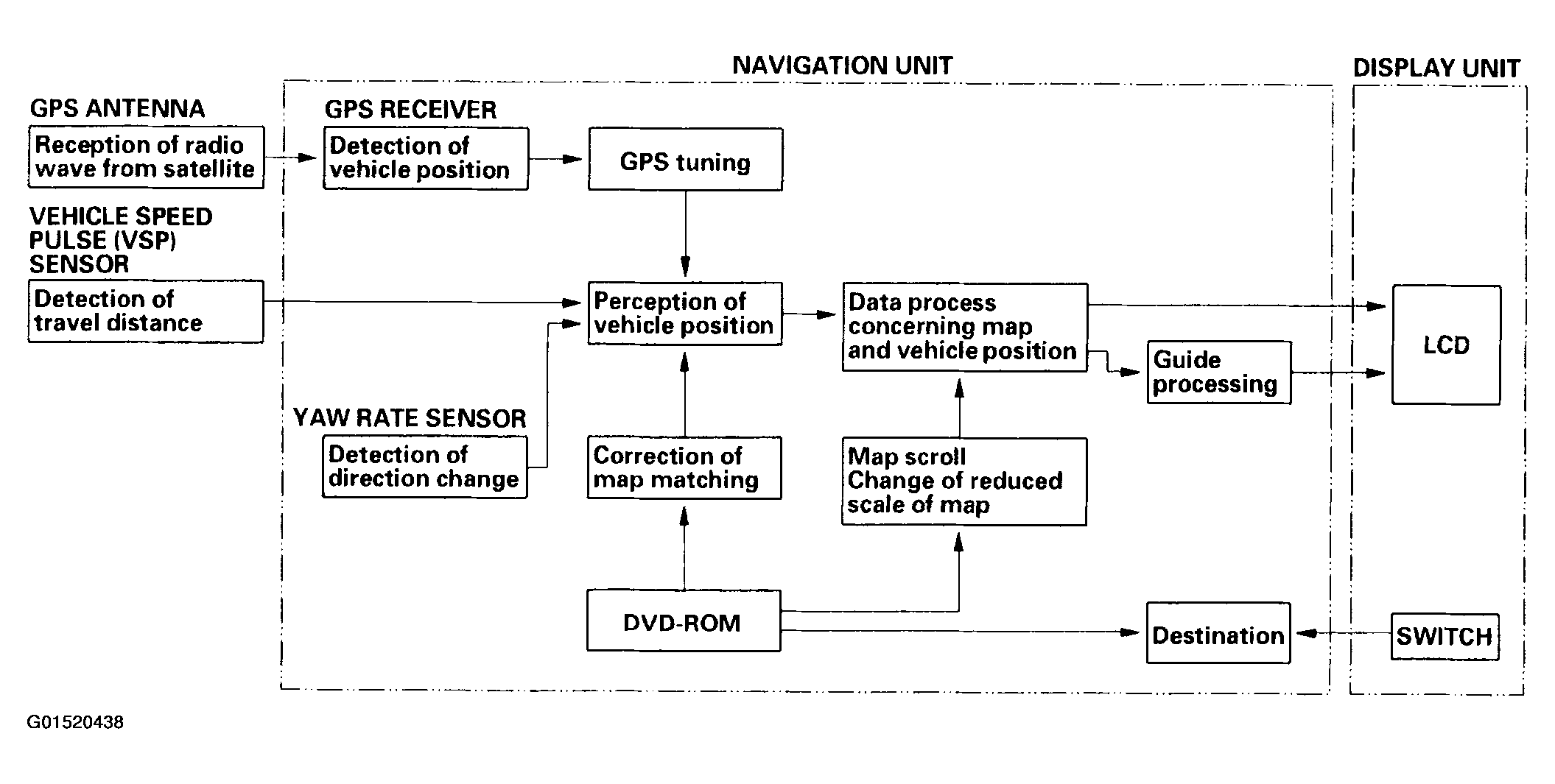

Fig 1: Navigation Function Diagram
G01520438Courtesy of AMERICAN HONDA MOTOR CO., INC.
