System Description: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

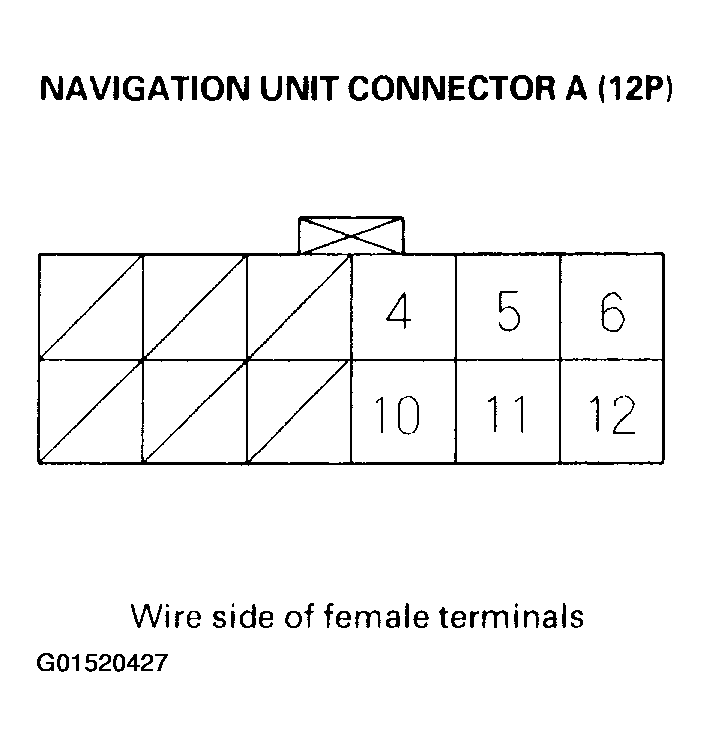

Fig 1: Identifying Navigation Unit Connector A (12P)

G01520427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

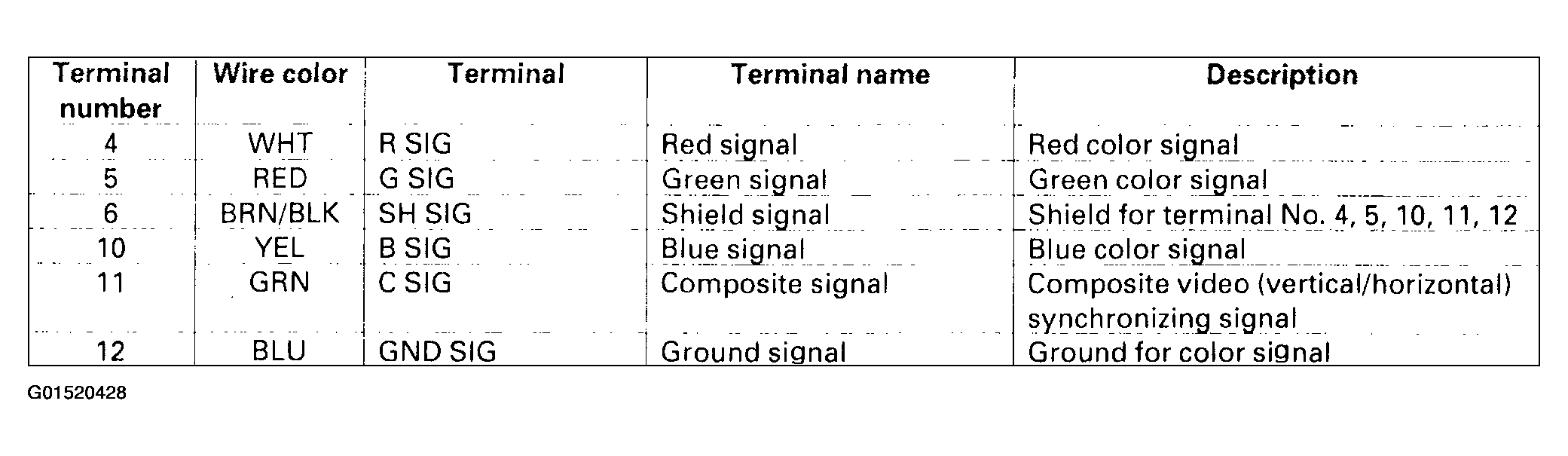

Fig 2: Navigation Unit Inputs & Outputs Connector A (12P) Identification Chart

G01520428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

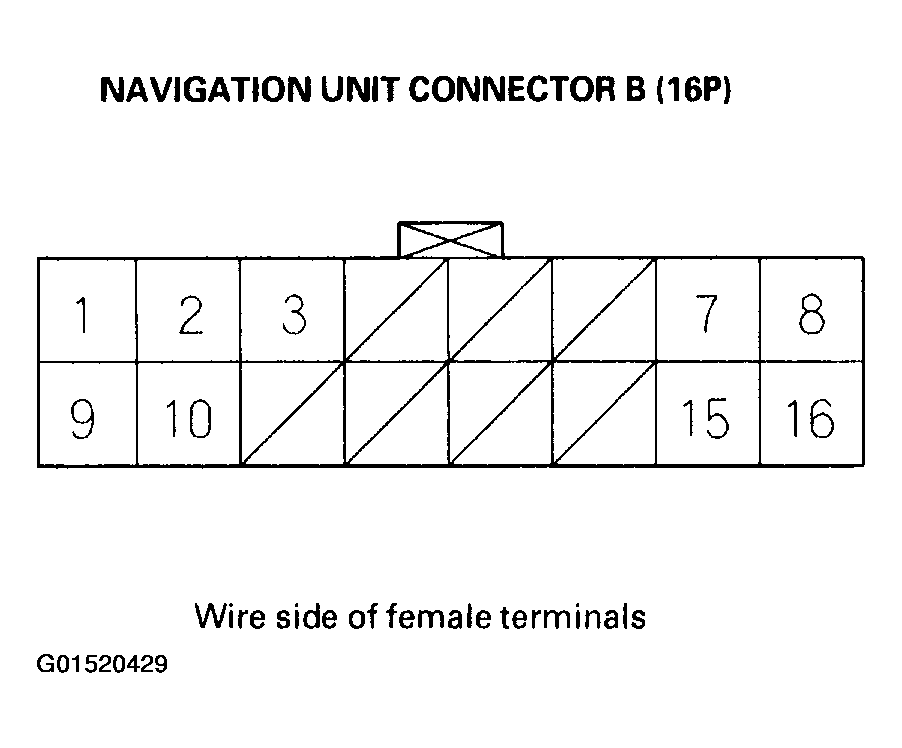

Fig 3: Identifying Navigation Unit Connector B (16P)

G01520429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

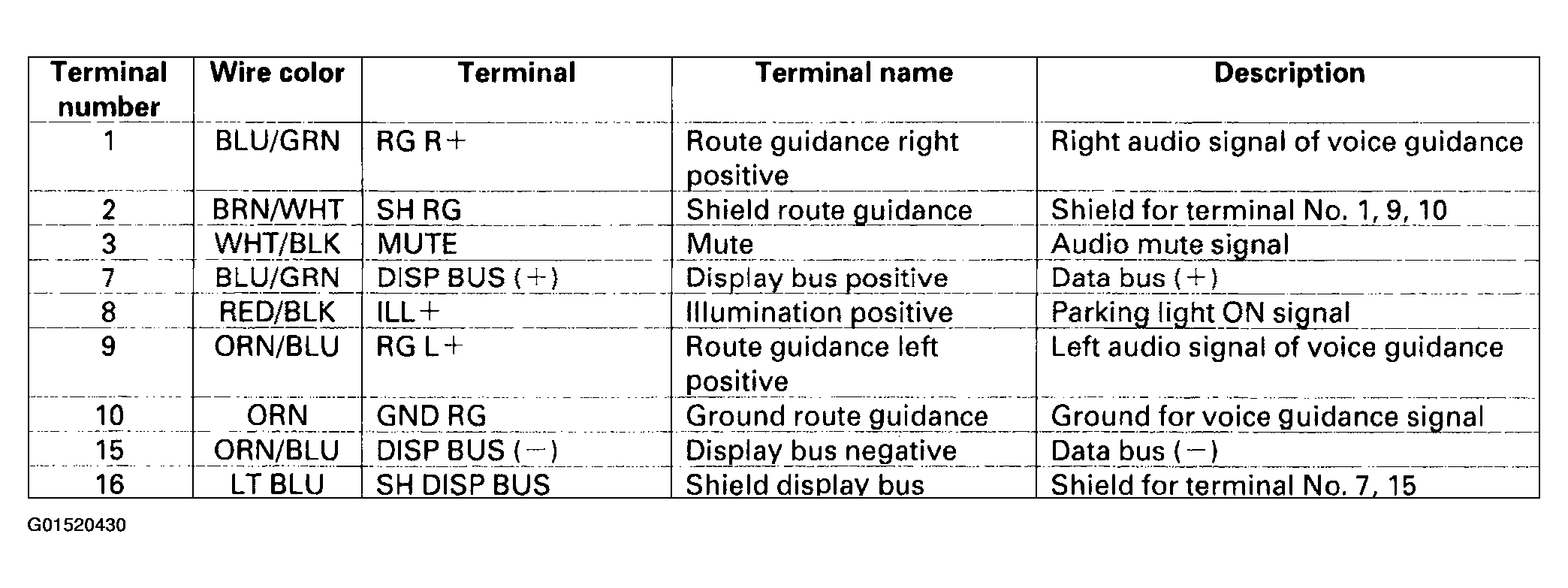

Fig 4: Navigation Unit Inputs & Outputs Connector B (16P) Identification Chart

G01520430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

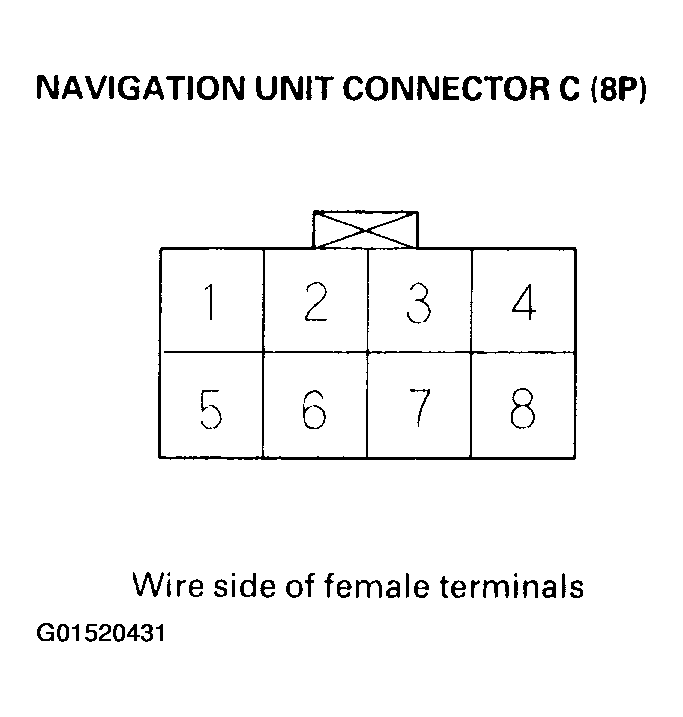

Fig 5: Identifying Navigation Unit Connector C (8P)

G01520431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

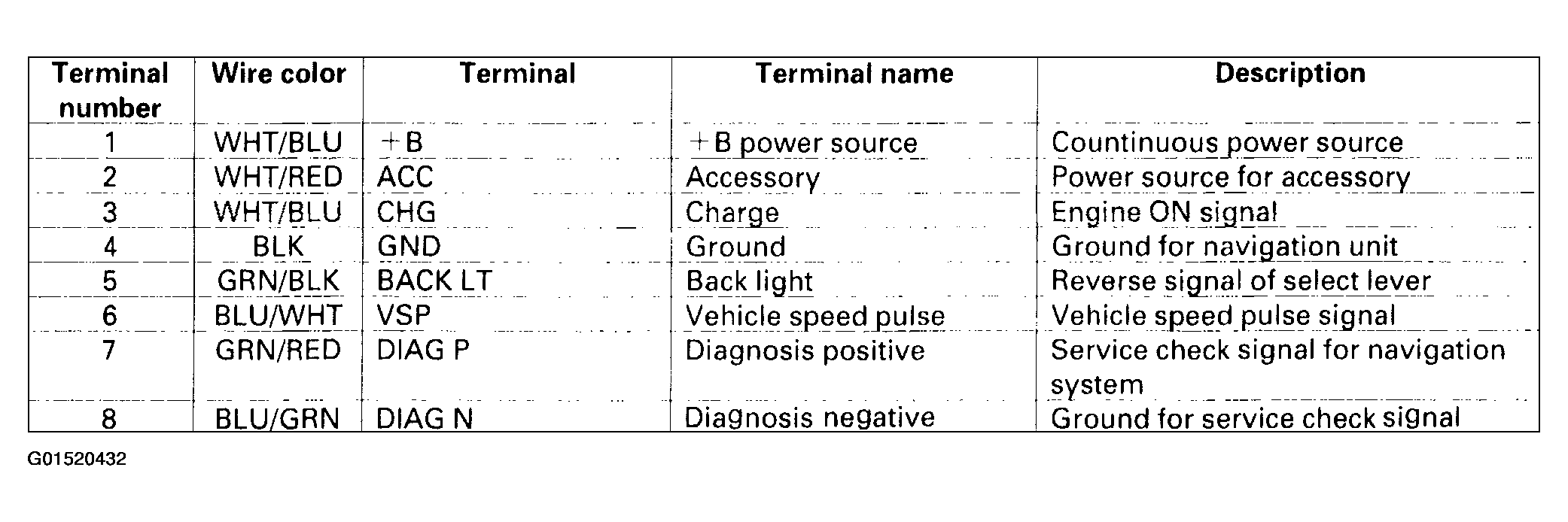

Fig 6: Navigation Unit Inputs & Outputs Connector C (8P) Identification Chart

G01520432

Courtesy of AMERICAN HONDA MOTOR CO., INC.

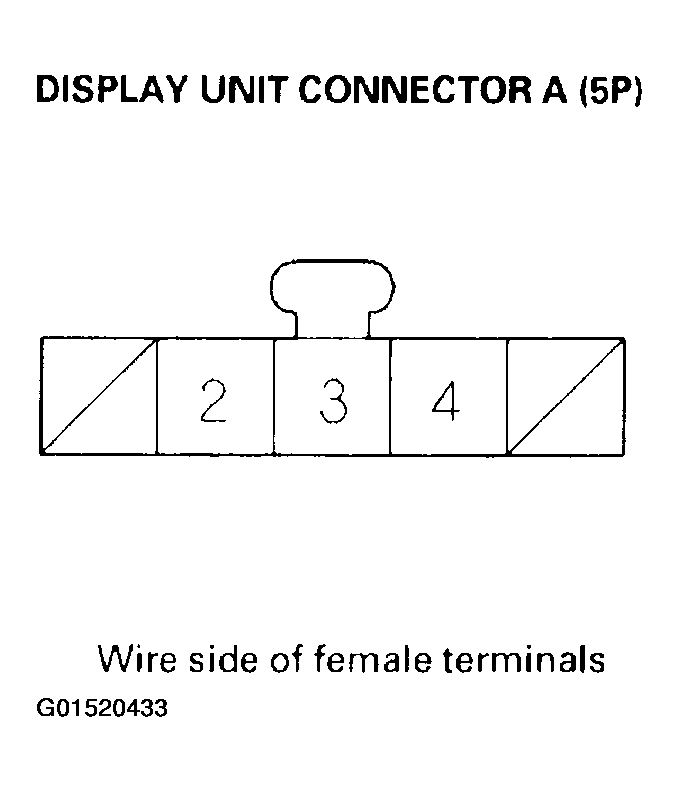

Fig 7: Identifying Display Unit Connector A (5P)

G01520433

Courtesy of AMERICAN HONDA MOTOR CO., INC.

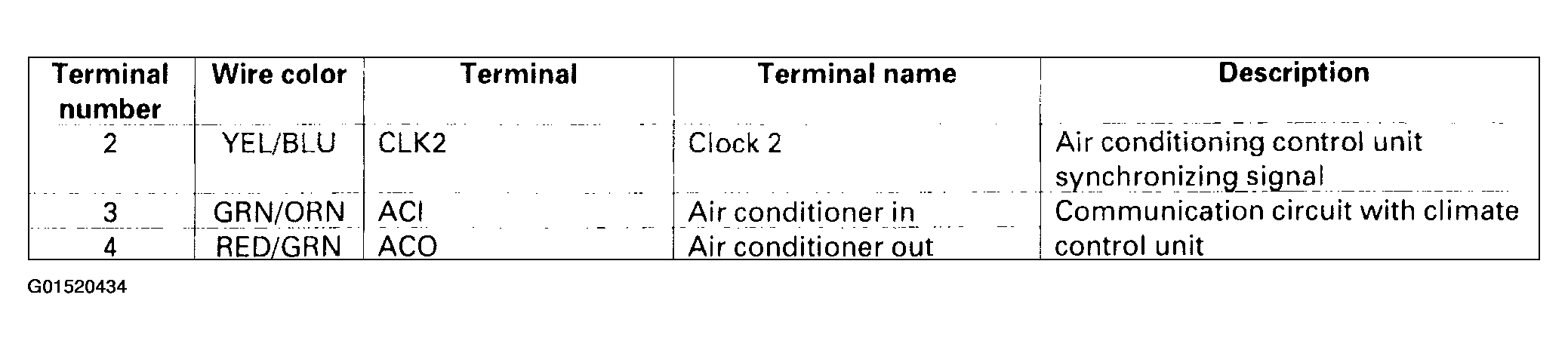

Fig 8: Display Unit Inputs & Outputs Connector A (5P) Identification Chart

G01520434

Courtesy of AMERICAN HONDA MOTOR CO., INC.

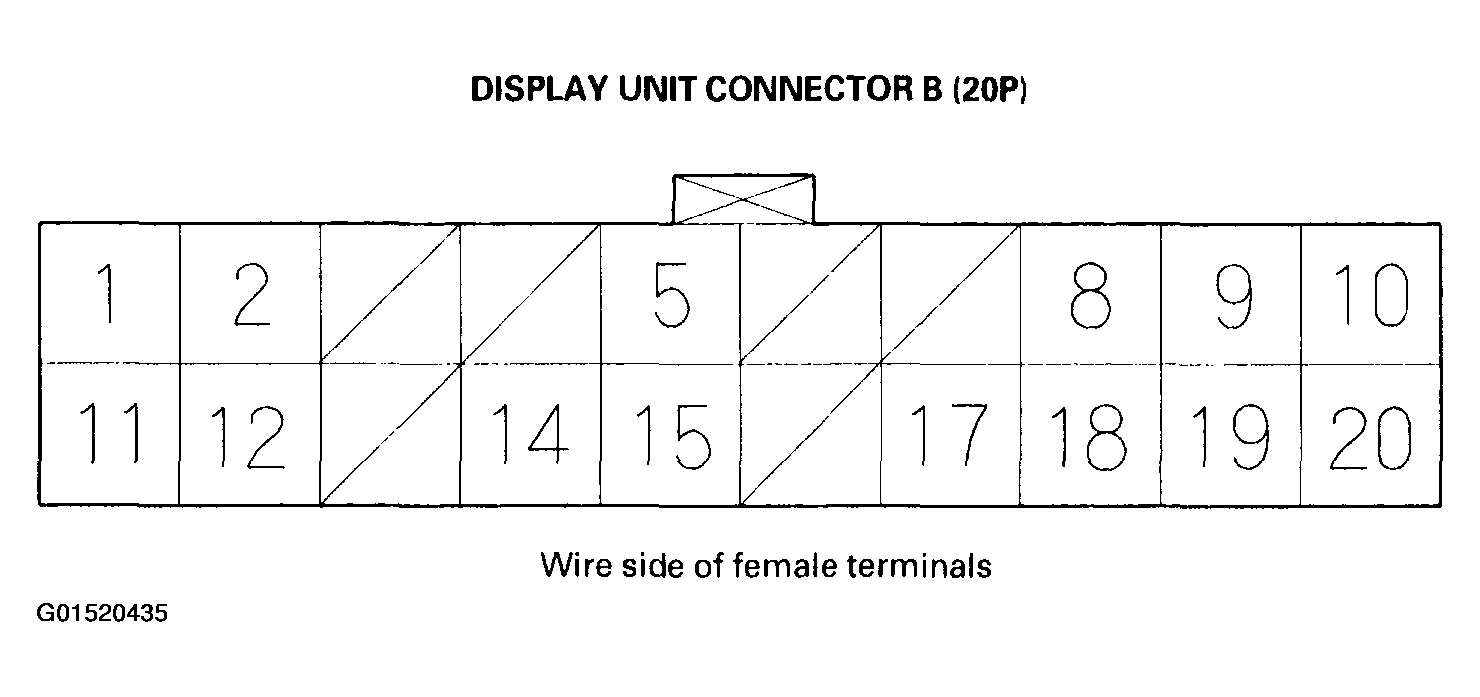

Fig 9: Identifying Display Unit Connector B (20P)

G01520435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

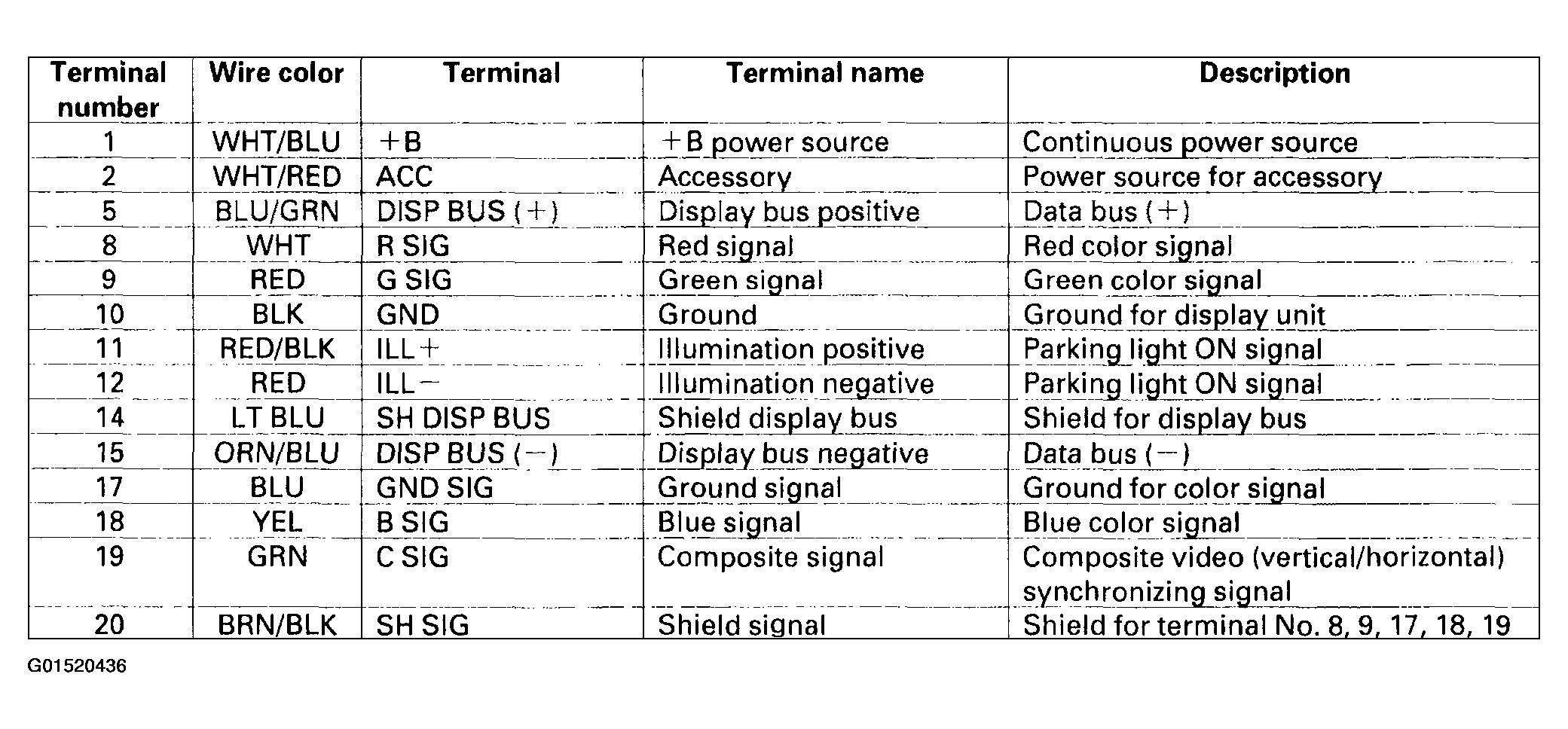

Fig 10: Display Unit Inputs & Outputs Connector B (20P) Identification Chart

G01520436

Courtesy of AMERICAN HONDA MOTOR CO., INC.
