Sunlight Sensor Test
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

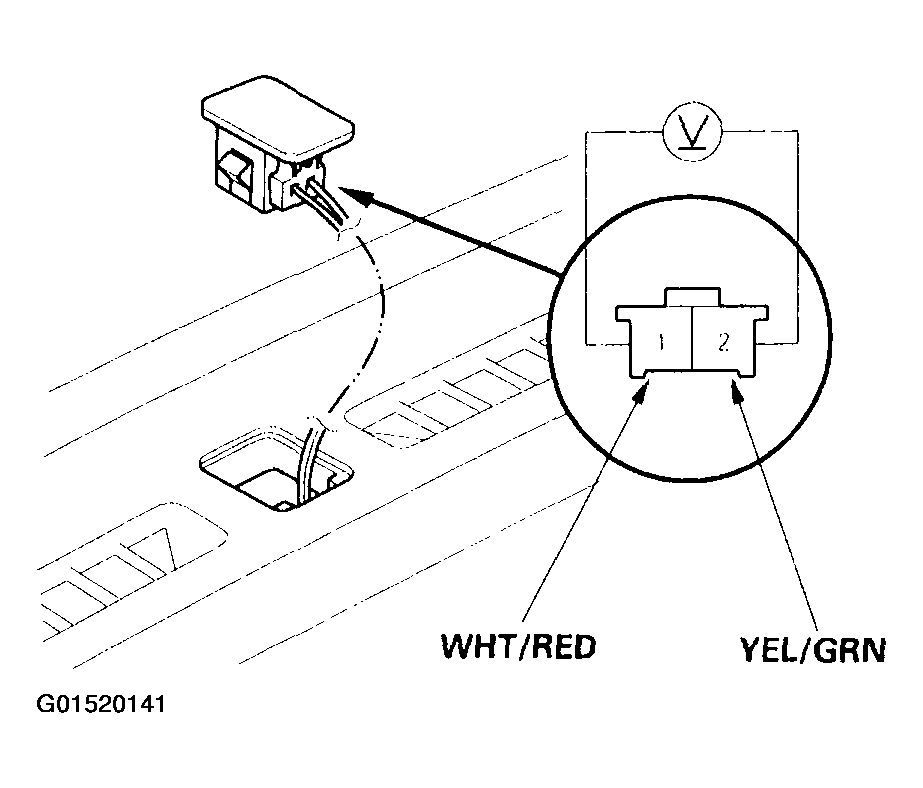

Turn the ignition switch ON (II). Measure the voltage between the terminals with the (+) probe on the No. 1 terminal and the (-) probe on the No. 2 terminal with the 2P connector connected. The voltage reading will not change under the light of a flashlight or a fluorescent lamp. Voltage should be:
- 3.6 - 3.7 V or more with the sensor out of direct sunlight.
- 3.3 - 3.5 V or less with the sensor in direct sunlight.
