Front Subframe Torque

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

After removing the subframe mounting bolts, be sure to replace them with new ones.

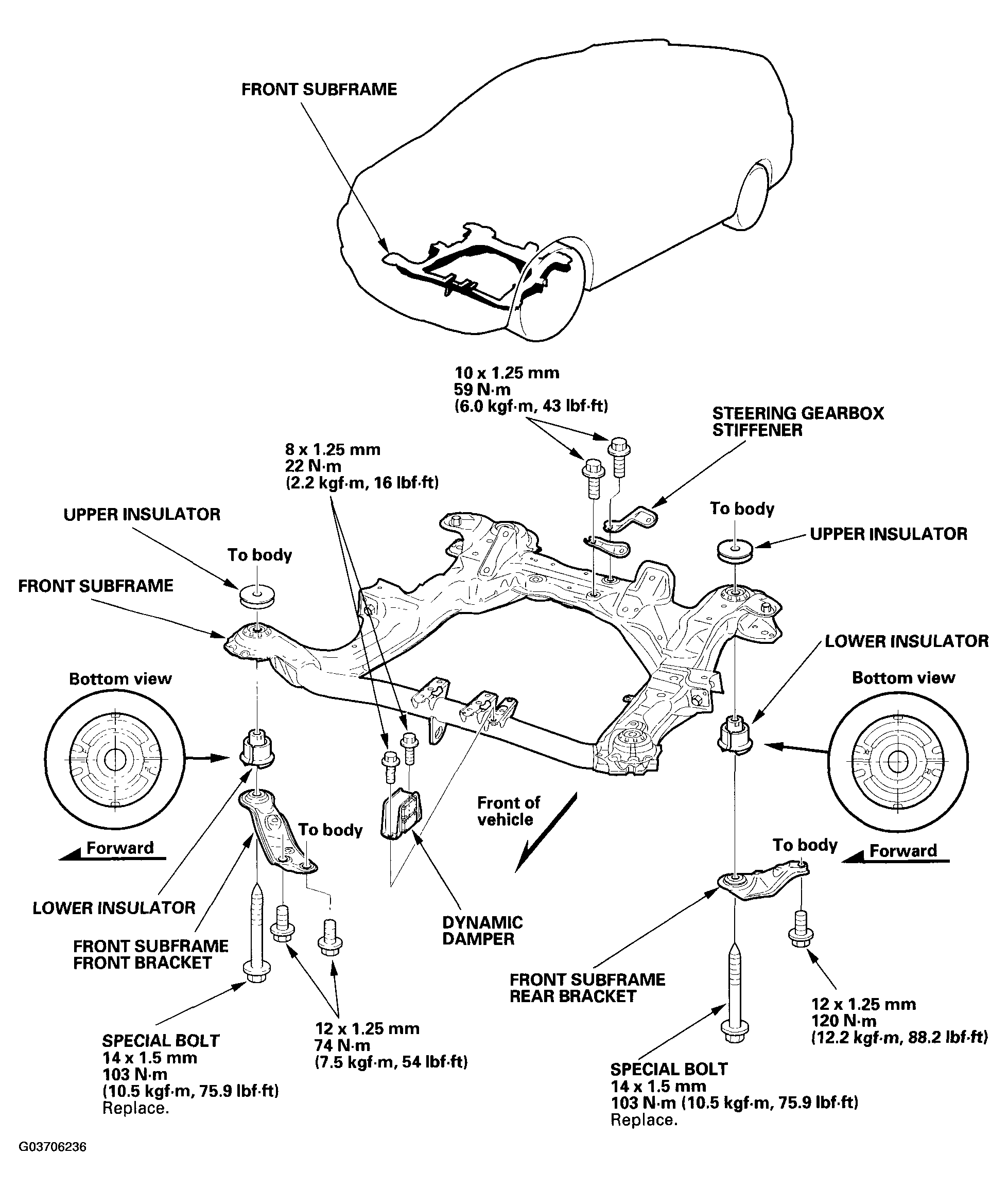

Fig 1: Removing Front Subframe Mounting Bolts
G03706236Courtesy of AMERICAN HONDA MOTOR CO., INC.
