A/C Compressor Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

EX model: (see A/C COMPRESSOR REPLACEMENT )

NOTE: Do not install the A/C compressor into a system unless you are completely sure that the system is free of contamination. Installing the A/C compressor into a contaminated system can result in premature A/C compressor failure.

If the A/C compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
Recover the refrigerant with a recovery/recycling/charging station (see REFRIGERANT RECOVERY ).
Remove the intake manifold cover (see step 1 in REMOVAL ), and the drive belt (see DRIVE BELT REPLACEMENT ).

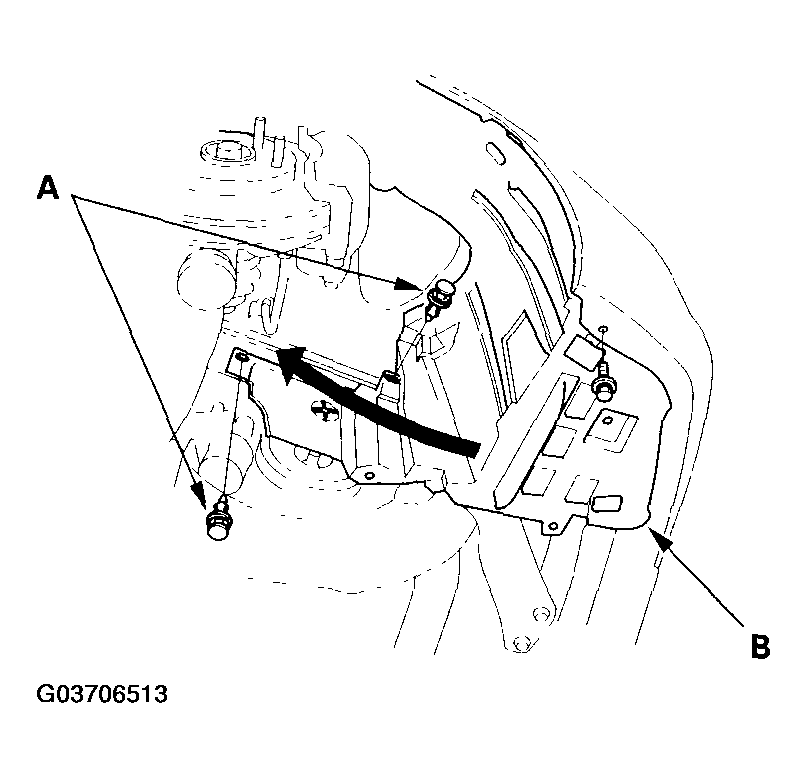

Remove the splash shield (see FRONT SPLASH SHIELD REPLACEMENT ). Remove the clips (A) and bolt from the right front inner fender (B). Then move the right front inner fender to the rear.

Fig 1: Removing Clips And Bolt From Right Front Inner Fender
Courtesy of AMERICAN HONDA MOTOR CO., INC.

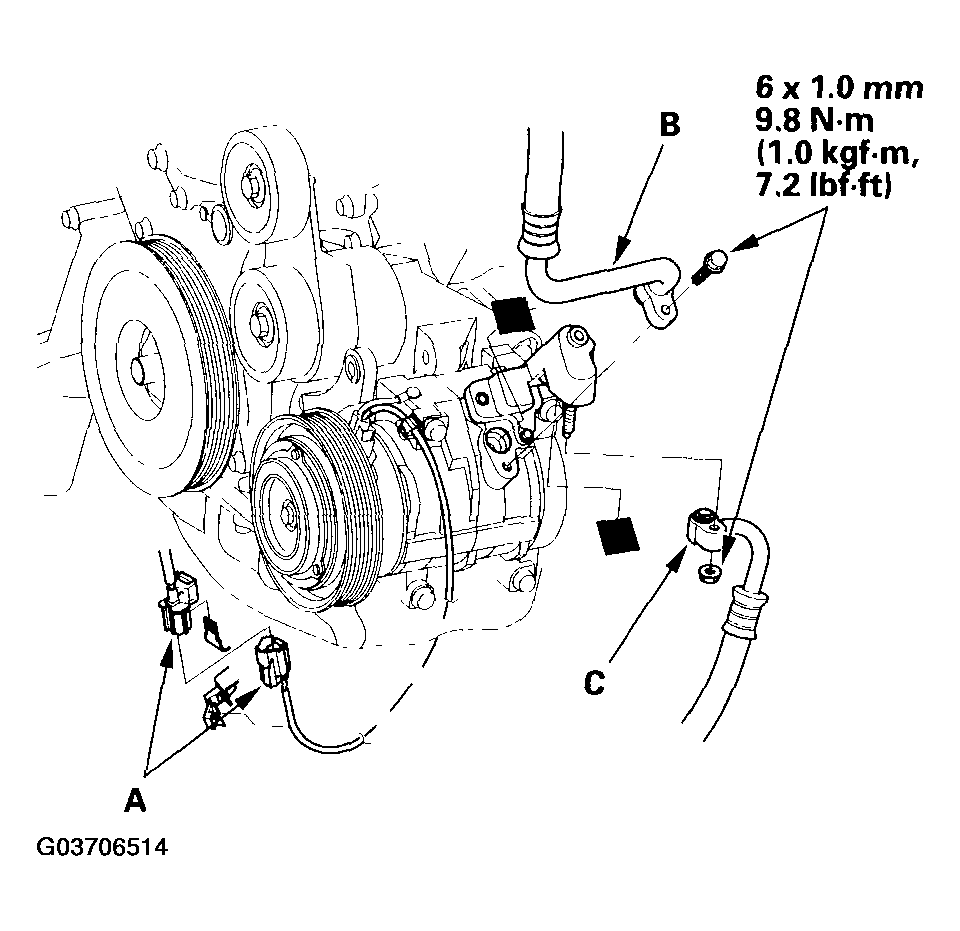

Disconnect the A/C compressor clutch connector (A). Remove the bolt and the nut, then disconnect the suction line (B) and discharge line (C) from the A/C compressor. Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

Fig 2: Disconnecting A/C Compressor Clutch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

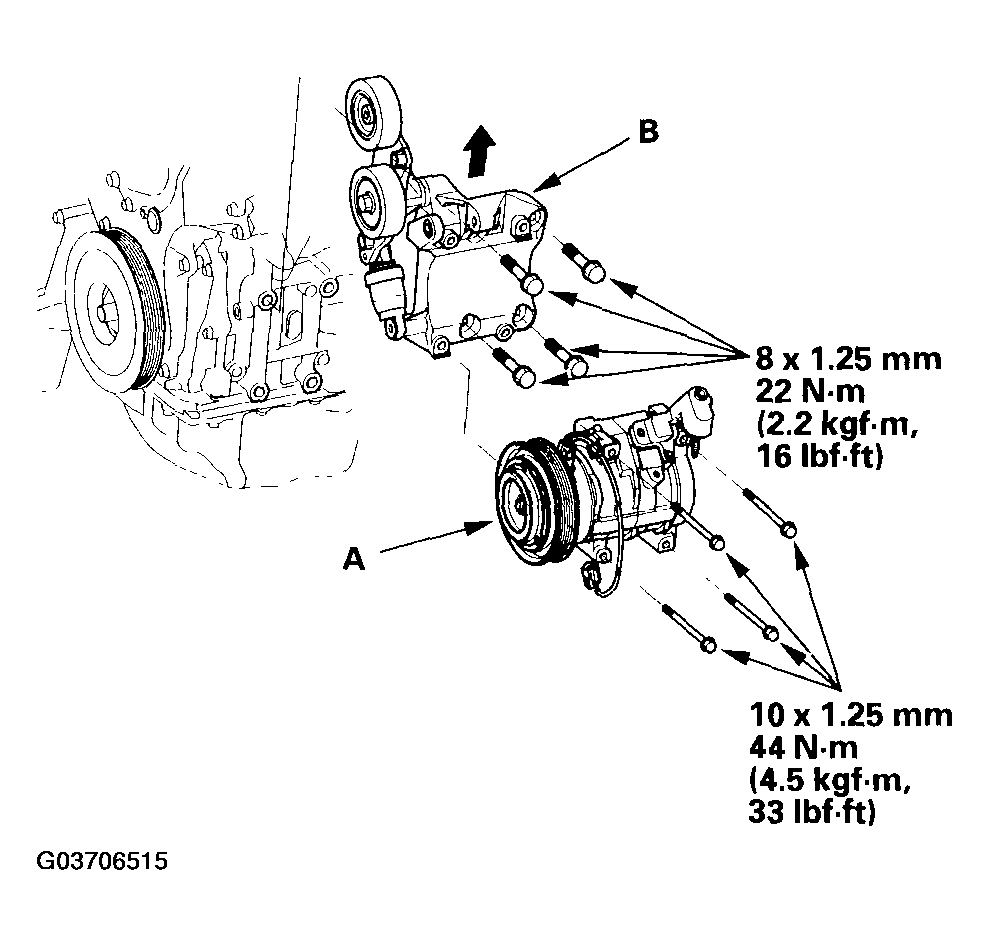

Remove the mounting bolts, then detach the A/C compressor (A). Remove the mounting bolts, then slide up the A/C compressor bracket (B).

Fig 3: Sliding Up A/C Compressor Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

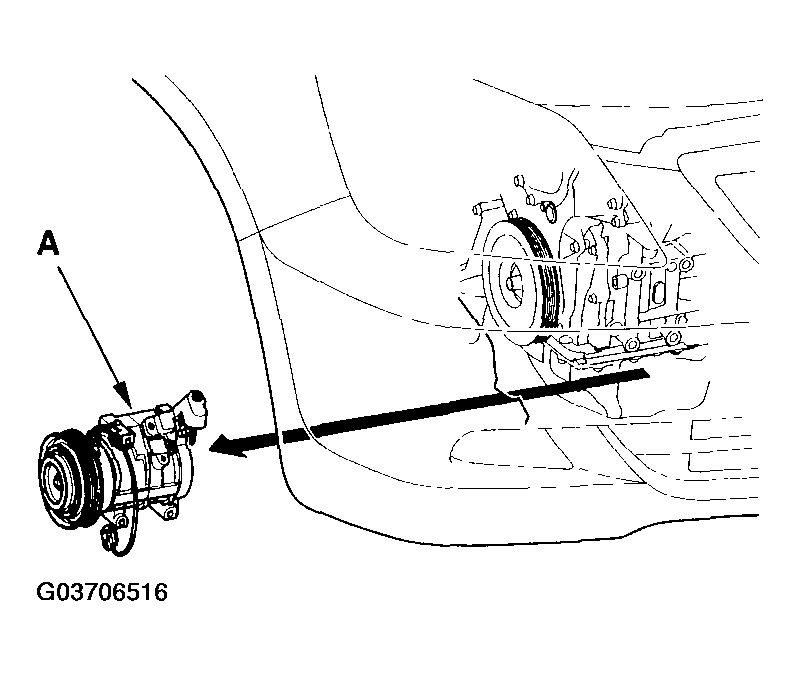

Remove the A/C compressor (A).

Fig 4: Removing A/C Compressor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the A/C compressor in the reverse order of removal, and note these items:
- Inspect the A/C lines for any signs of contamination.
- If you're installing a new A/C compressor, you must calculate the amount of refrigerant oil to be removed from it (see A/C REFRIGERANT OIL REPLACEMENT ). A new A/C compressor comes with a full charge of oil.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
- Use refrigerant oil (DENSO ND-OIL 8) for HFC-134a DENSO piston type A/C compressor only.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
- Charge the system (see SYSTEM CHARGING )
