Sunlight Sensor Test

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunlight sensor (A) from the dashboard.

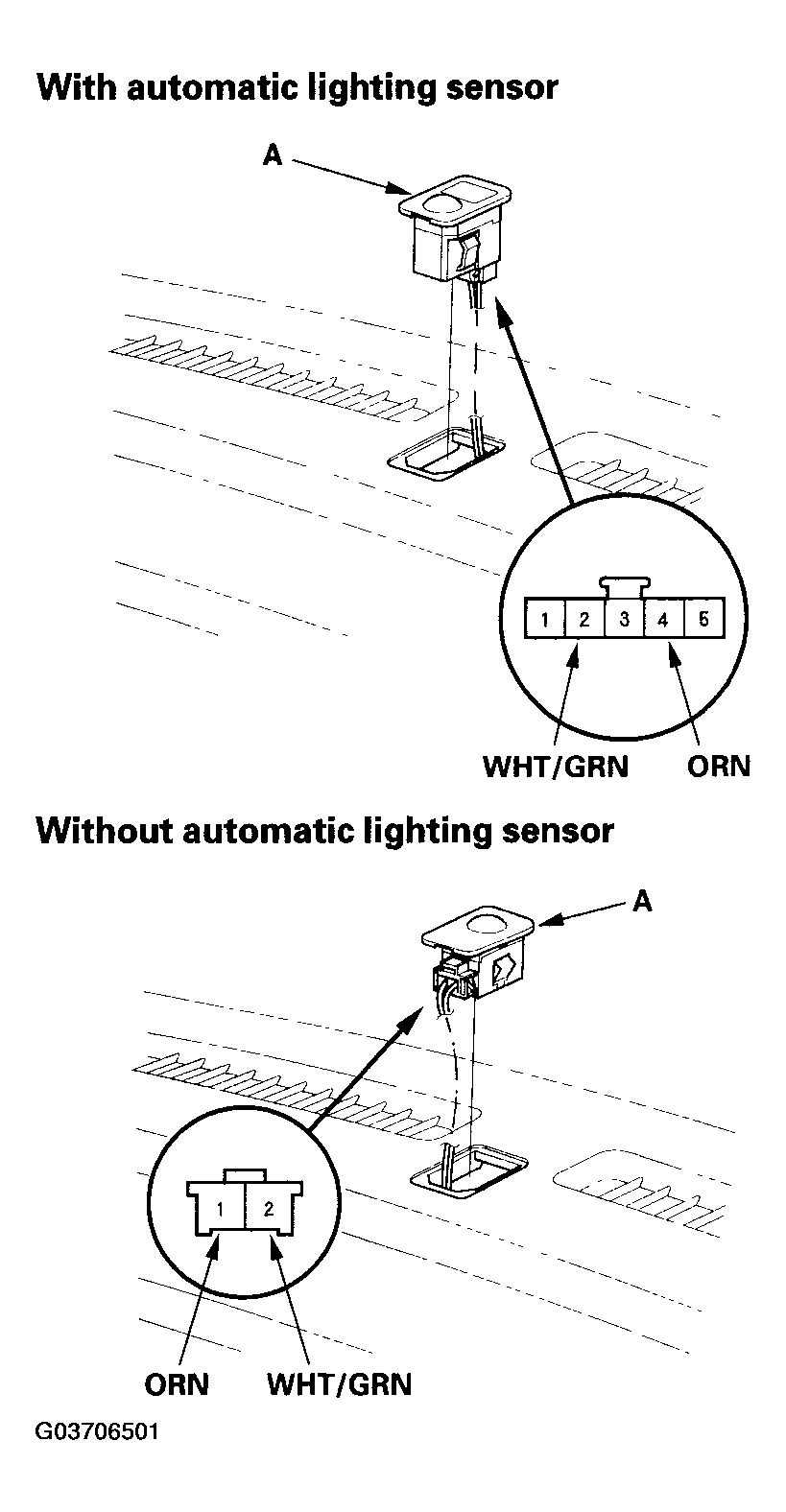

    Fig 1: Removing Sunlight Sensor From Dashboard
    G03706501Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch ON (II). Measure the voltage between the terminals with the (+) probe on the No. 4 (with automatic lighting sensor) or No. 1 (without automatic lighting sensor) terminal and the (-) probe on the No. 2 terminal with the connector connected.
    NOTE: The voltage readings will not change under the light of a flashlight or a fluorescent lamp. Voltage should be:
    • 3.6-3.7 V or more with the sensor out of direct sunlight.
    • 3.3-3.5 V or less with the sensor in direct sunlight.
  3. If the voltage is not as specified, replace the sunlight sensor (see SUNLIGHT SENSOR REPLACEMENT  ).
