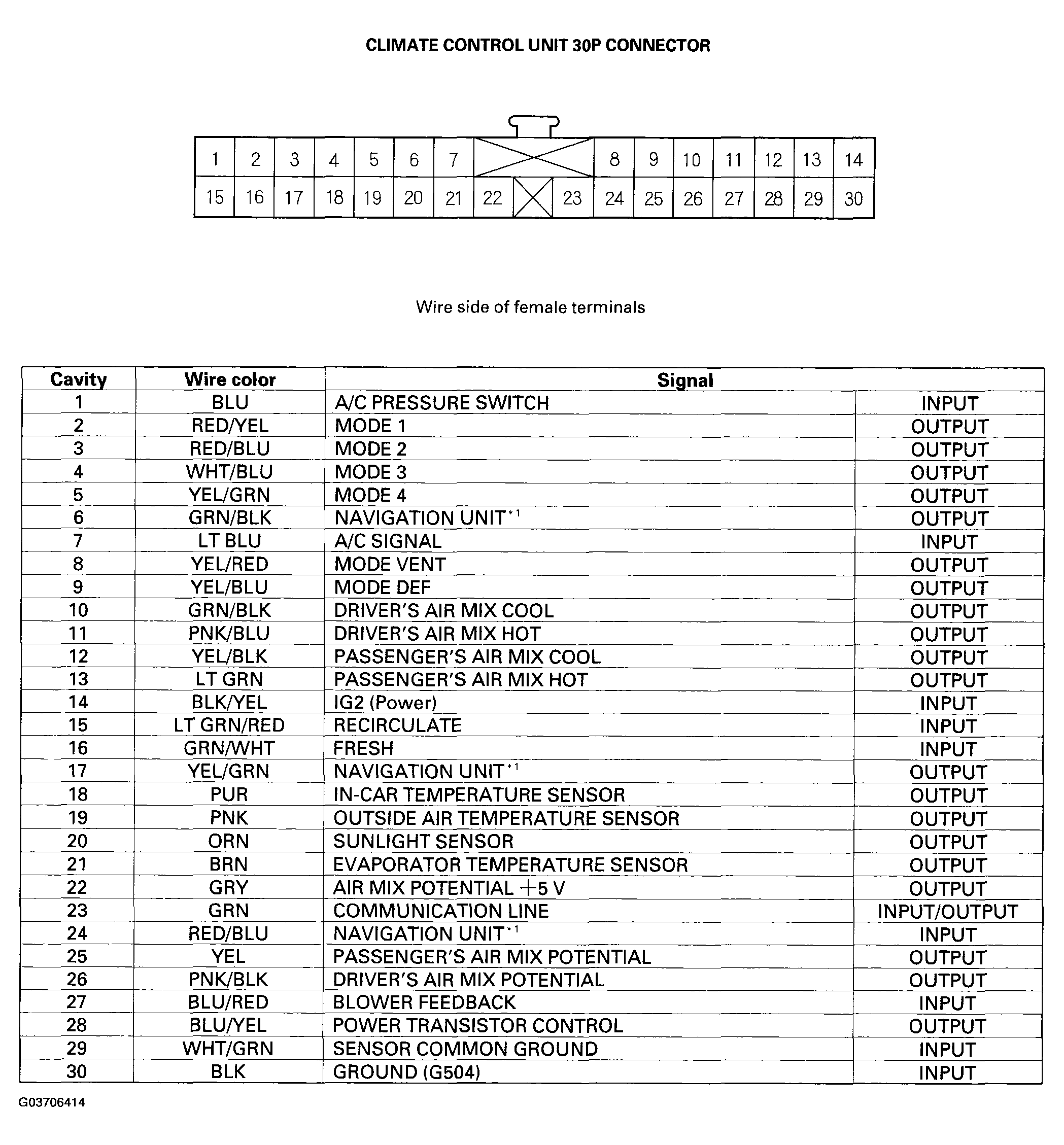

Fig 1: Identifying Climate Control Unit Inputs And Outputs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

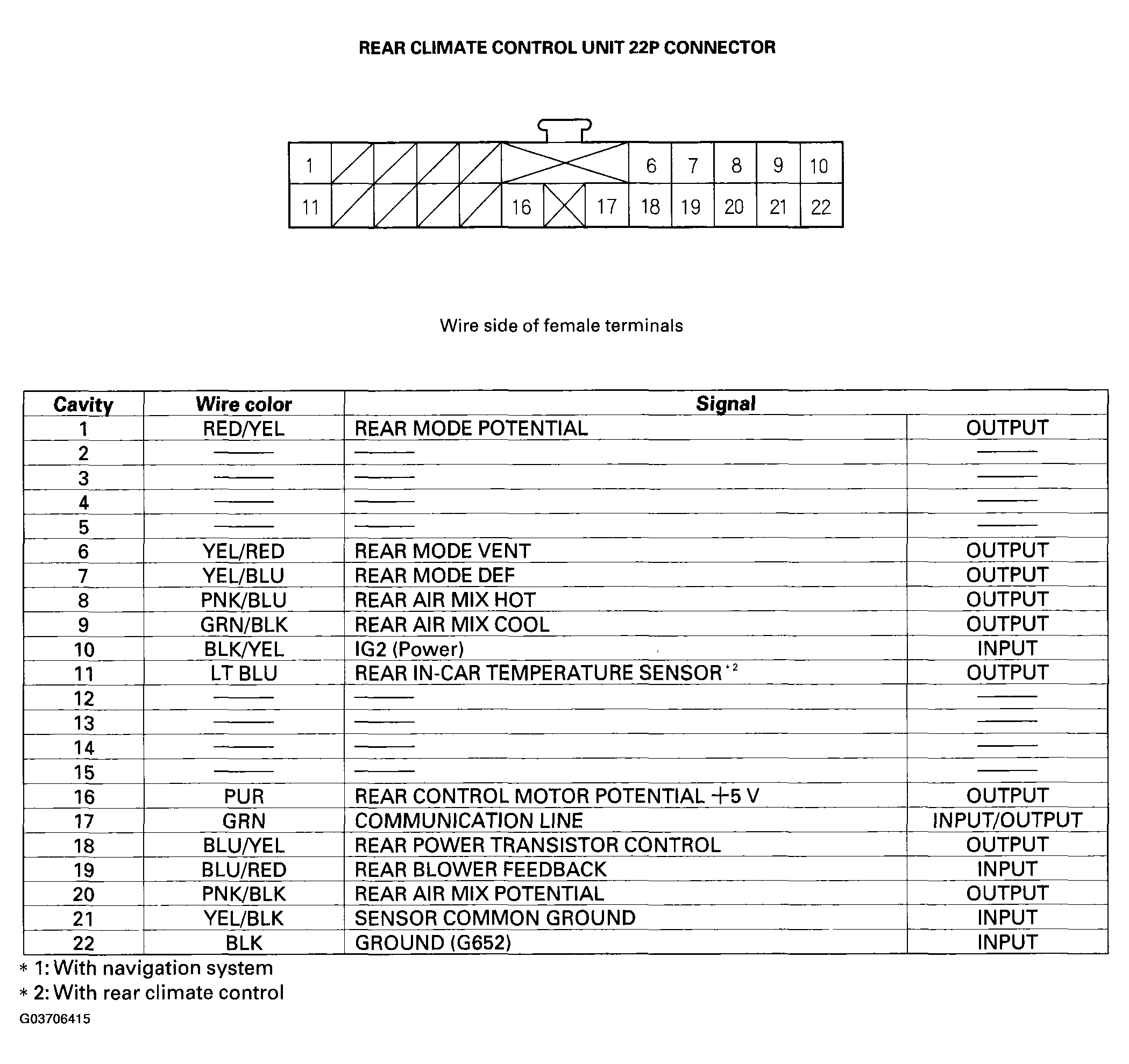

Fig 1: Identifying Rear Climate Control Unit Inputs And Outputs
