Component Location Index

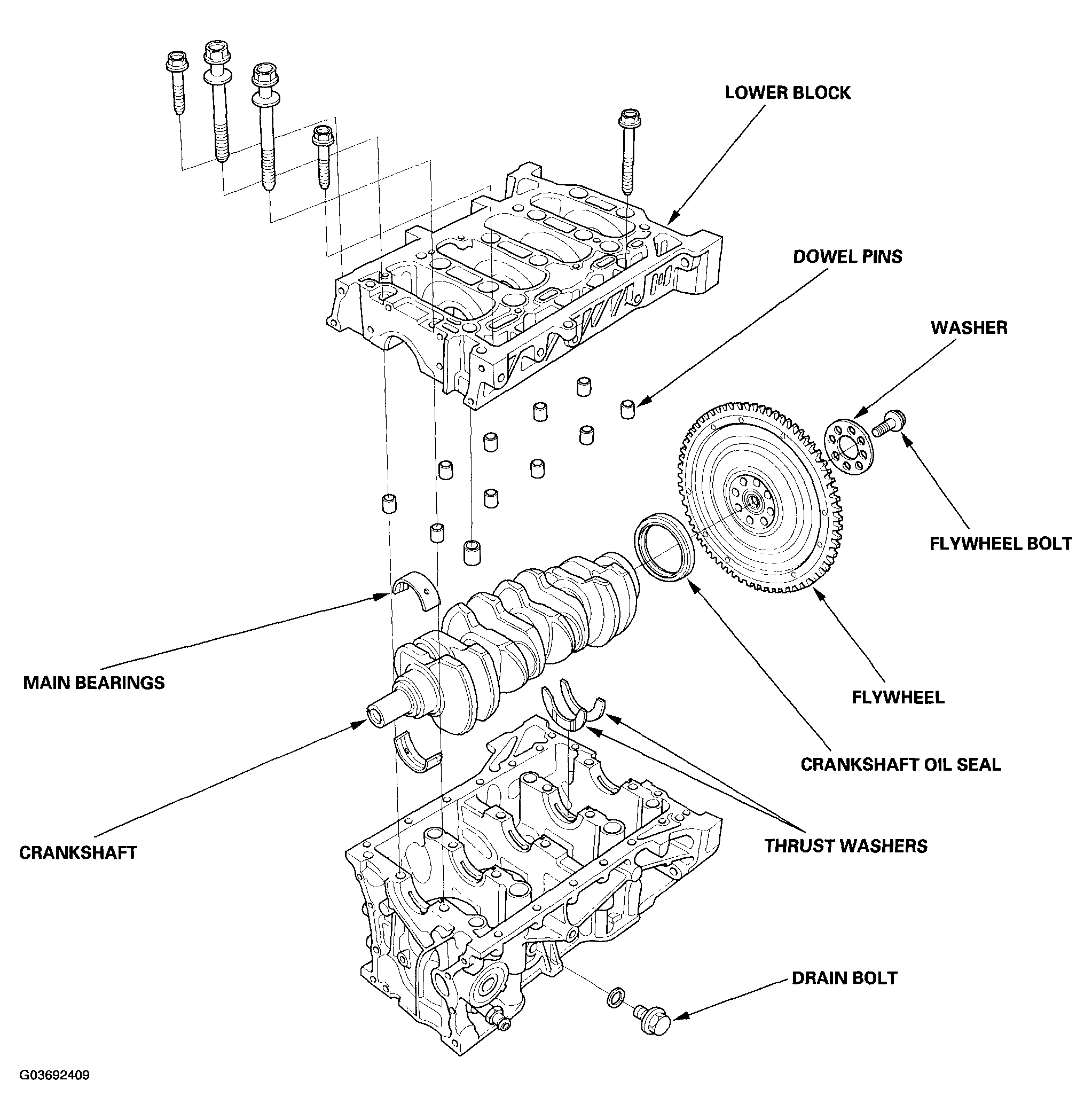

Fig 1: Identifying Engine Assembly Components Location (1 Of 2)
G03692409Courtesy of AMERICAN HONDA MOTOR CO., INC.

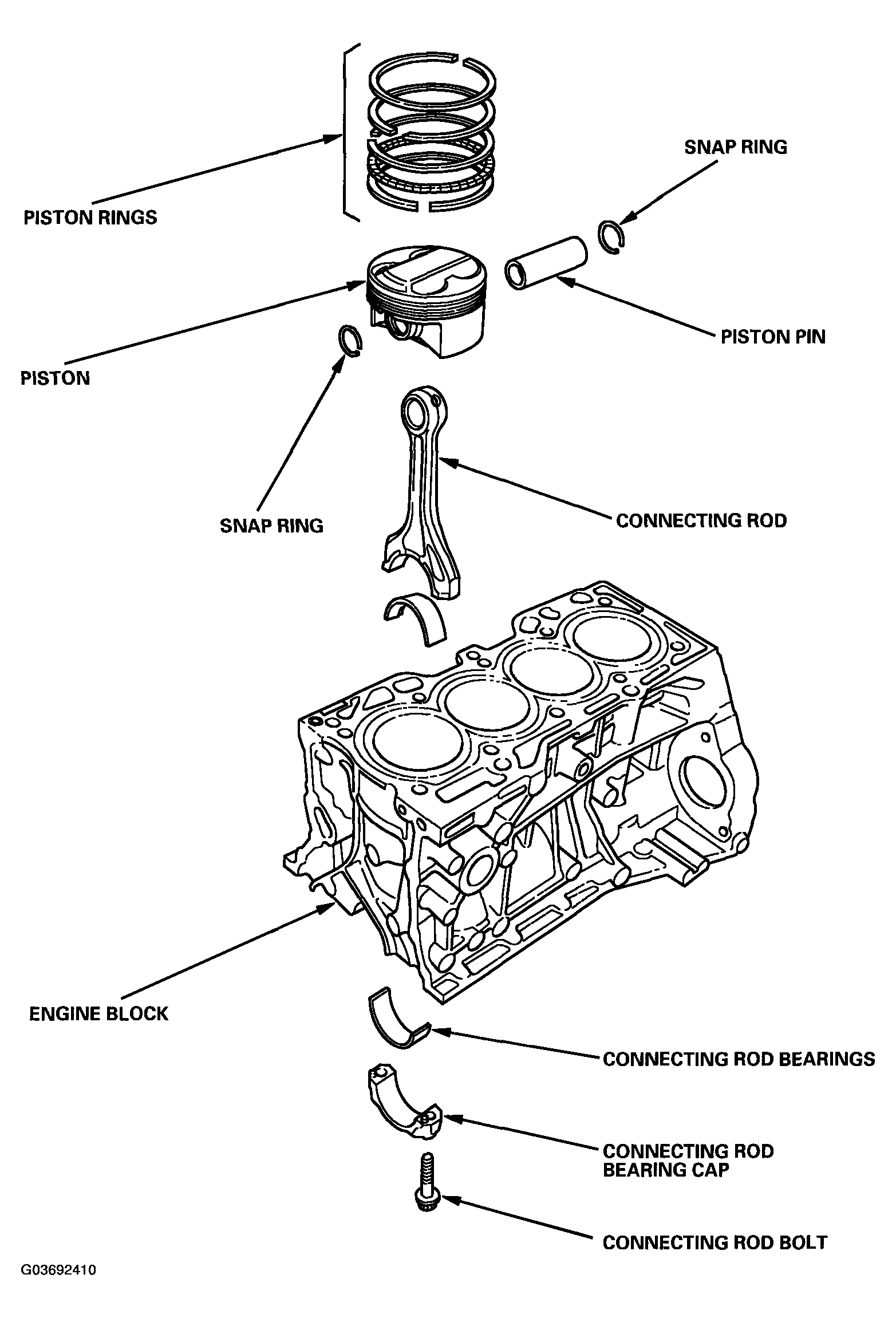

Fig 2: Identifying Engine Assembly Components Location (2 Of 2)
G03692410Courtesy of AMERICAN HONDA MOTOR CO., INC.
