Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

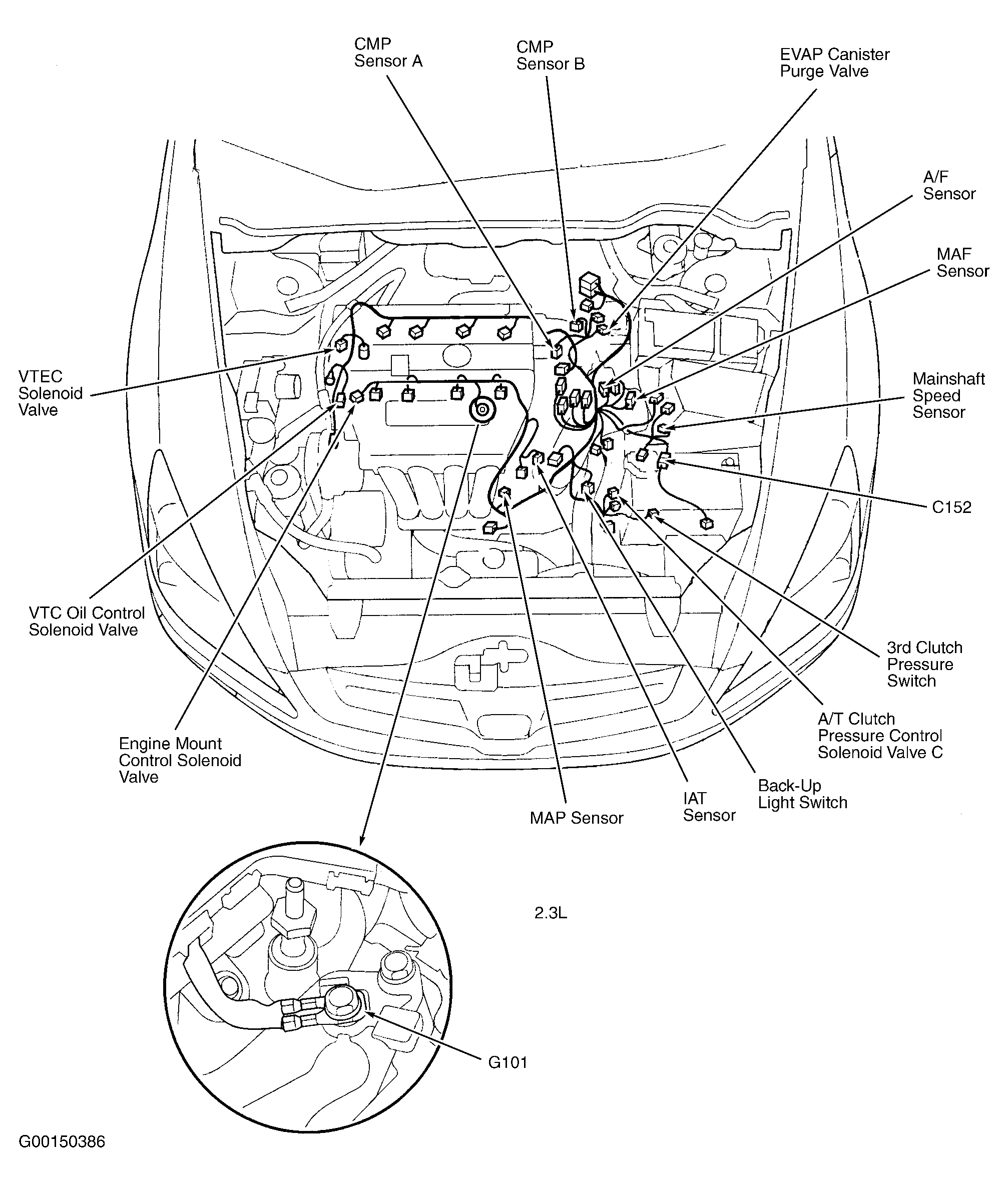

Fig 1: Engine Compartment (2.4L)

G00150386

Courtesy of AMERICAN HONDA MOTOR CO., INC.

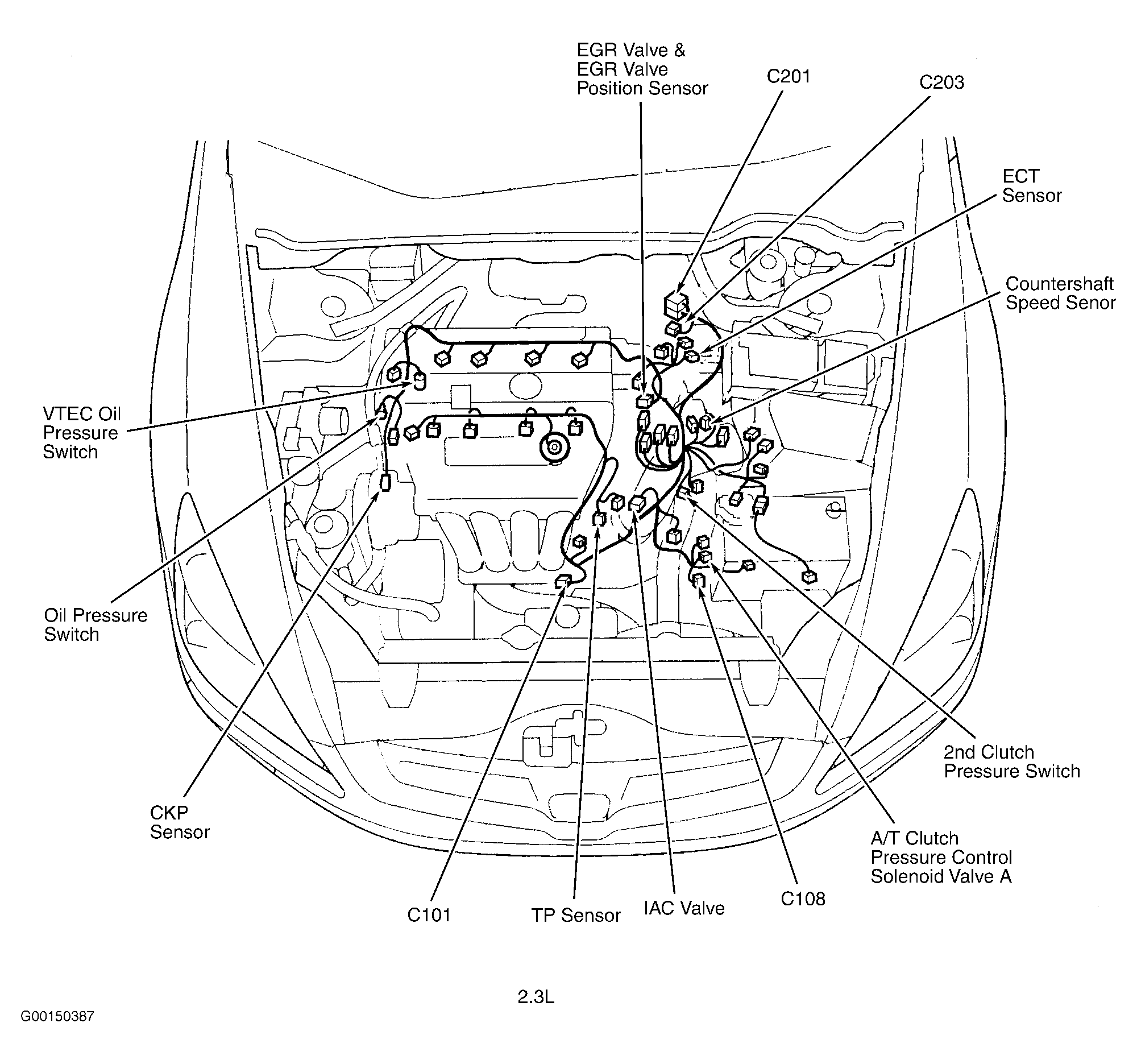

Fig 2: Engine Compartment (2.4L)

G00150387

Courtesy of AMERICAN HONDA MOTOR CO., INC.

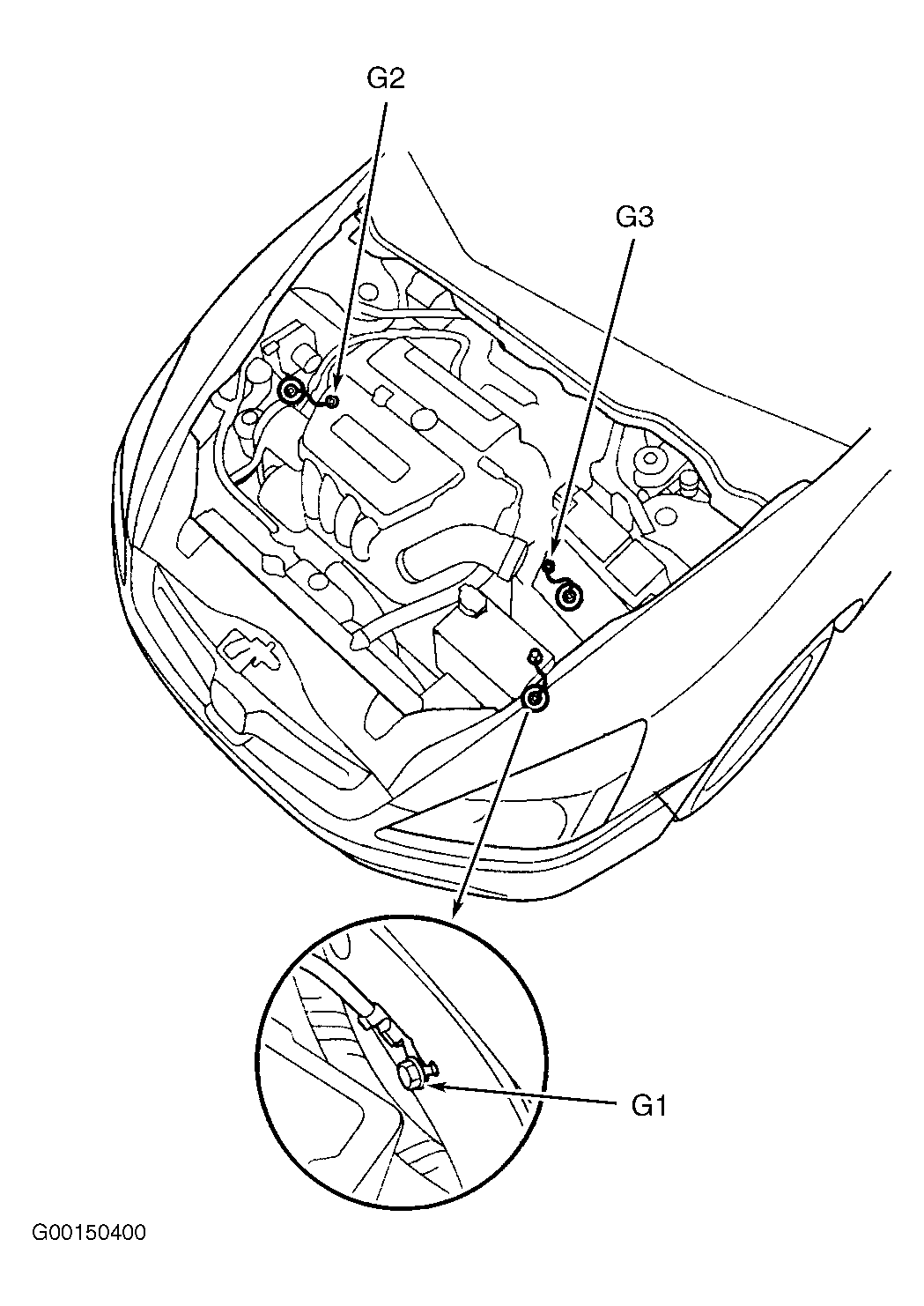

Fig 3: Engine Compartment

G00150400

Courtesy of AMERICAN HONDA MOTOR CO., INC.

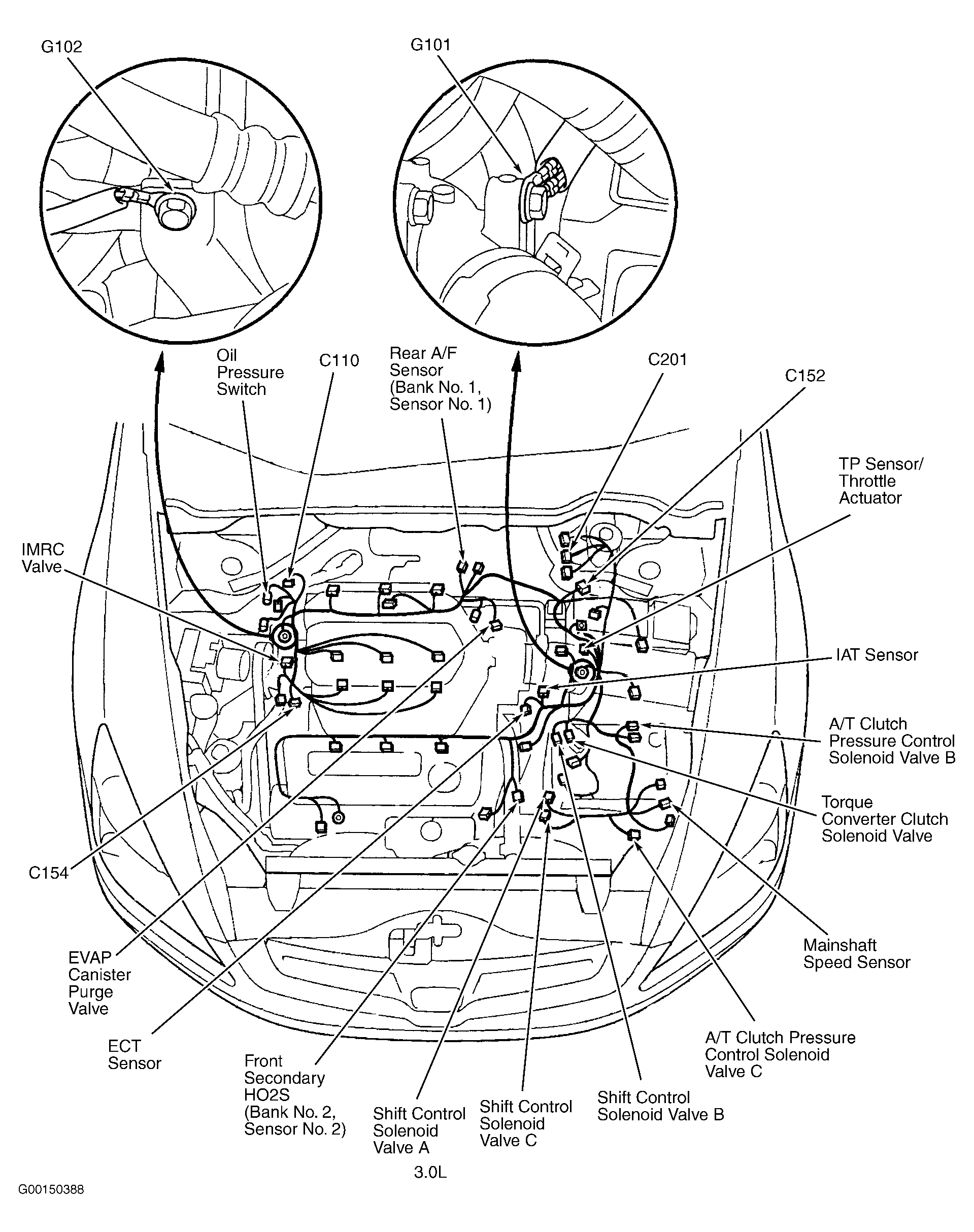

Fig 4: Engine Compartment (3.0L)

G00150388

Courtesy of AMERICAN HONDA MOTOR CO., INC.

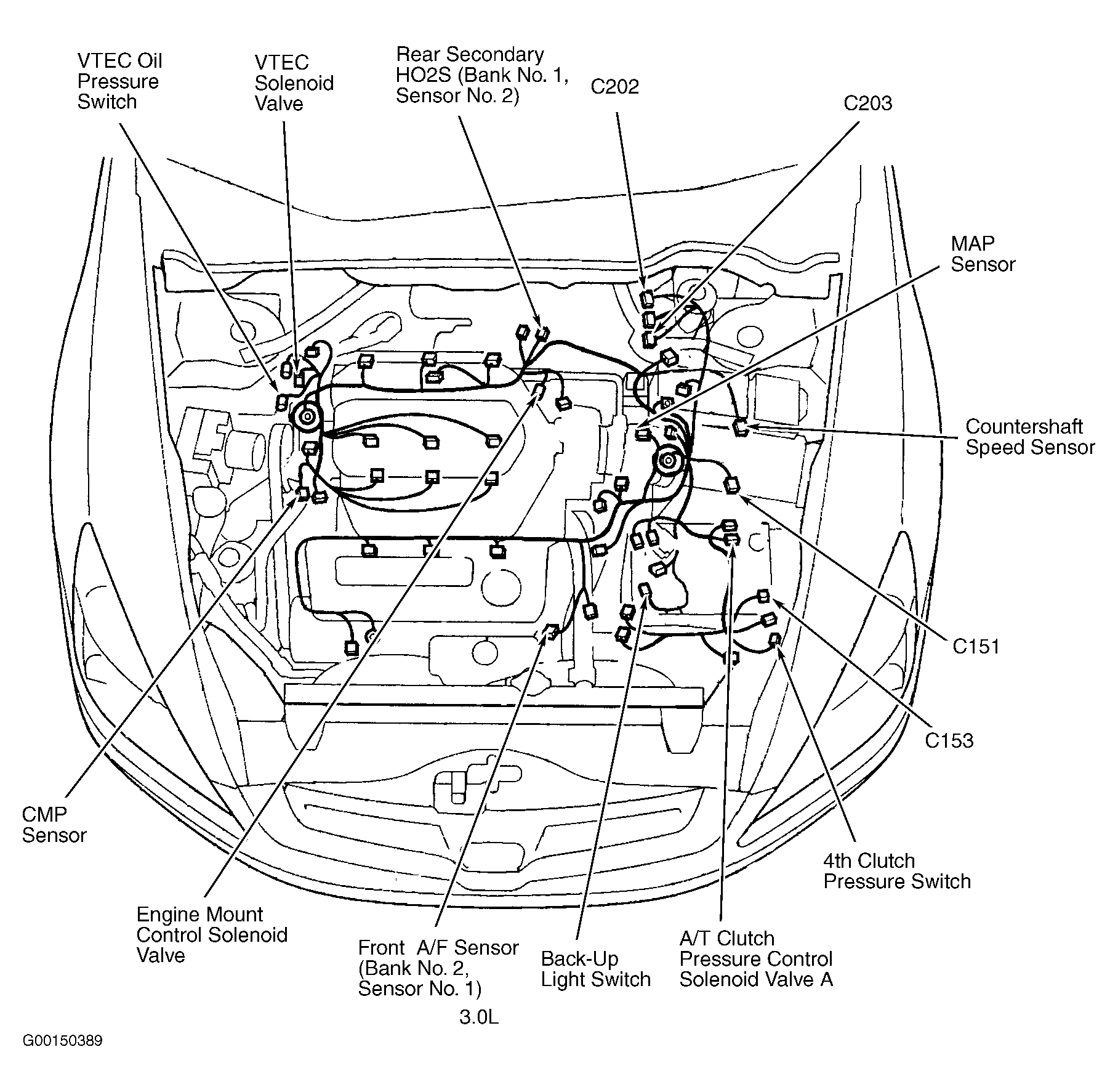

Fig 5: Engine Compartment (3.0L)

G00150389

Courtesy of AMERICAN HONDA MOTOR CO., INC.

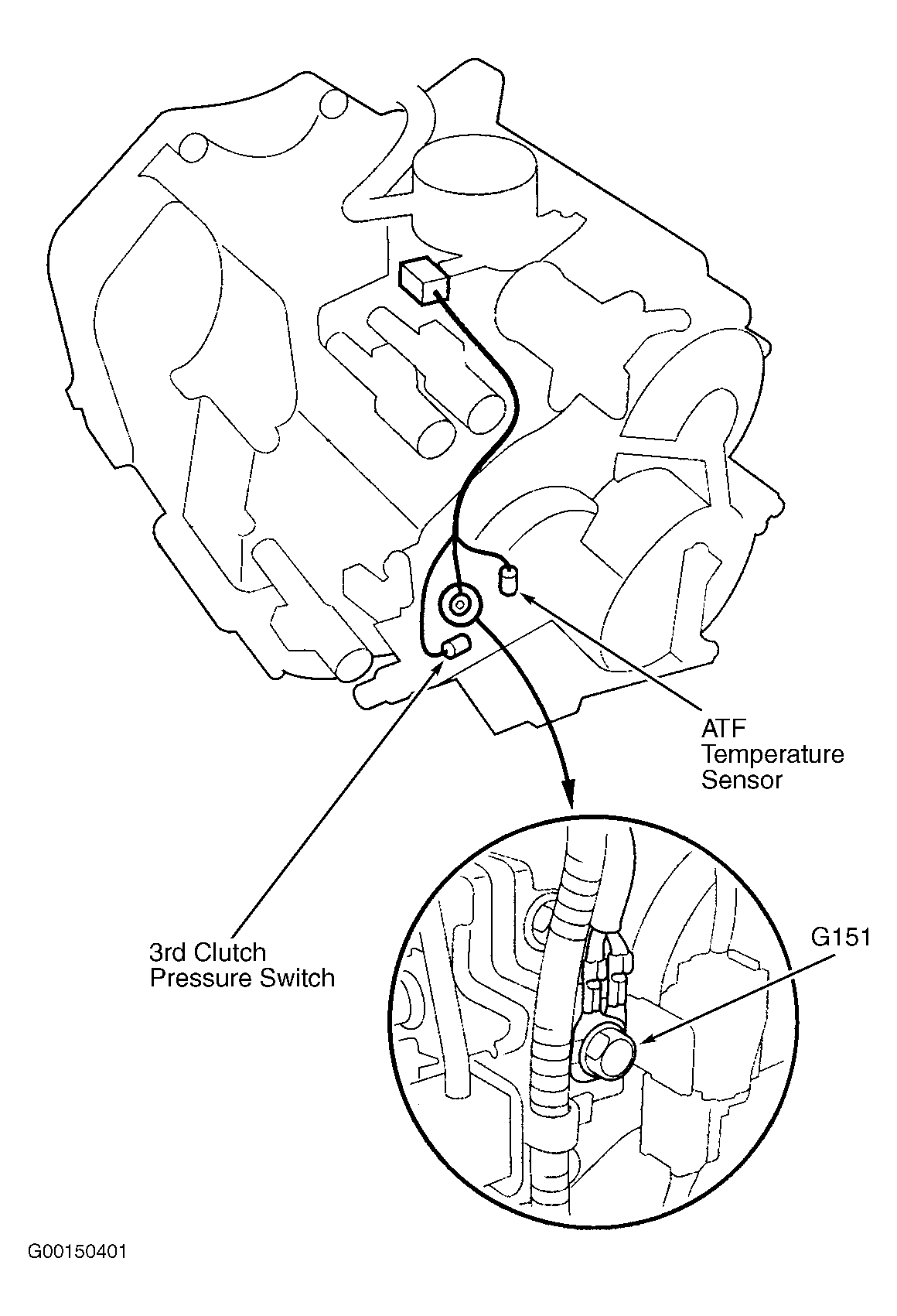

Fig 6: View Of Automatic Transmission (3.0L)

G00150401

Courtesy of AMERICAN HONDA MOTOR CO., INC.

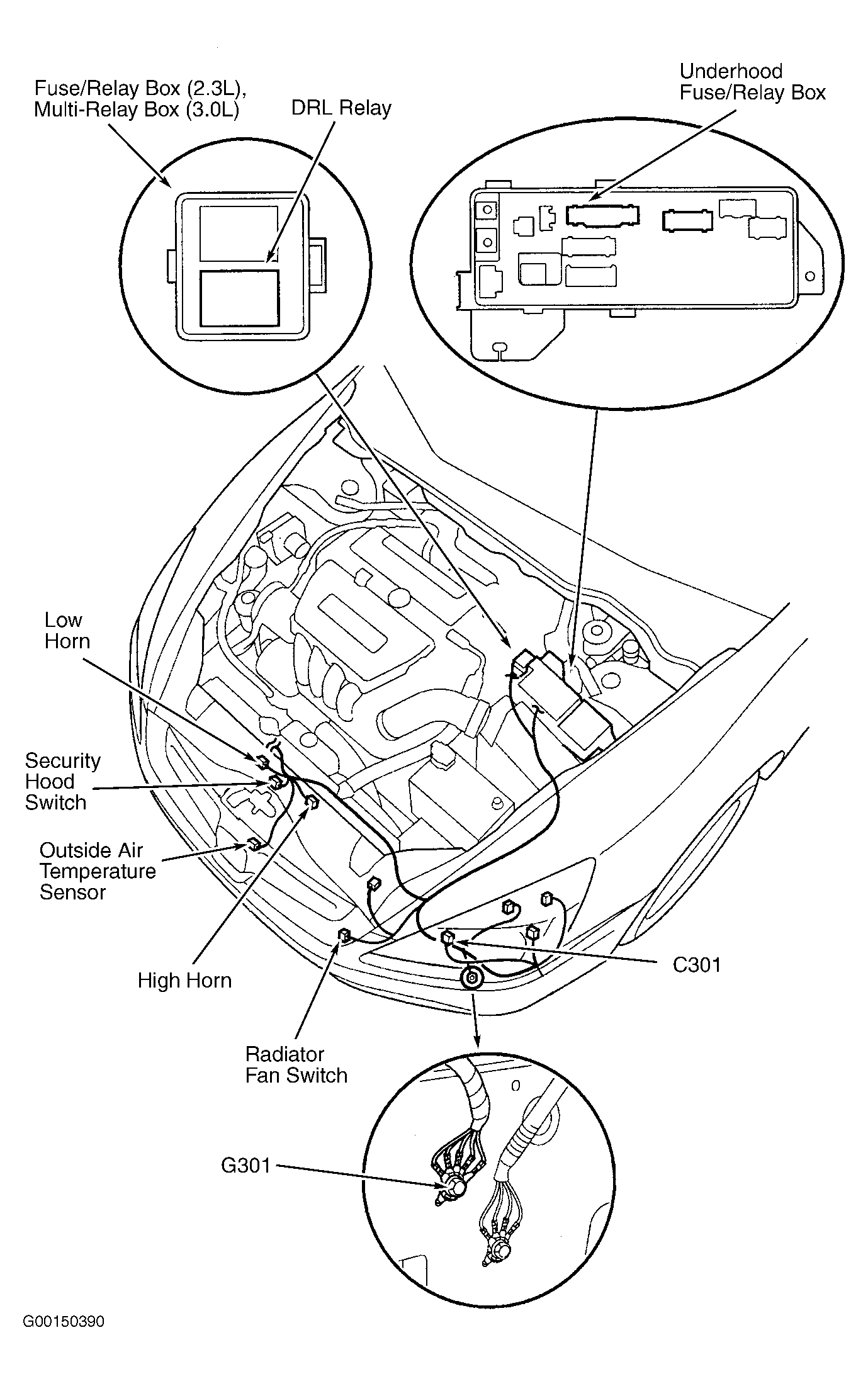

Fig 7: Front Of Vehicle

G00150390

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Left Side Of Dash

G00150391

Courtesy of AMERICAN HONDA MOTOR CO., INC.

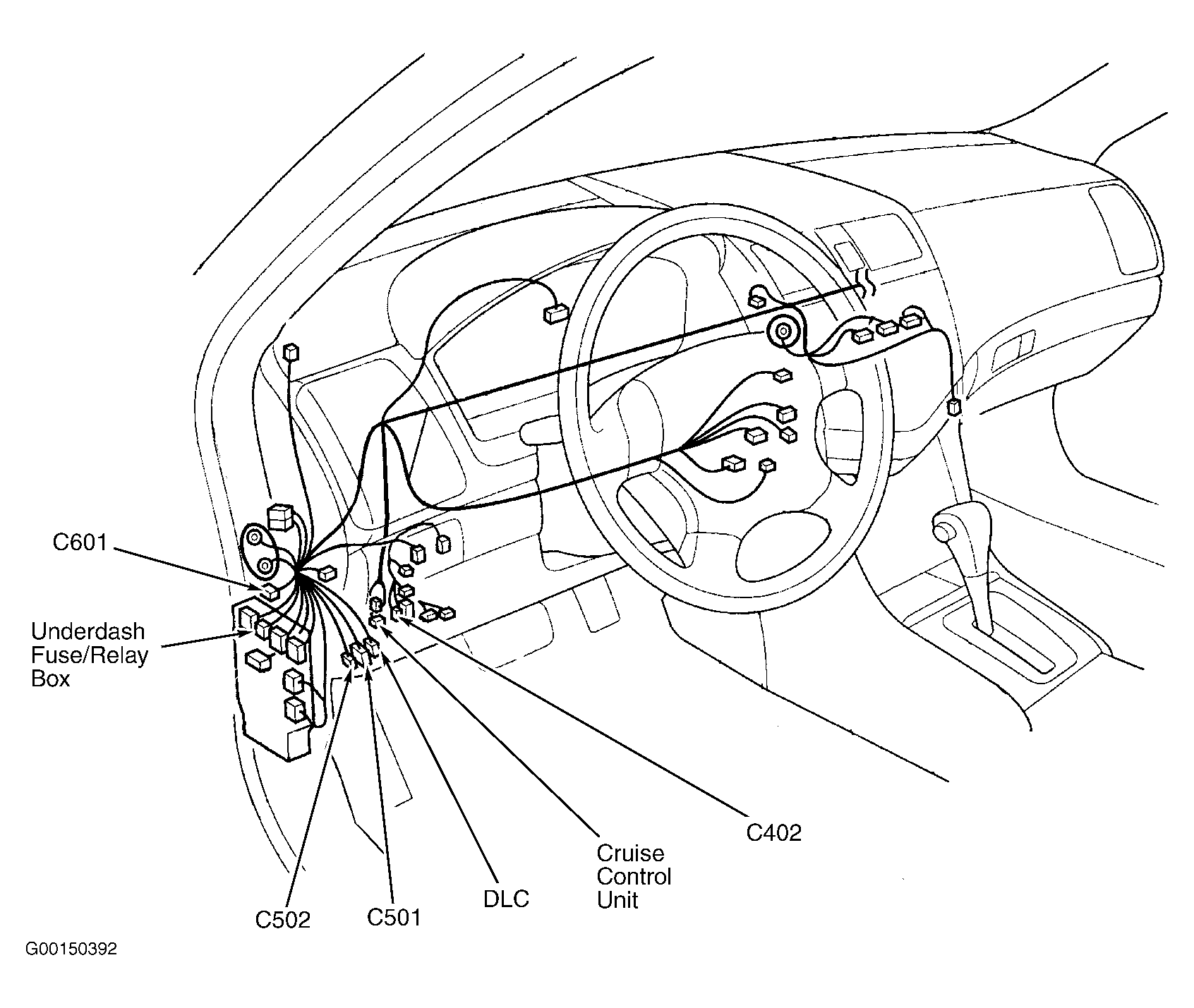

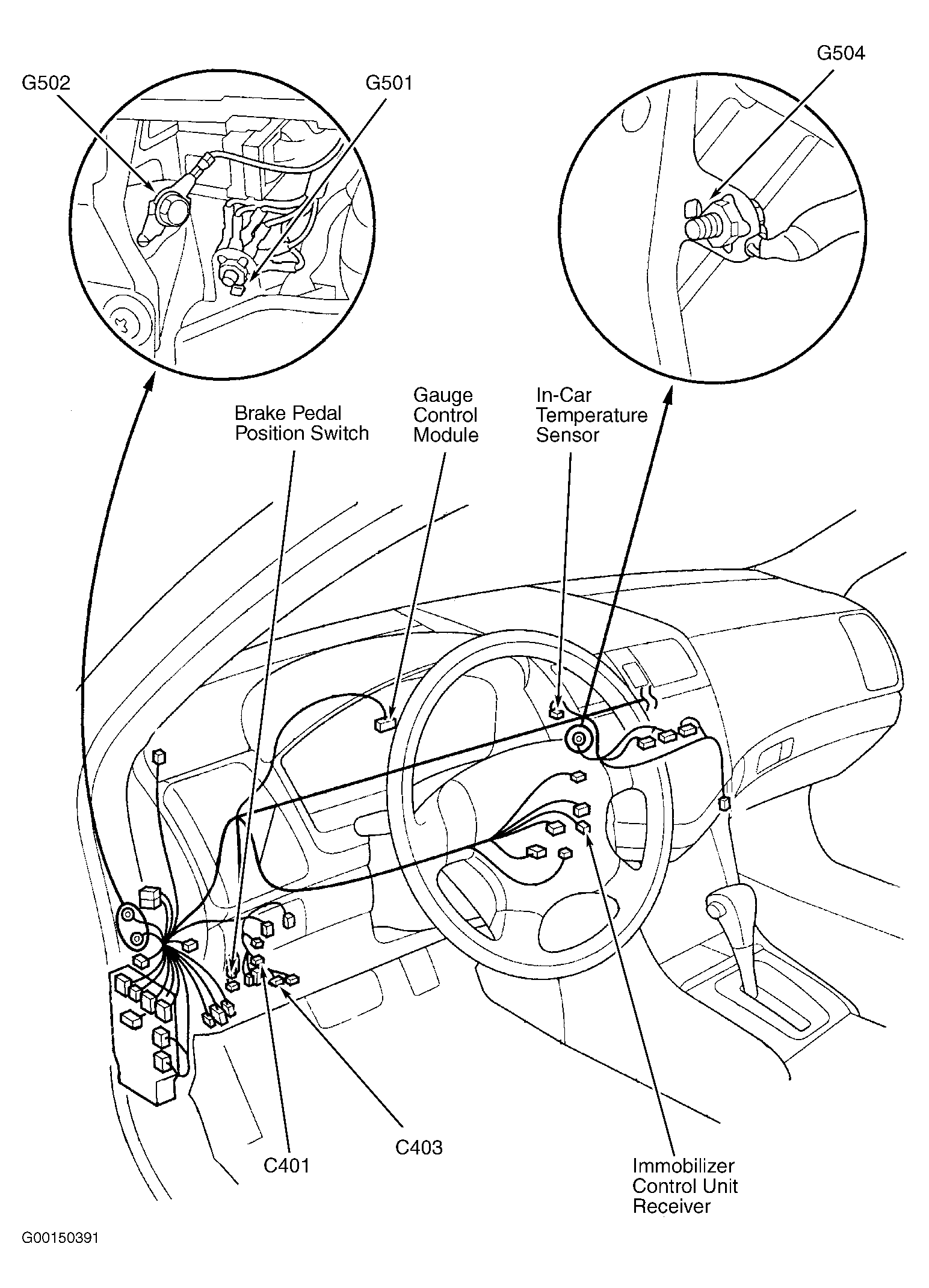

Fig 9: Left Side Of Dash

G00150392

Courtesy of AMERICAN HONDA MOTOR CO., INC.

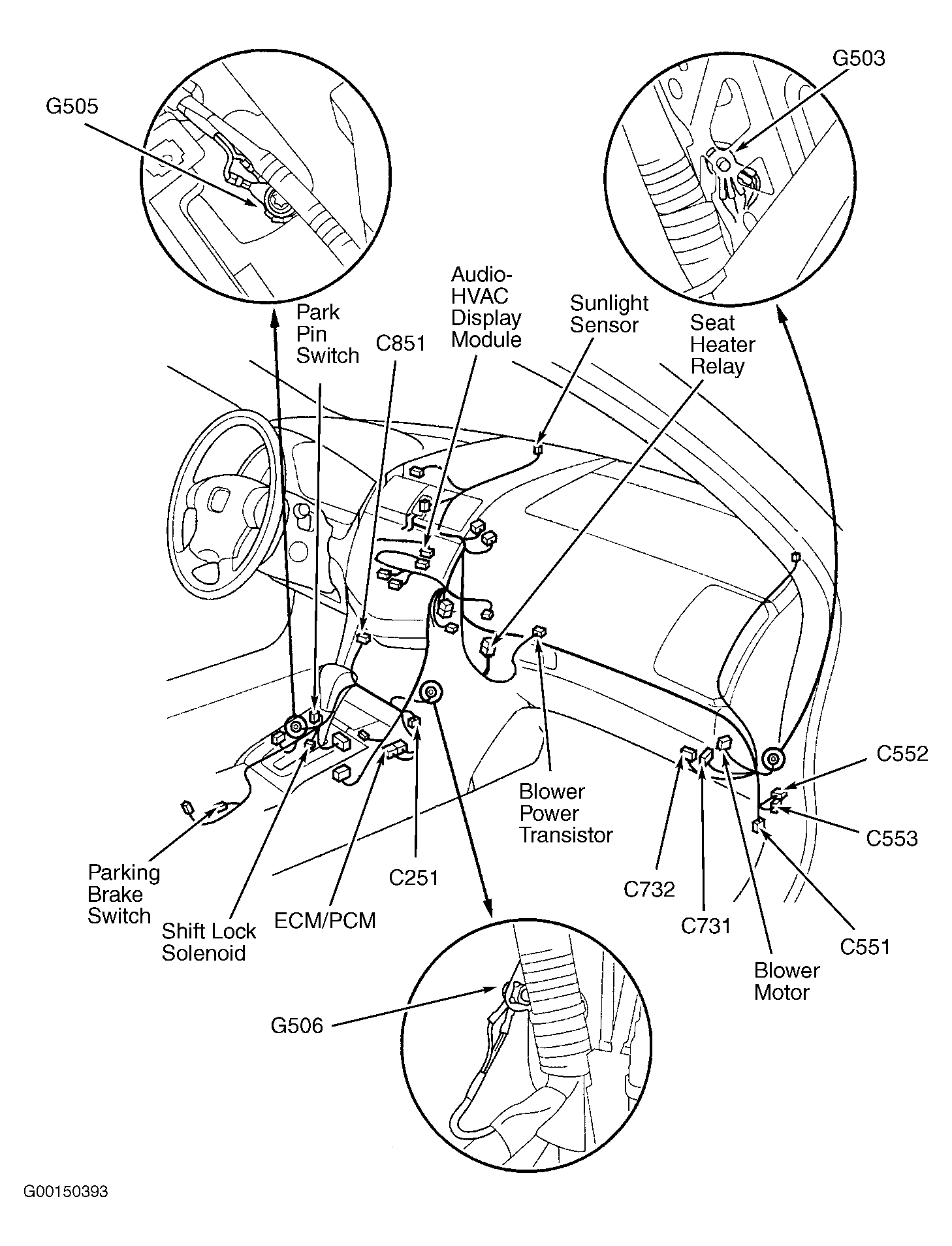

Fig 10: Right Side Of Dash

G00150393

Courtesy of AMERICAN HONDA MOTOR CO., INC.

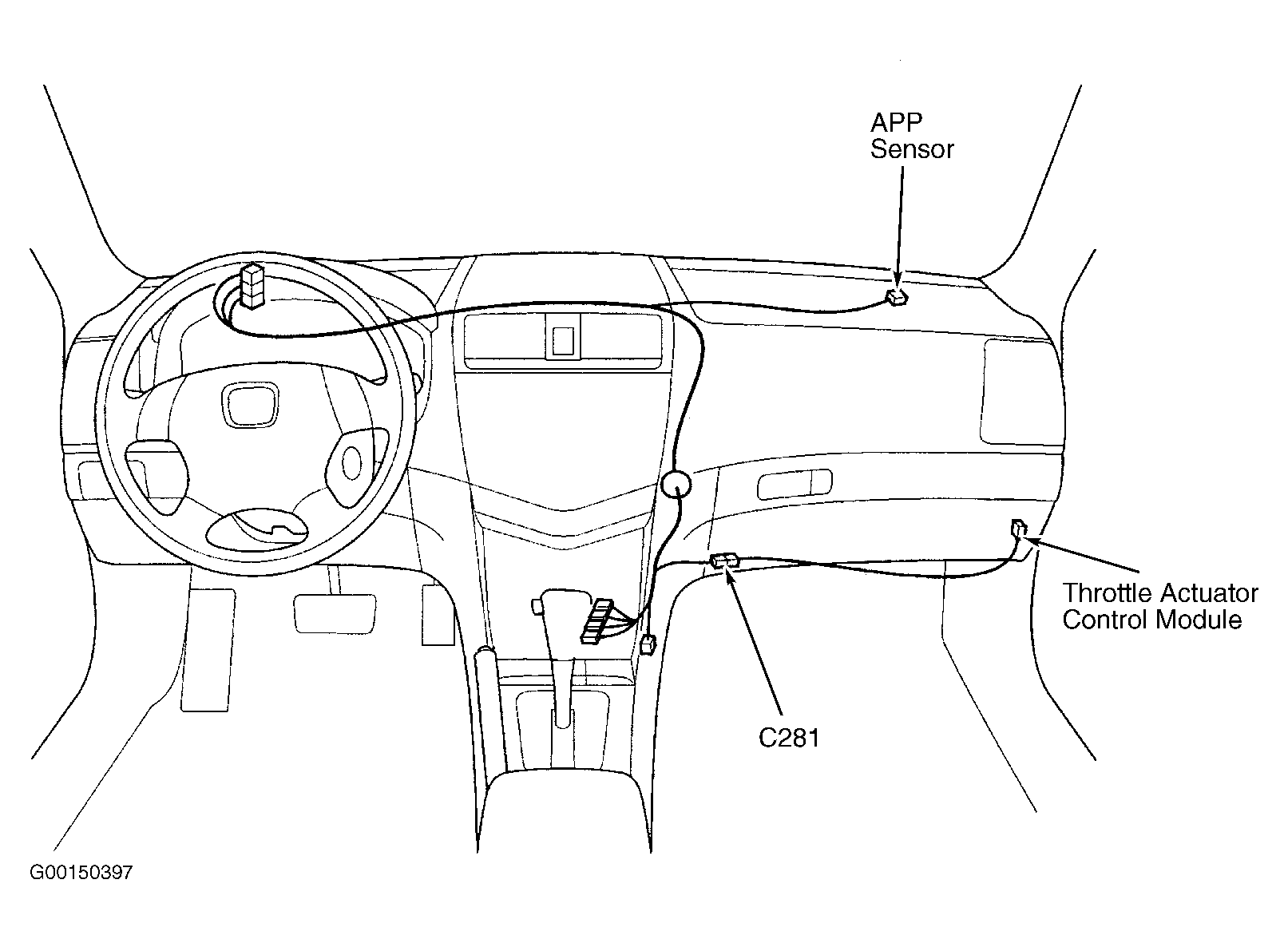

Fig 11: Front View Of Dash

G00150397

Courtesy of AMERICAN HONDA MOTOR CO., INC.

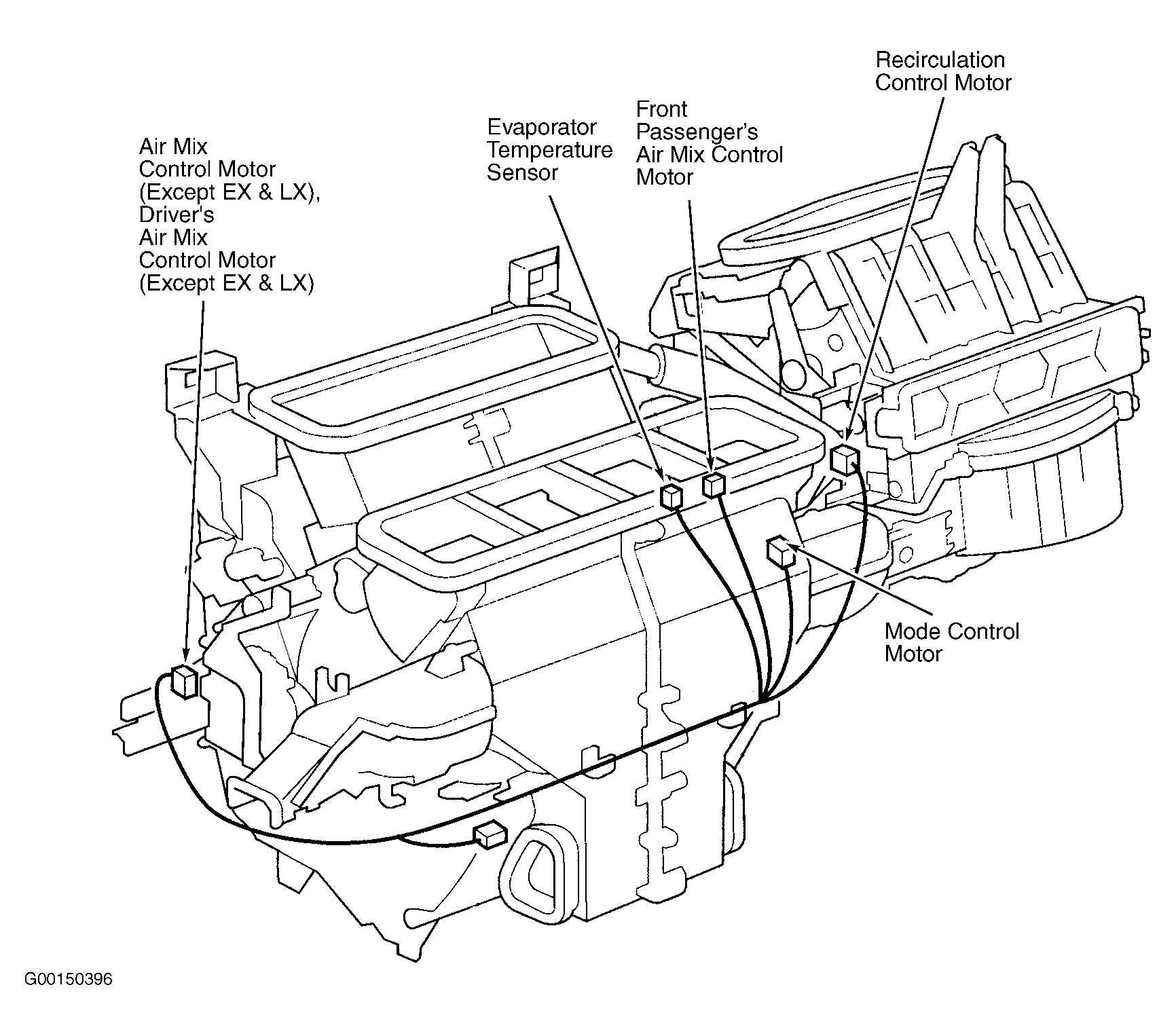

Fig 12: View Of HVAC Unit

G00150396

Courtesy of AMERICAN HONDA MOTOR CO., INC.

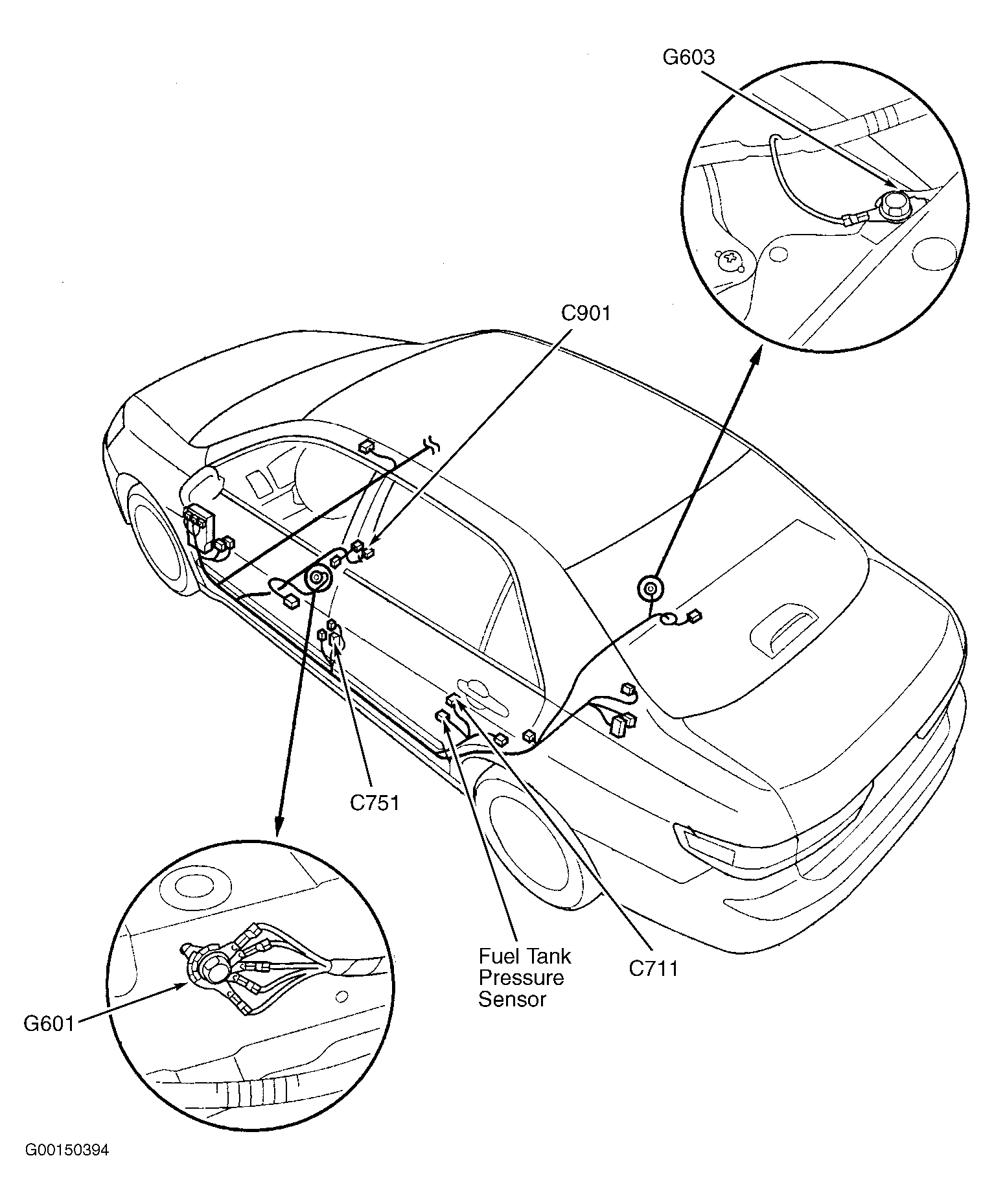

Fig 13: Left Side Of Vehicle

G00150394

Courtesy of AMERICAN HONDA MOTOR CO., INC.

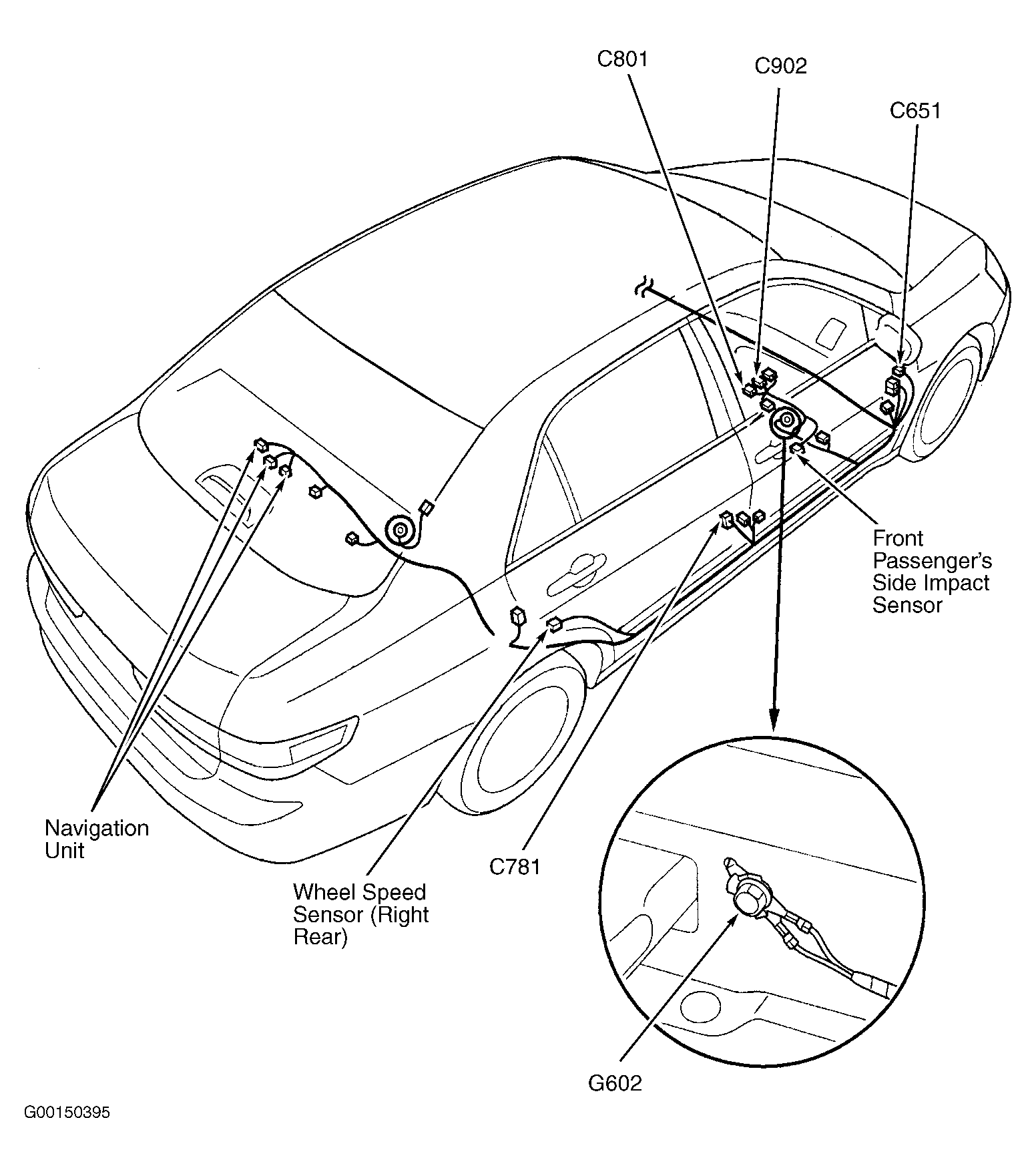

Fig 14: Right Side Of Vehicle

G00150395

Courtesy of AMERICAN HONDA MOTOR CO., INC.

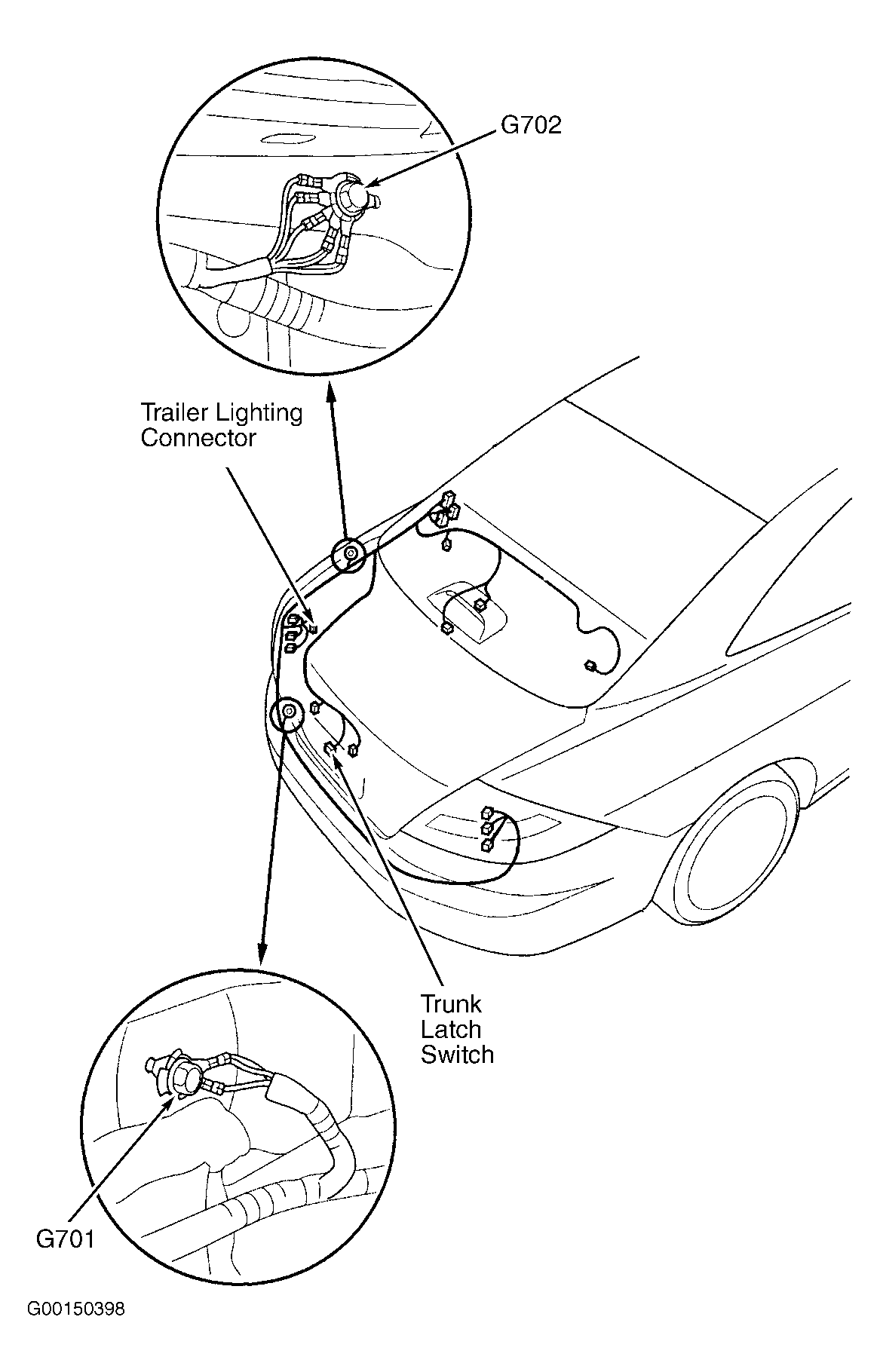

Fig 15: Rear Of Vehicle (Coupe)

G00150398

Courtesy of AMERICAN HONDA MOTOR CO., INC.

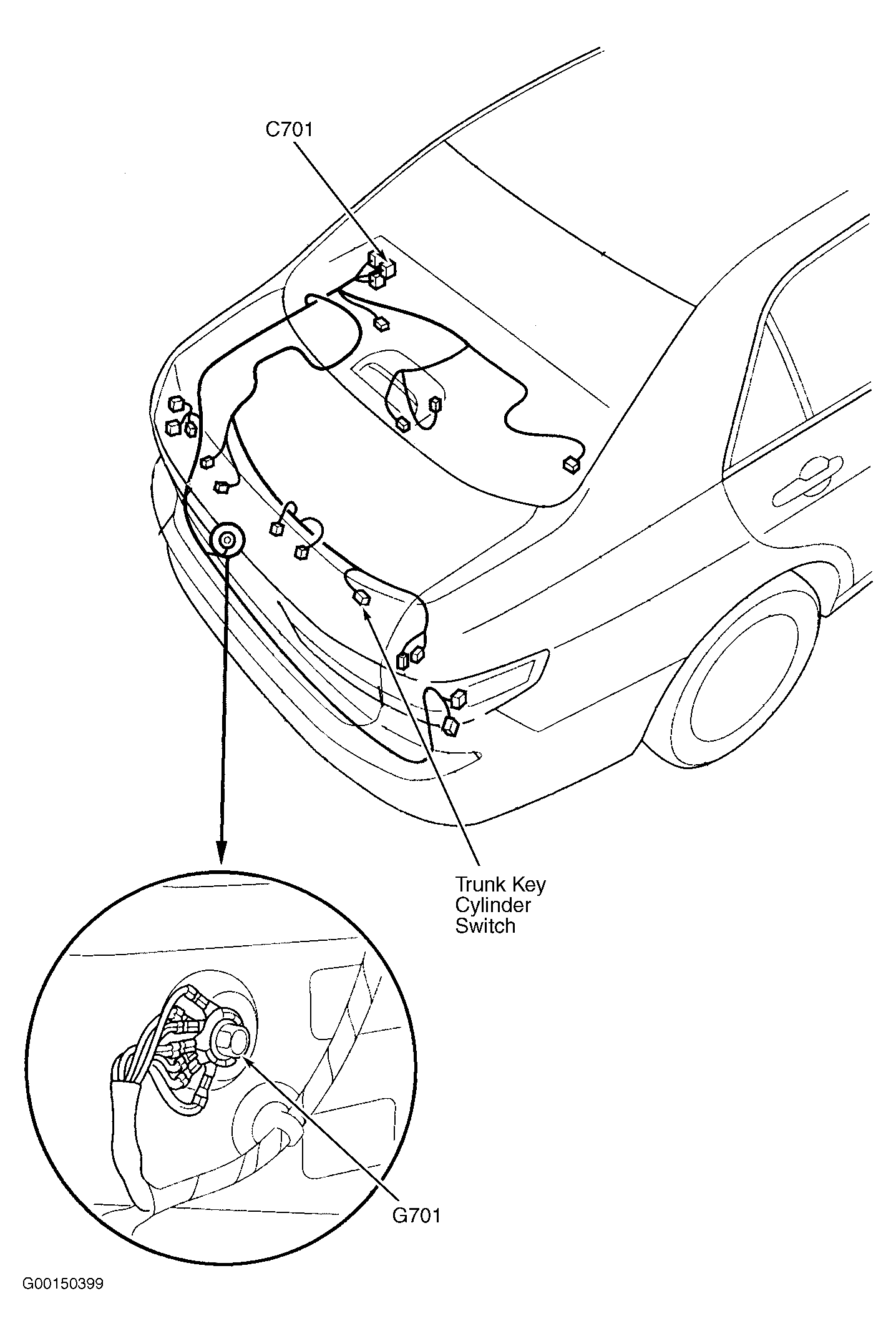

Fig 16: Rear Of Vehicle (Sedan)

G00150399

Courtesy of AMERICAN HONDA MOTOR CO., INC.

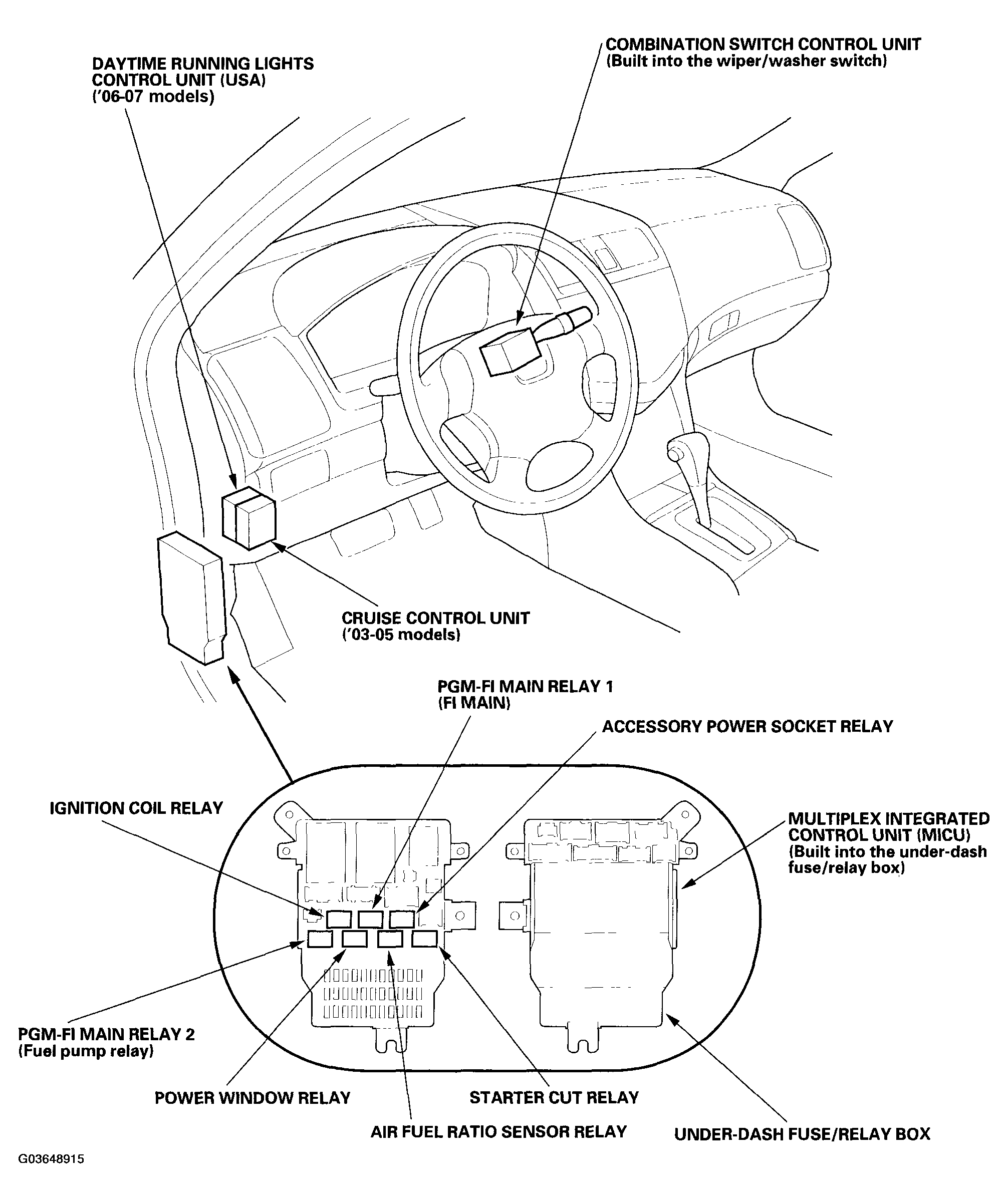

Fig 17: Under-Dash Fuse/Relay Box

G03648915

Courtesy of AMERICAN HONDA MOTOR CO., INC.

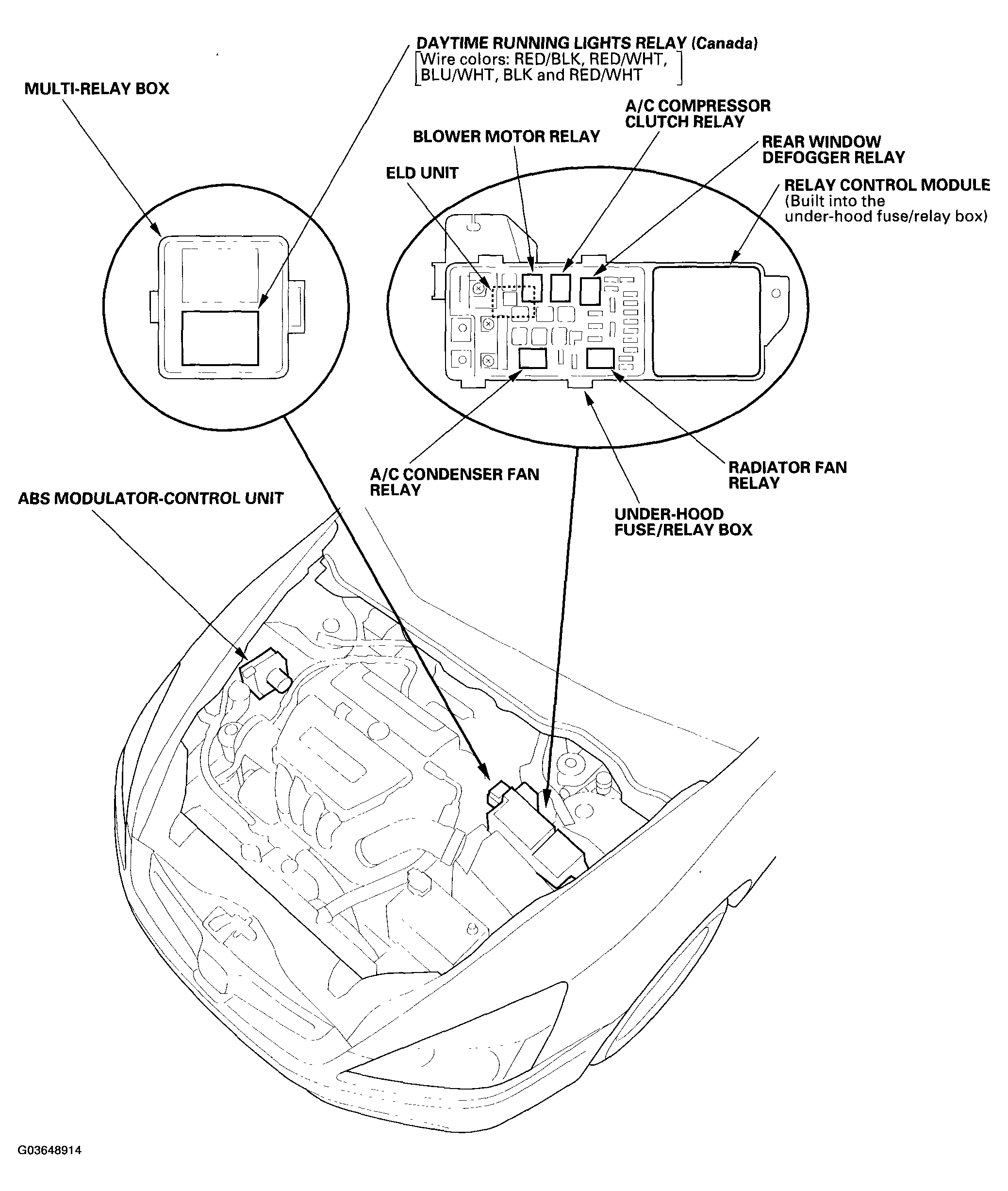

Fig 18: Under-Hood Fuse/Relay Box (Except Hybrid And V6)

G03648914

Courtesy of AMERICAN HONDA MOTOR CO., INC.

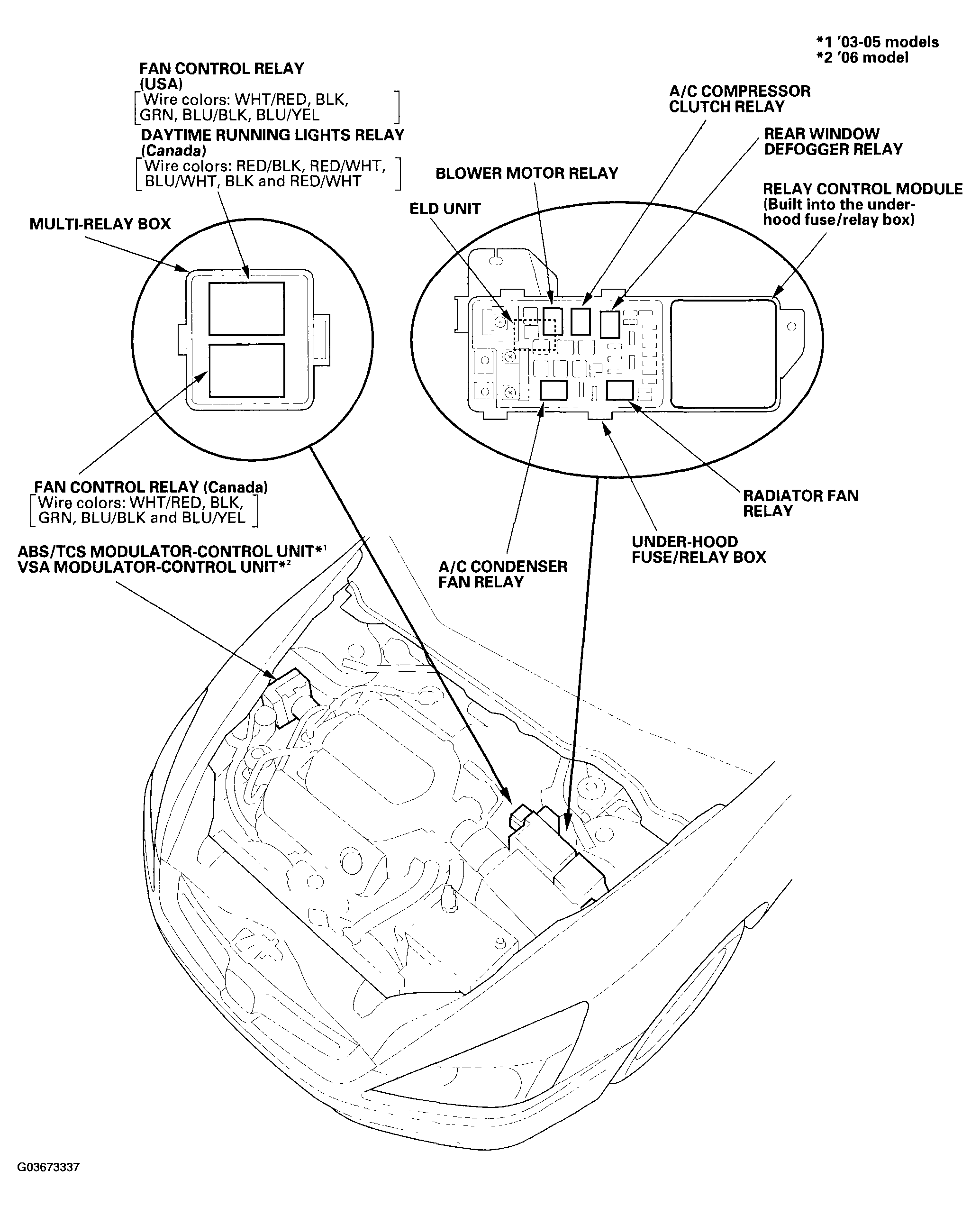

Fig 19: Under-Hood Fuse/Relay Box (V6)

G03673337

Courtesy of AMERICAN HONDA MOTOR CO., INC.

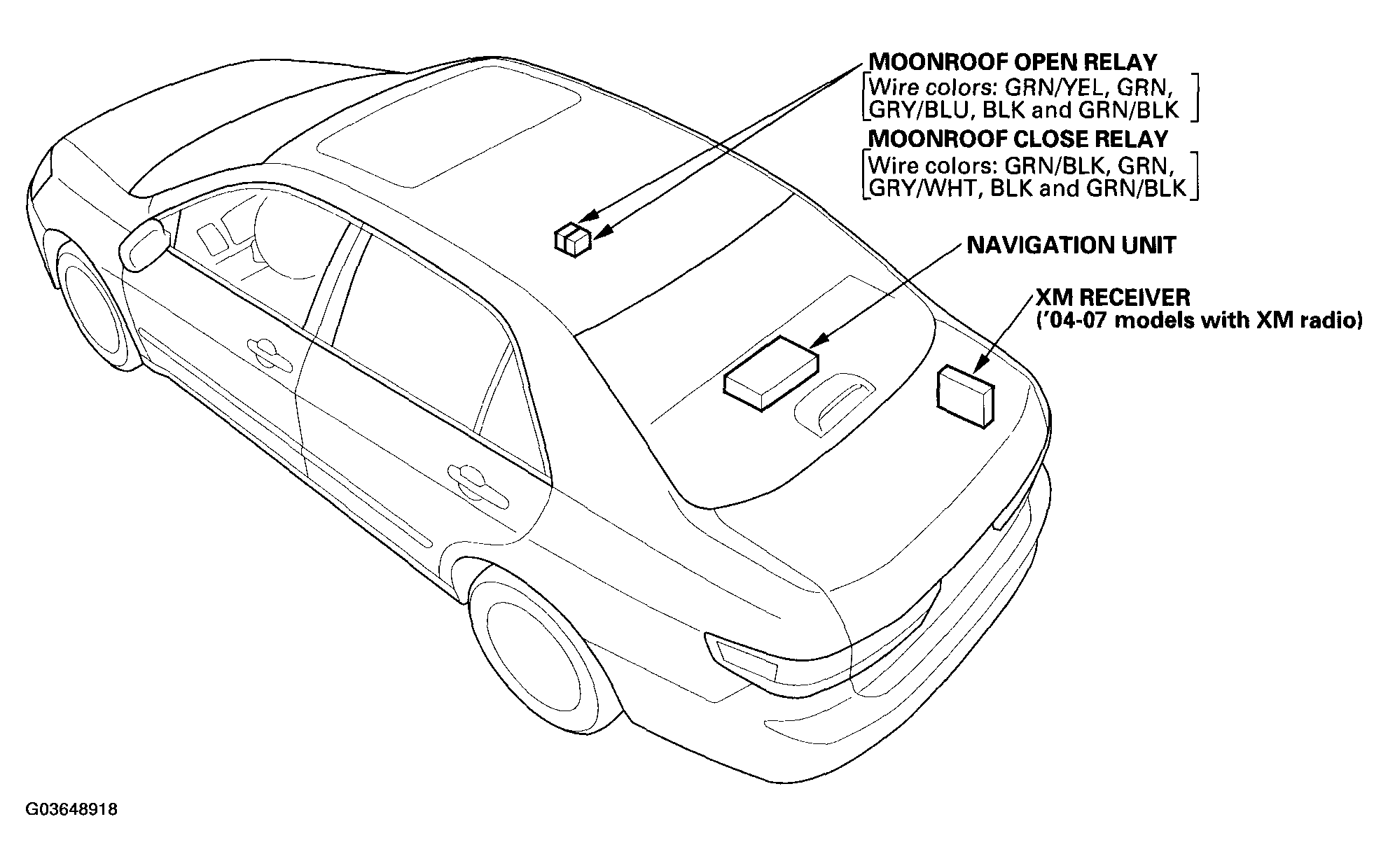

Fig 20: Roof Relays

G03648918

Courtesy of AMERICAN HONDA MOTOR CO., INC.
