Resonator Removal/Installation

  1. Remove the ground cable (A) and the bolts (B).

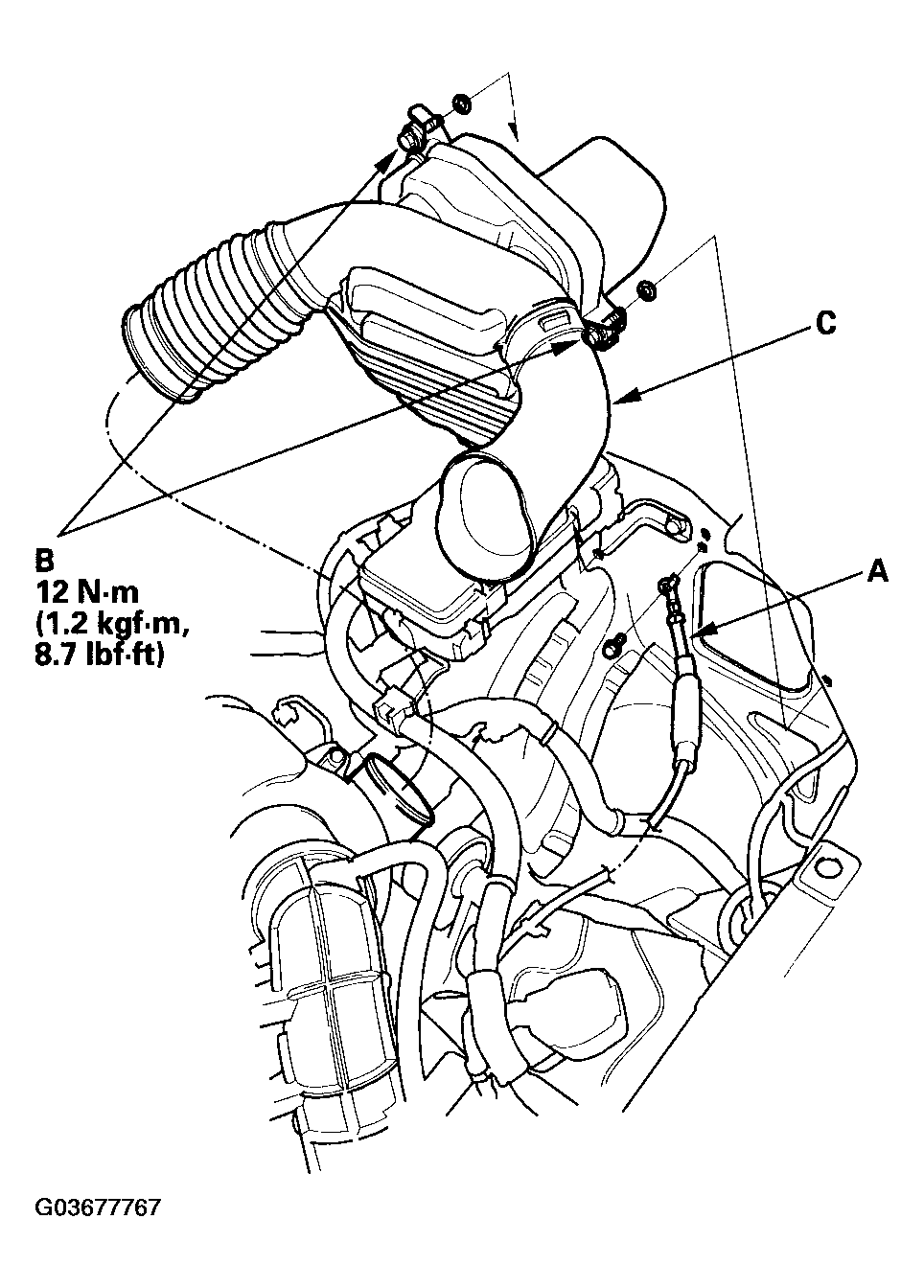

    Fig 1: Removing Ground Cable And Torque Specifications
    G03677767Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the resonator (C).
  3. Install the parts in the reverse order of removal.
