Home >> Honda >> 2003 >> Element DX, 2.4 YH2, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Intake Air System >> Throttle Body Disassembly/Reassembly

Throttle Body Disassembly/Reassembly

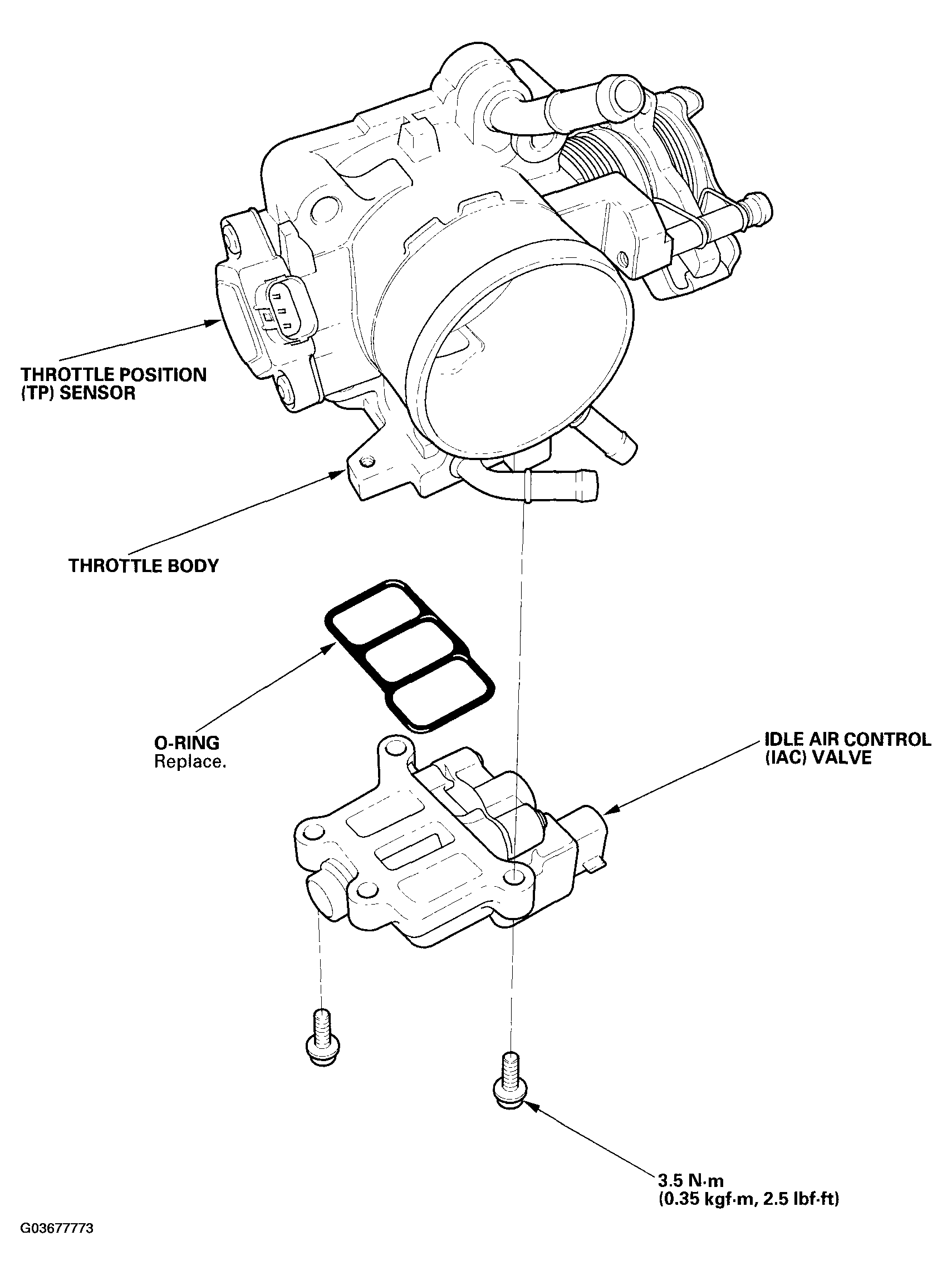

Fig 1: Disassembling View Of Throttle Body And Torque Specifications

G03677773

Courtesy of AMERICAN HONDA MOTOR CO., INC.
