Throttle Body Removal/Installation

NOTE:

• Do not adjust the throttle stop screw.
• After reassembly, adjust the actuator cable (see CRUISE CONTROL ACTUATOR CABLE ADJUSTMENT ) and the throttle cable (see RESONATOR REMOVAL/INSTALLATION  ).
• The throttle position (TP) sensor is not removable.

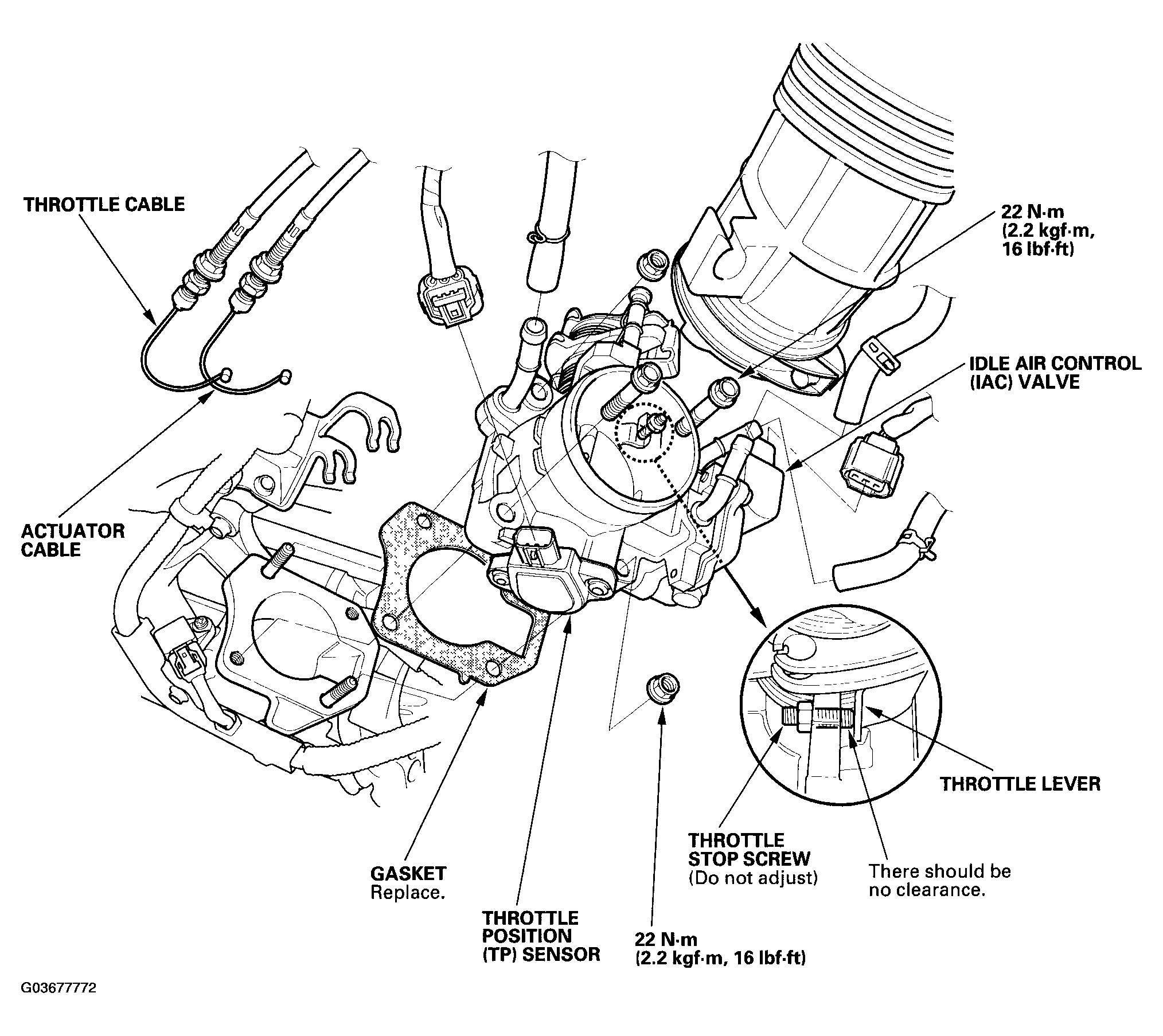

Fig 1: Exploded View Of Throttle Body And Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
