CKP Sensor Replacement

  1. Disconnect the CKP sensor (A).

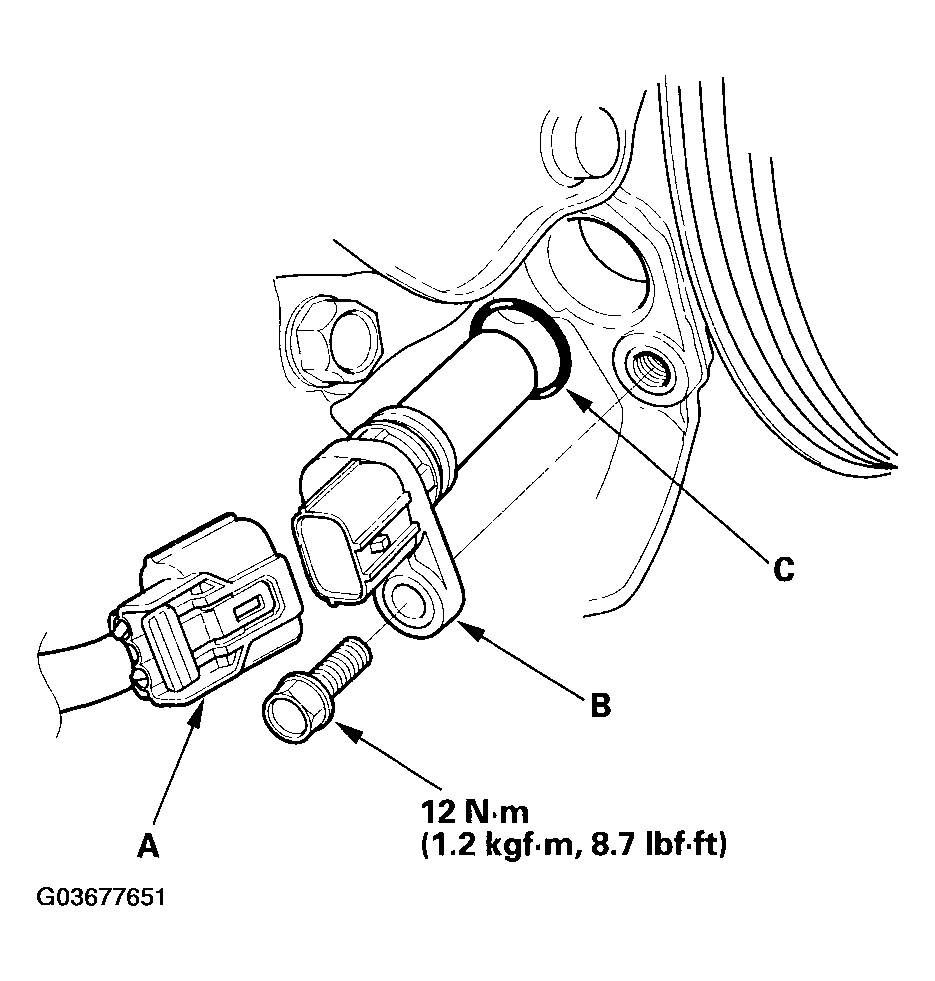

    Fig 1: Disconnecting CKP Sensor And Torque Specifications
    G03677651Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the CKP sensor (B).
  3. Install the sensor in the reverse order of removal with a new O-ring (C).
  4. Do the CKP pattern clear/CKP pattern learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK (CKP) PATTERN ).
