CMP Sensor B Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Remove the EVAP canister purge valve (see EVAP CANISTER PURGE VALVE REPLACEMENT ).
  3. Disconnect the CMP sensor B connector (A).

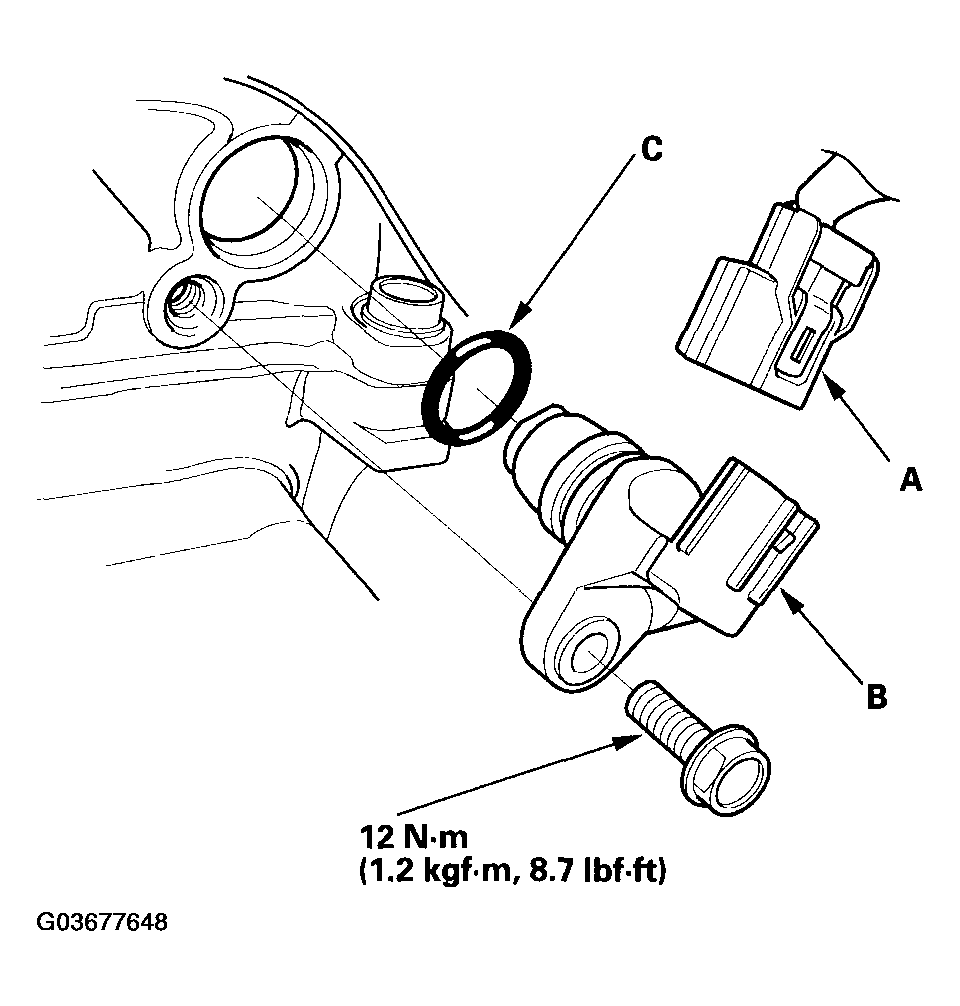

    Fig 1: Disconnecting CMP Sensor B Connector And Torque Specifications
    G03677648Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove CMP sensor B (B).
  5. Install the sensor in the reverse order of removal with a new O-ring (C).
  6. Do the CKP pattern clear/CKP pattern learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK (CKP) PATTERN ).
