Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

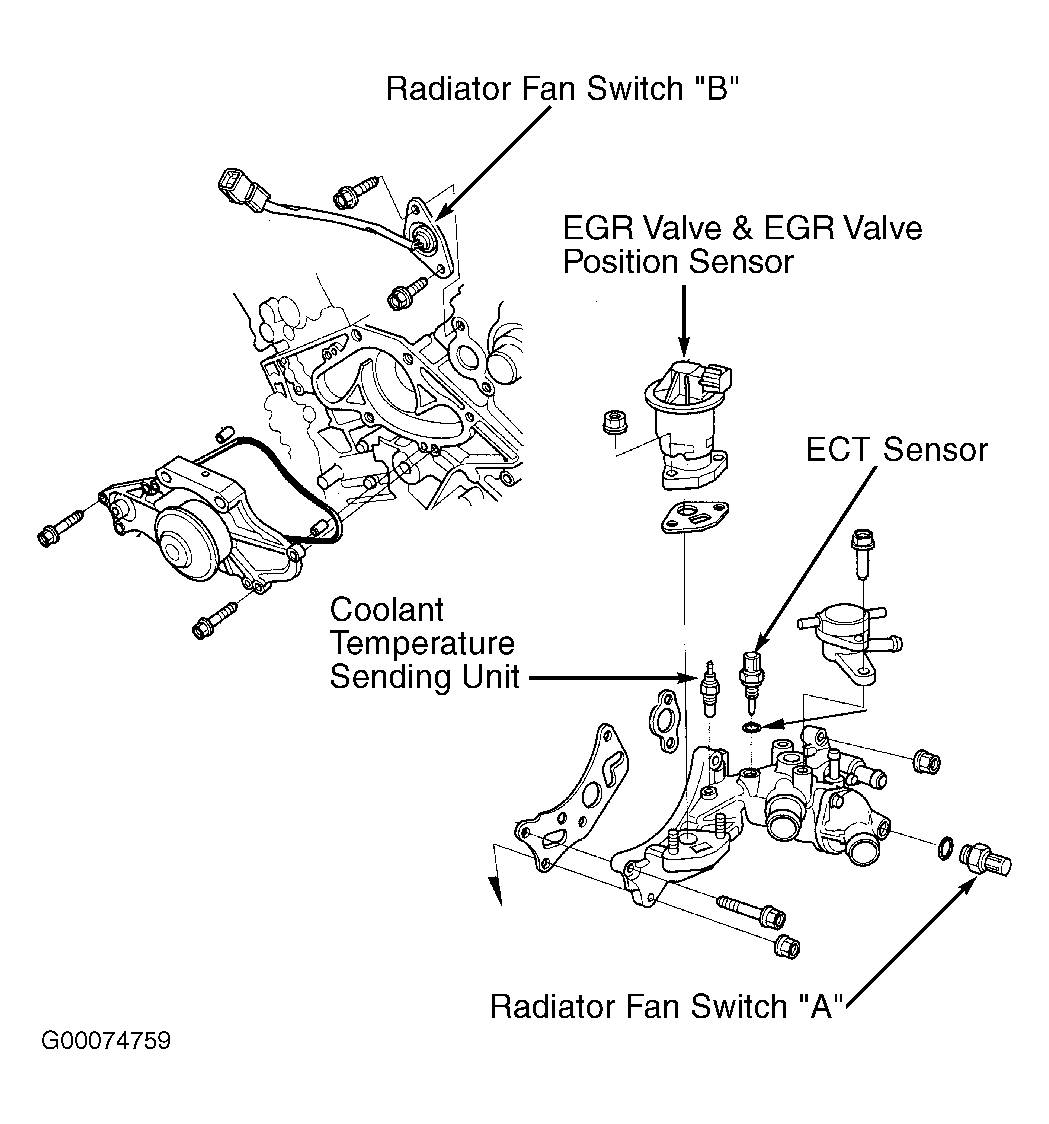

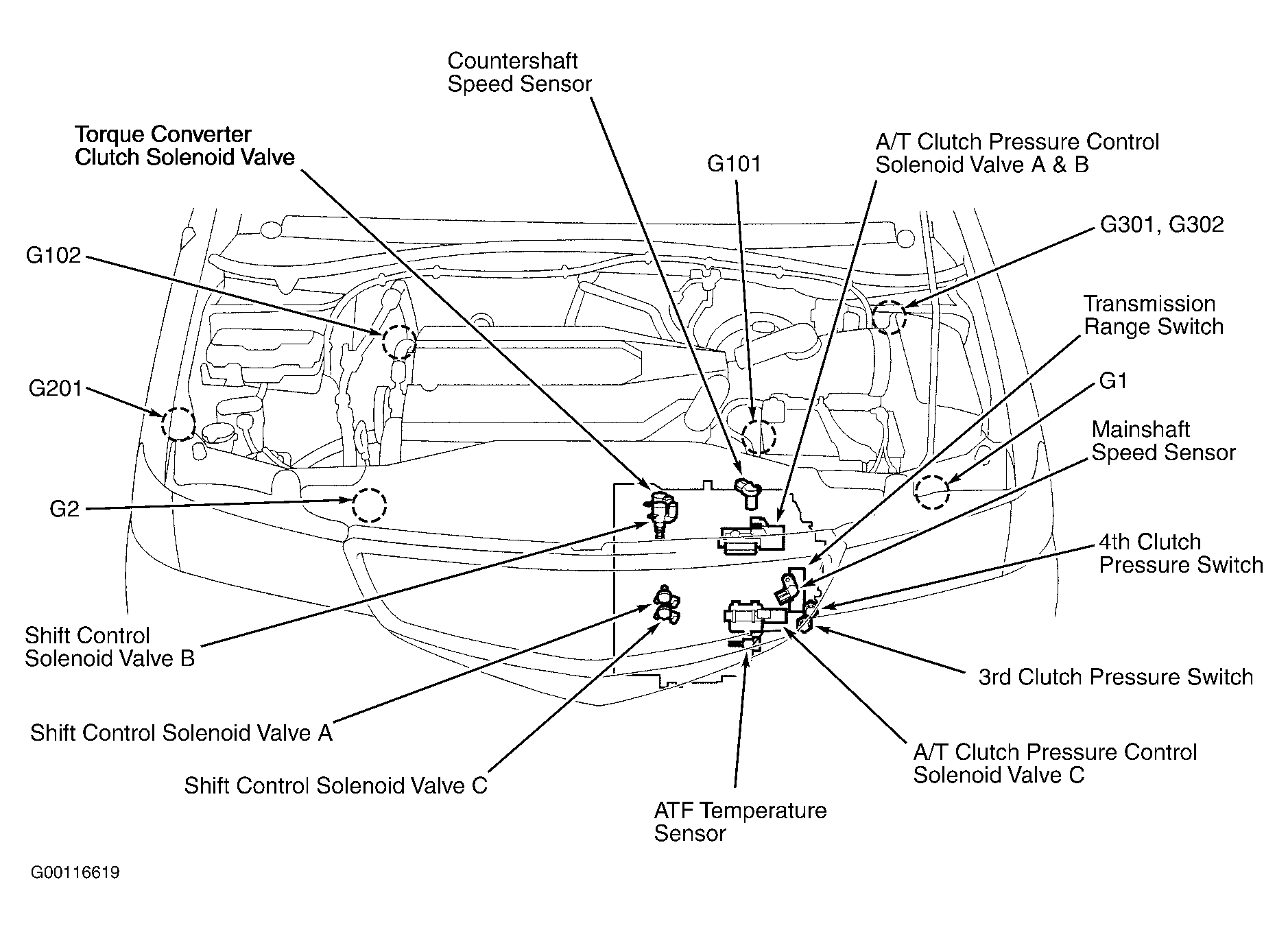

Fig 1: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

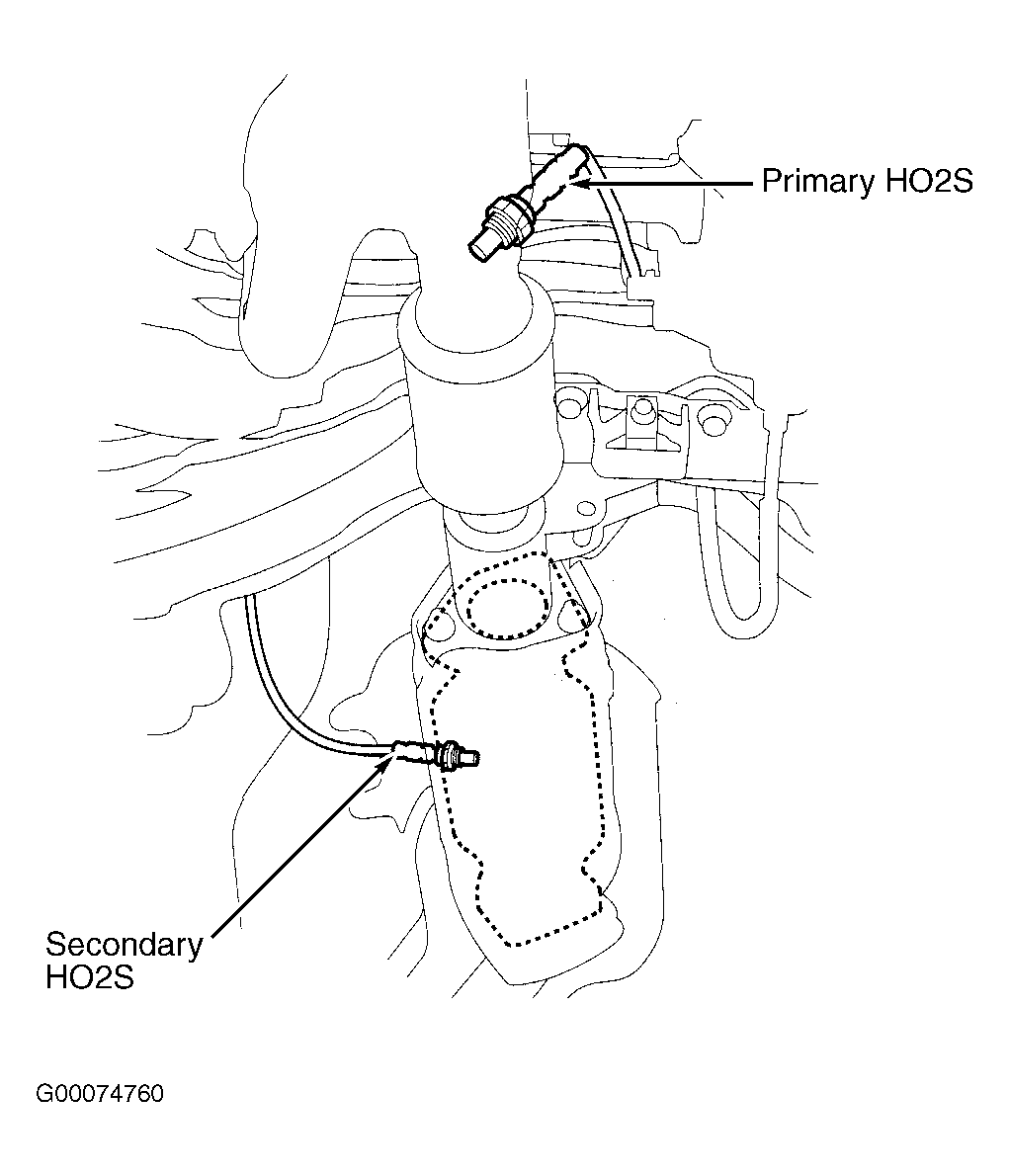

Fig 2: Front & Rear Of Engine

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Underside Of Vehicle

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Transaxle

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Passenger Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

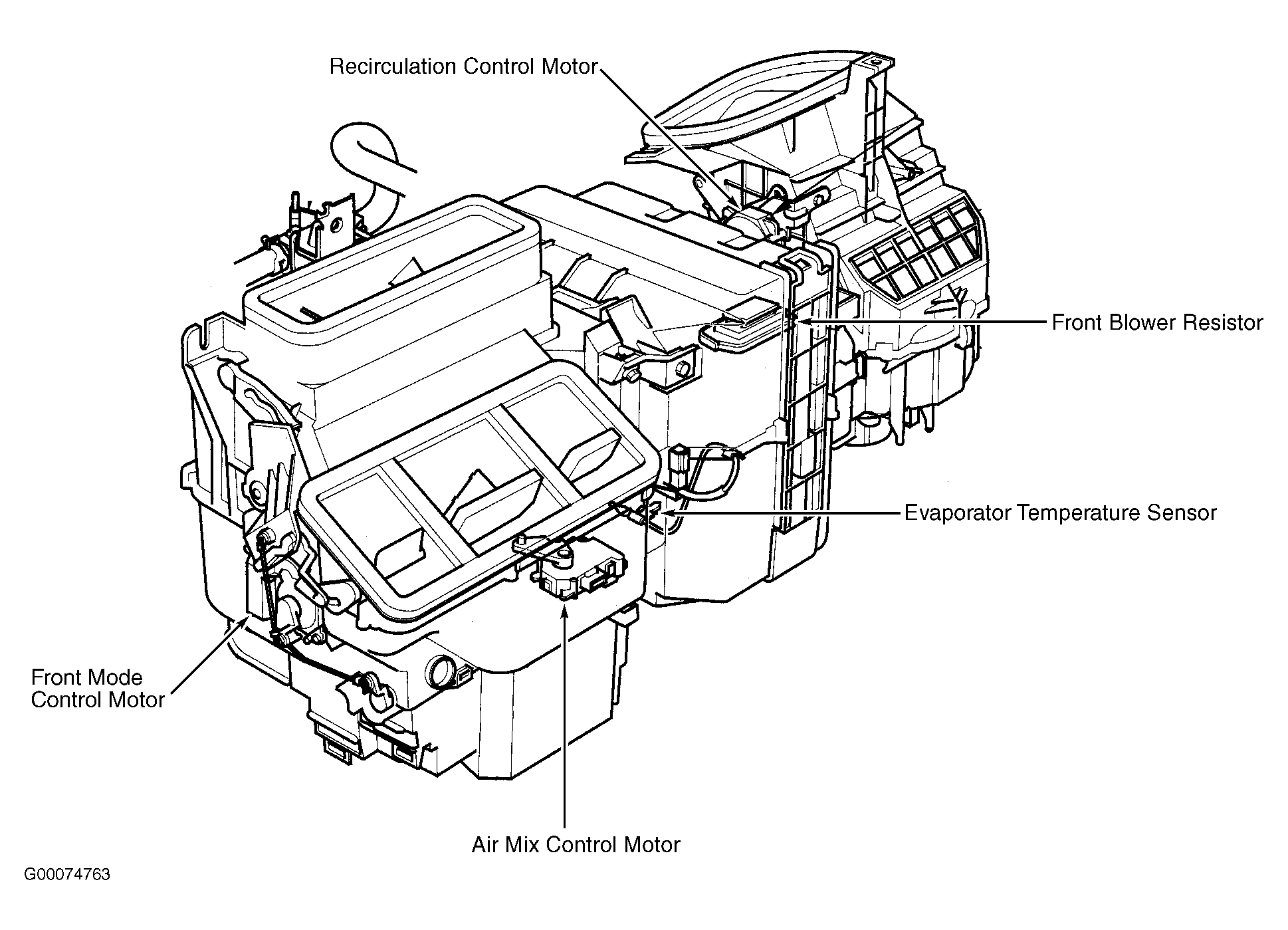

Fig 6: HVAC Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

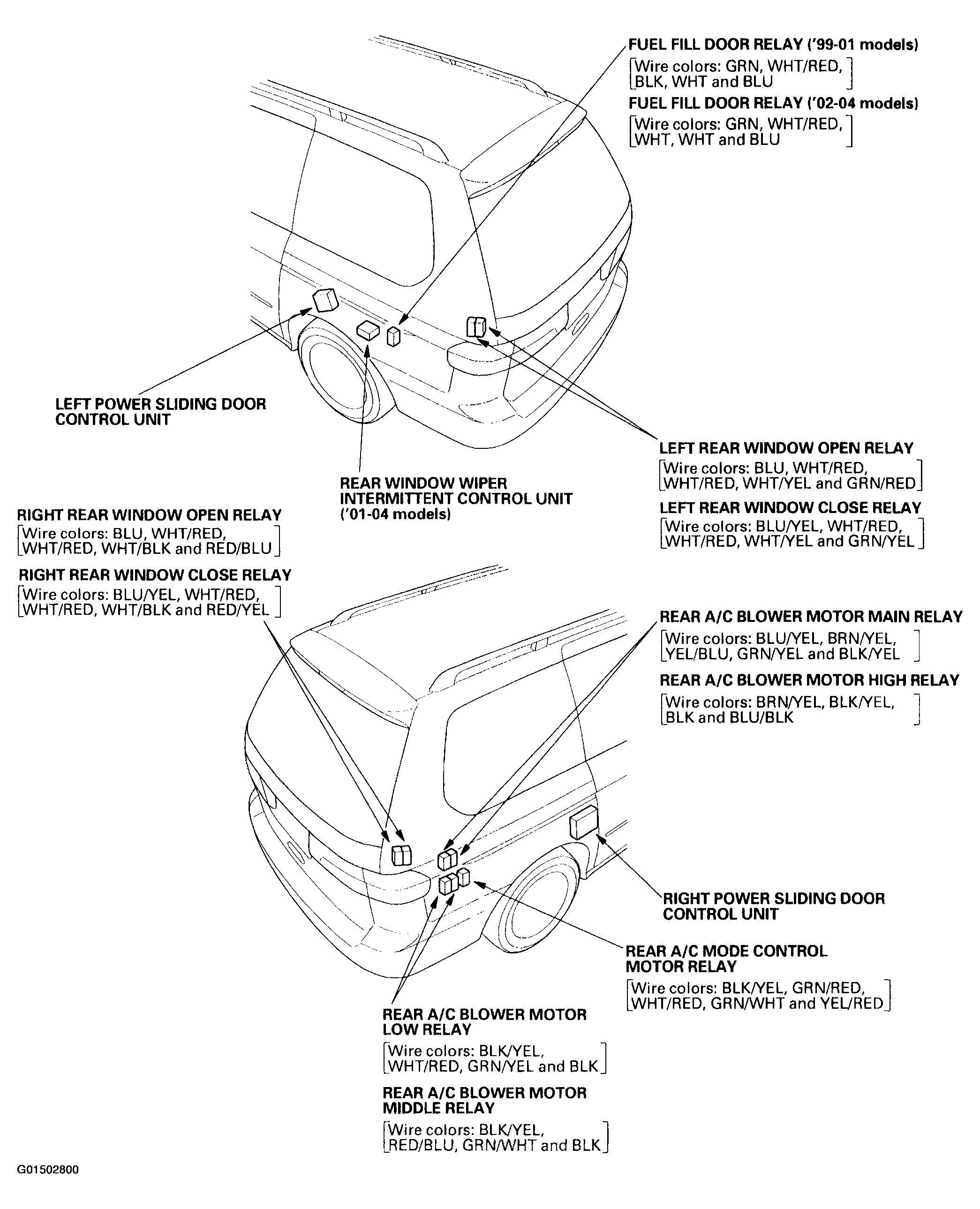

Fig 7: Rear Control Units And Relays

Courtesy of AMERICAN HONDA MOTOR CO., INC.

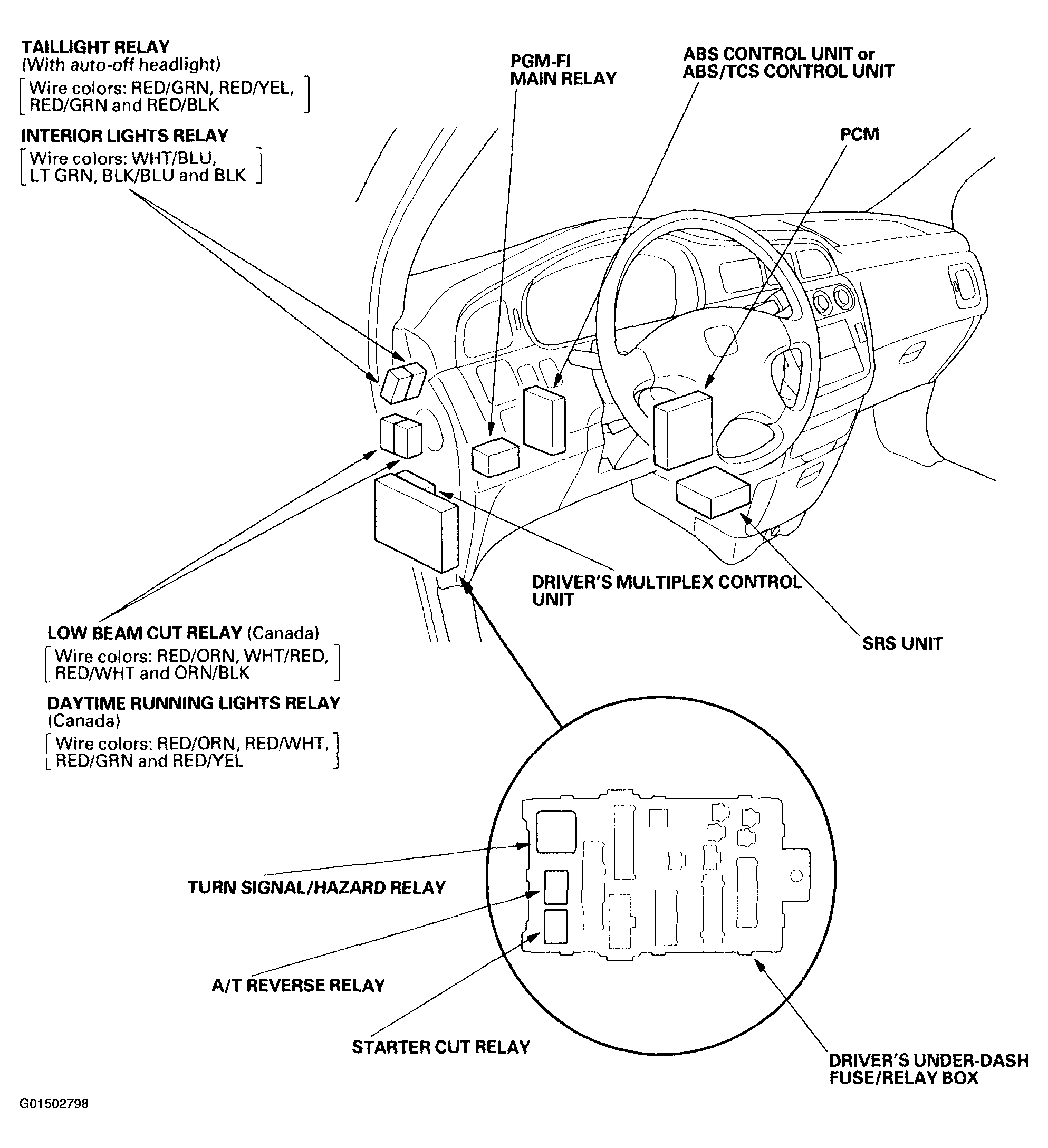

Fig 8: Under-Dash Fuse/Relay Boxes (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

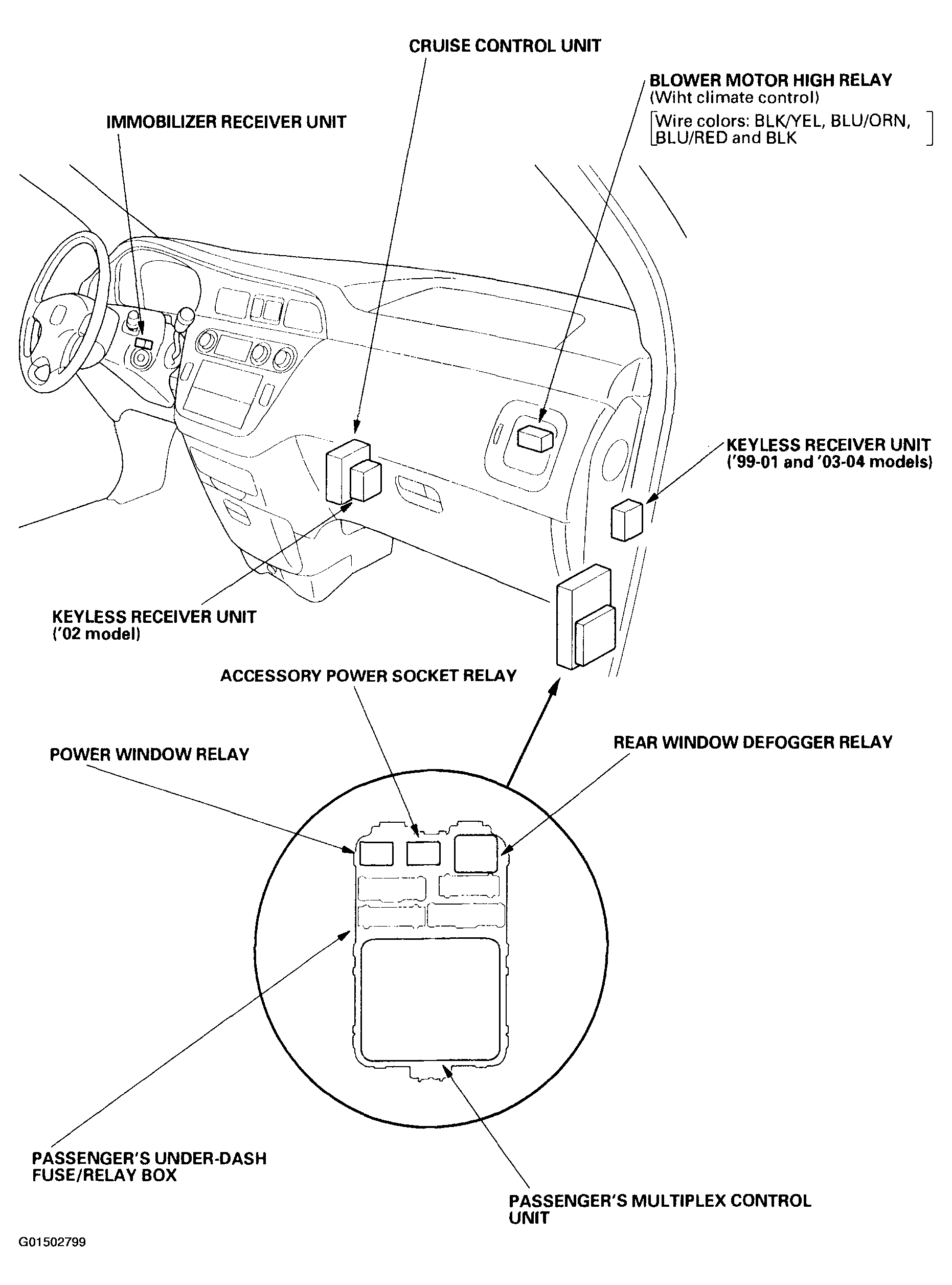

Fig 9: Under-Dash Fuse/Relay Boxes (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

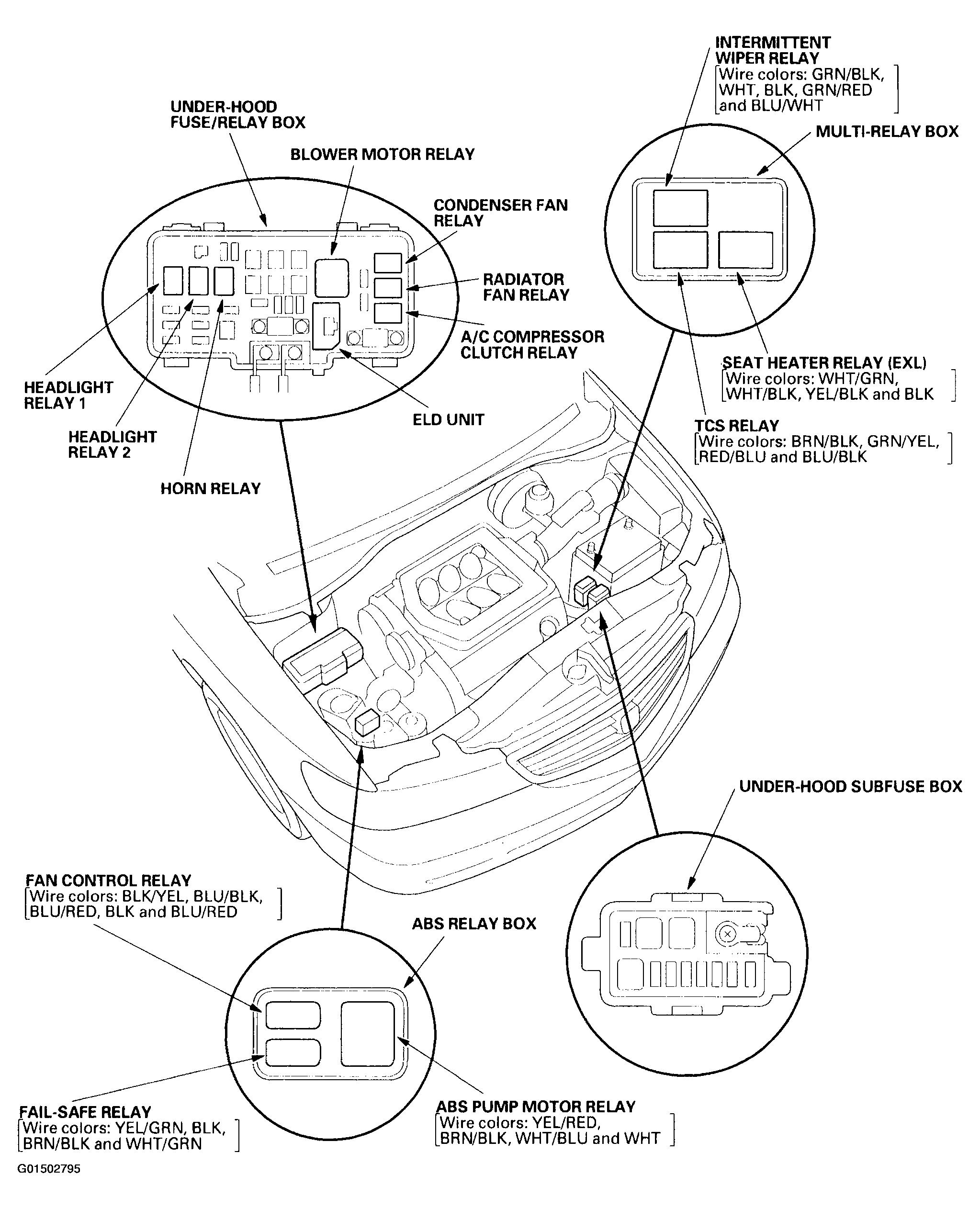

Fig 10: Under-Hood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

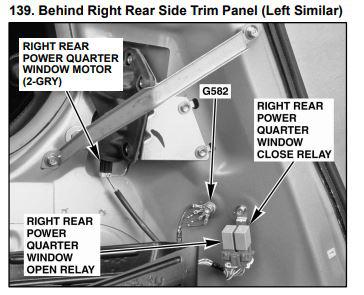

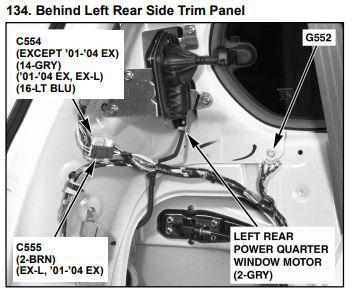

Fig 11: Behind Left Rear Side Trim Panel

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Behind Right Rear Side Trim Panel

Courtesy of AMERICAN HONDA MOTOR CO., INC.

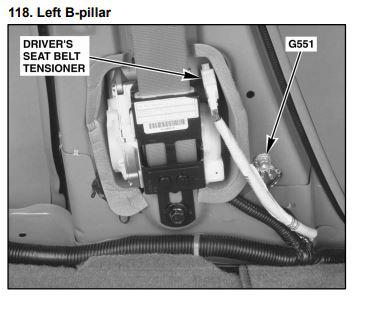

Fig 13: At Left "B" Pillar

Courtesy of AMERICAN HONDA MOTOR CO., INC.

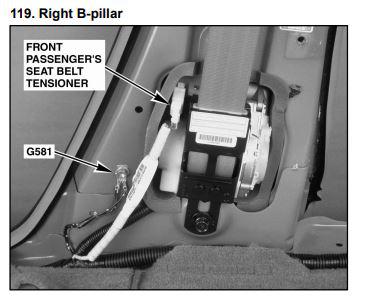

Fig 14: At Right "B" Pillar

Courtesy of AMERICAN HONDA MOTOR CO., INC.
