Shift Cable Replacement

SRS components are located in this area. Review the SRS components locations, precautions and procedures in AIR BAG RESTRAINT SYSTEMS before performing repairs or service.

1. Raise the front of the vehicle, and make sure it is securely supported.
2. Set the parking brake, and block the rear wheels securely.
3. Remove the steering column upper and lower covers (see STEERING COLUMN REMOVAL & INSTALLATION ).
4. Shift the transmission into the N position.
5. Remove the cable end nut (A), then separate the shift cable (B) from the shift lever.
   Fig 1: Removing The Cable End Nut & Separating The Shift Cable From The Shift Lever

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

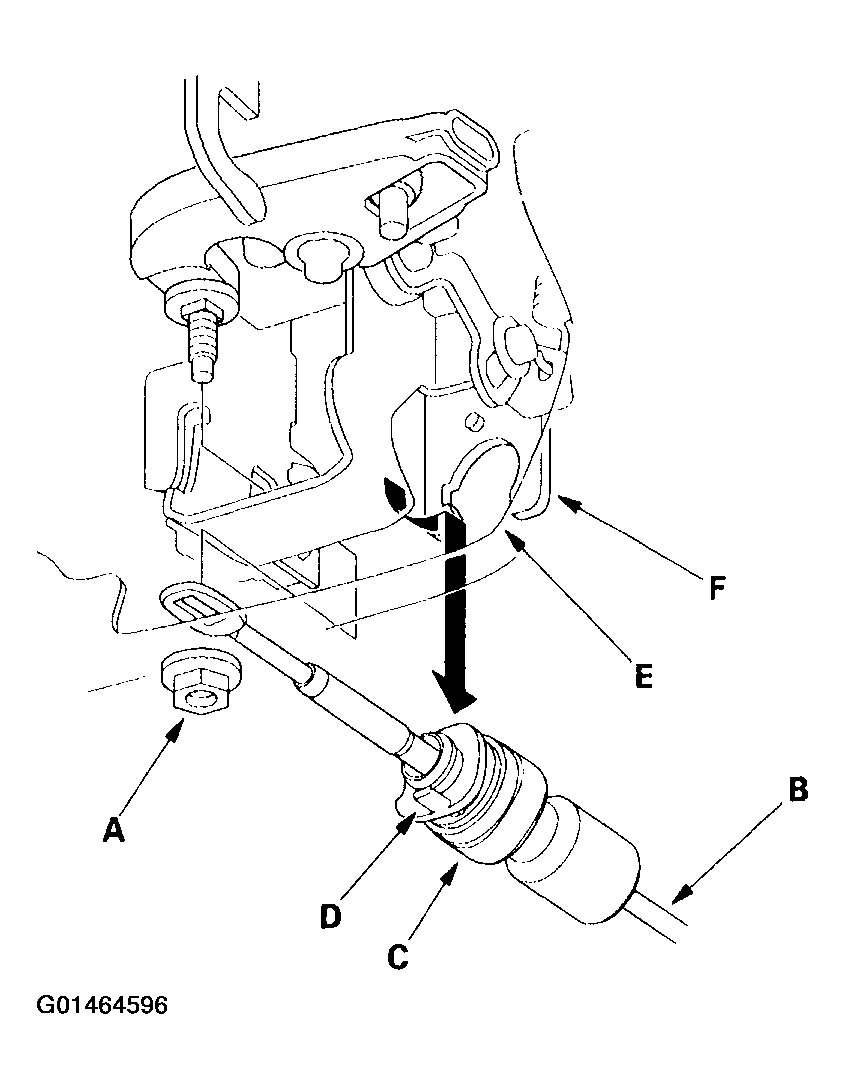

6. Rotate the socket holder (C) on the shift cable a quarter turn; the tab (D) on the socket holder will be in the opening (E) of the shift cable bracket (F). Then slide the holder to remove the shift cable from the shift cable bracket.

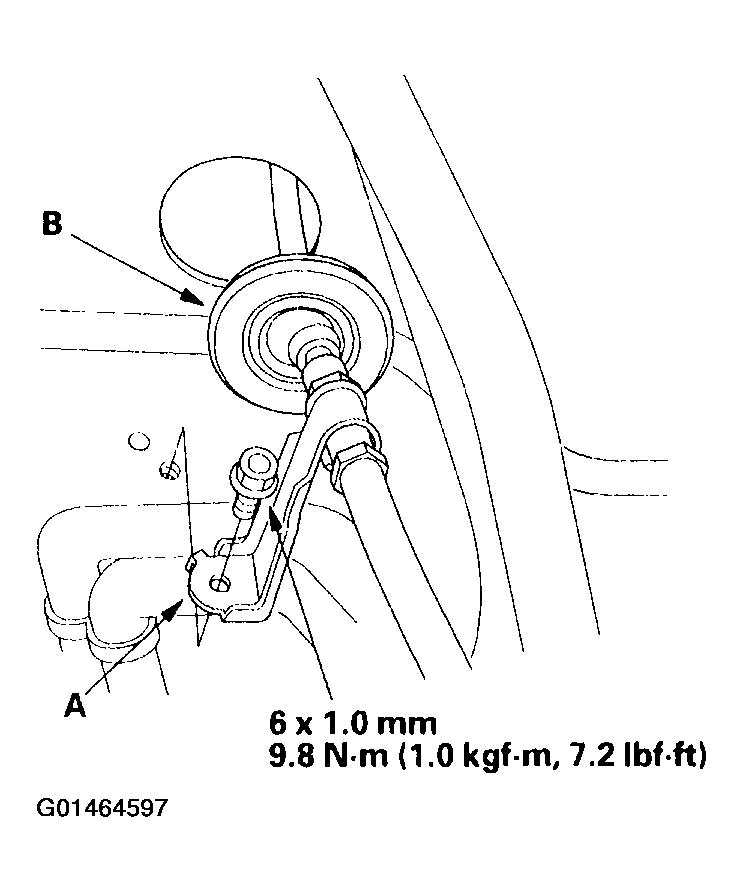

7. Remove the shift cable guide bracket (A) and grommet (B).
   Fig 2: Removing The Shift Cable Guide Bracket & Grommet

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

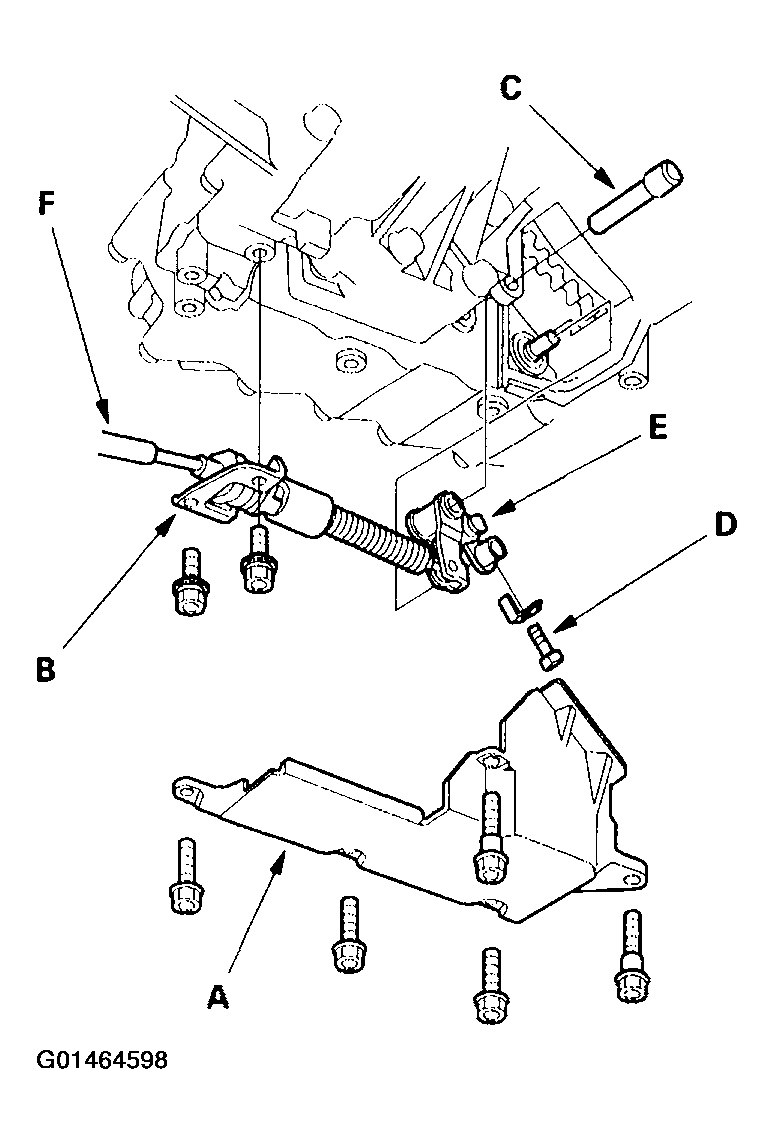

8. Remove the shift cable cover (A), then remove the bolts securing the shift cable holder (B).
   Fig 3: Removing The Shift Cable Cover & Removing The Bolts Securing The Shift Cable Holder

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Remove the change shaft (C) and the lock bolt (D) securing the control lever (E), then remove the shift cable (F) and the control lever.
10. Insert the new shift cable through the grommet hole, then install the shift cable guide bracket.
11. Verify that the transmission is in the N position on the control shaft.

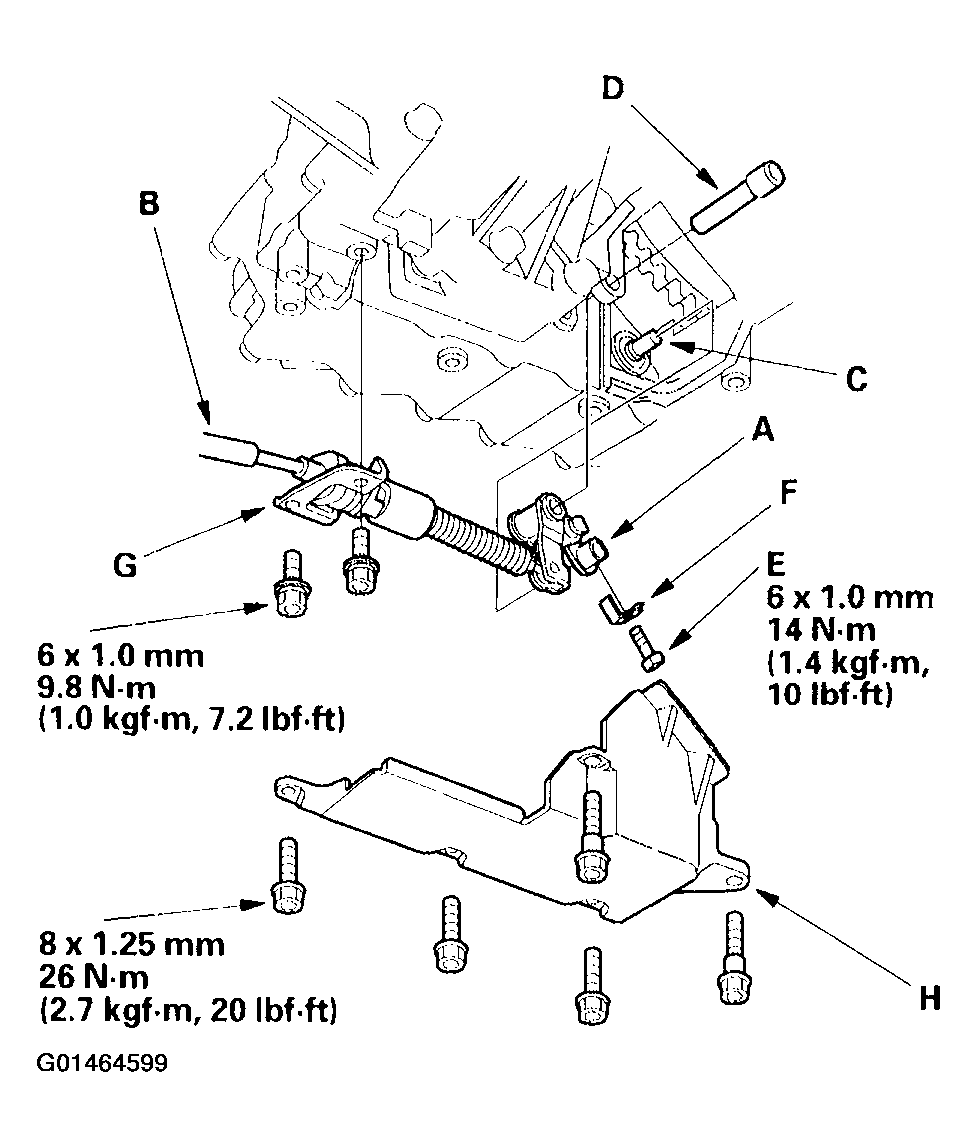

12. Install the control lever (A) and the shift cable (B) on the control shaft (C), and install the change shaft (D). Do not bend the shift cable excessively.
    Fig 4: Installing The Control Lever & The Shift Cable On The Control Shaft, & Installing The Change Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Install the lock bolt (E) and a new lock washer (F), then bend the lock washer tab against the bolt.
14. Install the shift cable holder (G) and the shift cable cover (H).
15. Turn the ignition switch ON (II), and verify that the N position indicator comes on.
16. If necessary, adjust the shift cable, and install it (see step 5 on SHIFT CABLE ADJUSTMENT ).
