Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

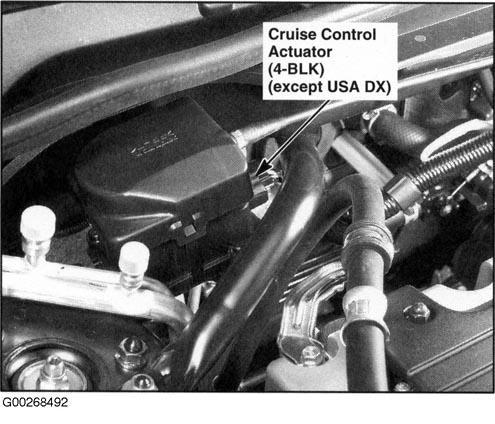

Fig 1: Right Side Of Engine Compartment (2.4L)

G00268492

Courtesy of AMERICAN HONDA MOTOR CO., INC.

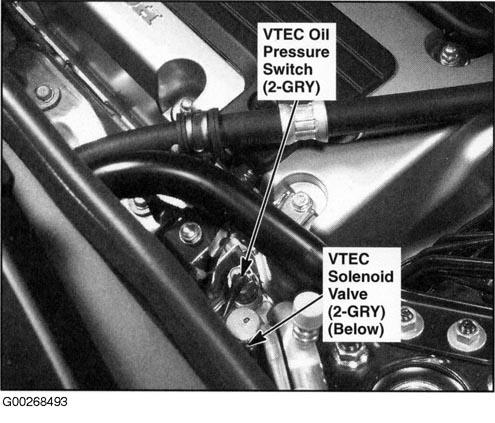

Fig 2: Right Side Of Engine (2.4L)

G00268493

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Right Side Of Engine Compartment (2.4L)

G00268494

Courtesy of AMERICAN HONDA MOTOR CO., INC.

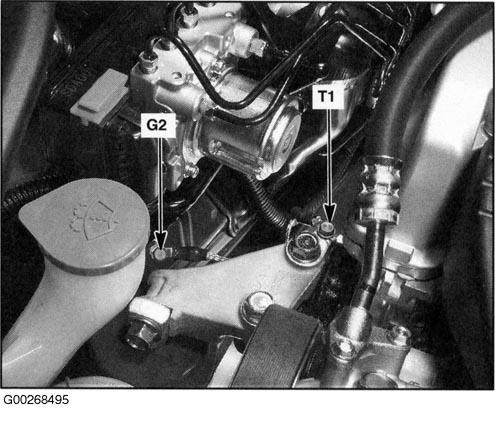

Fig 4: Right Side Of Engine Compartment (2.4L)

G00268495

Courtesy of AMERICAN HONDA MOTOR CO., INC.

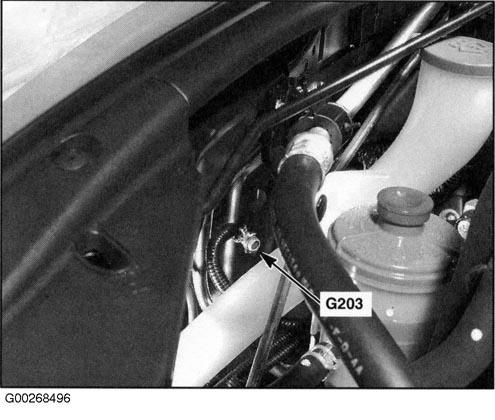

Fig 5: Right Side Of Engine Compartment

G00268496

Courtesy of AMERICAN HONDA MOTOR CO., INC.

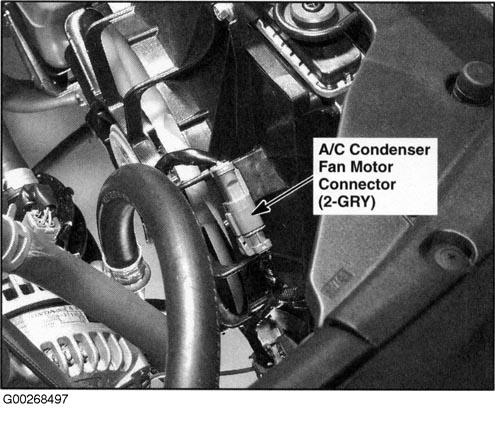

Fig 6: Right Side Of Engine Compartment (2.4L)

G00268497

Courtesy of AMERICAN HONDA MOTOR CO., INC.

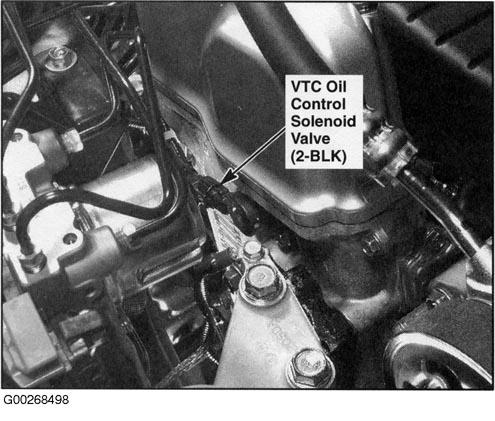

Fig 7: Right Side Of Engine (2.4L)

G00268498

Courtesy of AMERICAN HONDA MOTOR CO., INC.

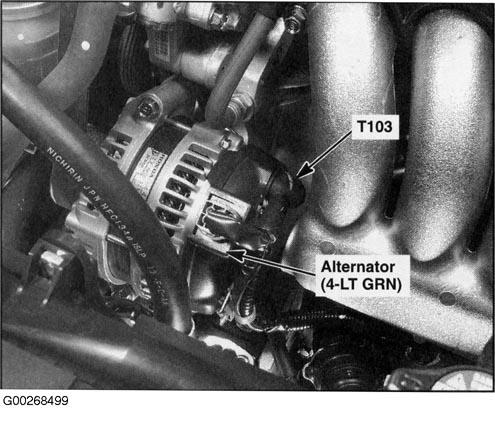

Fig 8: Right Side Of Engine Compartment (2.4L)

G00268499

Courtesy of AMERICAN HONDA MOTOR CO., INC.

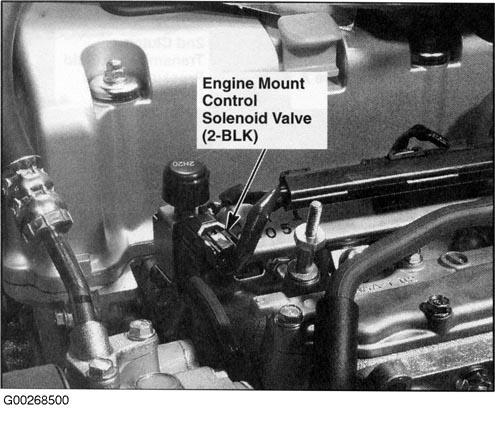

Fig 9: Middle Of Engine (2.4L) (A/T)

G00268500

Courtesy of AMERICAN HONDA MOTOR CO., INC.

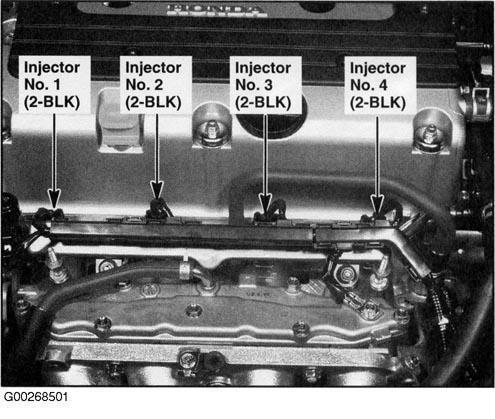

Fig 10: Middle Of Engine (2.4L)

G00268501

Courtesy of AMERICAN HONDA MOTOR CO., INC.

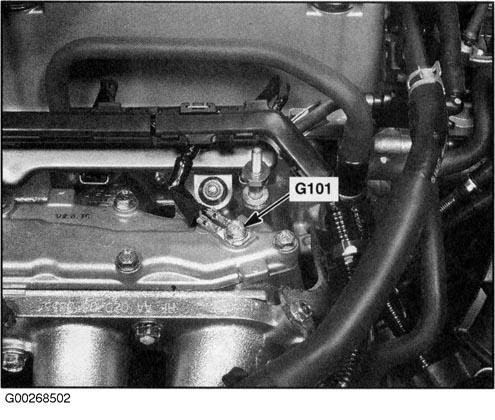

Fig 11: Middle Of Engine (2.4L)

G00268502

Courtesy of AMERICAN HONDA MOTOR CO., INC.

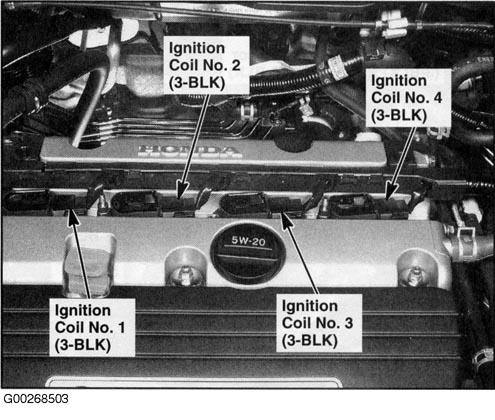

Fig 12: Middle Of Engine (2.4L)

G00268503

Courtesy of AMERICAN HONDA MOTOR CO., INC.

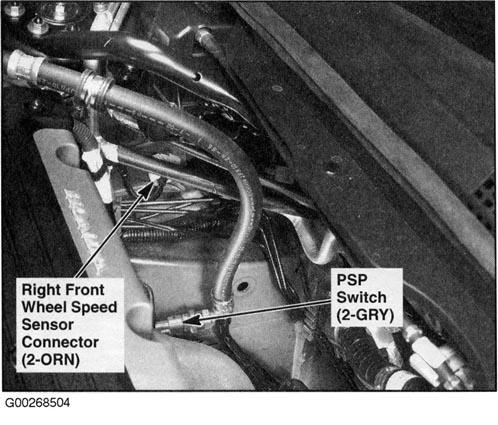

Fig 13: Right Side Of Engine Compartment (2.4L)

G00268504

Courtesy of AMERICAN HONDA MOTOR CO., INC.

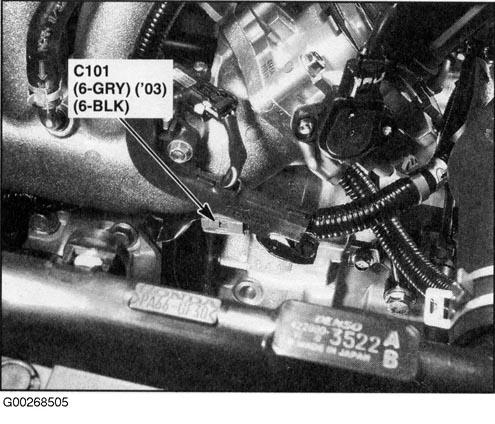

Fig 14: Left Side Of Engine Compartment (2.4L)

G00268505

Courtesy of AMERICAN HONDA MOTOR CO., INC.

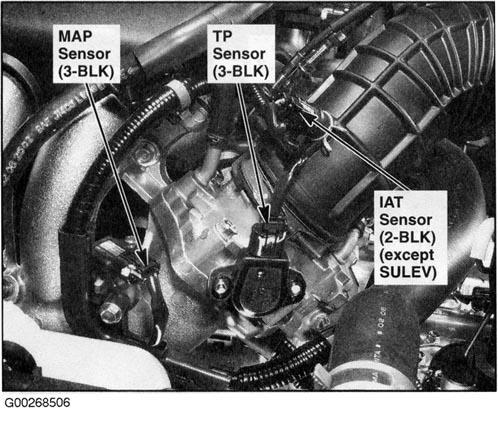

Fig 15: Left Side Of Engine (2.4L)

G00268506

Courtesy of AMERICAN HONDA MOTOR CO., INC.

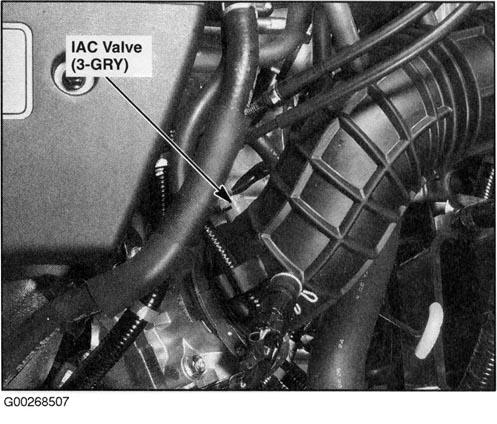

Fig 16: Left Side Of Engine (2.4L)

G00268507

Courtesy of AMERICAN HONDA MOTOR CO., INC.

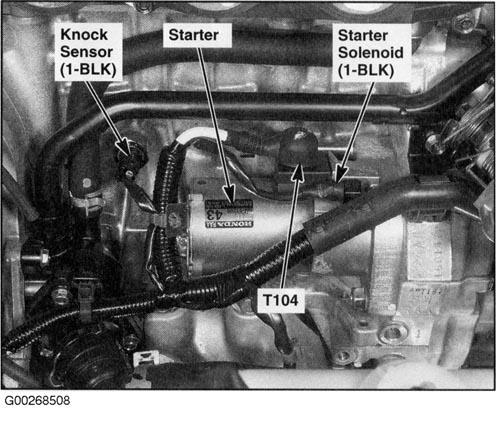

Fig 17: Left Side Of Engine (2.4L)

G00268508

Courtesy of AMERICAN HONDA MOTOR CO., INC.

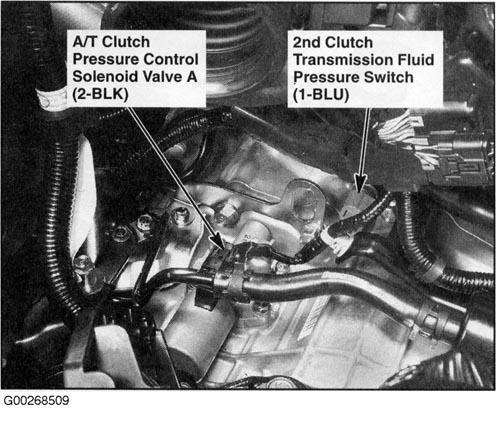

Fig 18: Automatic Transmission Housing (2.4L)

G00268509

Courtesy of AMERICAN HONDA MOTOR CO., INC.

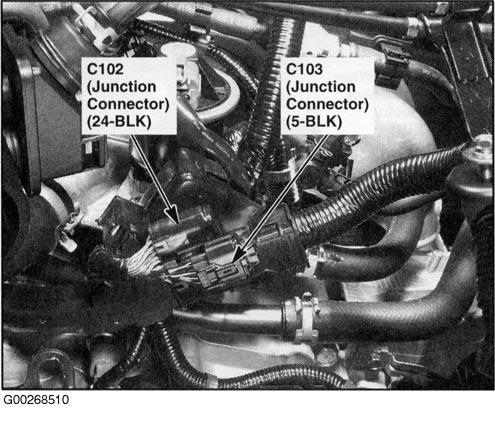

Fig 19: Left Side Of Engine Compartment (2.4L)

G00268510

Courtesy of AMERICAN HONDA MOTOR CO., INC.

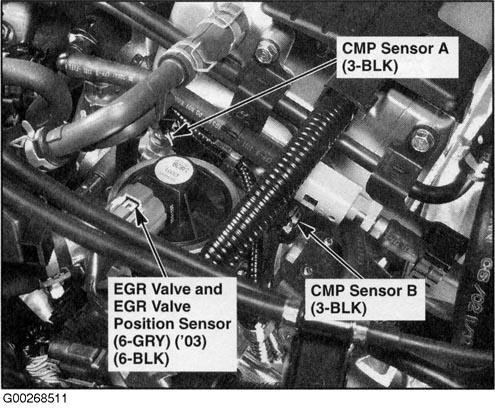

Fig 20: Rear Of Engine (2.4L)

G00268511

Courtesy of AMERICAN HONDA MOTOR CO., INC.

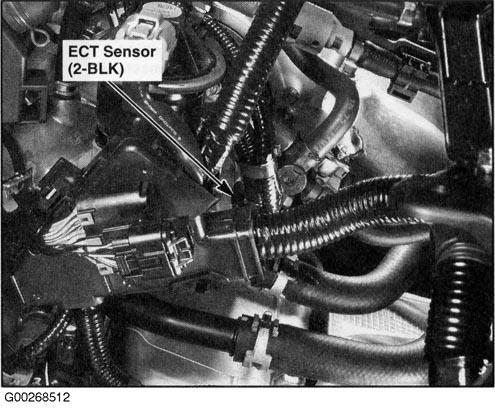

Fig 21: Rear Of Engine (2.4L)

G00268512

Courtesy of AMERICAN HONDA MOTOR CO., INC.

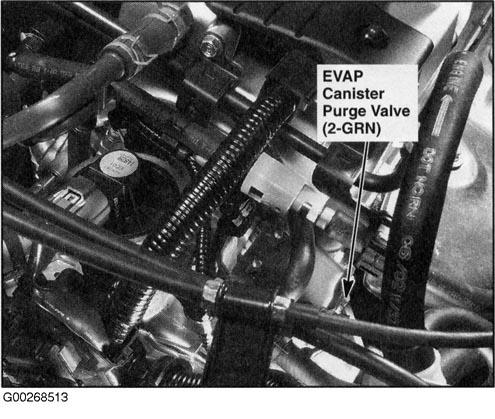

Fig 22: Right Rear Of Engine (2.4L)

G00268513

Courtesy of AMERICAN HONDA MOTOR CO., INC.

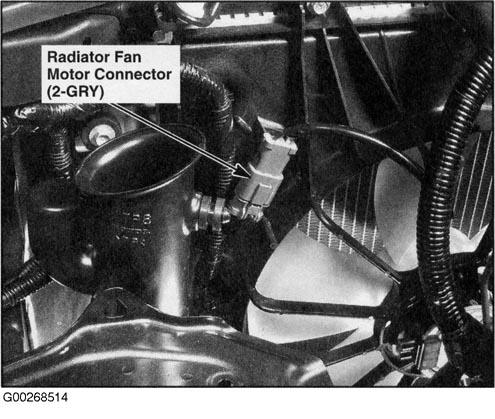

Fig 23: Left Front Of Engine Compartment (2.4L)

G00268514

Courtesy of AMERICAN HONDA MOTOR CO., INC.

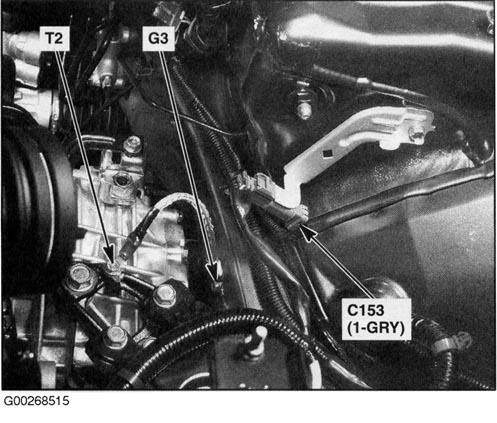

Fig 24: Left Side Of Engine Compartment (2.4L)

G00268515

Courtesy of AMERICAN HONDA MOTOR CO., INC.

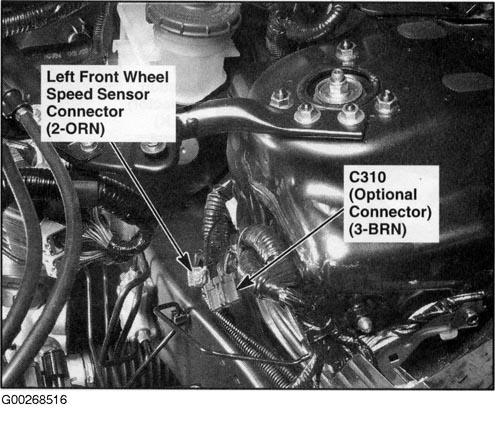

Fig 25: Left Side Of Engine Compartment

G00268516

Courtesy of AMERICAN HONDA MOTOR CO., INC.

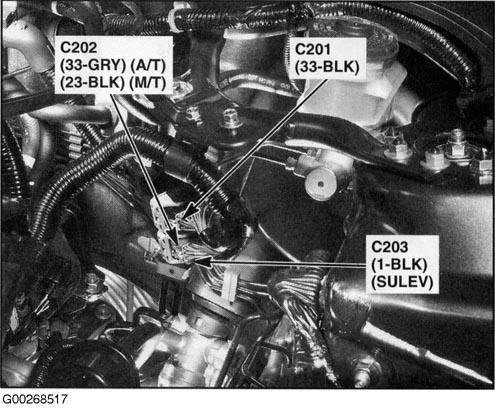

Fig 26: Left Side Of Engine Compartment (2.4L)

G00268517

Courtesy of AMERICAN HONDA MOTOR CO., INC.

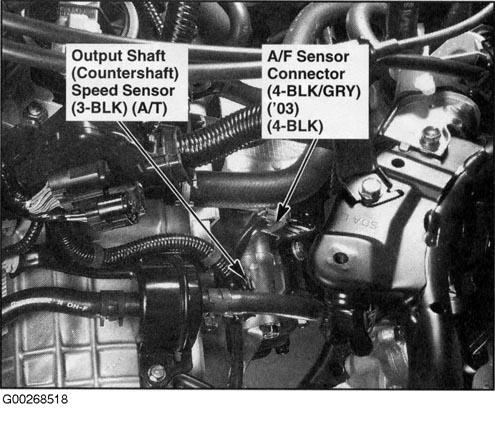

Fig 27: Automatic Transmission Housing (2.4L)

G00268518

Courtesy of AMERICAN HONDA MOTOR CO., INC.

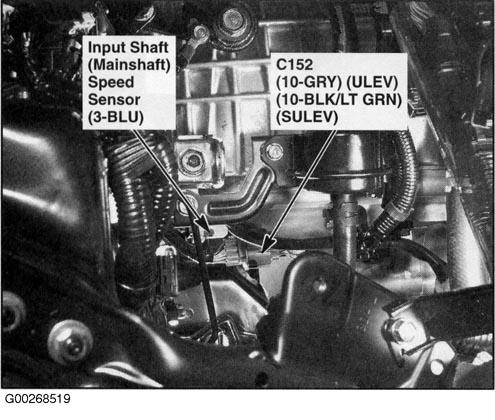

Fig 28: Automatic Transmission Housing (2.4L)

G00268519

Courtesy of AMERICAN HONDA MOTOR CO., INC.

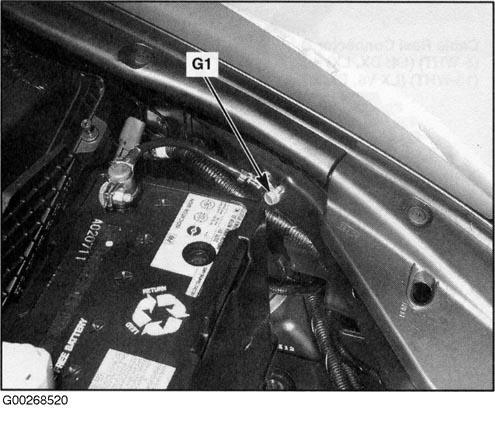

Fig 29: Left Side Of Engine Compartment (2.4L)

G00268520

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Left Rear Of Engine Compartment

G00268521

Courtesy of AMERICAN HONDA MOTOR CO., INC.

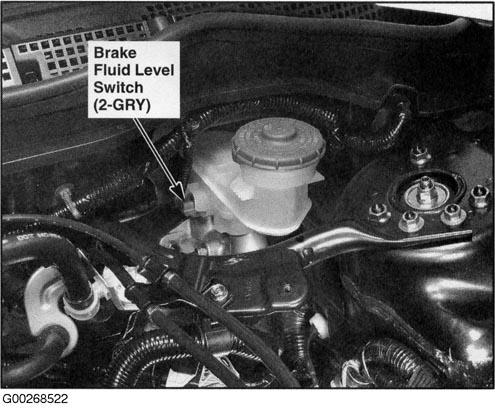

Fig 31: Left Rear Of Engine Compartment

G00268522

Courtesy of AMERICAN HONDA MOTOR CO., INC.

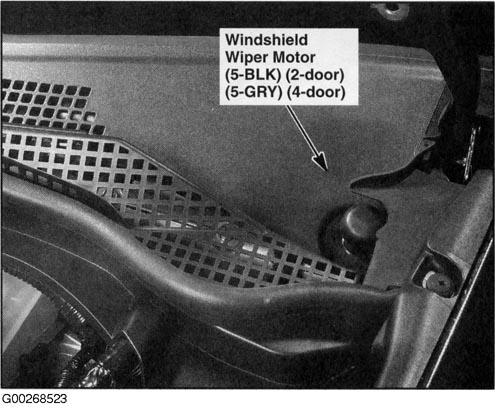

Fig 32: Under Left Side Of Cowl Cover

G00268523

Courtesy of AMERICAN HONDA MOTOR CO., INC.

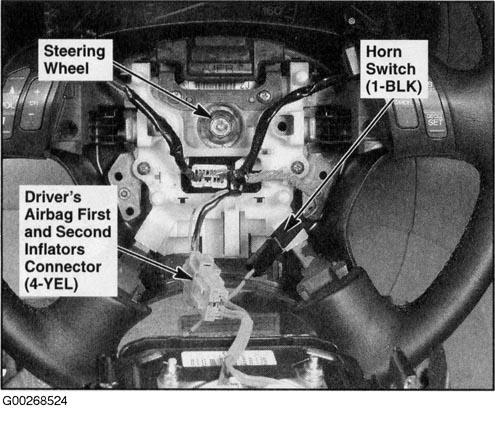

Fig 33: Steering Wheel

G00268524

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Steering Column

G00268525

Courtesy of AMERICAN HONDA MOTOR CO., INC.

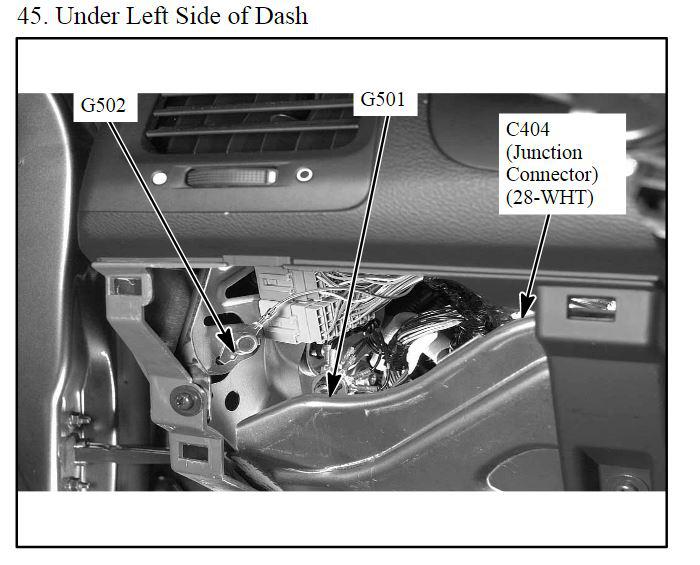

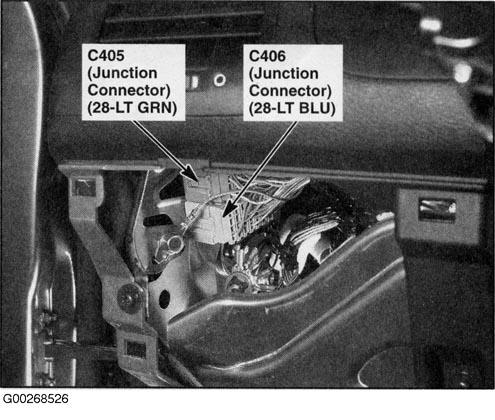

Fig 35: Under Left Side Of Dash

G00268526

Courtesy of AMERICAN HONDA MOTOR CO., INC.

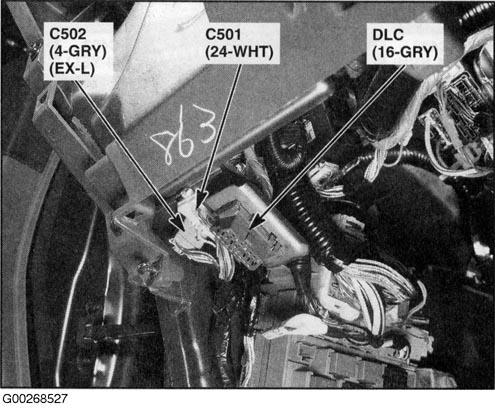

Fig 36: Under Left Side Of Dash

G00268527

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Under Left Side Of Dash

G00268528

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Behind Left Kick Panel

G00268529

Courtesy of AMERICAN HONDA MOTOR CO., INC.

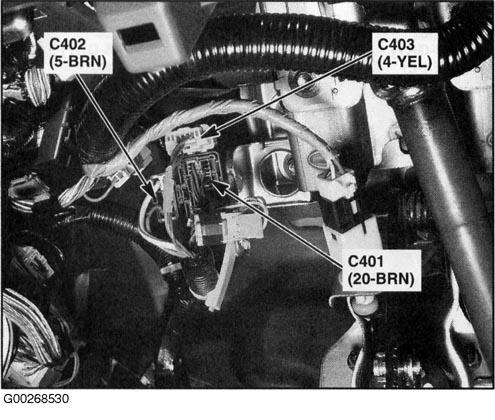

Fig 39: Under Left Side Of Dash

G00268530

Courtesy of AMERICAN HONDA MOTOR CO., INC.

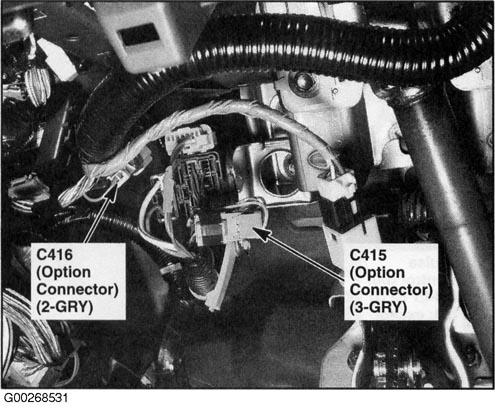

Fig 40: Under Left Side Of Dash

G00268531

Courtesy of AMERICAN HONDA MOTOR CO., INC.

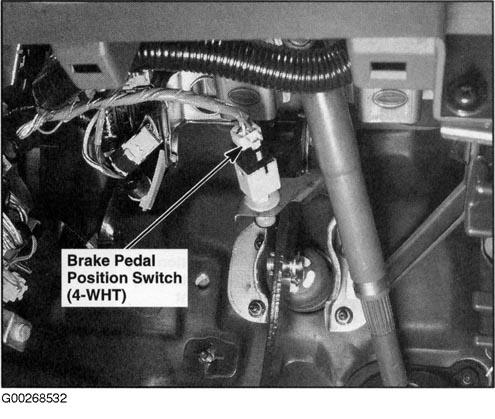

Fig 41: Under Left Side Of Dash

G00268532

Courtesy of AMERICAN HONDA MOTOR CO., INC.

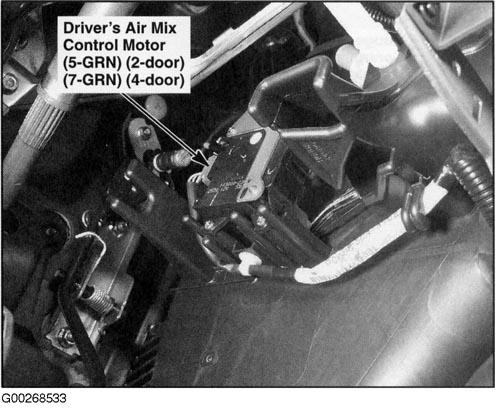

Fig 42: Under Left Side Of Dash (EX-L)

G00268533

Courtesy of AMERICAN HONDA MOTOR CO., INC.

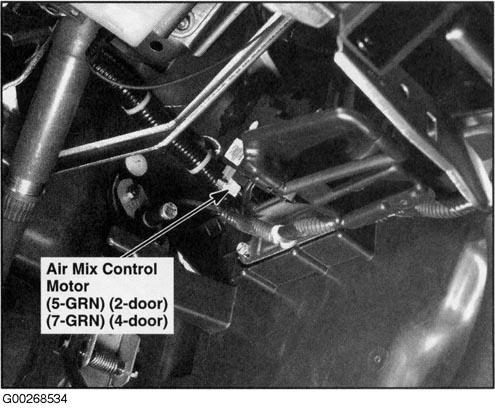

Fig 43: Under Left Side Of Dash (DX, LX & 2.4L EX)

G00268534

Courtesy of AMERICAN HONDA MOTOR CO., INC.

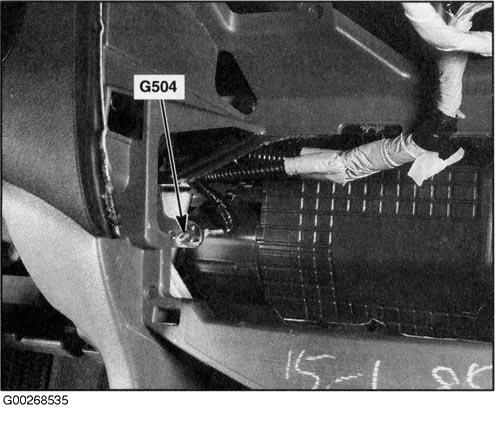

Fig 44: Under Middle Of Dash

G00268535

Courtesy of AMERICAN HONDA MOTOR CO., INC.

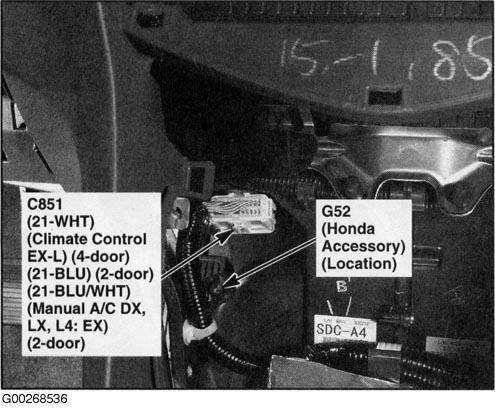

Fig 45: Under Middle Of Dash

G00268536

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Under Middle Of Dash (2.4L)

G00268537

Courtesy of AMERICAN HONDA MOTOR CO., INC.

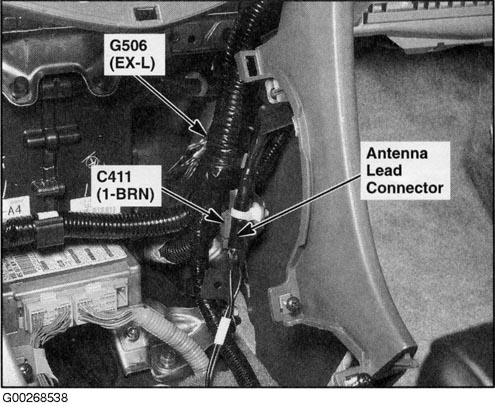

Fig 47: Under Middle Of Dash

G00268538

Courtesy of AMERICAN HONDA MOTOR CO., INC.

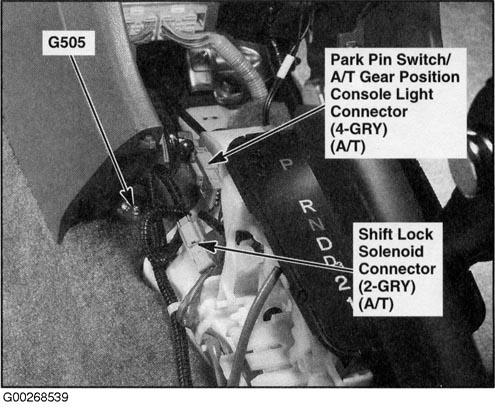

Fig 48: Under Center Console

G00268539

Courtesy of AMERICAN HONDA MOTOR CO., INC.

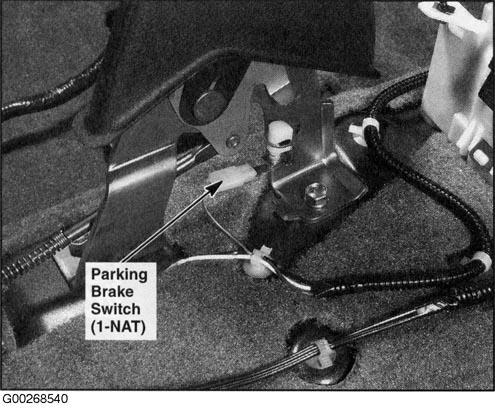

Fig 49: Under Center Console

G00268540

Courtesy of AMERICAN HONDA MOTOR CO., INC.

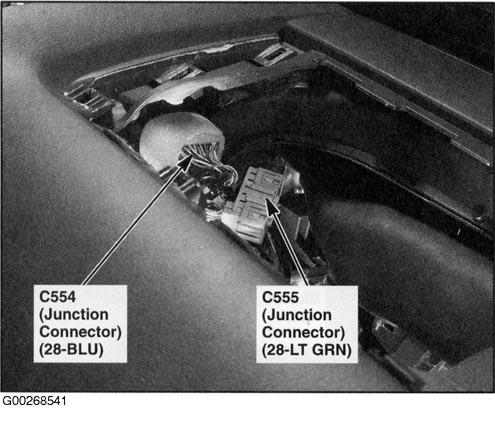

Fig 50: Under Right Side Of Dash

G00268541

Courtesy of AMERICAN HONDA MOTOR CO., INC.

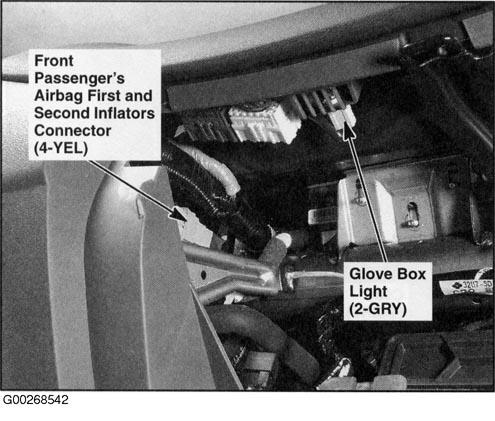

Fig 51: Behind Glove Box

G00268542

Courtesy of AMERICAN HONDA MOTOR CO., INC.

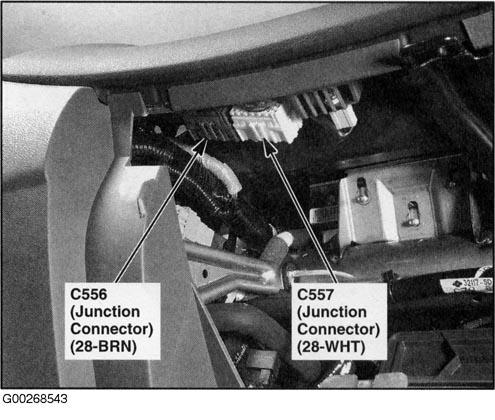

Fig 52: Behind Glove Box

G00268543

Courtesy of AMERICAN HONDA MOTOR CO., INC.

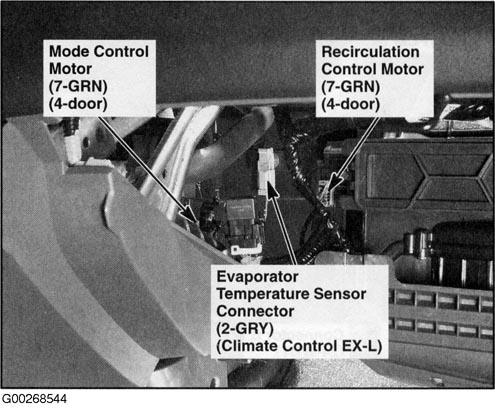

Fig 53: Behind Glove Box

G00268544

Courtesy of AMERICAN HONDA MOTOR CO., INC.

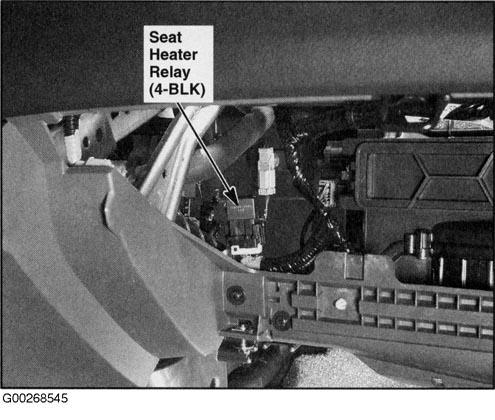

Fig 54: Behind Glove Box (2.4L EX-L)

G00268545

Courtesy of AMERICAN HONDA MOTOR CO., INC.

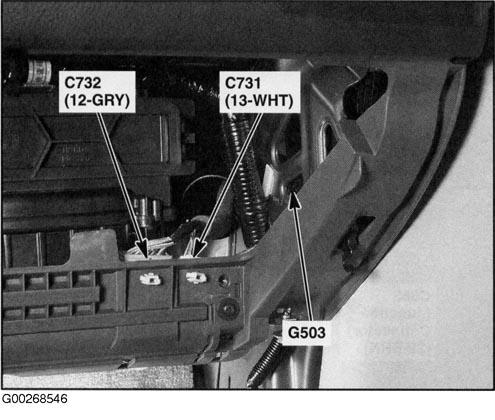

Fig 55: Behind Glove Box

G00268546

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Under Middle Of Dash (2.4L)

G00268547

Courtesy of AMERICAN HONDA MOTOR CO., INC.

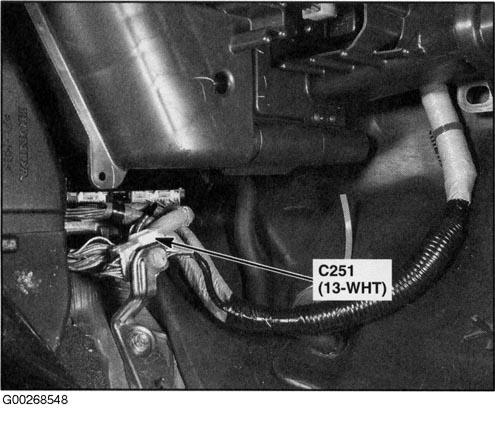

Fig 57: Under Middle Of Dash

G00268548

Courtesy of AMERICAN HONDA MOTOR CO., INC.

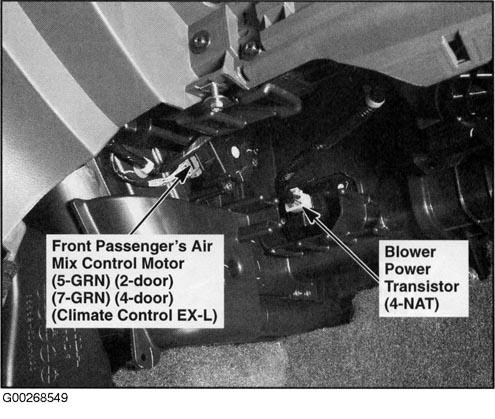

Fig 58: Under Right Side Of Dash

G00268549

Courtesy of AMERICAN HONDA MOTOR CO., INC.

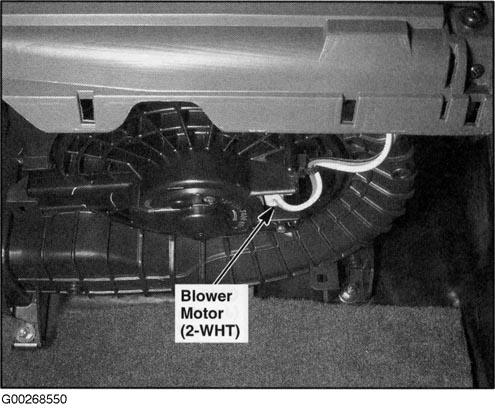

Fig 59: Under Right Side Of Dash (EX-L)

G00268550

Courtesy of AMERICAN HONDA MOTOR CO., INC.

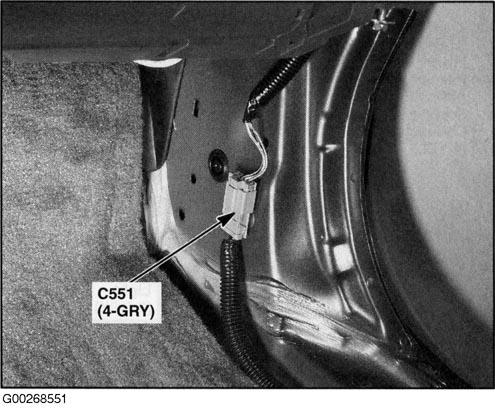

Fig 60: Behind Right Kick Panel (2.4L)

G00268551

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Under Driver's Seat (EX-L & 3.0L LX)

G00268552

Courtesy of AMERICAN HONDA MOTOR CO., INC.

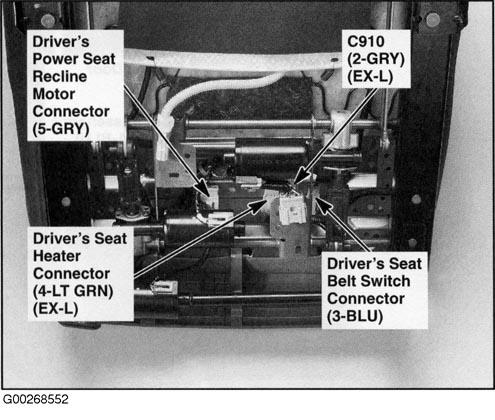

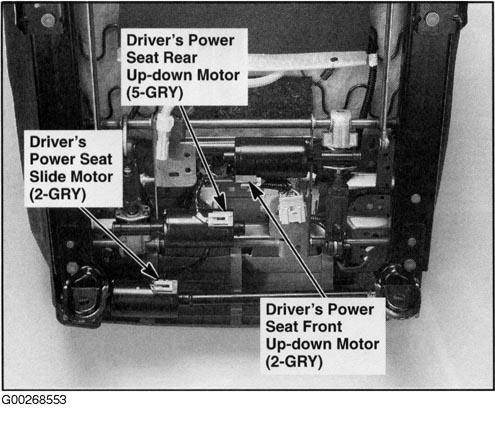

Fig 62: Under Driver's Seat (EX-L & 3.0L LX)

G00268553

Courtesy of AMERICAN HONDA MOTOR CO., INC.

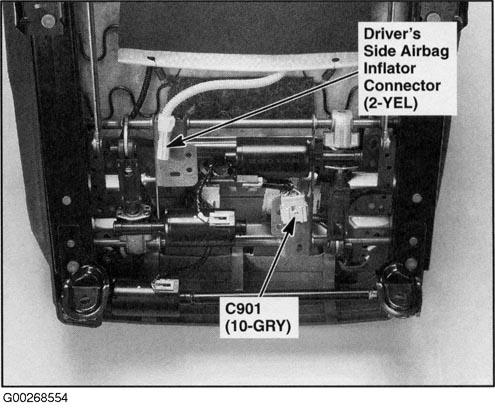

Fig 63: Under Driver' Seat (EX-L & 3.0L LX)

G00268554

Courtesy of AMERICAN HONDA MOTOR CO., INC.

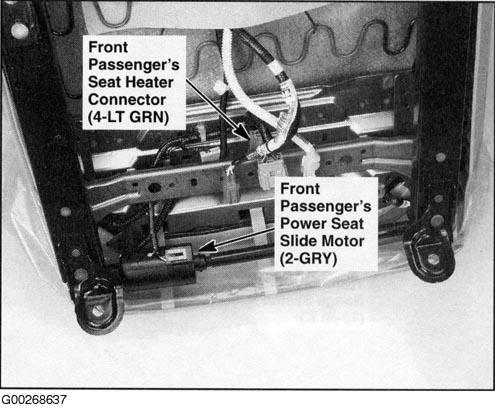

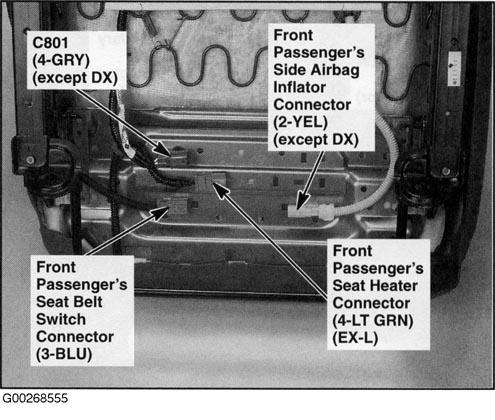

Fig 64: Under Front Passenger's Seat

G00268555

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: In Front Passenger's Seat (Except DX)

G00268556

Courtesy of AMERICAN HONDA MOTOR CO., INC.

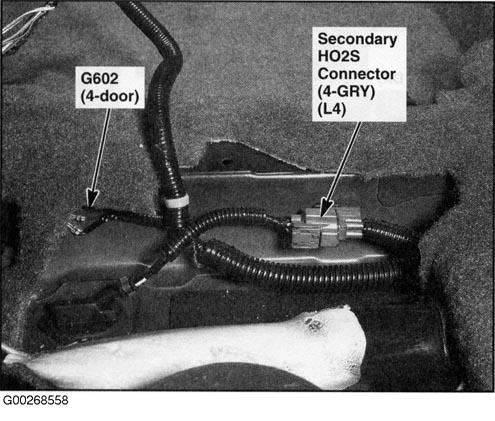

Fig 66: Right Side Of Floor

G00268558

Courtesy of AMERICAN HONDA MOTOR CO., INC.

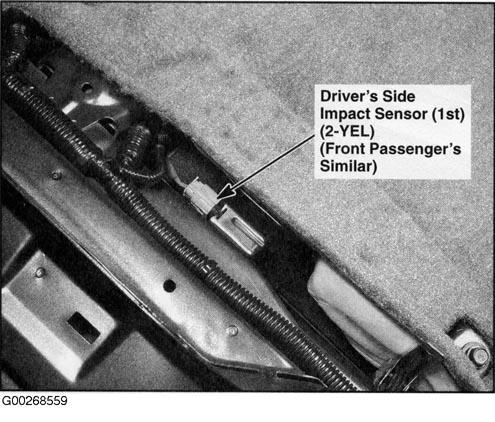

Fig 67: Left & Right "B" Pillar (Except DX)

G00268559

Courtesy of AMERICAN HONDA MOTOR CO., INC.

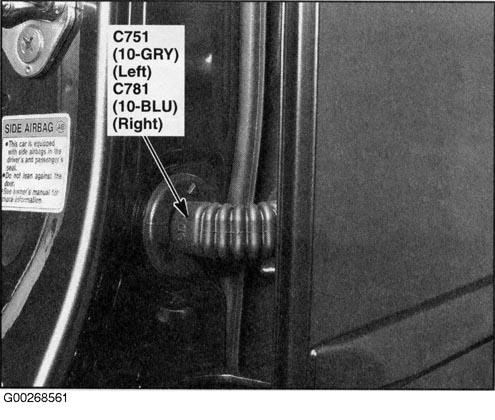

Fig 68: Left & Right "B" Pillar

G00268561

Courtesy of AMERICAN HONDA MOTOR CO., INC.

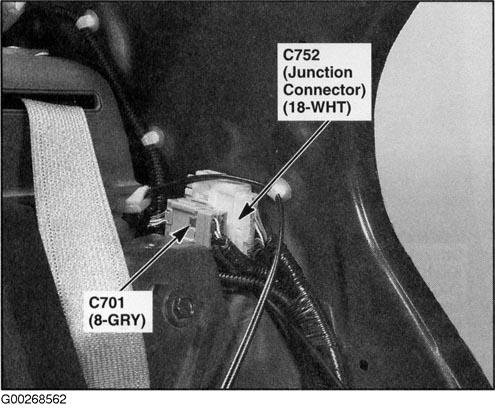

Fig 69: Left "C" Pillar (Sedan)

G00268562

Courtesy of AMERICAN HONDA MOTOR CO., INC.

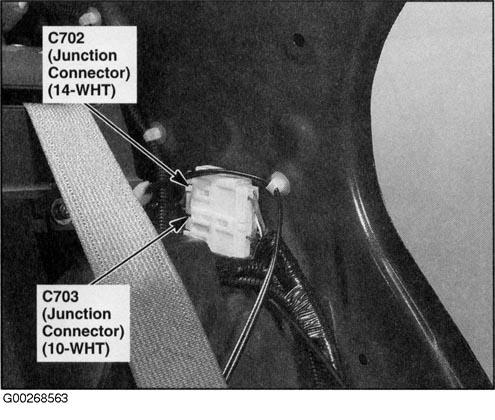

Fig 70: Left "C" Pillar (Sedan)

G00268563

Courtesy of AMERICAN HONDA MOTOR CO., INC.

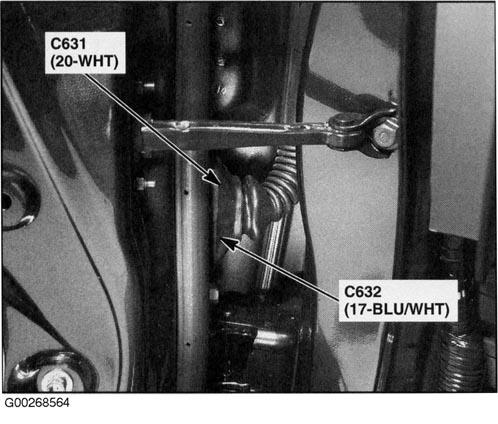

Fig 71: Front Of Driver's Door

G00268564

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Driver's & Front Passenger's Door

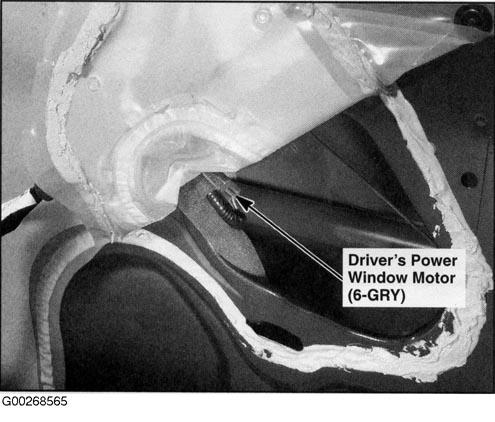

G00268565

Courtesy of AMERICAN HONDA MOTOR CO., INC.

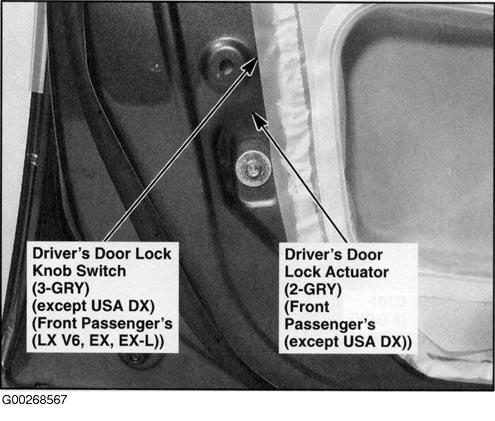

Fig 73: Driver's & Front Passenger's Door

G00268567

Courtesy of AMERICAN HONDA MOTOR CO., INC.

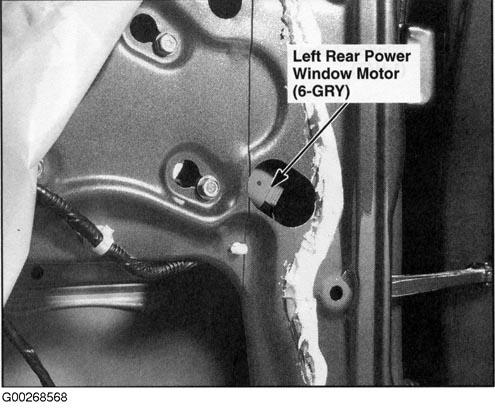

Fig 74: Left & Right Rear Door

G00268568

Courtesy of AMERICAN HONDA MOTOR CO., INC.

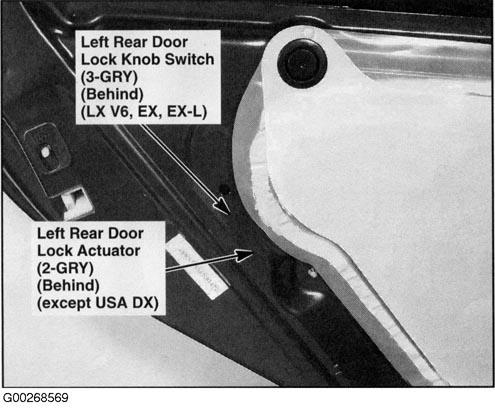

Fig 75: Left & Right Rear Doors

G00268569

Courtesy of AMERICAN HONDA MOTOR CO., INC.

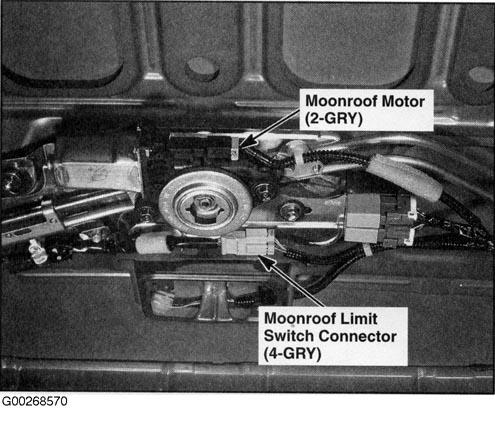

Fig 76: Rear Of Roof (EX & EX-L) (Sedan)

G00268570

Courtesy of AMERICAN HONDA MOTOR CO., INC.

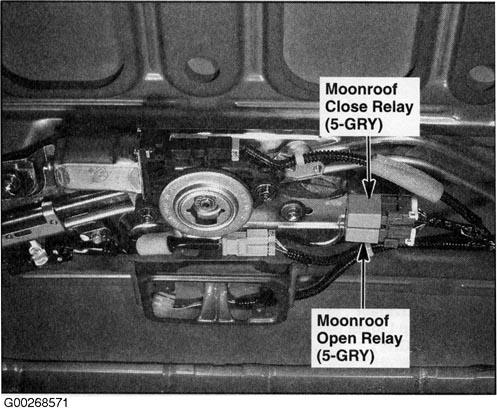

Fig 77: Rear Of Roof (EX & EX-L) (Sedan)

G00268571

Courtesy of AMERICAN HONDA MOTOR CO., INC.

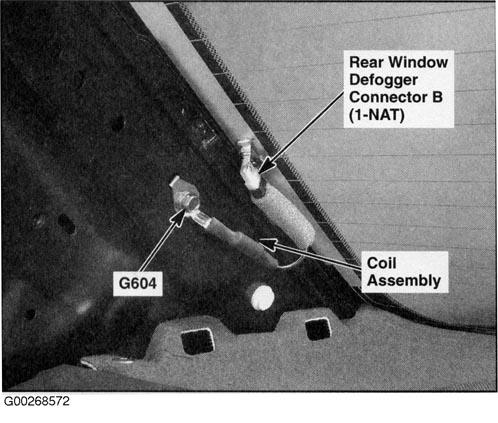

Fig 78: Right "C" Pillar (Sedan)

G00268572

Courtesy of AMERICAN HONDA MOTOR CO., INC.

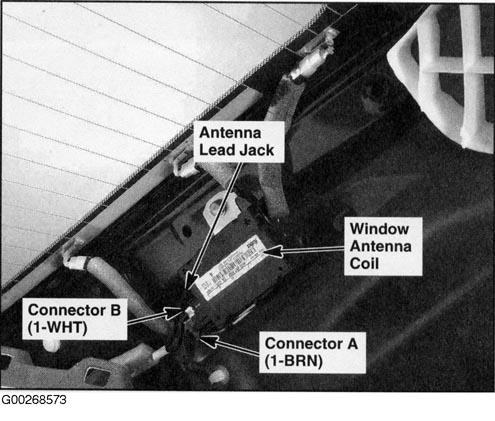

Fig 79: Left "C" Pillar (Sedan)

G00268573

Courtesy of AMERICAN HONDA MOTOR CO., INC.

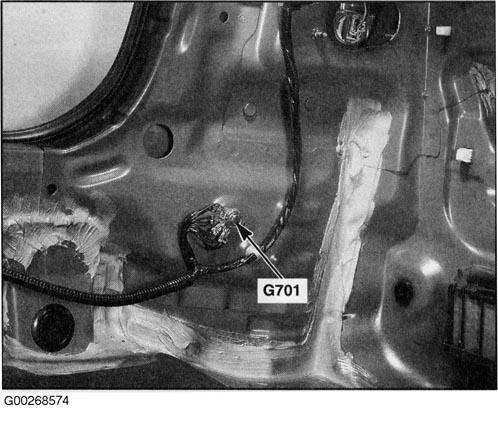

Fig 80: Left Side Of Trunk (Sedan)

G00268574

Courtesy of AMERICAN HONDA MOTOR CO., INC.

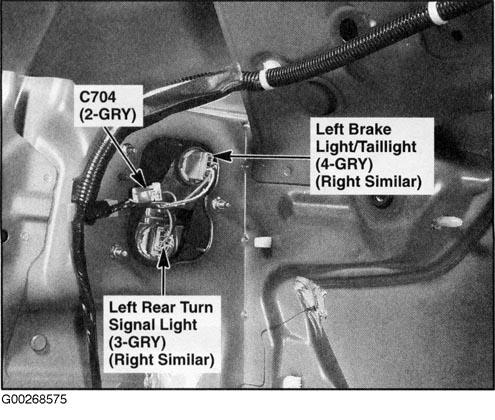

Fig 81: Left Side Of Trunk (Sedan)

G00268575

Courtesy of AMERICAN HONDA MOTOR CO., INC.

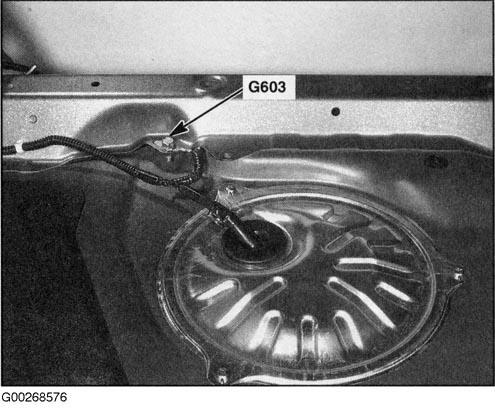

Fig 82: Left Front Of Trunk

G00268576

Courtesy of AMERICAN HONDA MOTOR CO., INC.

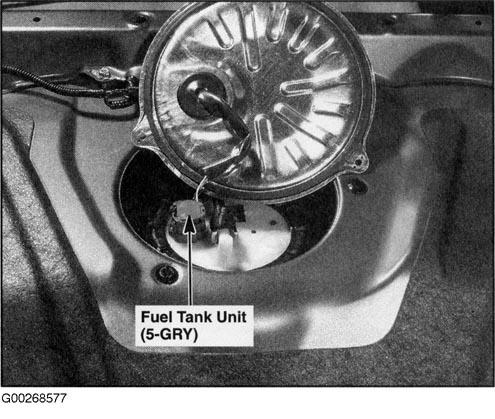

Fig 83: Left Front Of Trunk

G00268577

Courtesy of AMERICAN HONDA MOTOR CO., INC.

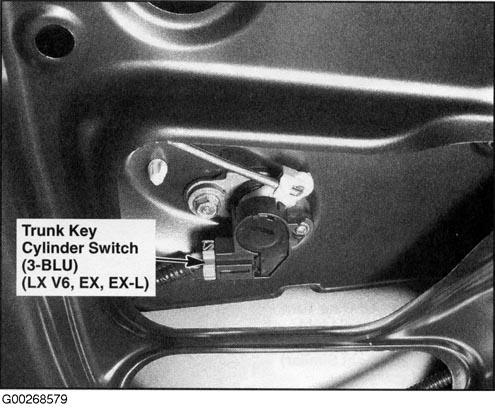

Fig 84: Right Side Of Trunk Lid (Sedan)

G00268579

Courtesy of AMERICAN HONDA MOTOR CO., INC.

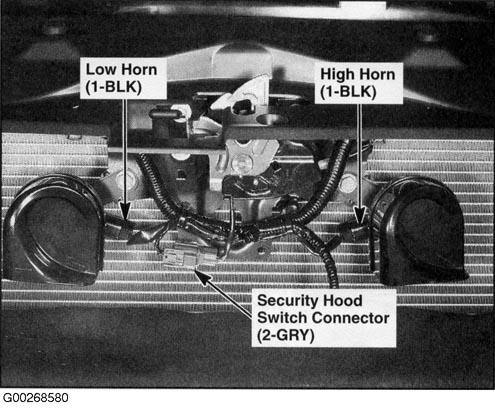

Fig 85: Behind Middle Of Front Bumper

G00268580

Courtesy of AMERICAN HONDA MOTOR CO., INC.

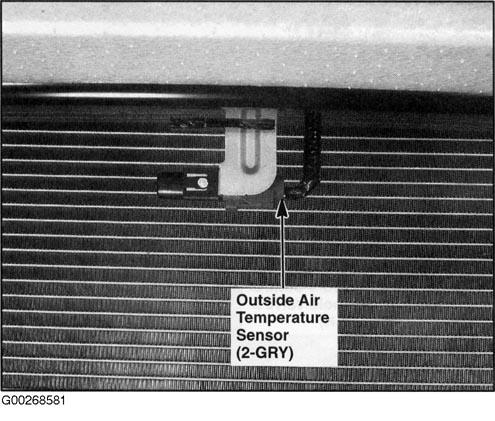

Fig 86: Behind Middle Of Front Bumper

G00268581

Courtesy of AMERICAN HONDA MOTOR CO., INC.

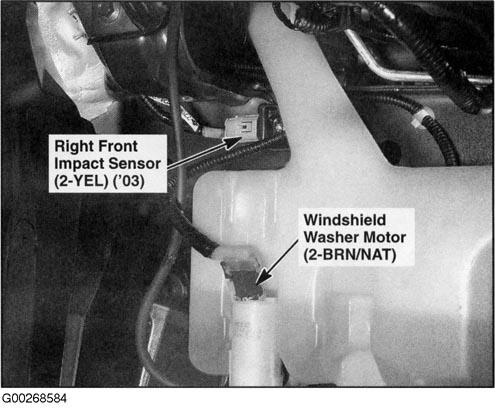

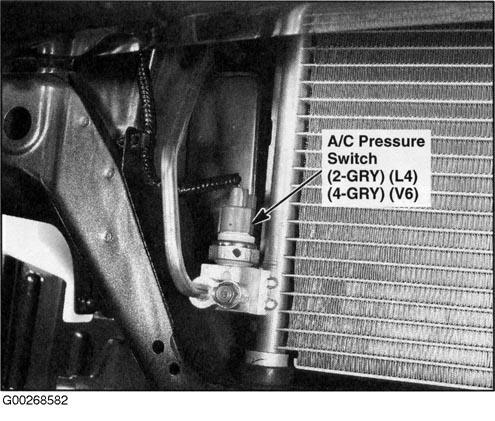

Fig 87: Behind Right Side Of Front Bumper

G00268582

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Behind Right Side Of Front Bumper

G00268584

Courtesy of AMERICAN HONDA MOTOR CO., INC.

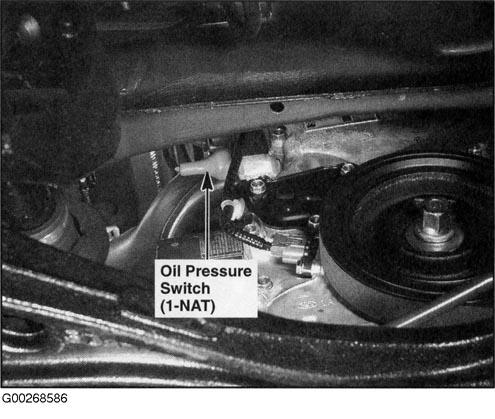

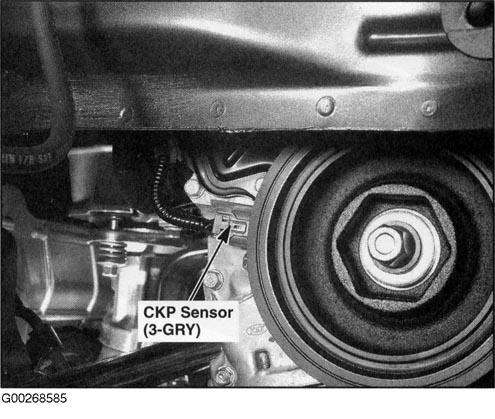

Fig 89: Right Front Side Of Engine (2.4L)

G00268585

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Right Front Side Of Engine (2.4L)

G00268586

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Right Side Of Engine Compartment (2.4L)

G00268587

Courtesy of AMERICAN HONDA MOTOR CO., INC.

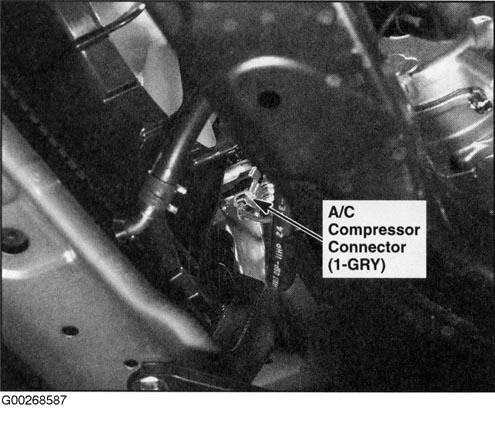

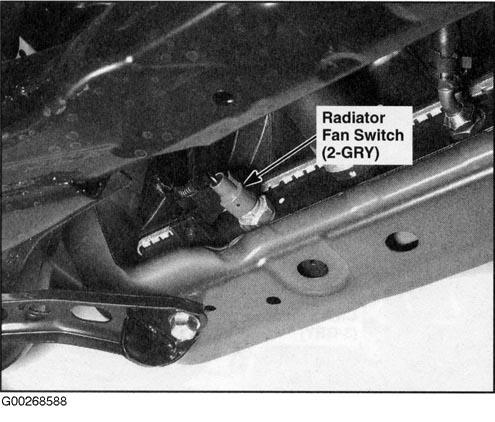

Fig 92: Left Side Of Engine Compartment (2.4L)

G00268588

Courtesy of AMERICAN HONDA MOTOR CO., INC.

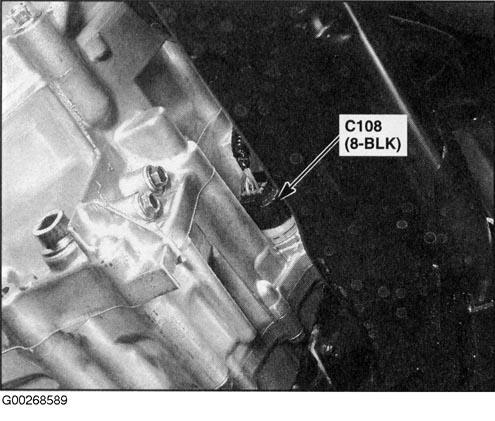

Fig 93: Automatic Transmission Housing (2.4L)

G00268589

Courtesy of AMERICAN HONDA MOTOR CO., INC.

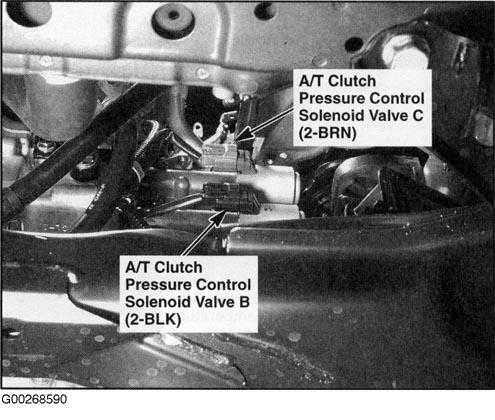

Fig 94: Automatic Transmission Housing (2.4L)

G00268590

Courtesy of AMERICAN HONDA MOTOR CO., INC.

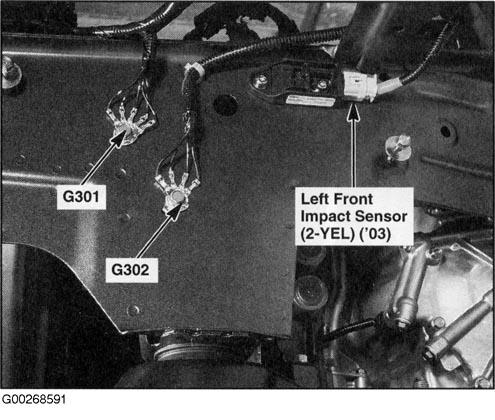

Fig 95: Behind Left Side Of Front Bumper

G00268591

Courtesy of AMERICAN HONDA MOTOR CO., INC.

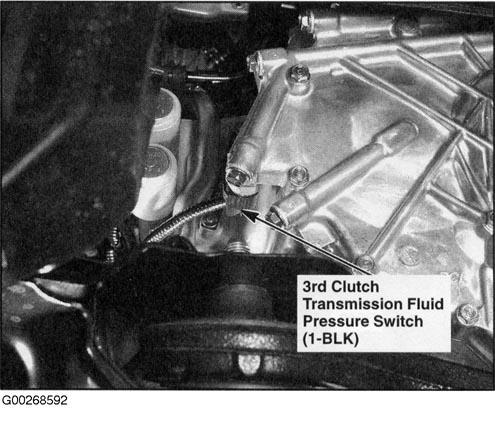

Fig 96: Automatic Transmission Housing (2.4L)

G00268592

Courtesy of AMERICAN HONDA MOTOR CO., INC.

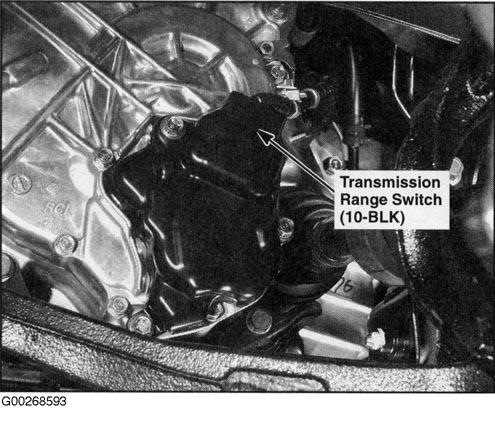

Fig 97: Automatic Transmission Housing (2.4L)

G00268593

Courtesy of AMERICAN HONDA MOTOR CO., INC.

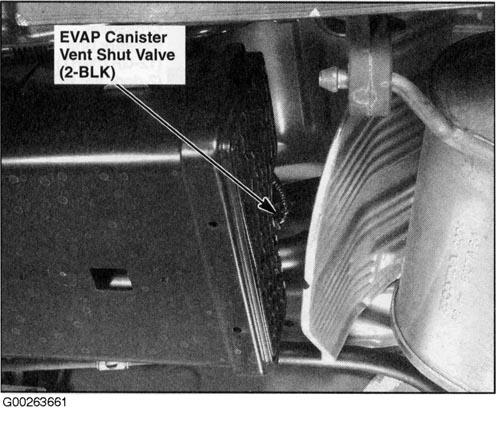

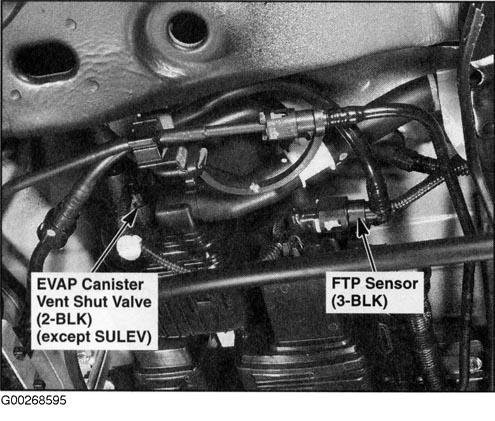

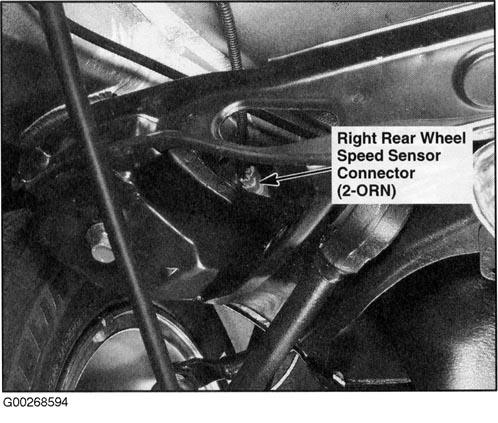

Fig 98: Under Right Rear Of Vehicle

G00268594

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Under Left Rear Of Vehicle

G00268595

Courtesy of AMERICAN HONDA MOTOR CO., INC.

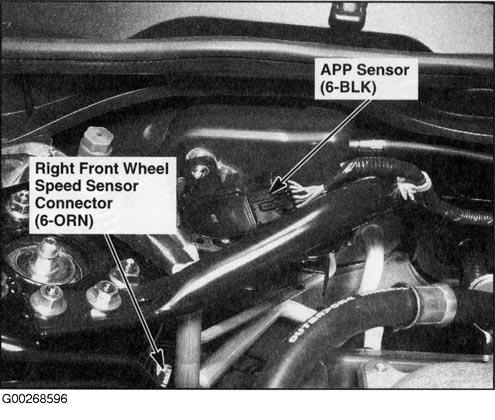

Fig 100: Right Side Of Engine Compartment (3.0L)

G00268596

Courtesy of AMERICAN HONDA MOTOR CO., INC.

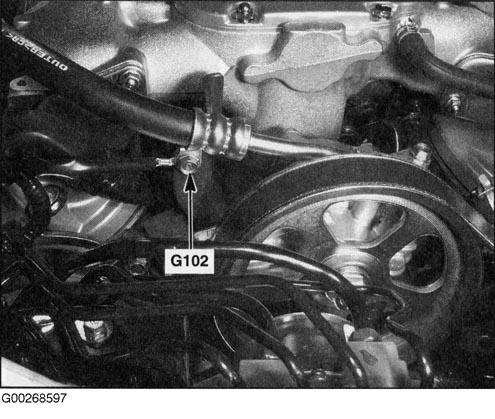

Fig 101: Right Side Of Engine (3.0L)

G00268597

Courtesy of AMERICAN HONDA MOTOR CO., INC.

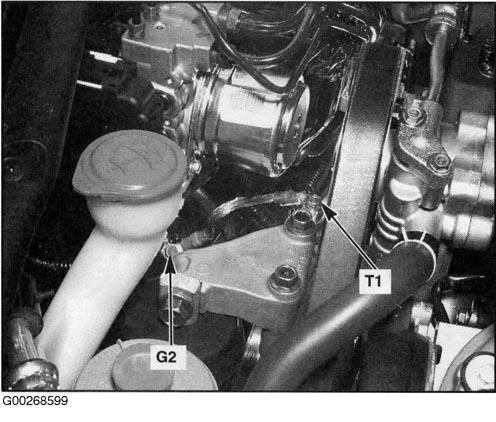

Fig 102: Right Side Of Engine Compartment (3.0L)

G00268598

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Right Side Of Engine Compartment (3.0L)

G00268599

Courtesy of AMERICAN HONDA MOTOR CO., INC.

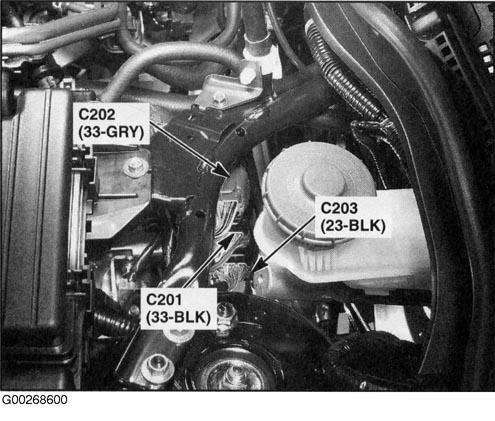

Fig 104: Left Side Of Engine Compartment (3.0L)

G00268600

Courtesy of AMERICAN HONDA MOTOR CO., INC.

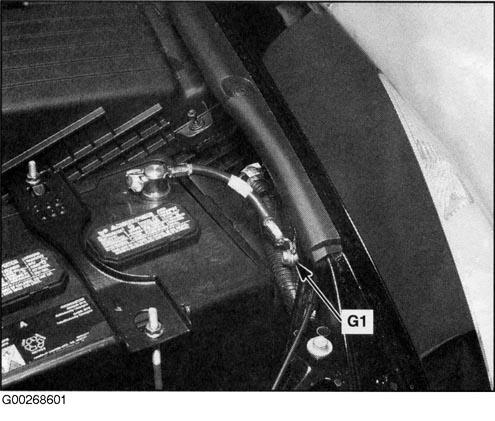

Fig 105: Left Side Of Engine Compartment (3.0L)

G00268601

Courtesy of AMERICAN HONDA MOTOR CO., INC.

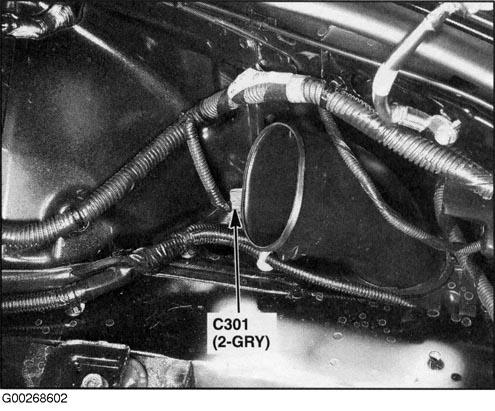

Fig 106: Left Side Of Engine Compartment (3.0L) (Canada)

G00268602

Courtesy of AMERICAN HONDA MOTOR CO., INC.

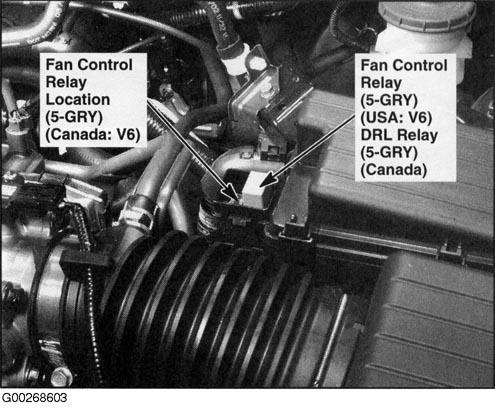

Fig 107: Left Side Of Engine Compartment (3.0L)

G00268603

Courtesy of AMERICAN HONDA MOTOR CO., INC.

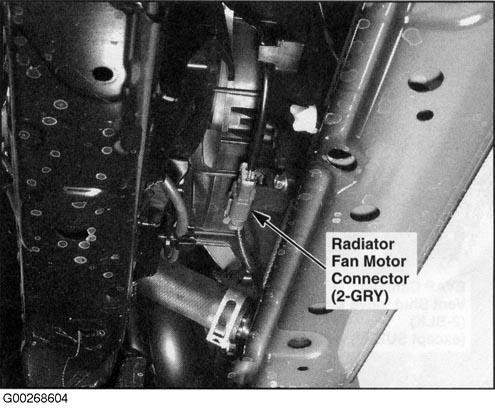

Fig 108: Left Side Of Engine Compartment (3.0L)

G00268604

Courtesy of AMERICAN HONDA MOTOR CO., INC.

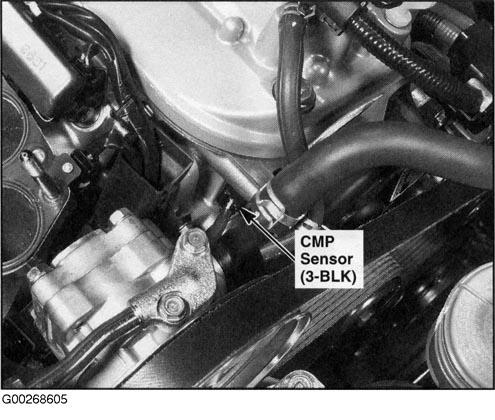

Fig 109: Right Side Of Engine (3.0L)

G00268605

Courtesy of AMERICAN HONDA MOTOR CO., INC.

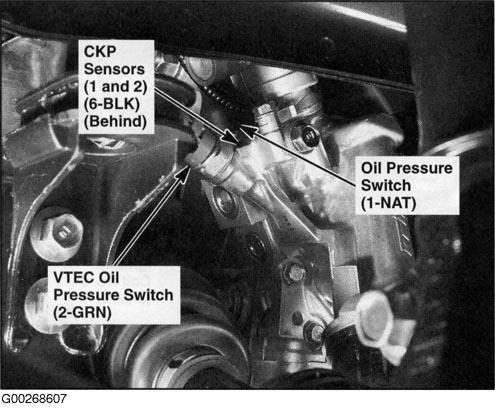

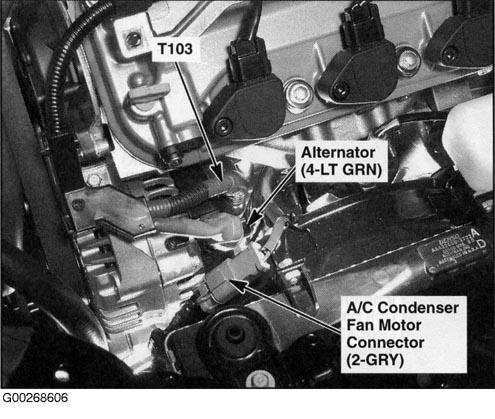

Fig 110: Left Front Of Engine (3.0L)

G00268606

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 111: Right Front Of Engine (3.0L)

G00268607

Courtesy of AMERICAN HONDA MOTOR CO., INC.

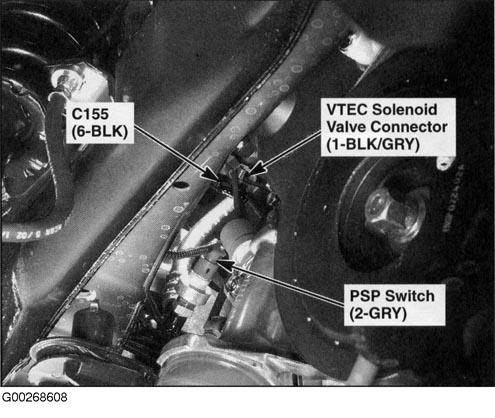

Fig 112: Right Side Of Engine (3.0L)

G00268608

Courtesy of AMERICAN HONDA MOTOR CO., INC.

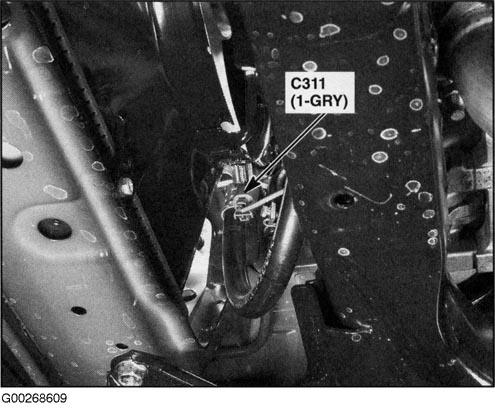

Fig 113: Right Side Of Engine Compartment (3.0L)

G00268609

Courtesy of AMERICAN HONDA MOTOR CO., INC.

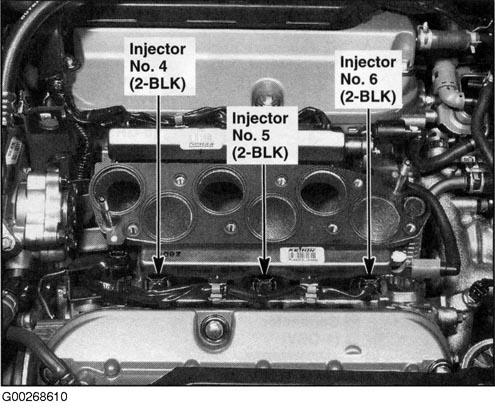

Fig 114: Middle Of Engine (3.0L)

G00268610

Courtesy of AMERICAN HONDA MOTOR CO., INC.

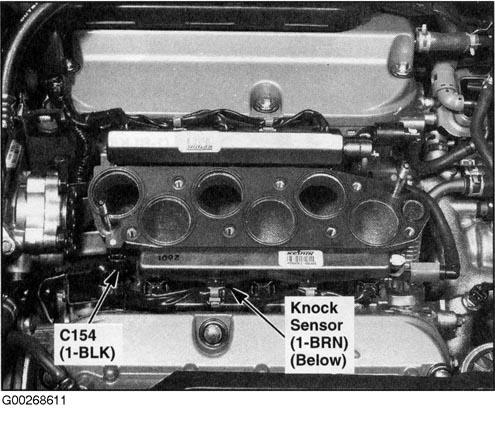

Fig 115: Middle Of Engine (3.0L)

G00268611

Courtesy of AMERICAN HONDA MOTOR CO., INC.

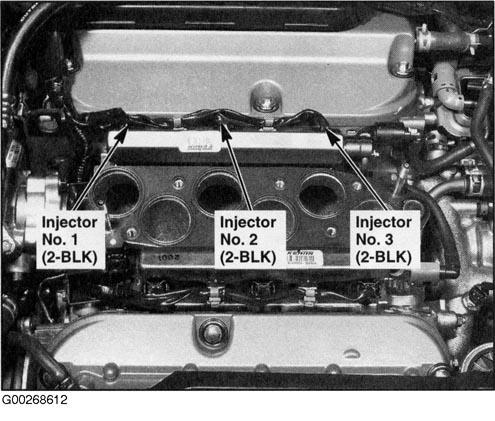

Fig 116: Middle Of Engine (3.0L)

G00268612

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 117: Middle Of Engine (3.0L)

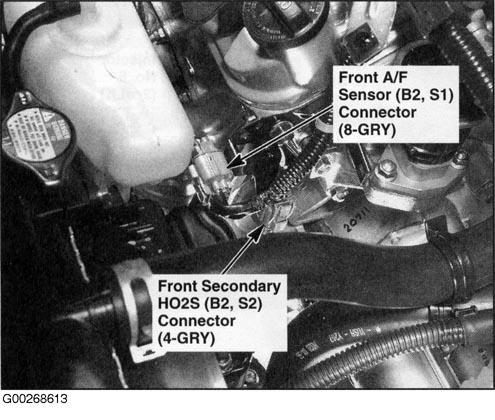

G00268613

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 118: Middle Of Engine (3.0L)

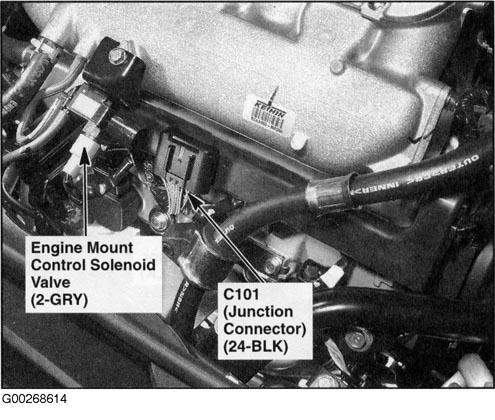

G00268614

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 119: Middle Of Engine (3.0L)

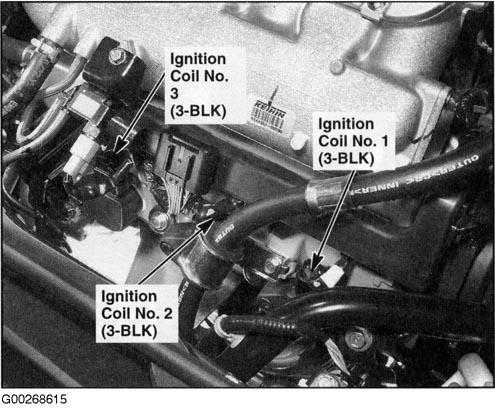

G00268615

Courtesy of AMERICAN HONDA MOTOR CO., INC.

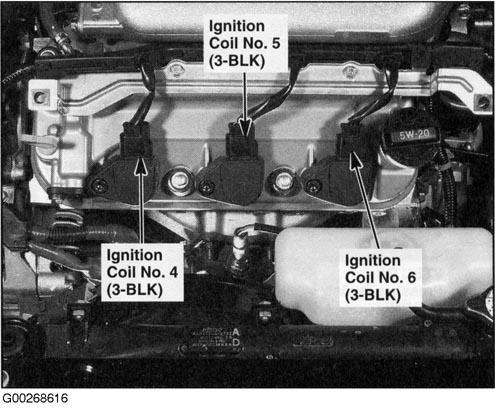

Fig 120: Middle Of Engine (3.0L)

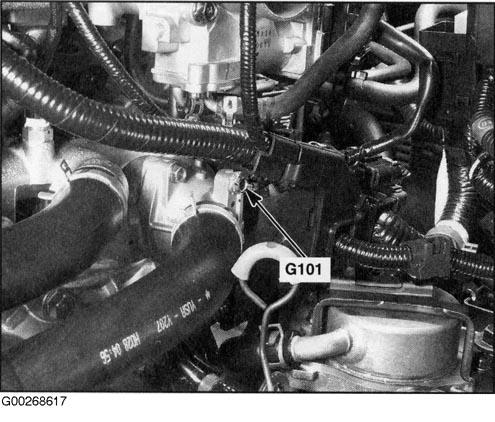

G00268616

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 121: Left Side Of Engine (3.0L)

G00268617

Courtesy of AMERICAN HONDA MOTOR CO., INC.

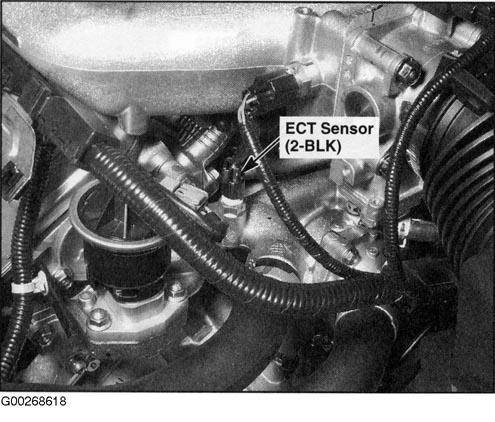

Fig 122: Left Rear Of Engine (3.0L)

G00268618

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 123: Left Rear Of Engine (3.0L)

G00268619

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 124: Left Rear Of Engine (3.0L)

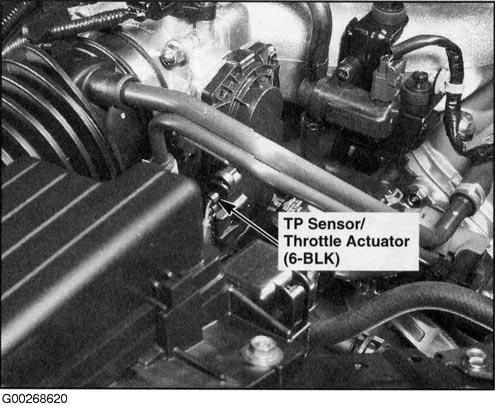

G00268620

Courtesy of AMERICAN HONDA MOTOR CO., INC.

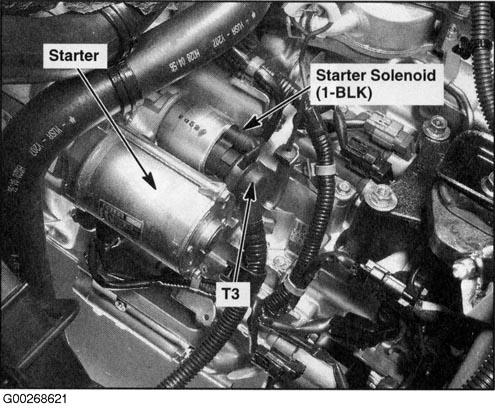

Fig 125: Left Rear Of Engine (3.0L)

G00268621

Courtesy of AMERICAN HONDA MOTOR CO., INC.

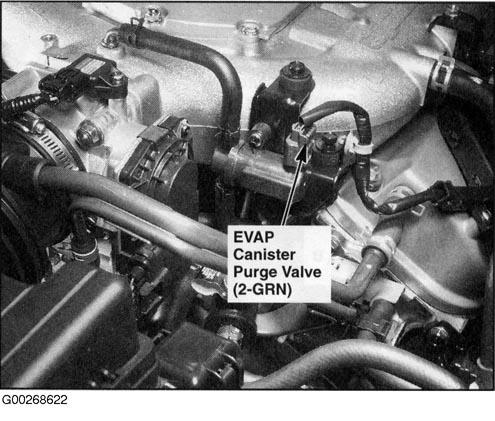

Fig 126: Left Side Of Engine (3.0L)

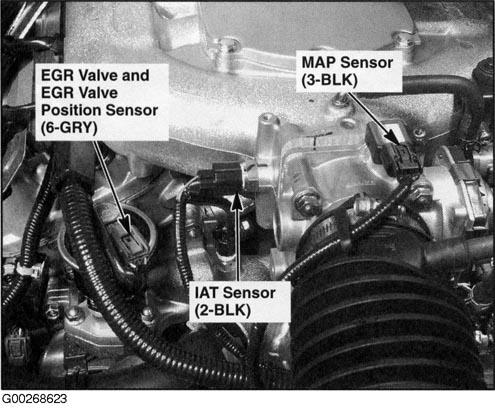

G00268622

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 127: Left Rear Of Engine (3.0L)

G00268623

Courtesy of AMERICAN HONDA MOTOR CO., INC.

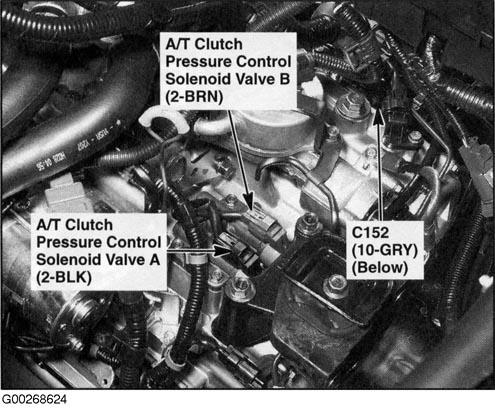

Fig 128: Automatic Transmission Housing (3.0L)

G00268624

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 129: Automatic Transmission Housing (3.0L)

G00268625

Courtesy of AMERICAN HONDA MOTOR CO., INC.

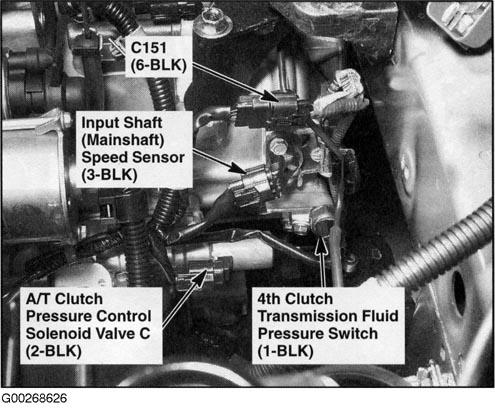

Fig 130: Automatic Transmission Housing (3.0L)

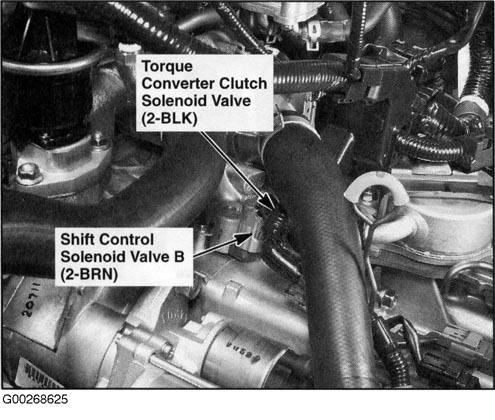

G00268626

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Automatic Transmission Housing (3.0L)

G00268627

Courtesy of AMERICAN HONDA MOTOR CO., INC.

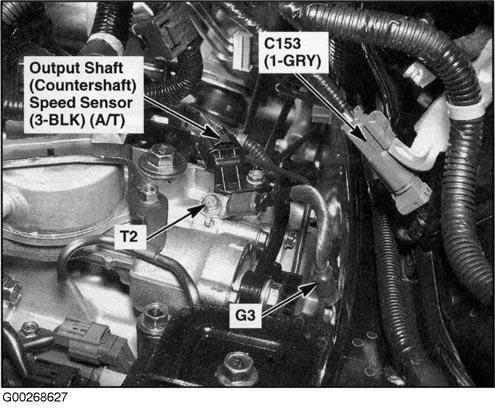

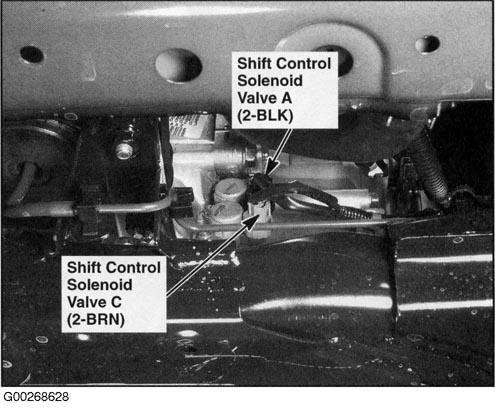

Fig 132: Automatic Transmission Housing (3.0L)

G00268628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

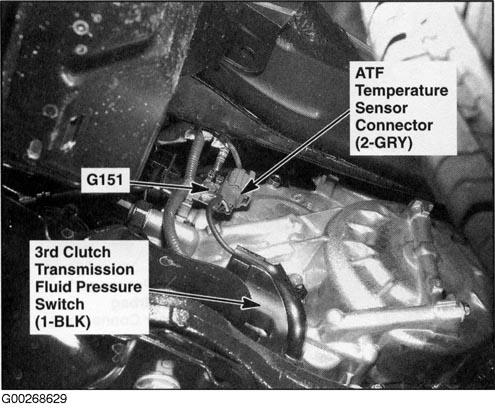

Fig 133: Automatic Transmission Housing (3.0L)

G00268629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Automatic Transmission Housing (3.0L)

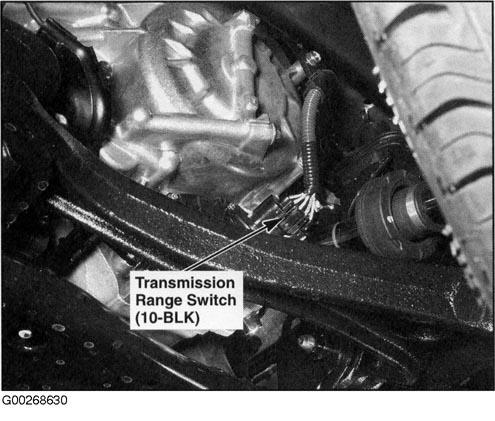

G00268630

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Under Left Side Of Dash (3.0L)

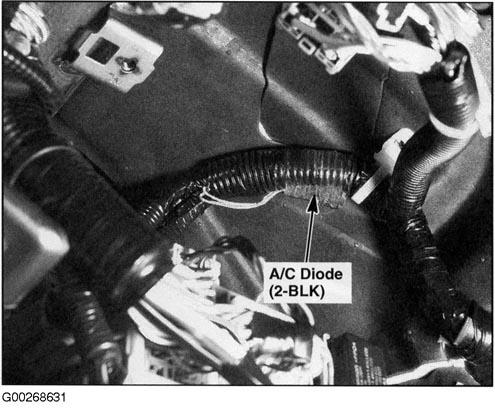

G00268631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 136: Under Middle Of Dash (3.0L)

G00268632

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 137: Behind Glove Box (3.0L)

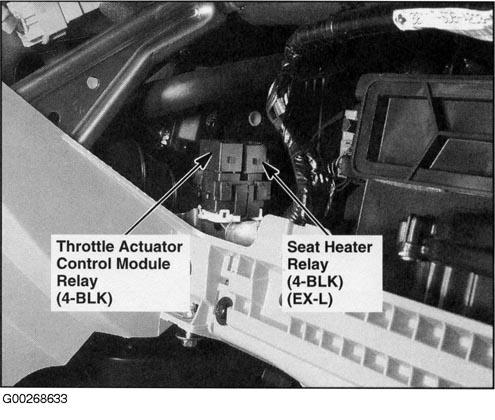

G00268633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 138: Under Right Side Of Dash (3.0L)

G00268634

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Under Right Side Of Dash (3.0L)

G00268635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

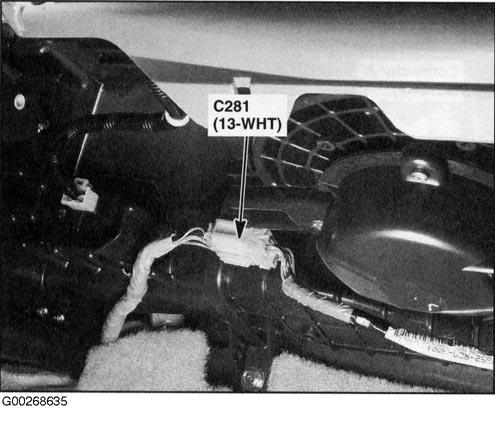

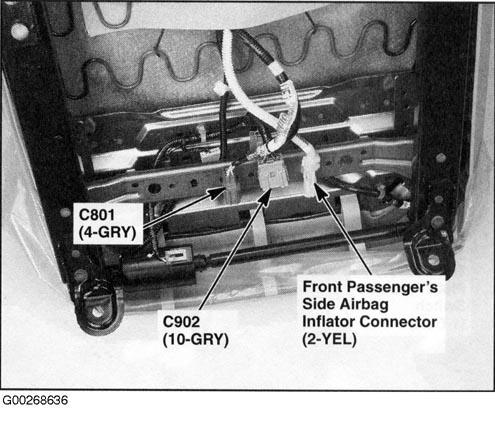

Fig 140: Under Front Passenger's Seat (3.0L) (EX-L) (Sedan)

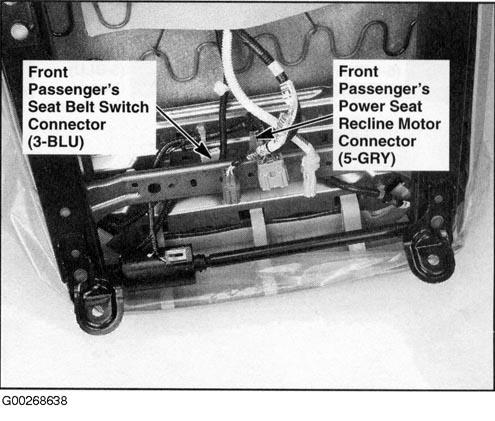

G00268636

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 141: Under Front Passenger's Seat (3.0L) (EX-L) (Sedan)

G00268637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 142: Under Front Passenger's Seat (3.0L) (EX-L) (Sedan)

G00268638

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 143: Left & Right "C" Pillar (EX-L) (Sedan)

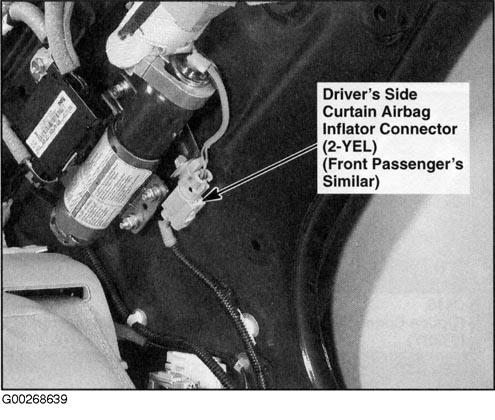

G00268639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

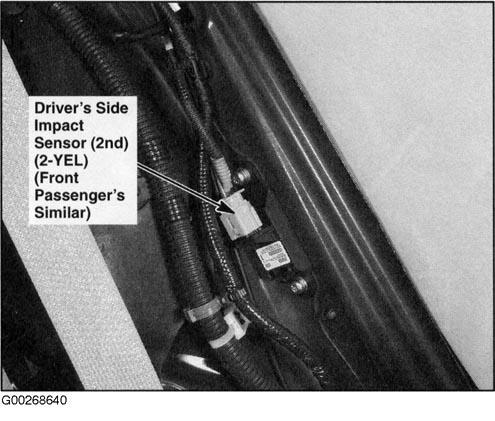

Fig 144: Left & Right "C" Pillar (EX-L) (Sedan)

G00268640

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 145: Middle Of Engine (3.0L)

G00268641

Courtesy of AMERICAN HONDA MOTOR CO., INC.

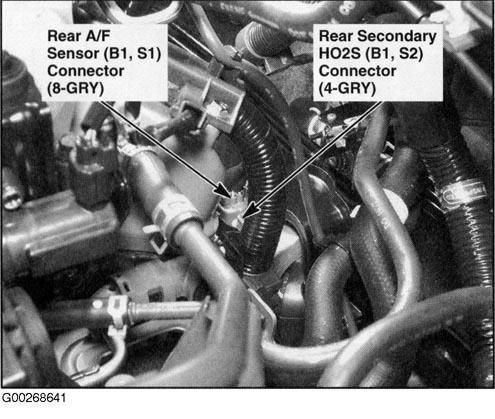

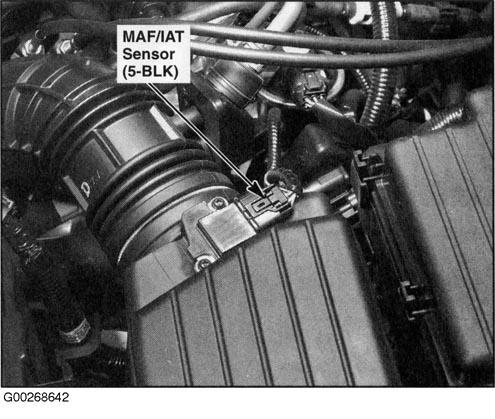

Fig 146: Left Side Of Engine Compartment (SULEV)

G00268642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

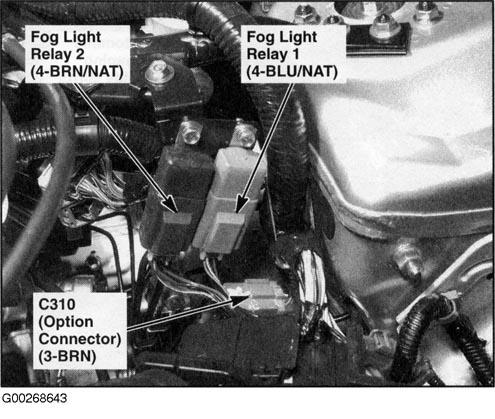

Fig 147: Left Side Of Engine Compartment (Honda Accessory)

G00268643

Courtesy of AMERICAN HONDA MOTOR CO., INC.

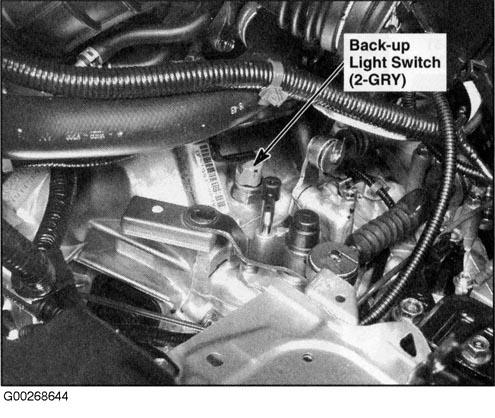

Fig 148: Manual Transmission Housing (2.4L)

G00268644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 149: Under Left Side Of Dash (Honda Accessory)

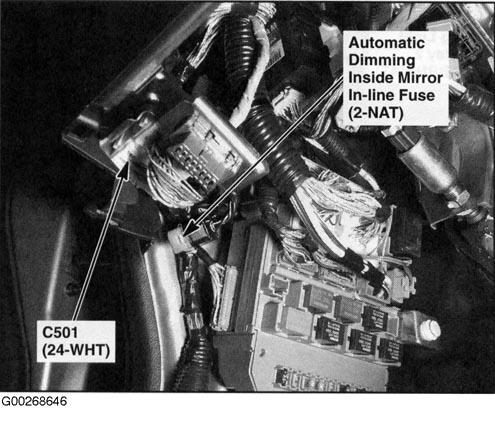

G00268646

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 150: Behind Left Kick Panel (Honda Accessory)

G00268647

Courtesy of AMERICAN HONDA MOTOR CO., INC.

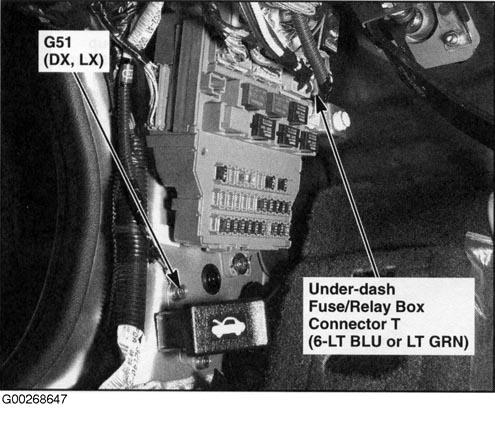

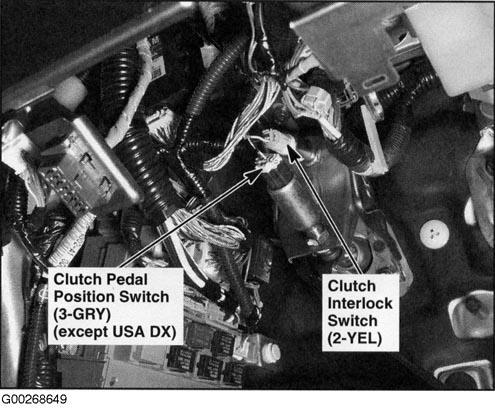

Fig 151: Under Left Side Of Dash (M/T)

G00268649

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 152: Under Left Side Of Dash (DX & LX) (Honda Accessory)

G00263588

Courtesy of AMERICAN HONDA MOTOR CO., INC.

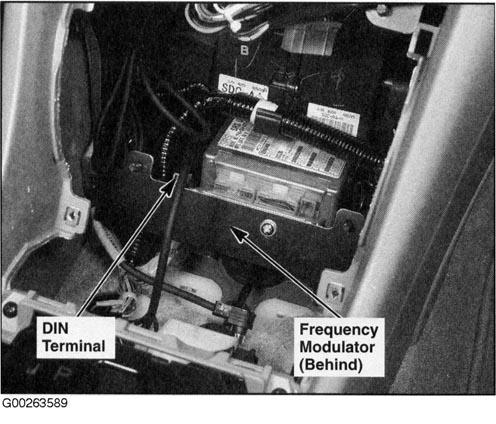

Fig 153: Under Middle Of Dash (Honda Accessory)

G00263589

Courtesy of AMERICAN HONDA MOTOR CO., INC.

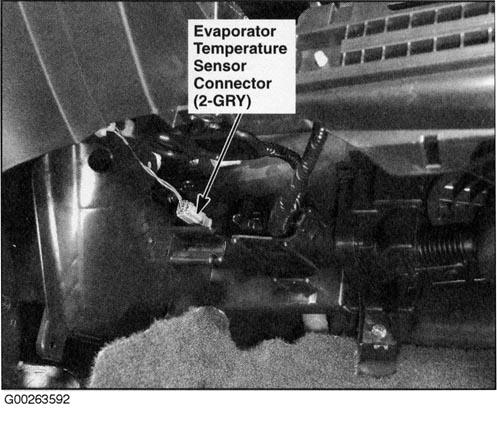

Fig 154: Under Right Side Of Dash (Manual A/C)

G00263592

Courtesy of AMERICAN HONDA MOTOR CO., INC.

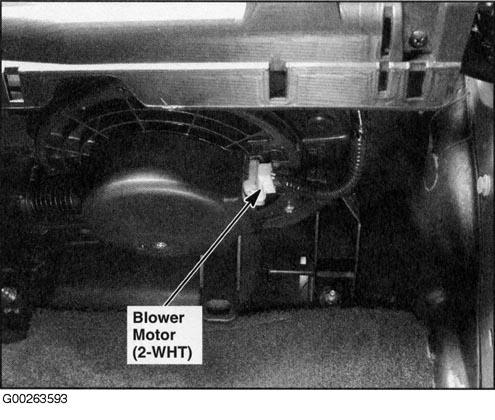

Fig 155: Under Right Side Of Dash (Manual A/C)

G00263593

Courtesy of AMERICAN HONDA MOTOR CO., INC.

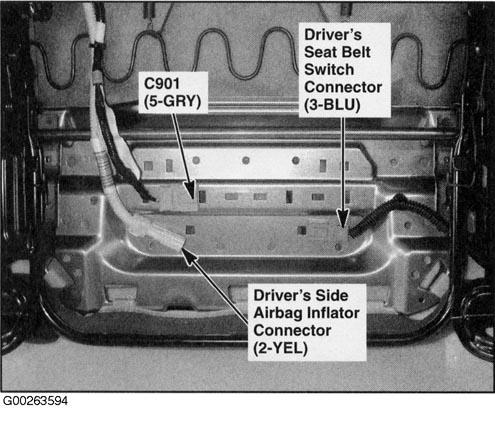

Fig 156: Under Driver's Seat (Except EX-L & 3.0L LX)

G00263594

Courtesy of AMERICAN HONDA MOTOR CO., INC.

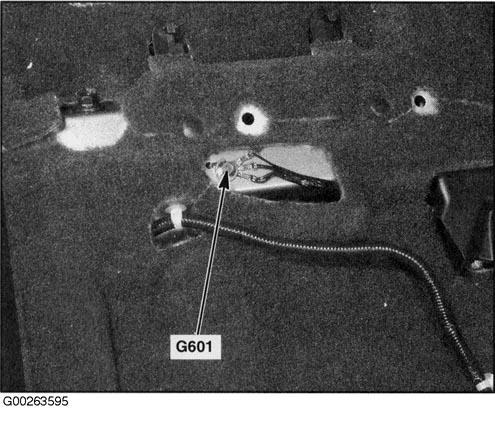

Fig 157: Left Side Of Floor (Coupe)

G00263595

Courtesy of AMERICAN HONDA MOTOR CO., INC.

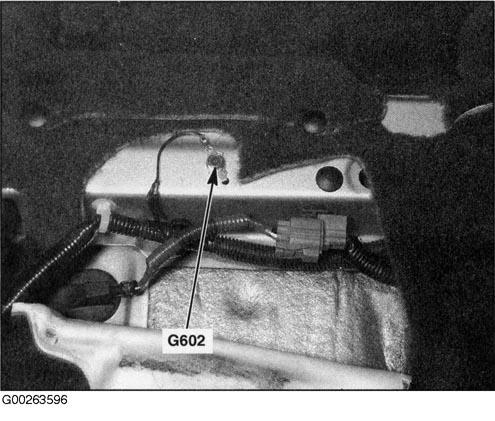

Fig 158: Right Side Of Floor (Coupe)

G00263596

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 159: Left & Right "B" Pillar (Coupe)

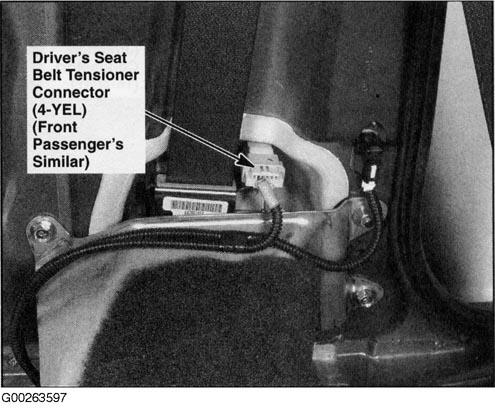

G00263597

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 160: Left "C" Pillar (Coupe)

G00263598

Courtesy of AMERICAN HONDA MOTOR CO., INC.

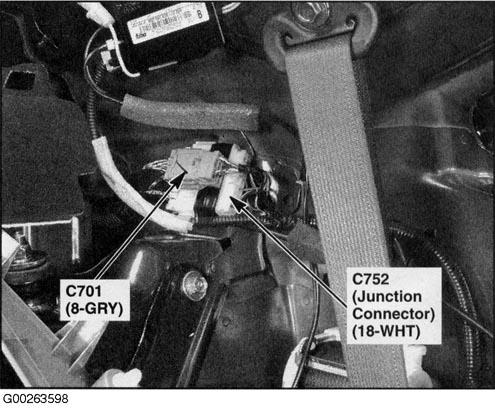

Fig 161: Left "C" Pillar (Coupe)

G00263651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

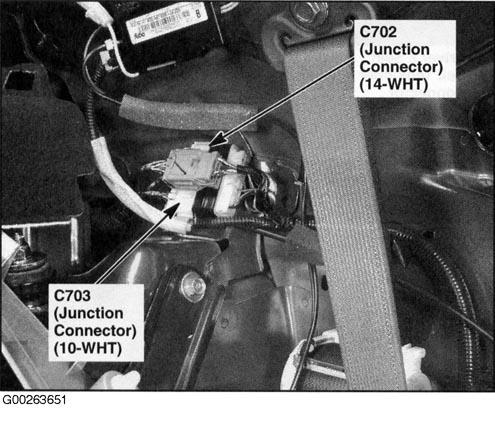

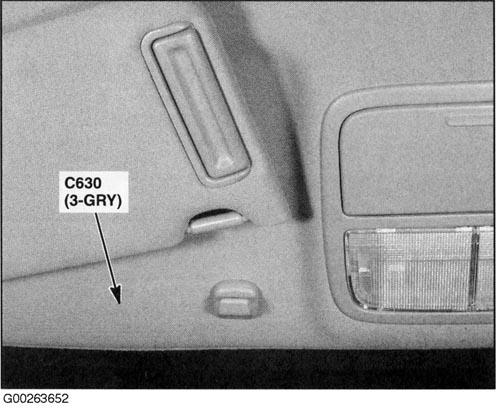

Fig 162: Front Of Roof (Honda Accessory)

G00263652

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 163: Right "C" Pillar (Coupe)

G00263654

Courtesy of AMERICAN HONDA MOTOR CO., INC.

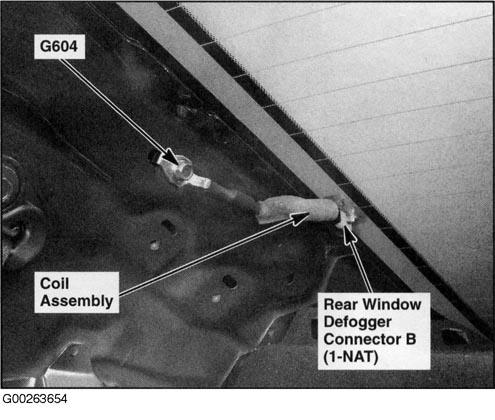

Fig 164: Left "C" Pillar (Coupe)

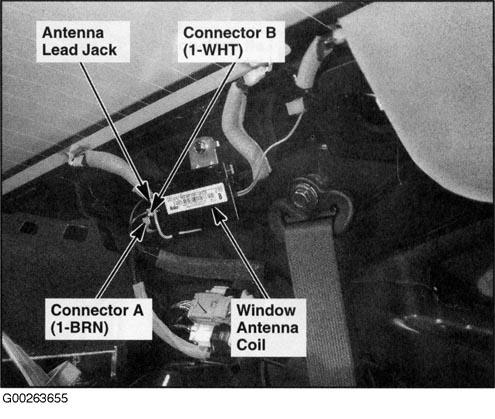

G00263655

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 165: Left Side Of Trunk (Coupe)

G00263656

Courtesy of AMERICAN HONDA MOTOR CO., INC.

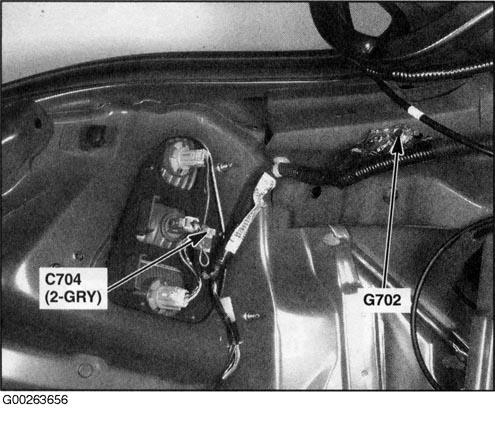

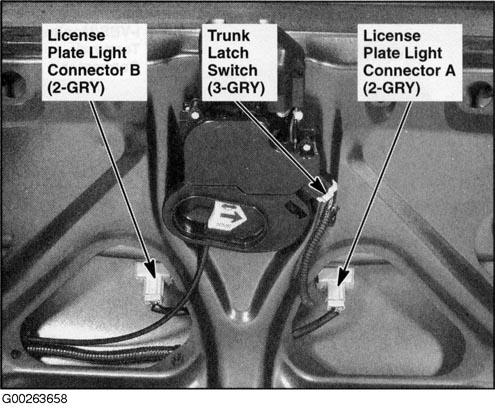

Fig 166: Middle Of Trunk Lid (Coupe)

G00263658

Courtesy of AMERICAN HONDA MOTOR CO., INC.

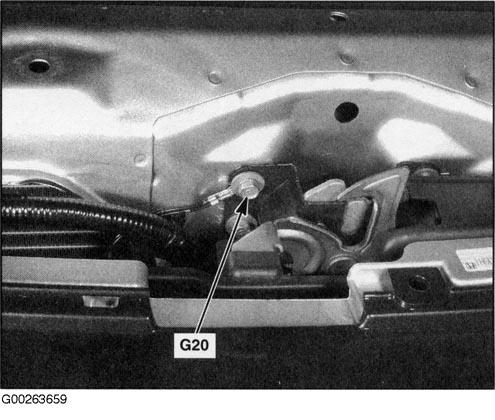

Fig 167: Behind Middle Of Front Bumper (Honda Accessory)

G00263659

Courtesy of AMERICAN HONDA MOTOR CO., INC.

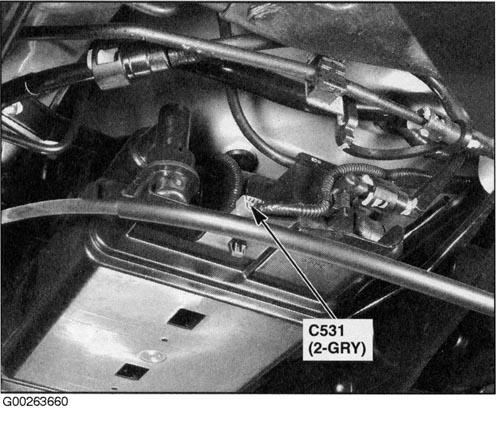

Fig 168: Under Left Rear Of Vehicle (SULEV)

G00263660

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 169: Under Left Rear Of Vehicle (SULEV)

G00263661

Courtesy of AMERICAN HONDA MOTOR CO., INC.

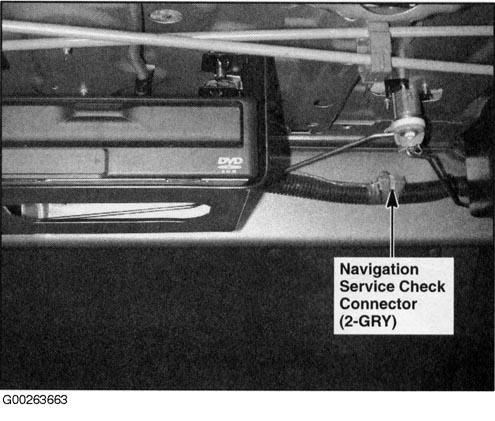

Fig 170: Under Middle Of Rear Shelf (EX-L)

G00263662

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 171: Under Right Side Of Rear Shelf (EX-L)

G00263663

Courtesy of AMERICAN HONDA MOTOR CO., INC.

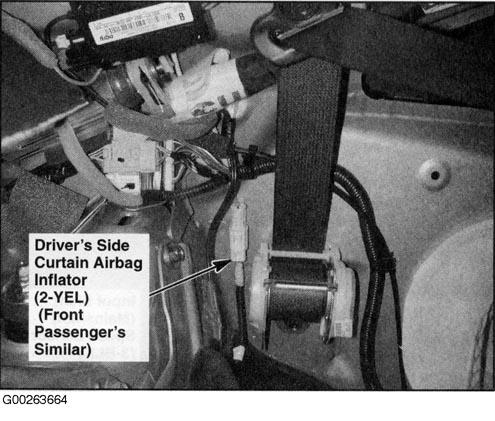

Fig 172: Left & Right "C" Pillar (EX-L) (Coupe)

G00263664

Courtesy of AMERICAN HONDA MOTOR CO., INC.

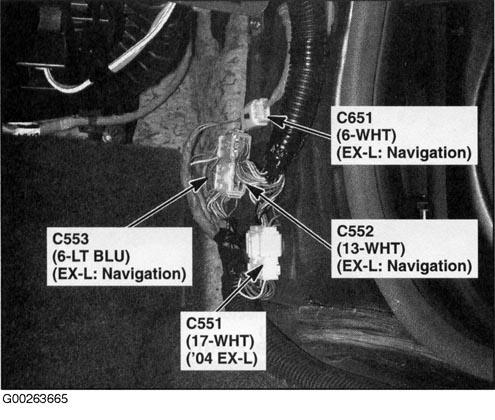

Fig 173: Behind Right Kick Panel

G00263665

Courtesy of AMERICAN HONDA MOTOR CO., INC.

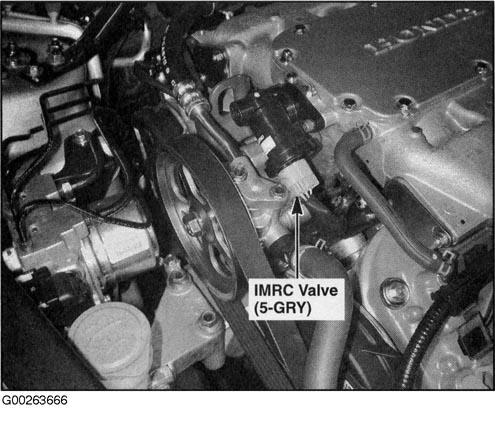

Fig 174: Front Of Engine (3.0L) (Sedan With M/T)

G00263666

Courtesy of AMERICAN HONDA MOTOR CO., INC.

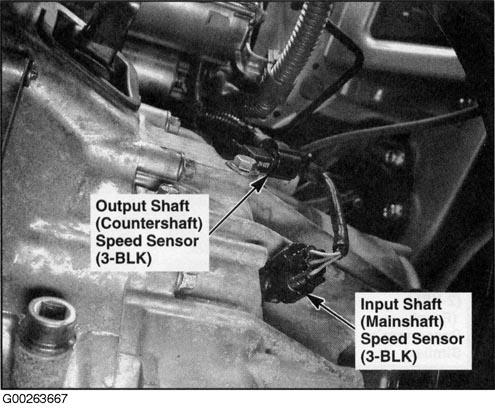

Fig 175: Manual Transmission Housing (3.0L) (Coupe)

G00263667

Courtesy of AMERICAN HONDA MOTOR CO., INC.

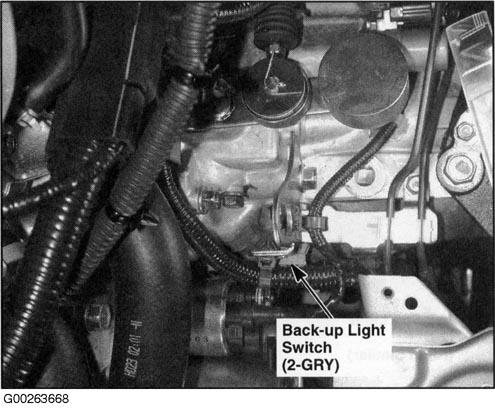

Fig 176: Manual Transmission Housing (3.0L) (Coupe)

G00263668

Courtesy of AMERICAN HONDA MOTOR CO., INC.

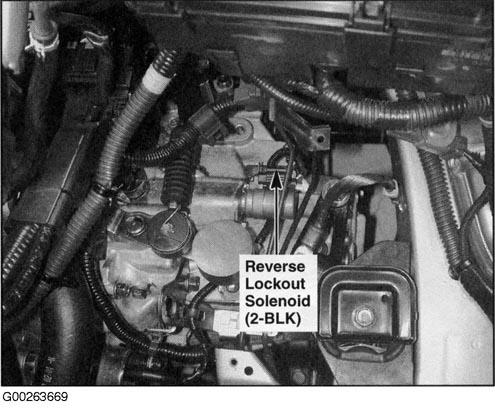

Fig 177: Manual Transmission Housing (3.0L) (Coupe)

G00263669

Courtesy of AMERICAN HONDA MOTOR CO., INC.

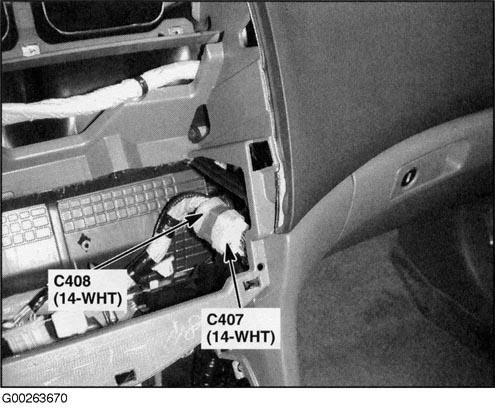

Fig 178: Under Middle Of Dash (EX-L)

G00263670

Courtesy of AMERICAN HONDA MOTOR CO., INC.

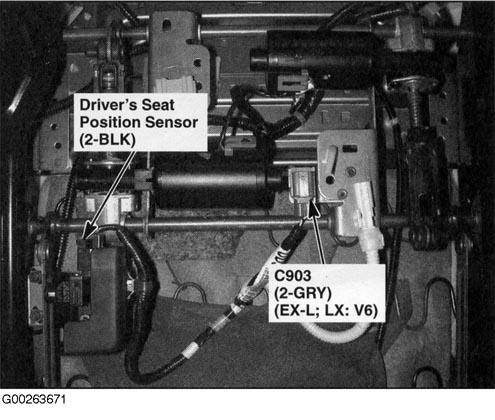

Fig 179: Under Driver's Seat

G00263671

Courtesy of AMERICAN HONDA MOTOR CO., INC.

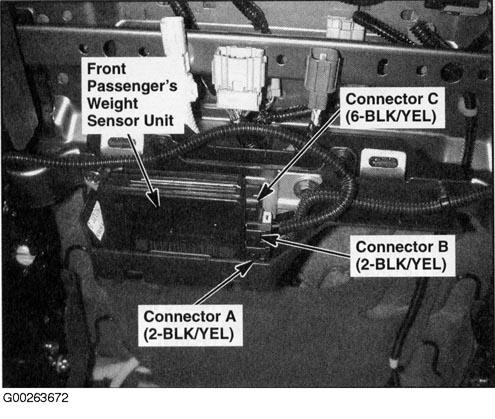

Fig 180: Under Front Passenger's Seat

G00263672

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 181: Right "C" Pillar (EX-L) (Sedan)

G00263673

Courtesy of AMERICAN HONDA MOTOR CO., INC.

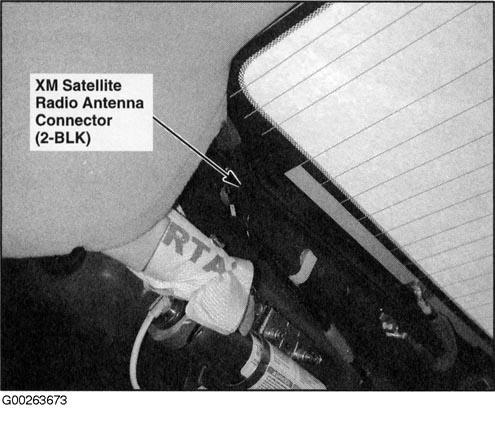

Fig 182: Right "C" Pillar (EX-L) (Coupe)

G00263674

Courtesy of AMERICAN HONDA MOTOR CO., INC.

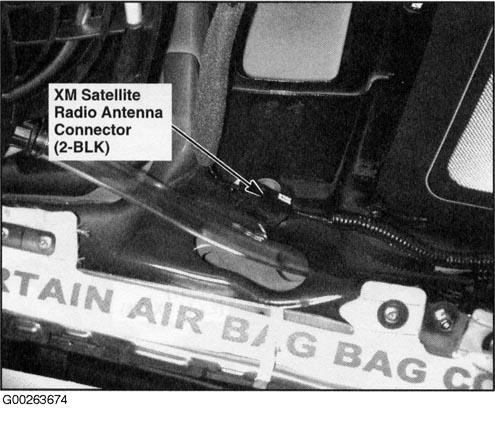

Fig 183: Rear Of Roof (EX & EX-L) (Coupe)

G00263675

Courtesy of AMERICAN HONDA MOTOR CO., INC.

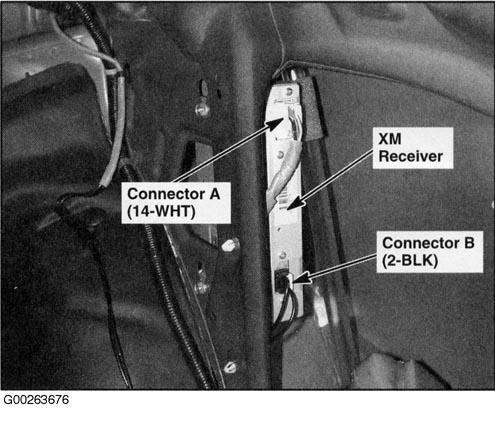

Fig 184: Right Side Of Trunk (EX-L)

G00263676

Courtesy of AMERICAN HONDA MOTOR CO., INC.

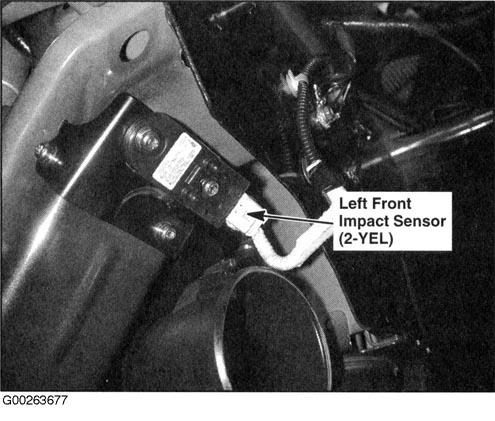

Fig 185: Behind Left Side Of Front Bumper

G00263677

Courtesy of AMERICAN HONDA MOTOR CO., INC.

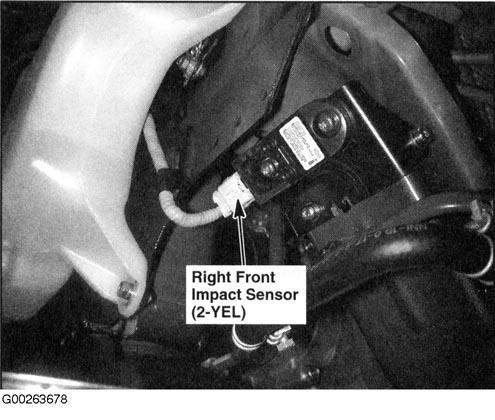

Fig 186: Behind Right Side Of Front Bumper

G00263678

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 187: Left & Right "B" Pillar (Sedan)

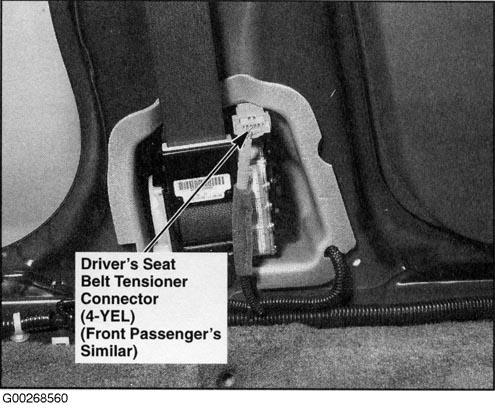

G00268560

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 188: Under-Dash Fuse/Relay Box

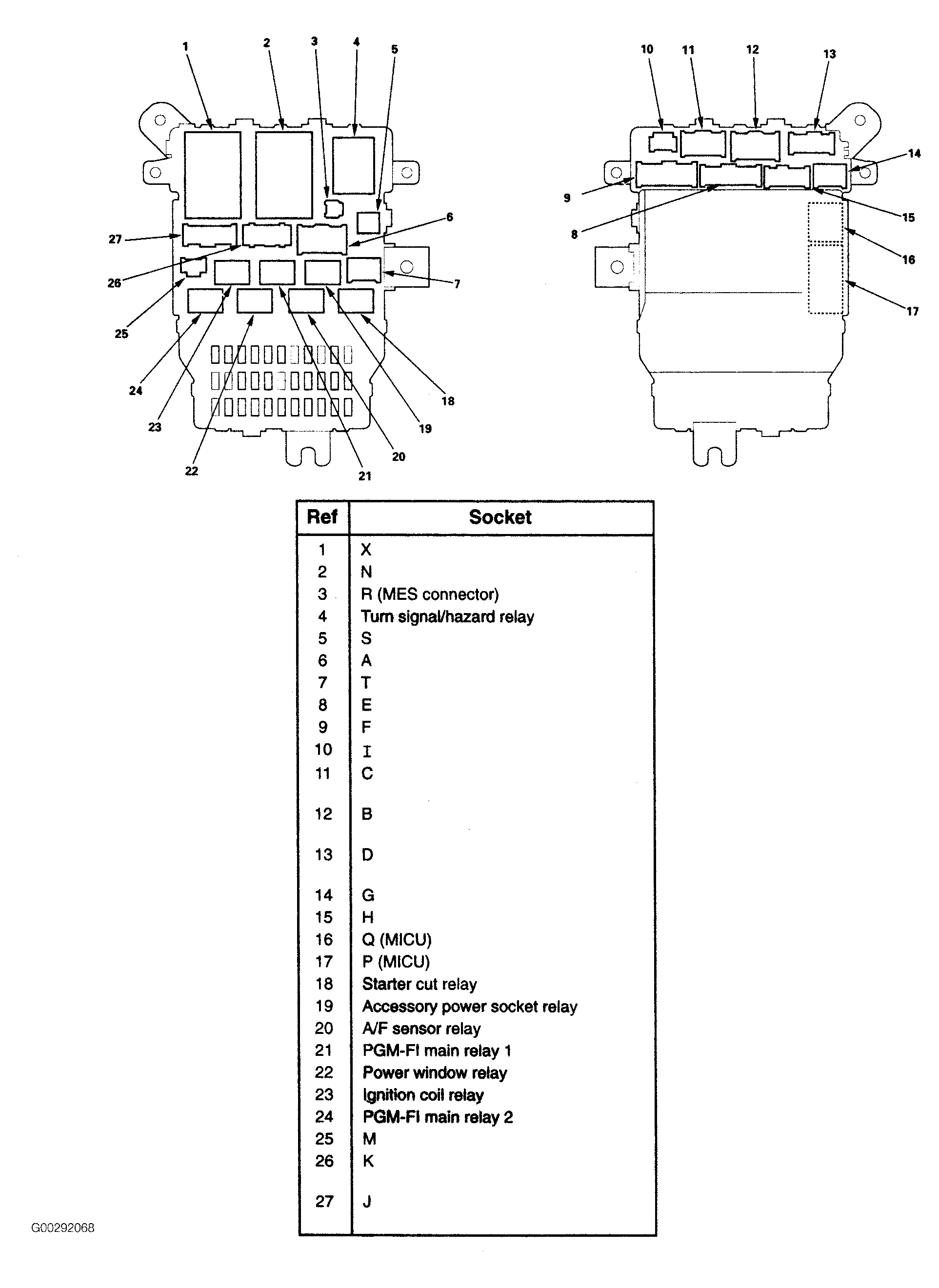

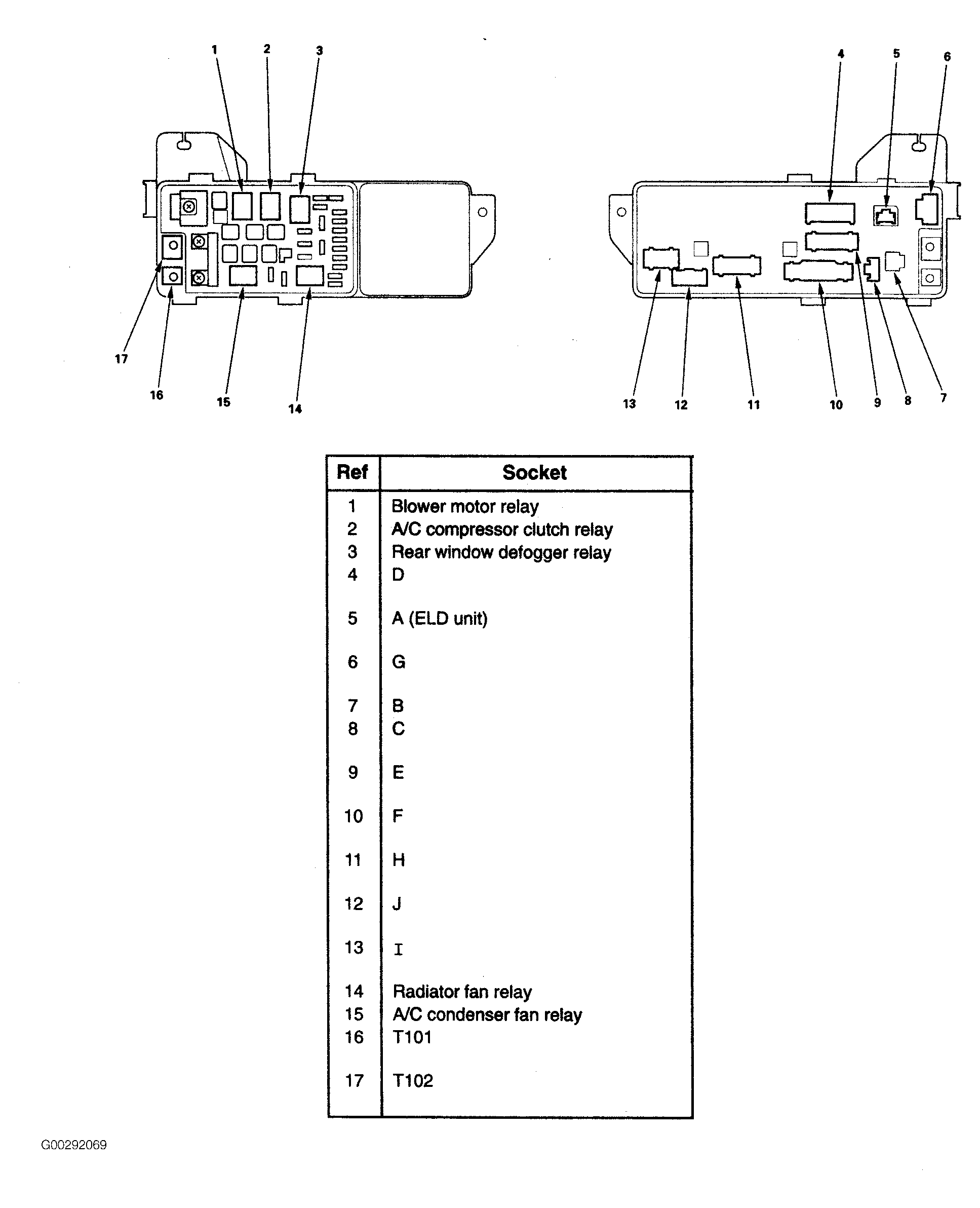

G00292068

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 189: Under-Hood Fuse/Relay Box

G00292069

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 190: Under-Hood Multi-Relay Box

G00292070

Courtesy of AMERICAN HONDA MOTOR CO., INC.

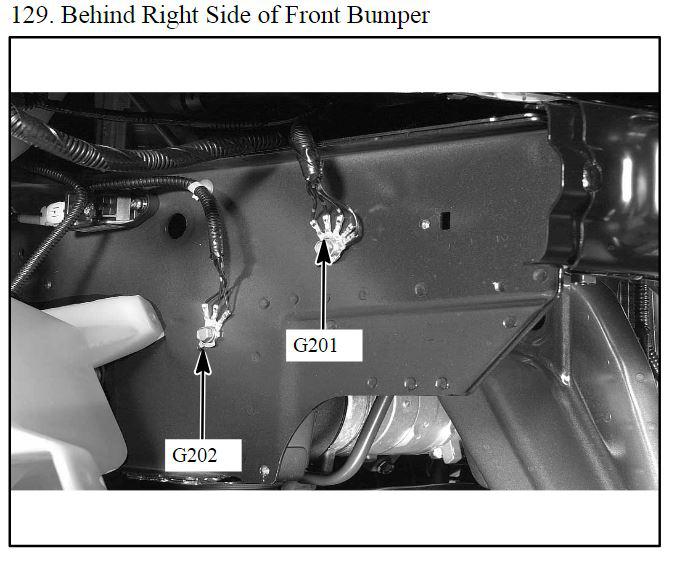

Fig 191: Behind Right Side Of Front Bumper

G00571340

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 192: Behind Left Side Of Dash

G00571341

Courtesy of AMERICAN HONDA MOTOR CO., INC.
