Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

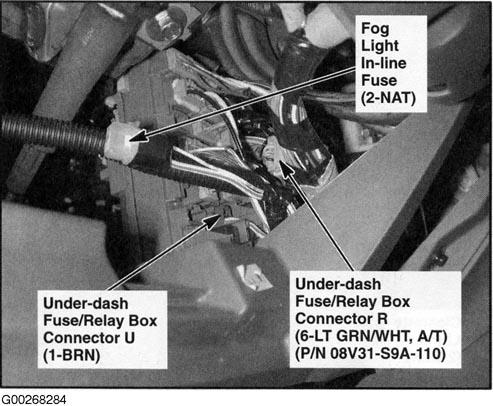

Fog Light In-Line Fuse Under left side of dash. See Figure .

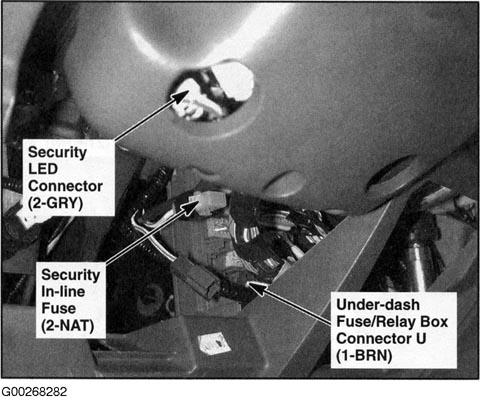

Security In-Line Fuse Under left side of dash. See Figure .

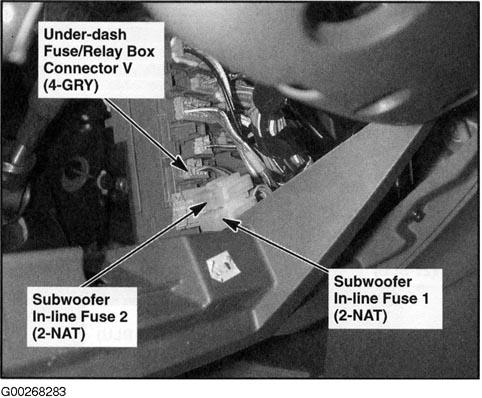

Subwoofer In-Line Fuse 1 Under left side of dash. See Figure .
Subwoofer In-Line Fuse 2 Under left side of dash. See Figure .

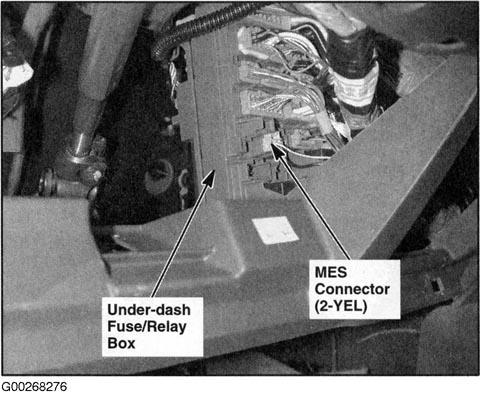

Underdash Fuse/Relay Box Behind left side of dash, right of steering column. See Figure .

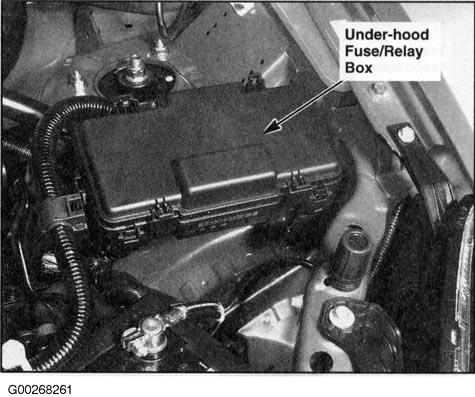

Underhood Fuse/Relay Box On left side of engine compartment. See Figure .
