Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

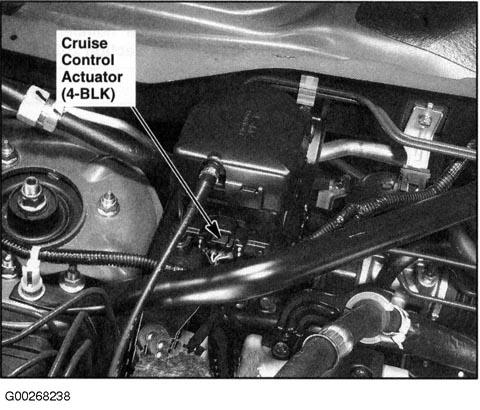

Fig 1: Right Side Of Engine Compartment

G00268238

Courtesy of AMERICAN HONDA MOTOR CO., INC.

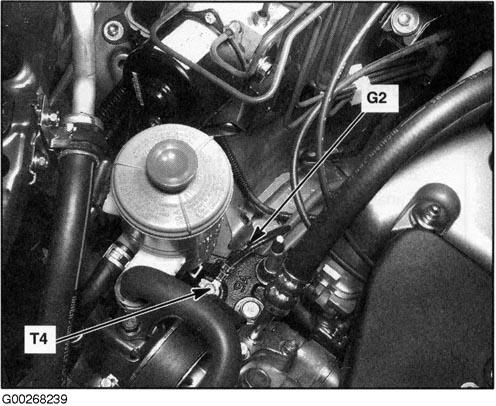

Fig 2: Front Of Engine

G00268239

Courtesy of AMERICAN HONDA MOTOR CO., INC.

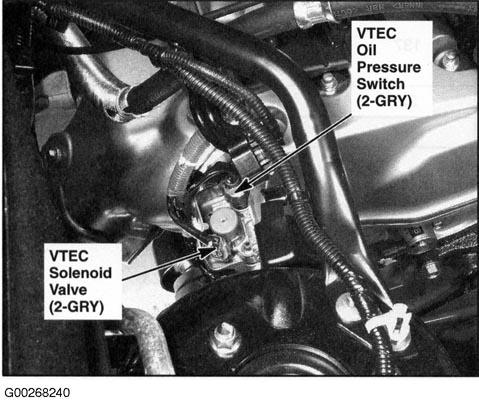

Fig 3: Right Side Of Engine Compartment

G00268240

Courtesy of AMERICAN HONDA MOTOR CO., INC.

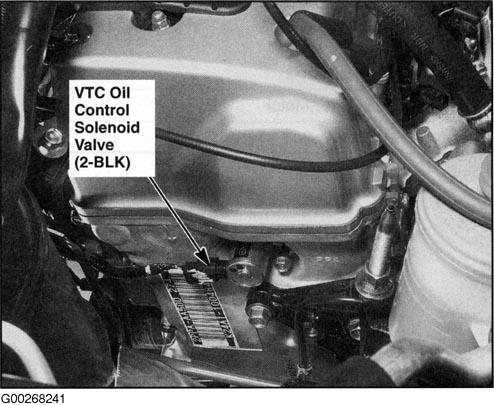

Fig 4: Right Side Of Engine Compartment

G00268241

Courtesy of AMERICAN HONDA MOTOR CO., INC.

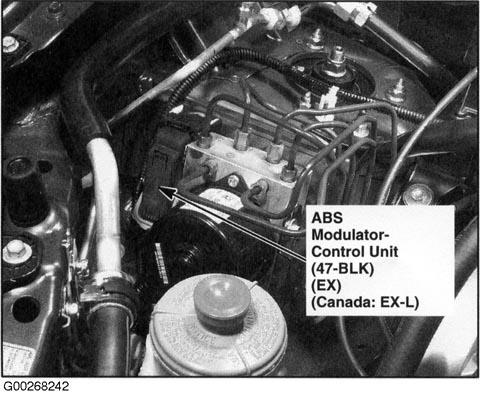

Fig 5: Front Of Engine

G00268242

Courtesy of AMERICAN HONDA MOTOR CO., INC.

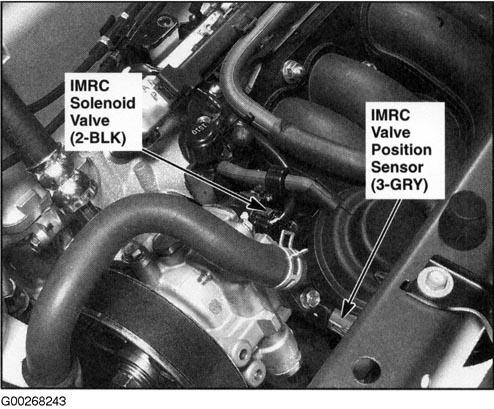

Fig 6: Right Front Of Engine Compartment

G00268243

Courtesy of AMERICAN HONDA MOTOR CO., INC.

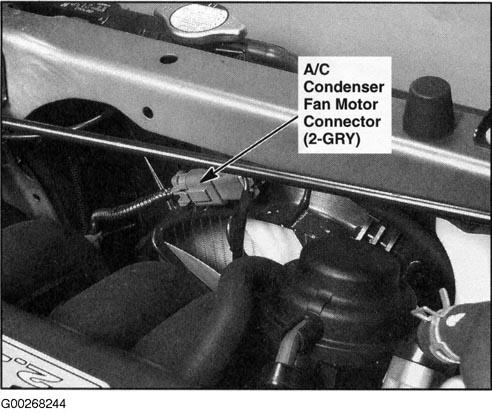

Fig 7: Front Of Engine Compartment

G00268244

Courtesy of AMERICAN HONDA MOTOR CO., INC.

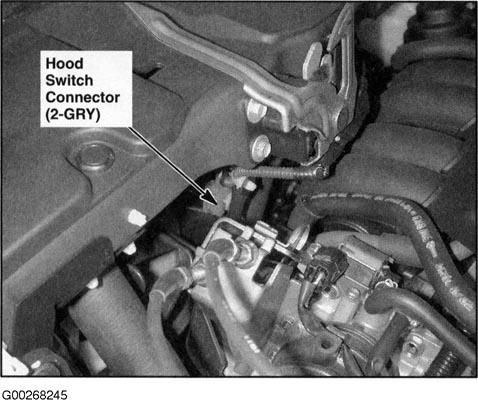

Fig 8: Front Of Engine Compartment

G00268245

Courtesy of AMERICAN HONDA MOTOR CO., INC.

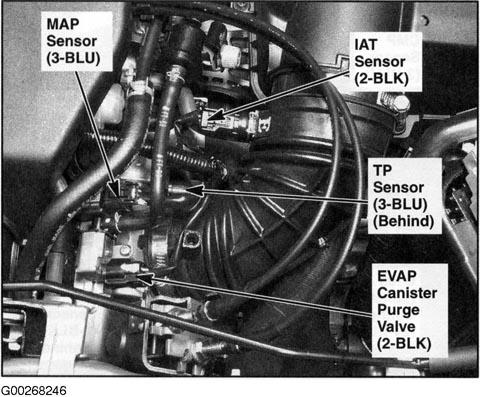

Fig 9: Top Rear Of Engine

G00268246

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Middle Of Engine

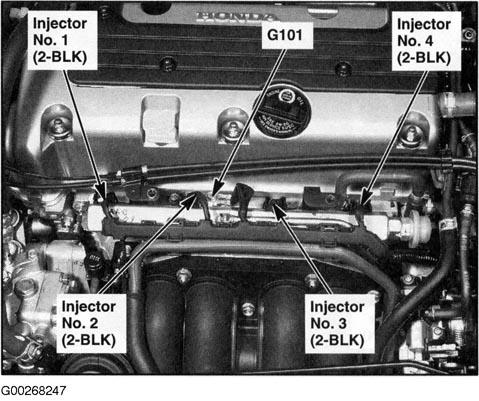

G00268247

Courtesy of AMERICAN HONDA MOTOR CO., INC.

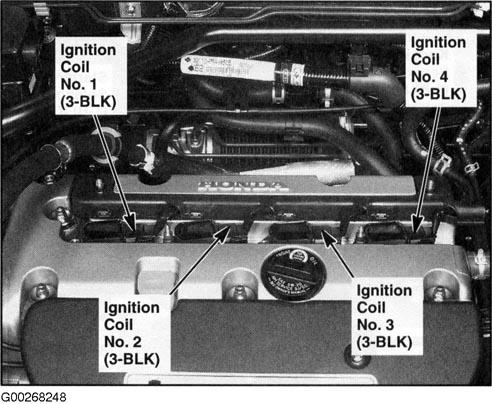

Fig 11: Middle Of Engine

G00268248

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Rear Of Engine Compartment

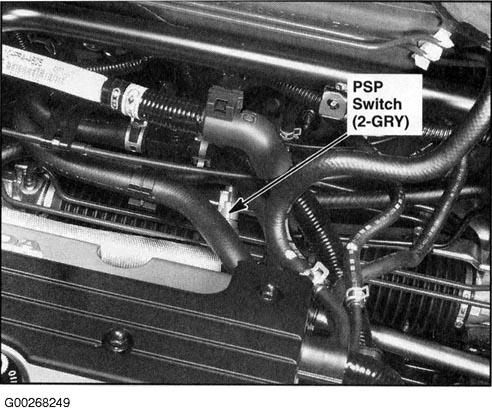

G00268249

Courtesy of AMERICAN HONDA MOTOR CO., INC.

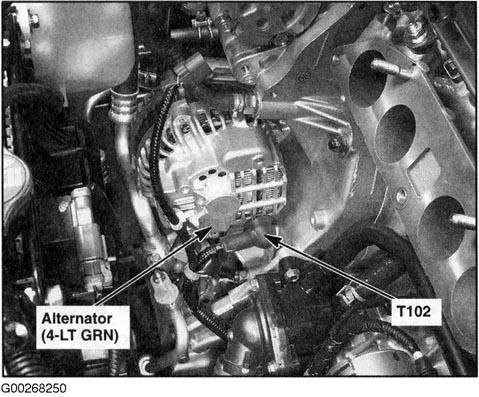

Fig 13: Right Side Of Engine Compartment (Intake Removed)

G00268250

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Left Side Of Engine (Intake Removed)

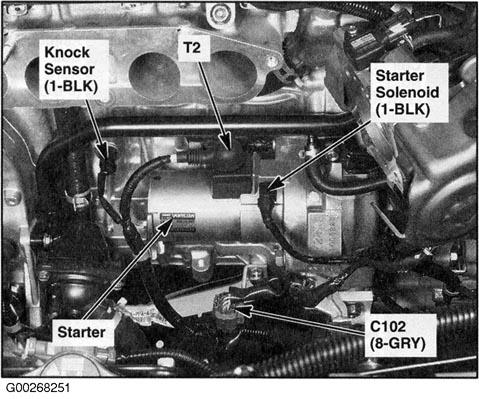

G00268251

Courtesy of AMERICAN HONDA MOTOR CO., INC.

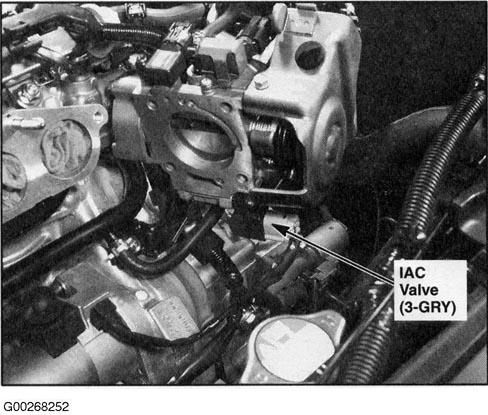

Fig 15: Left Side Of Intake Manifold (Intake Removed)

G00268252

Courtesy of AMERICAN HONDA MOTOR CO., INC.

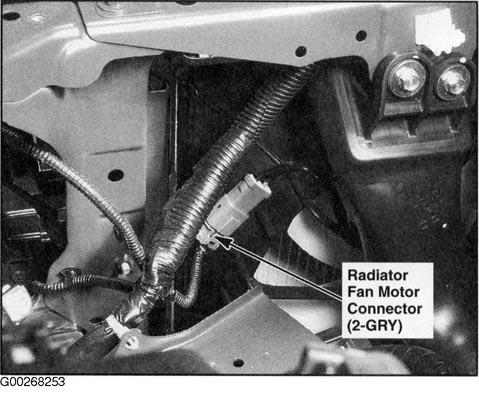

Fig 16: Front Of Engine Compartment

G00268253

Courtesy of AMERICAN HONDA MOTOR CO., INC.

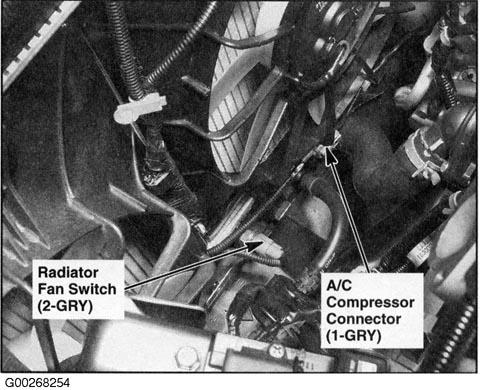

Fig 17: Front Of Engine Compartment

G00268254

Courtesy of AMERICAN HONDA MOTOR CO., INC.

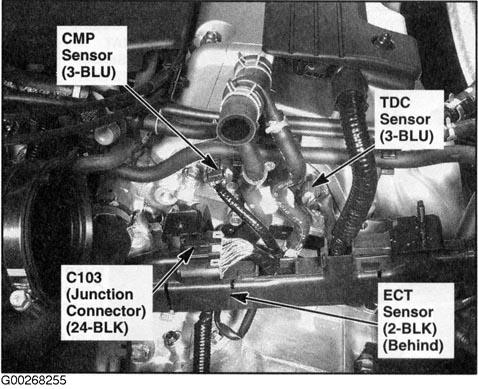

Fig 18: Rear Of Engine

G00268255

Courtesy of AMERICAN HONDA MOTOR CO., INC.

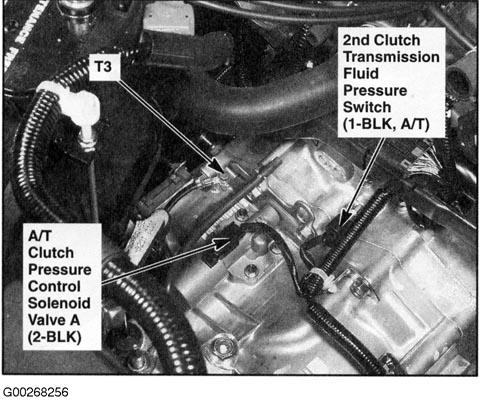

Fig 19: Transmission Housing

G00268256

Courtesy of AMERICAN HONDA MOTOR CO., INC.

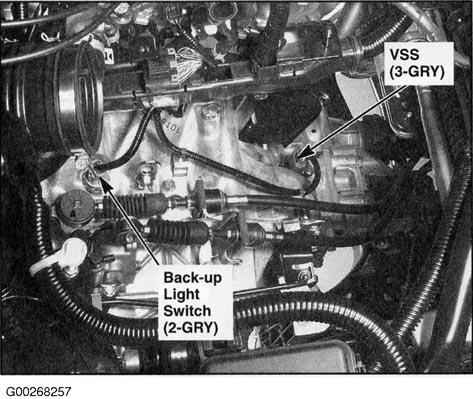

Fig 20: Transmission Housing (M/T)

G00268257

Courtesy of AMERICAN HONDA MOTOR CO., INC.

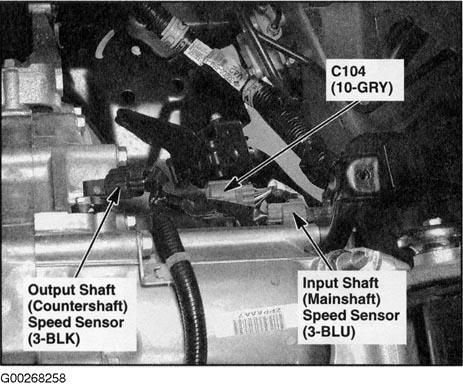

Fig 21: Transmission Housing (A/T)

G00268258

Courtesy of AMERICAN HONDA MOTOR CO., INC.

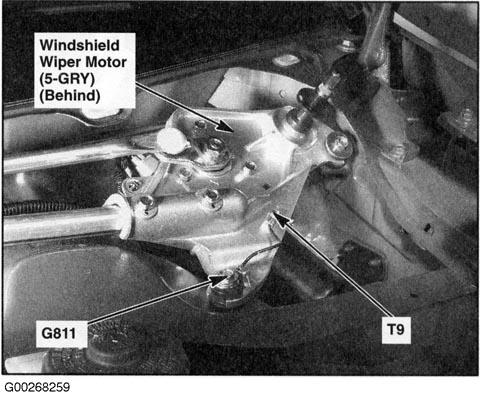

Fig 22: Under Left Side Of Cowl Cover

G00268259

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Left Side Of Engine Compartment

G00268260

Courtesy of AMERICAN HONDA MOTOR CO., INC.

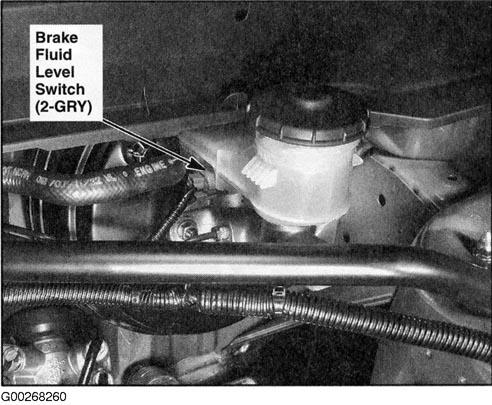

Fig 24: Left Side Of Engine Compartment

G00268261

Courtesy of AMERICAN HONDA MOTOR CO., INC.

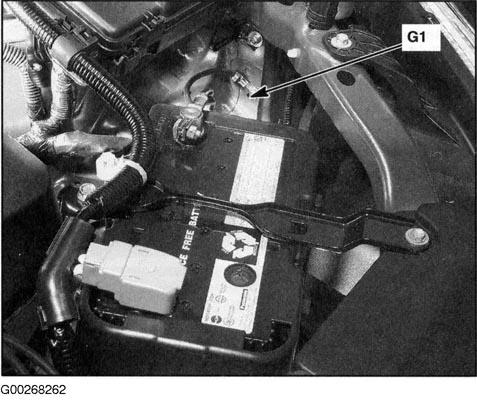

Fig 25: Left Side Of Engine Compartment

G00268262

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Left Side Of Engine Compartment

G00268263

Courtesy of AMERICAN HONDA MOTOR CO., INC.

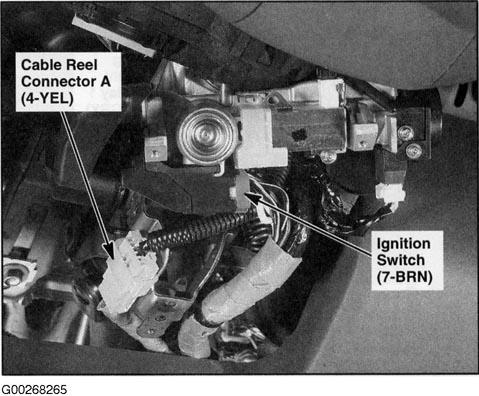

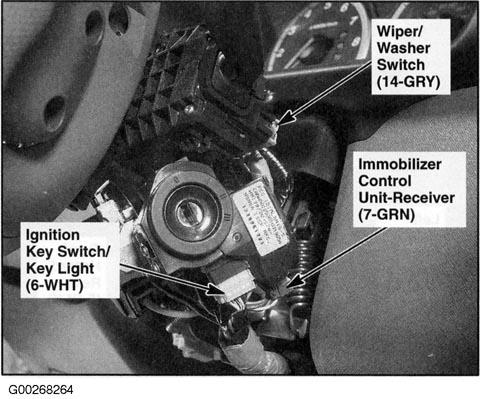

Fig 27: In Steering Column Cover

G00268264

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: In Steering Column Cover

G00268265

Courtesy of AMERICAN HONDA MOTOR CO., INC.

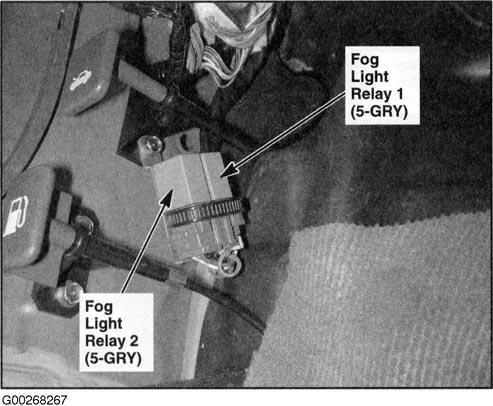

Fig 29: Left Kick Panel

G00268267

Courtesy of AMERICAN HONDA MOTOR CO., INC.

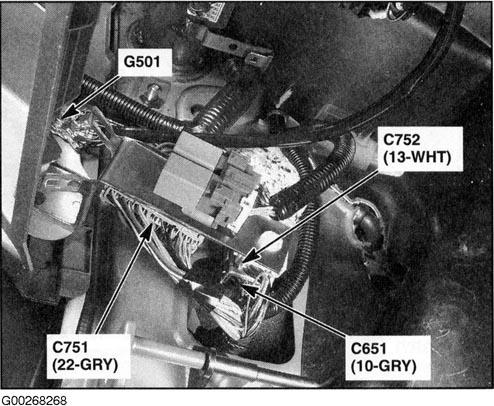

Fig 30: Under Left Side Of Dash

G00268268

Courtesy of AMERICAN HONDA MOTOR CO., INC.

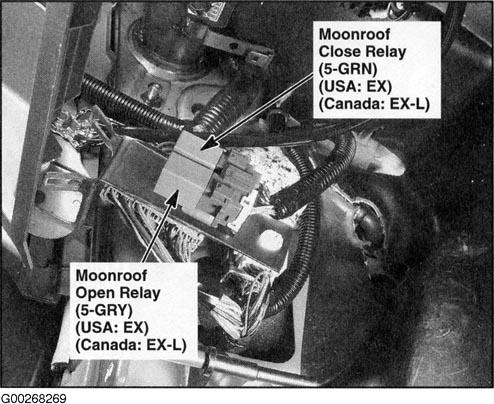

Fig 31: Under Left Side Of Dash

G00268269

Courtesy of AMERICAN HONDA MOTOR CO., INC.

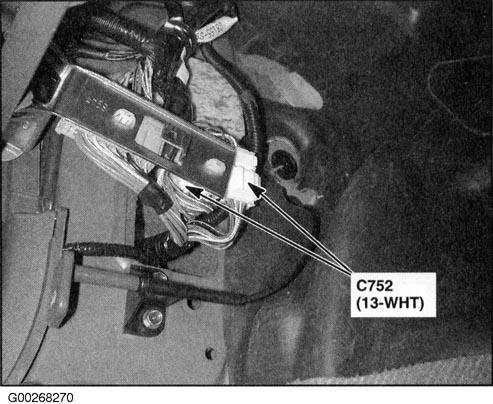

Fig 32: Under Left Side Of Dash (LX, Honda Accessory)

G00268270

Courtesy of AMERICAN HONDA MOTOR CO., INC.

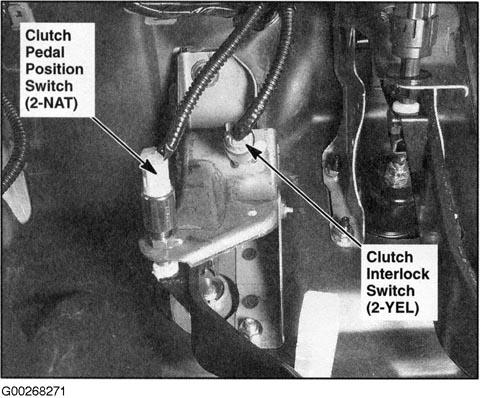

Fig 33: Under Left Side Of Dash (M/T)

G00268271

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Under Left Side Of Dash

G00268272

Courtesy of AMERICAN HONDA MOTOR CO., INC.

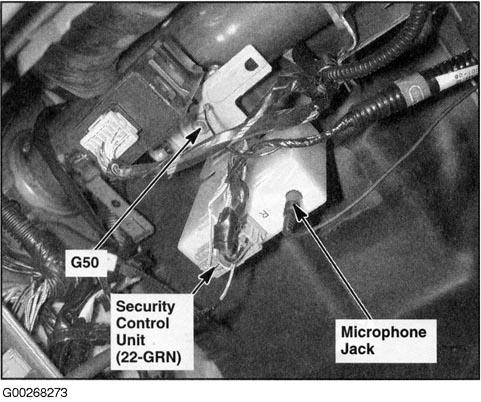

Fig 35: Under Left Side Of Dash

G00268273

Courtesy of AMERICAN HONDA MOTOR CO., INC.

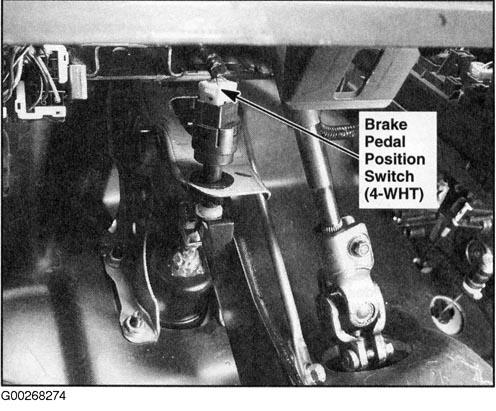

Fig 36: Under Left Side Of Dash

G00268274

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Under Left Side Of Dash

G00268275

Courtesy of AMERICAN HONDA MOTOR CO., INC.

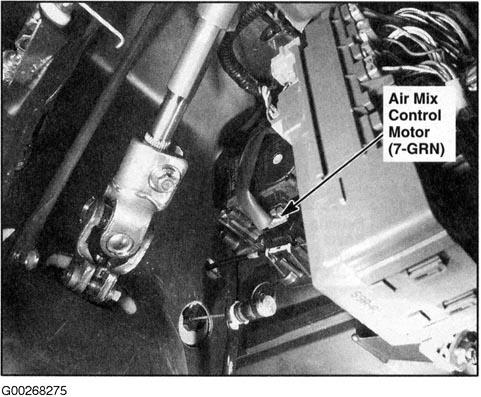

Fig 38: Under Left Side Of Dash

G00268276

Courtesy of AMERICAN HONDA MOTOR CO., INC.

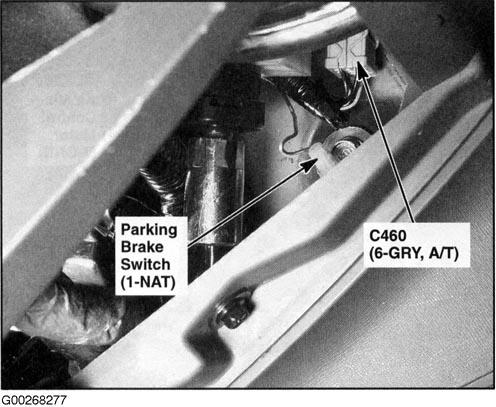

Fig 39: Under Left Side Of Dash

G00268277

Courtesy of AMERICAN HONDA MOTOR CO., INC.

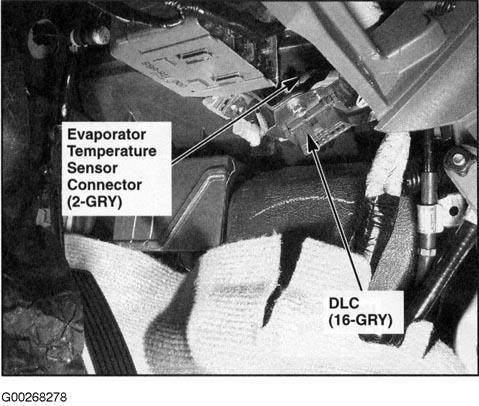

Fig 40: Under Left Side Of Dash

G00268278

Courtesy of AMERICAN HONDA MOTOR CO., INC.

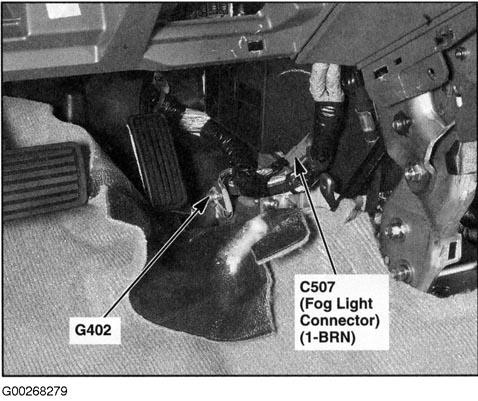

Fig 41: Under Middle Of Dash

G00268279

Courtesy of AMERICAN HONDA MOTOR CO., INC.

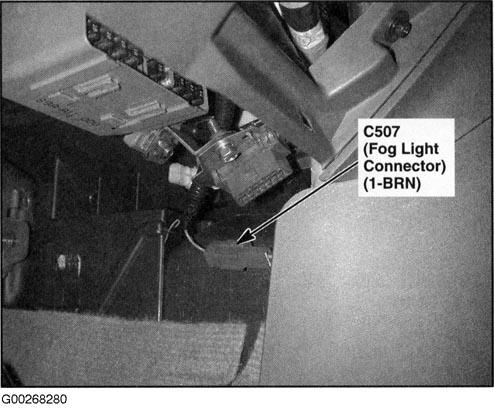

Fig 42: Under Middle Of Dash

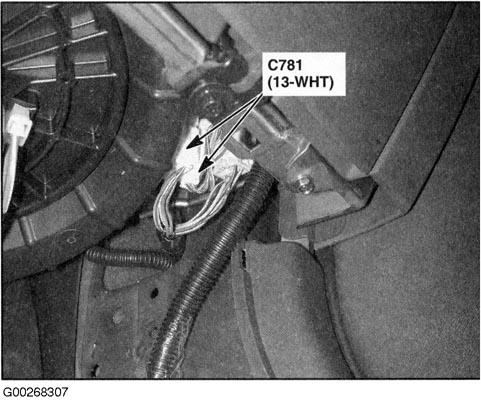

G00268280

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Left Side Of Dash (Honda Accessory)

G00268282

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Under Left Side Of Dash (Honda Accessory)

G00268283

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Under Left Side Of Dash (USA, Honda Accessory)

G00268284

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Center Of Dash (Honda Accessory)

G00268285

Courtesy of AMERICAN HONDA MOTOR CO., INC.

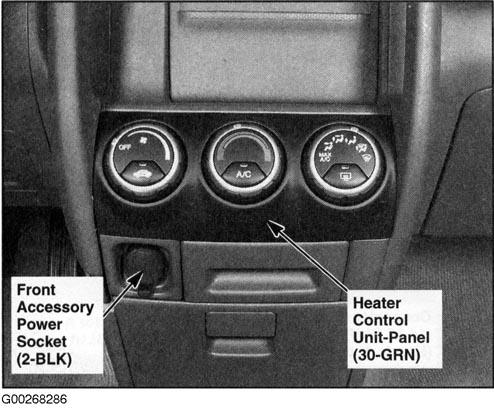

Fig 47: Under Middle Of Dash

G00268286

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Under Middle Of Dash

G00268287

Courtesy of AMERICAN HONDA MOTOR CO., INC.

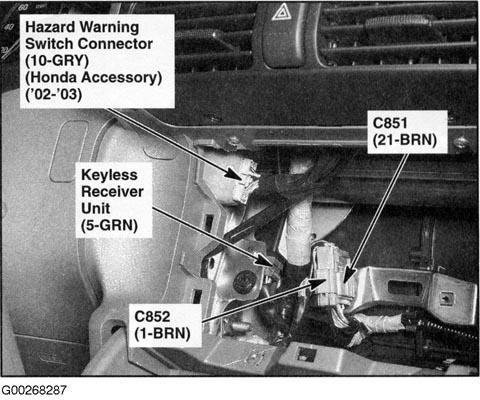

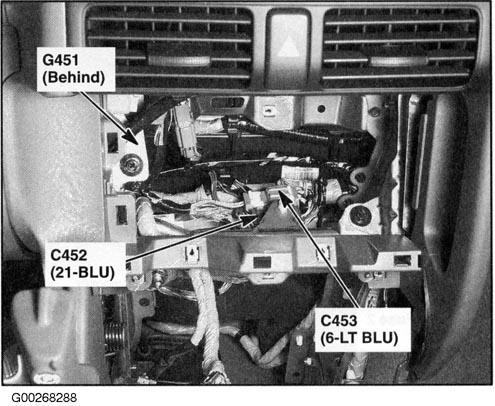

Fig 49: Under Middle Of Dash

G00268288

Courtesy of AMERICAN HONDA MOTOR CO., INC.

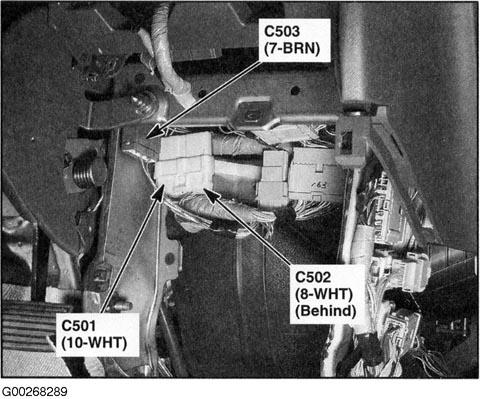

Fig 50: Under Middle Of Dash

G00268289

Courtesy of AMERICAN HONDA MOTOR CO., INC.

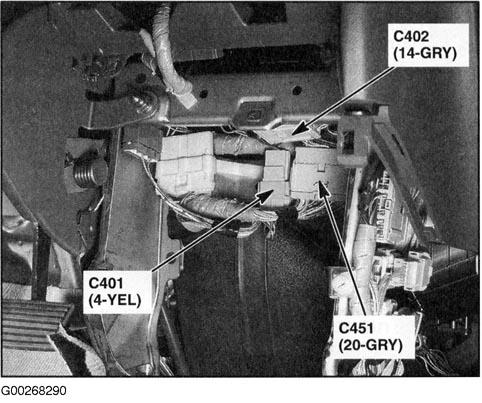

Fig 51: Under Middle Of Dash

G00268290

Courtesy of AMERICAN HONDA MOTOR CO., INC.

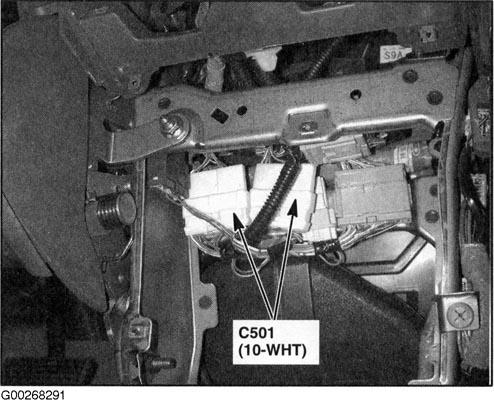

Fig 52: Under Middle Of Dash (USA, Honda Accessory)

G00268291

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Middle Of Dash

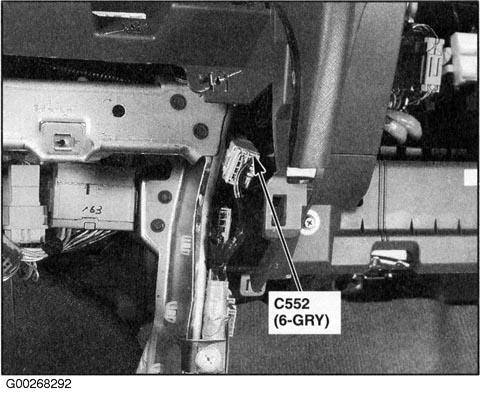

G00268292

Courtesy of AMERICAN HONDA MOTOR CO., INC.

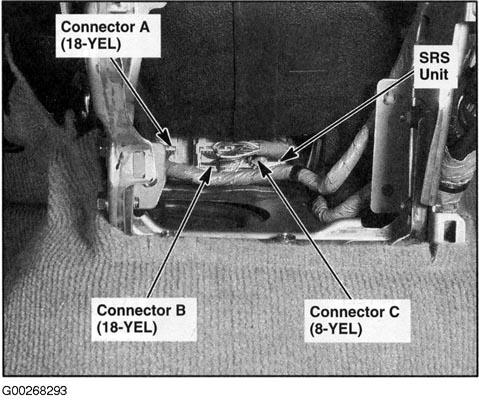

Fig 54: Under Middle Of Dash

G00268293

Courtesy of AMERICAN HONDA MOTOR CO., INC.

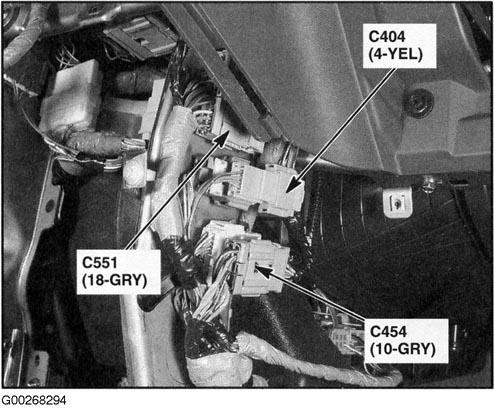

Fig 55: Under Middle Of Dash

G00268294

Courtesy of AMERICAN HONDA MOTOR CO., INC.

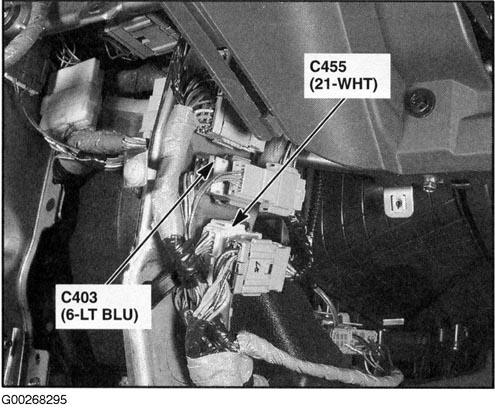

Fig 56: Under Middle Of Dash

G00268295

Courtesy of AMERICAN HONDA MOTOR CO., INC.

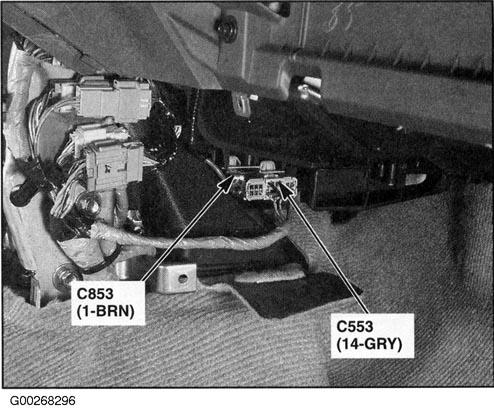

Fig 57: Under Middle Of Dash

G00268296

Courtesy of AMERICAN HONDA MOTOR CO., INC.

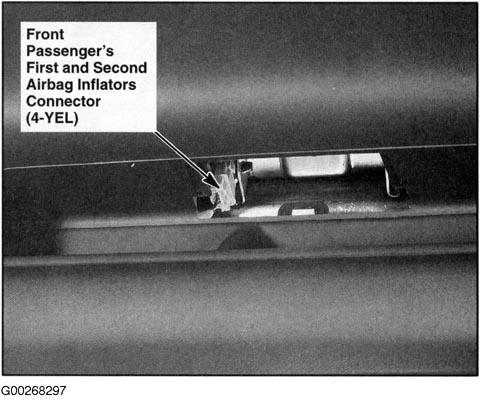

Fig 58: Under Right Side Of Dash

G00268297

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Behind Glove Box

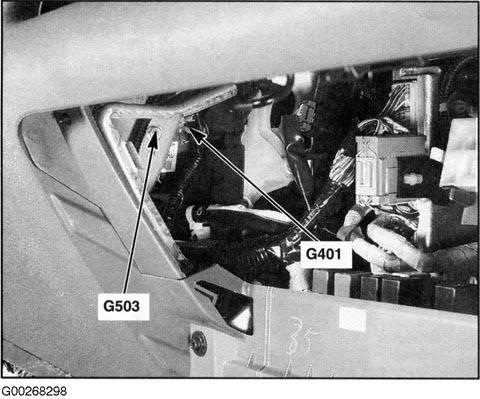

G00268298

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Behind Glove Box

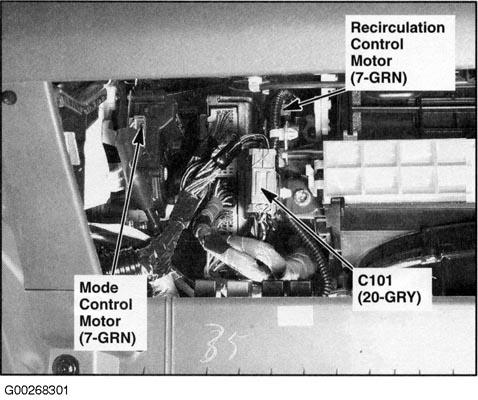

G00268301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

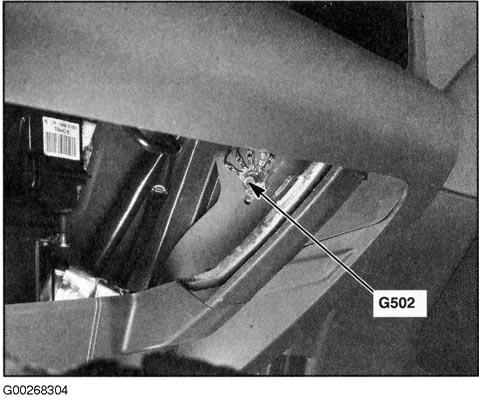

Fig 61: Under Right Side Of Dash

G00268304

Courtesy of AMERICAN HONDA MOTOR CO., INC.

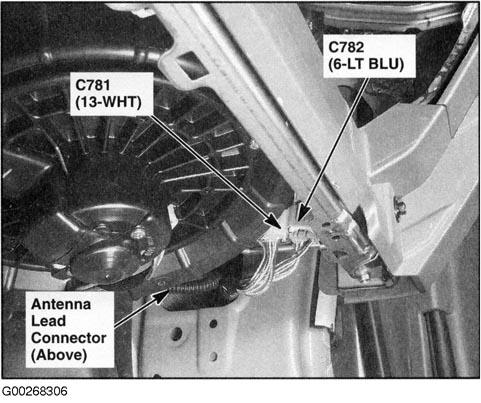

Fig 62: Under Right Side Of Dash

G00268305

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Under Right Side Of Dash

G00268306

Courtesy of AMERICAN HONDA MOTOR CO., INC.

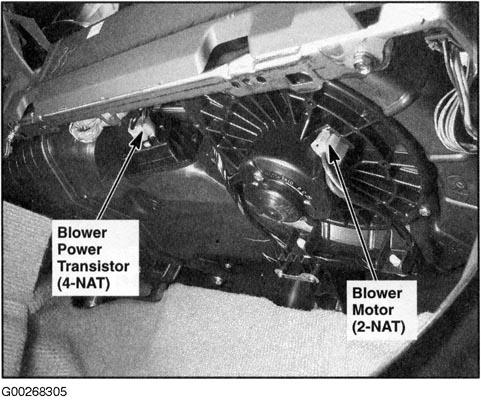

Fig 64: Under Right Side Of Dash (LX, Honda Accessory)

G00268307

Courtesy of AMERICAN HONDA MOTOR CO., INC.

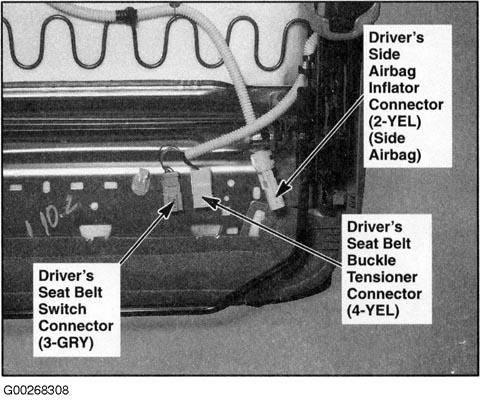

Fig 65: Under Driver's Seat

G00268308

Courtesy of AMERICAN HONDA MOTOR CO., INC.

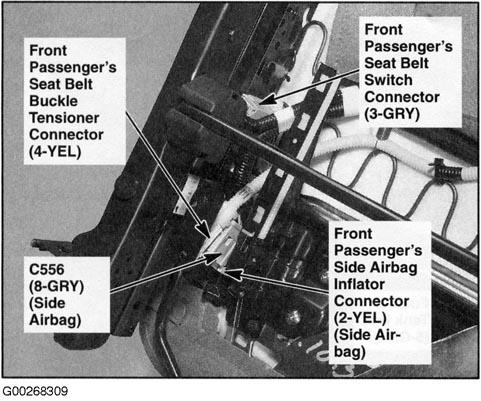

Fig 66: Under Front Passenger's Seat

G00268309

Courtesy of AMERICAN HONDA MOTOR CO., INC.

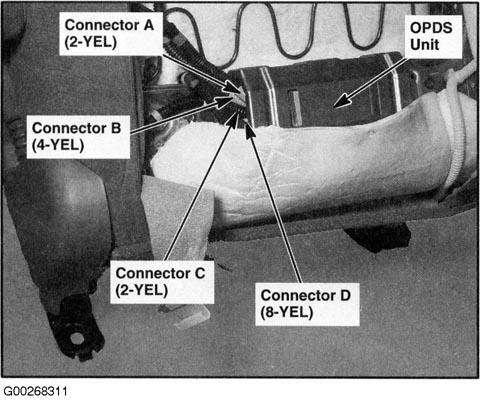

Fig 67: In Front Passenger's Seat

G00268311

Courtesy of AMERICAN HONDA MOTOR CO., INC.

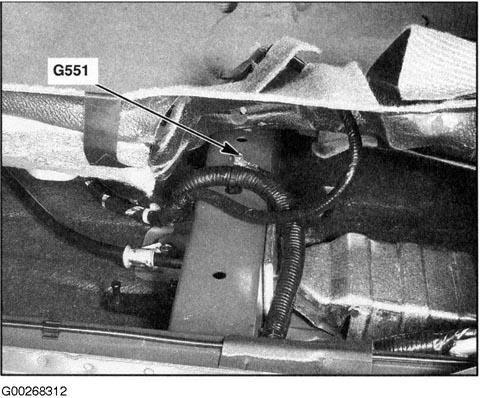

Fig 68: Under Driver's Seat

G00268312

Courtesy of AMERICAN HONDA MOTOR CO., INC.

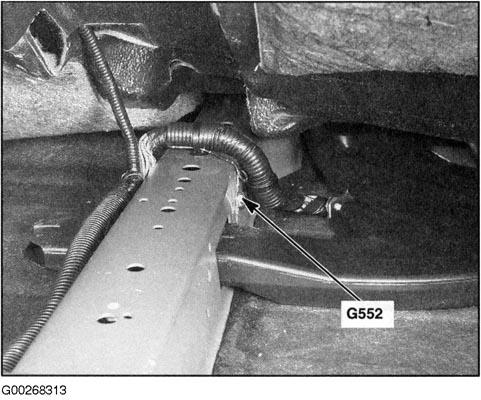

Fig 69: Under Front Passenger's Seat

G00268313

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Left "B" Pillar (Right Similar)

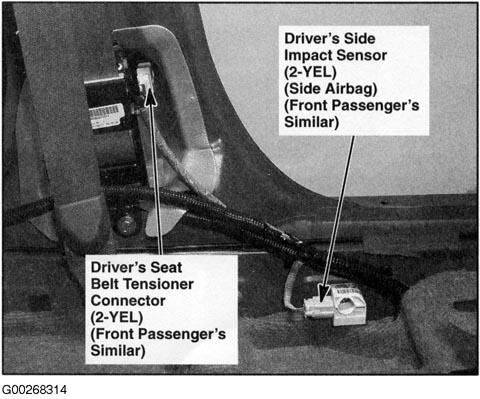

G00268314

Courtesy of AMERICAN HONDA MOTOR CO., INC.

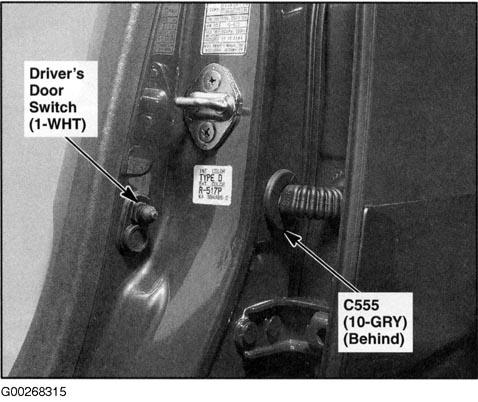

Fig 71: Left "B" Pillar

G00268315

Courtesy of AMERICAN HONDA MOTOR CO., INC.

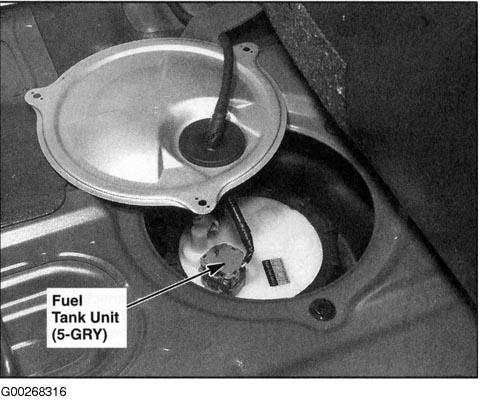

Fig 72: Middle Of Floor

G00268316

Courtesy of AMERICAN HONDA MOTOR CO., INC.

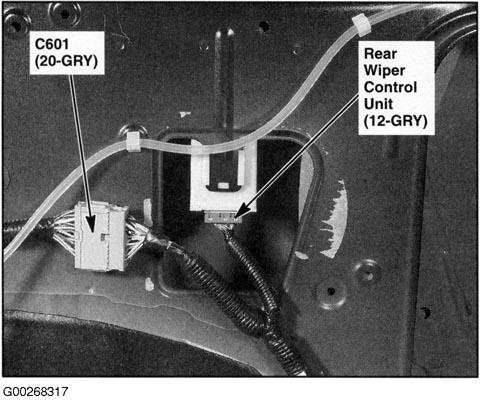

Fig 73: Right Quarter Panel

G00268317

Courtesy of AMERICAN HONDA MOTOR CO., INC.

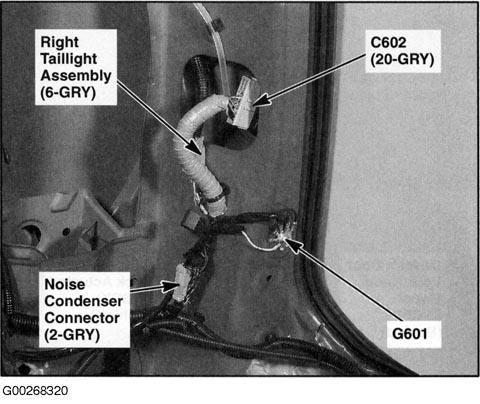

Fig 74: Right Quarter Panel

G00268320

Courtesy of AMERICAN HONDA MOTOR CO., INC.

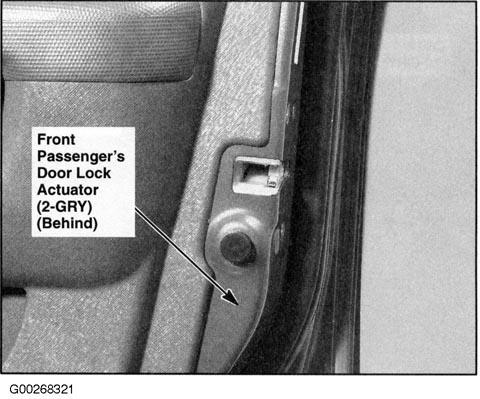

Fig 75: Right Front Door

G00268321

Courtesy of AMERICAN HONDA MOTOR CO., INC.

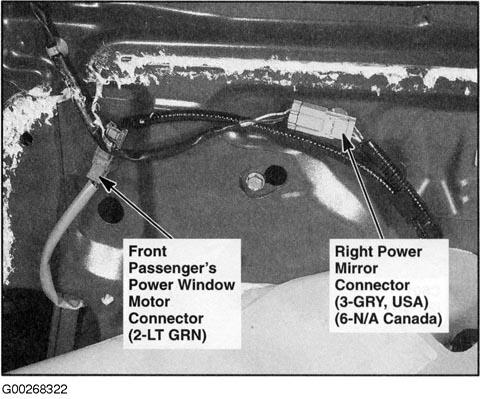

Fig 76: Right Front Door

G00268322

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Left Side Of Roof

G00268324

Courtesy of AMERICAN HONDA MOTOR CO., INC.

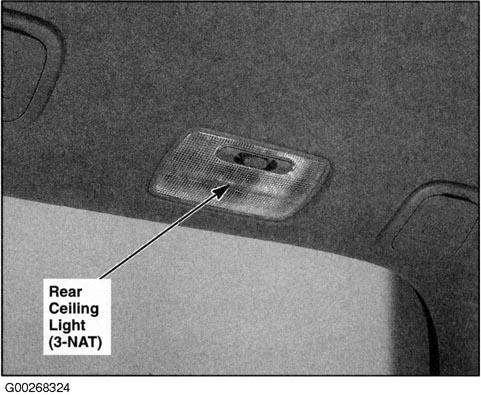

Fig 78: Middle Of Roof

G00268325

Courtesy of AMERICAN HONDA MOTOR CO., INC.

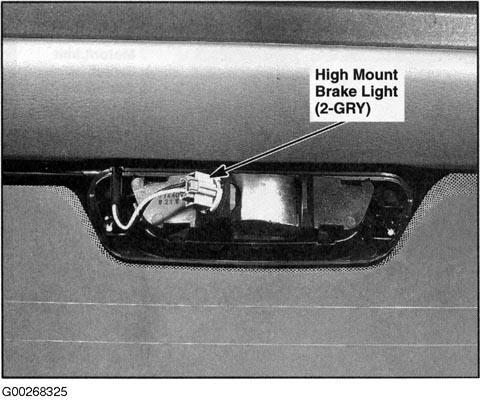

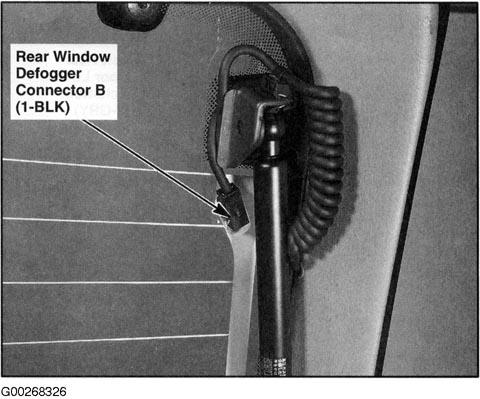

Fig 79: Middle Of Tailgate

G00268326

Courtesy of AMERICAN HONDA MOTOR CO., INC.

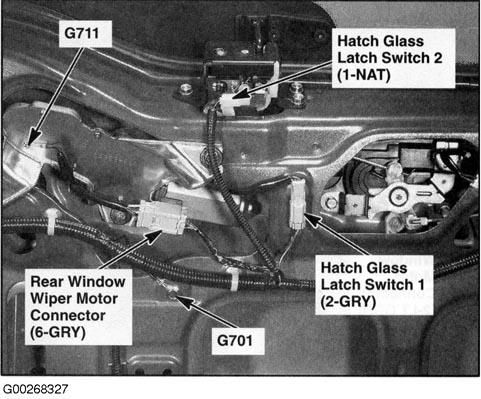

Fig 80: Left Side Of Tailgate

G00268327

Courtesy of AMERICAN HONDA MOTOR CO., INC.

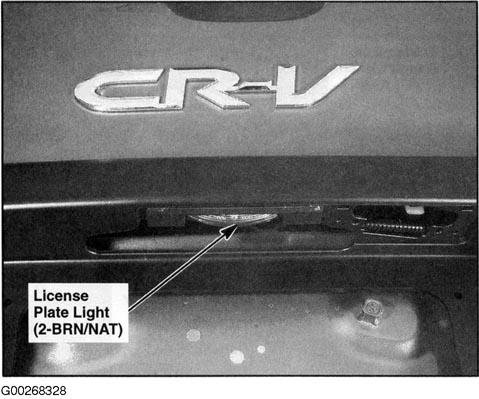

Fig 81: Lower Middle Of Tailgate

G00268328

Courtesy of AMERICAN HONDA MOTOR CO., INC.

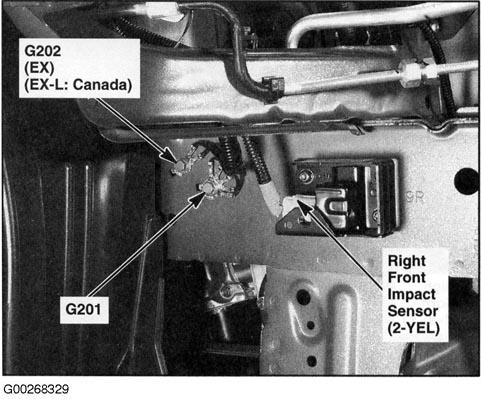

Fig 82: Behind Right Side Of Front Bumper

G00268329

Courtesy of AMERICAN HONDA MOTOR CO., INC.

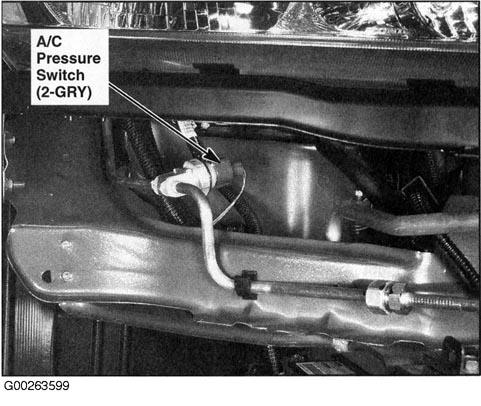

Fig 83: Right Front Of Engine Compartment

G00263599

Courtesy of AMERICAN HONDA MOTOR CO., INC.

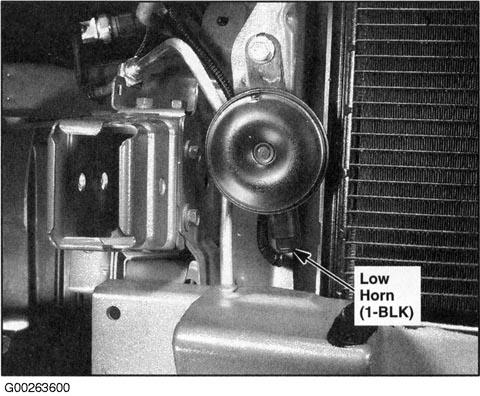

Fig 84: Behind Front Bumper

G00263600

Courtesy of AMERICAN HONDA MOTOR CO., INC.

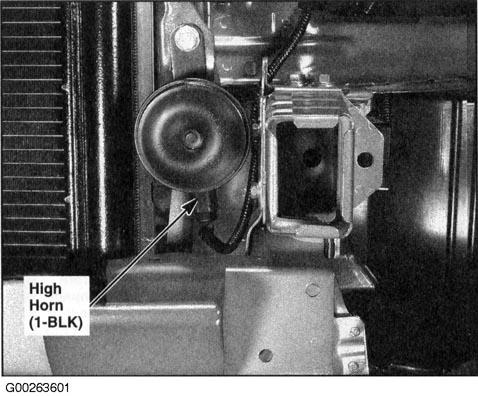

Fig 85: Behind Front Bumper

G00263601

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Behind Left Side Of Front Bumper

G00263602

Courtesy of AMERICAN HONDA MOTOR CO., INC.

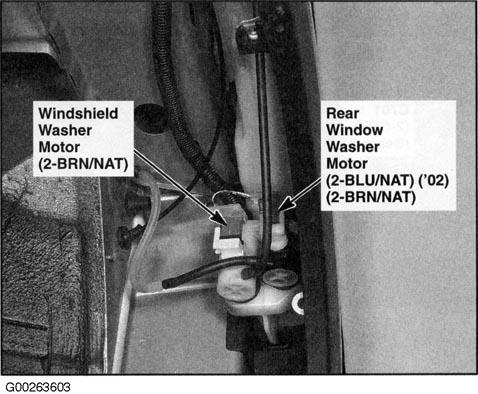

Fig 87: Behind Left Side Of Inner Fender (Japan Or U.K. Built)

G00263603

Courtesy of AMERICAN HONDA MOTOR CO., INC.

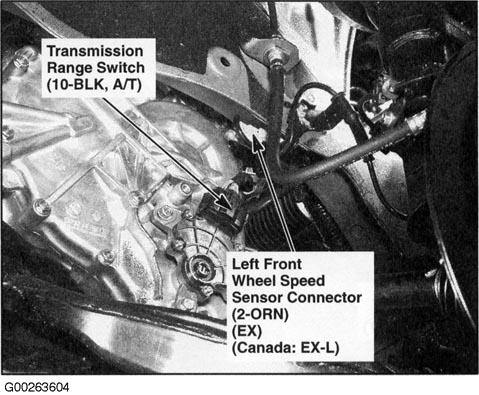

Fig 88: Left Side Of Engine Compartment

G00263604

Courtesy of AMERICAN HONDA MOTOR CO., INC.

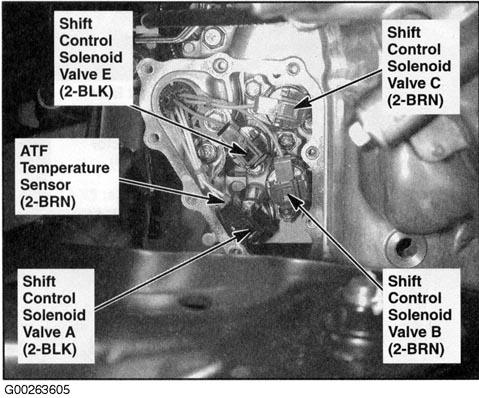

Fig 89: In Transmission (A/T)

G00263605

Courtesy of AMERICAN HONDA MOTOR CO., INC.

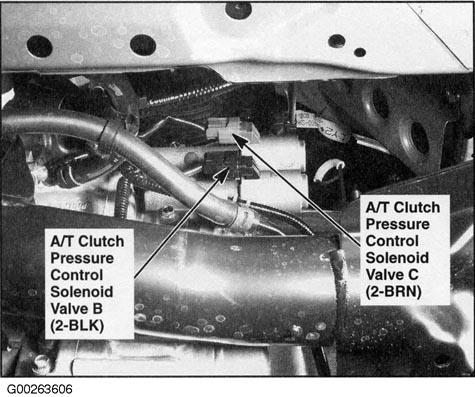

Fig 90: Transmission Housing (A/T)

G00263606

Courtesy of AMERICAN HONDA MOTOR CO., INC.

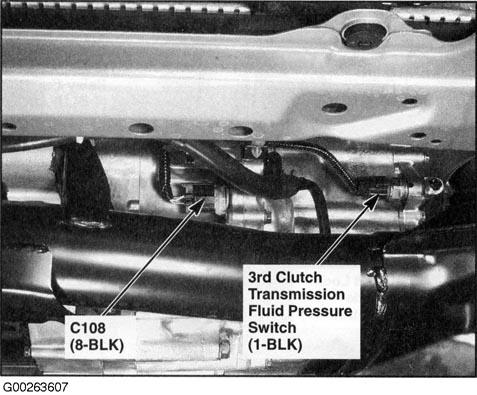

Fig 91: Transmission Housing (A/T)

G00263607

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Right Side Of Engine

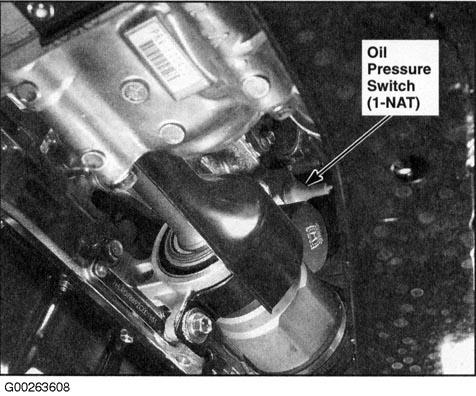

G00263608

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Right Side Of Engine Compartment

G00263609

Courtesy of AMERICAN HONDA MOTOR CO., INC.

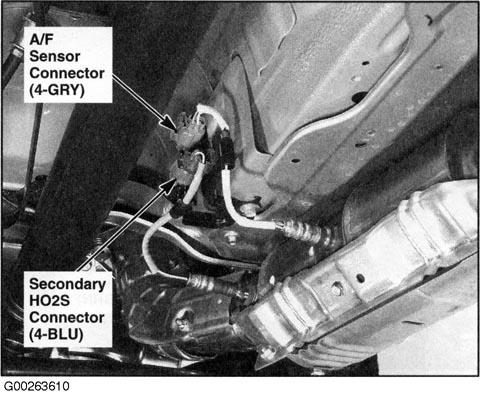

Fig 94: Middle Underside Of Vehicle

G00263610

Courtesy of AMERICAN HONDA MOTOR CO., INC.

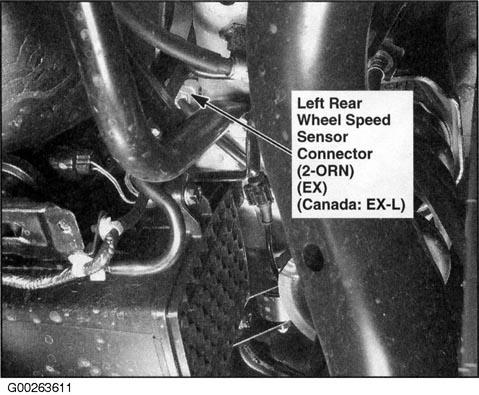

Fig 95: Under Left Rear Of Vehicle

G00263611

Courtesy of AMERICAN HONDA MOTOR CO., INC.

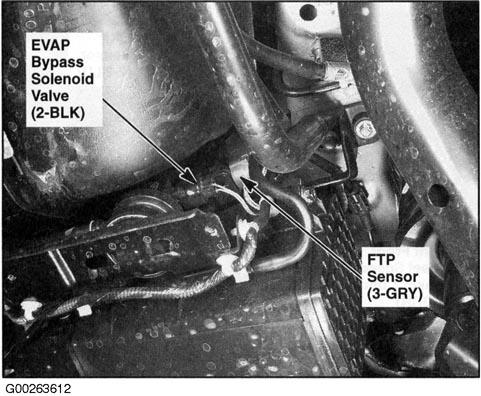

Fig 96: Under Left Rear Of Vehicle

G00263612

Courtesy of AMERICAN HONDA MOTOR CO., INC.

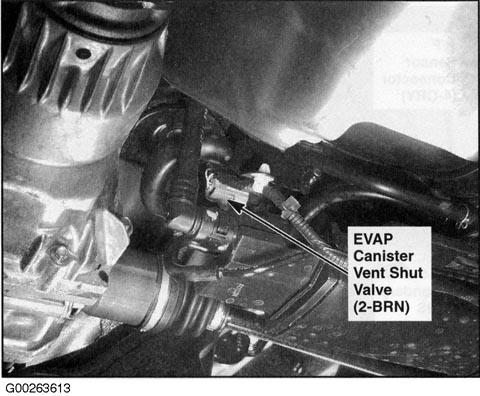

Fig 97: Under Left Rear Of Vehicle

G00263613

Courtesy of AMERICAN HONDA MOTOR CO., INC.

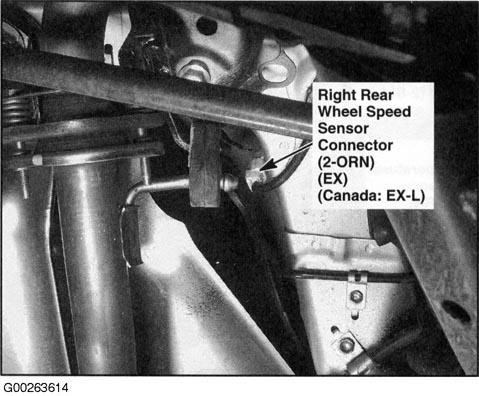

Fig 98: Under Right Rear Of Vehicle

G00263614

Courtesy of AMERICAN HONDA MOTOR CO., INC.

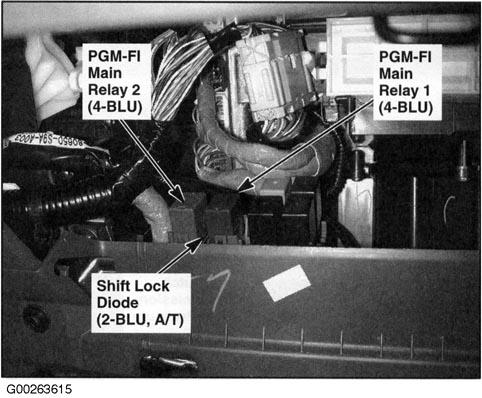

Fig 99: Behind Glove Box

G00263615

Courtesy of AMERICAN HONDA MOTOR CO., INC.

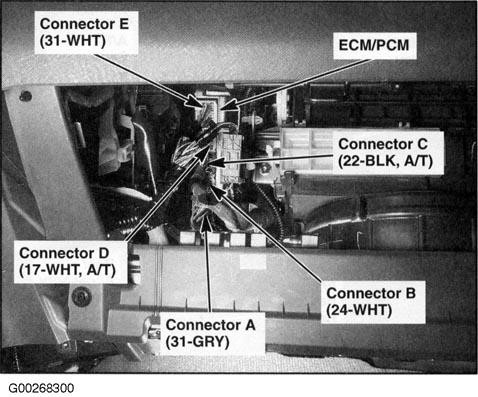

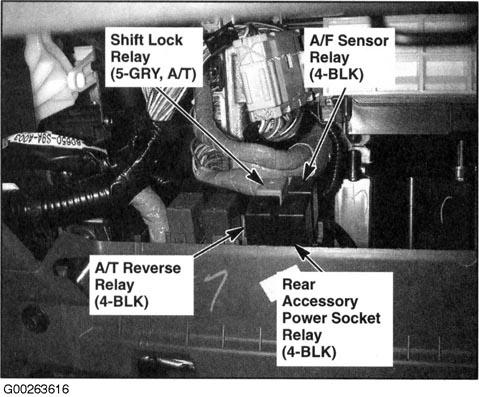

Fig 100: Behind Glove Box

G00263616

Courtesy of AMERICAN HONDA MOTOR CO., INC.

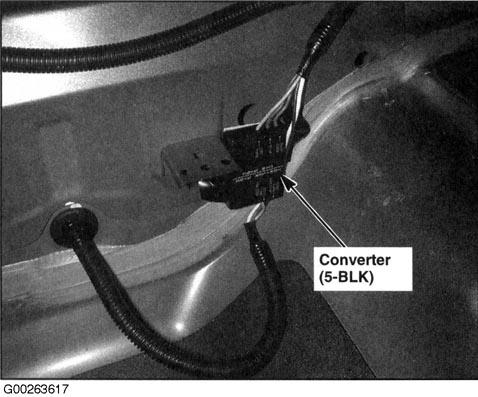

Fig 101: Left Quarter Panel (Honda Accessory)

G00263617

Courtesy of AMERICAN HONDA MOTOR CO., INC.

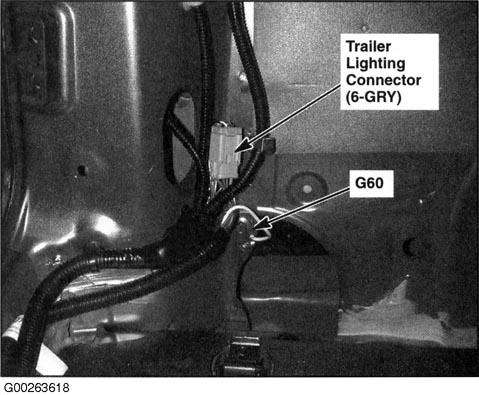

Fig 102: Left Quarter Panel (Honda Accessory)

G00263618

Courtesy of AMERICAN HONDA MOTOR CO., INC.

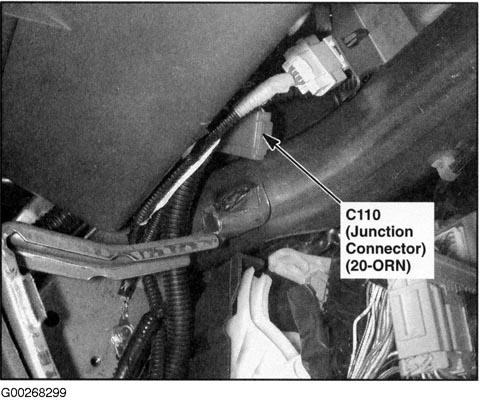

Fig 103: Behind Glove Box (Honda Accessory)

G00268299

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Behind Glove Box

G00268300

Courtesy of AMERICAN HONDA MOTOR CO., INC.

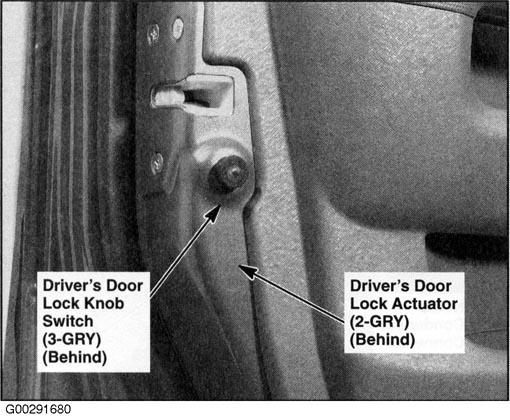

Fig 105: Driver's Door

G00291680

Courtesy of AMERICAN HONDA MOTOR CO., INC.

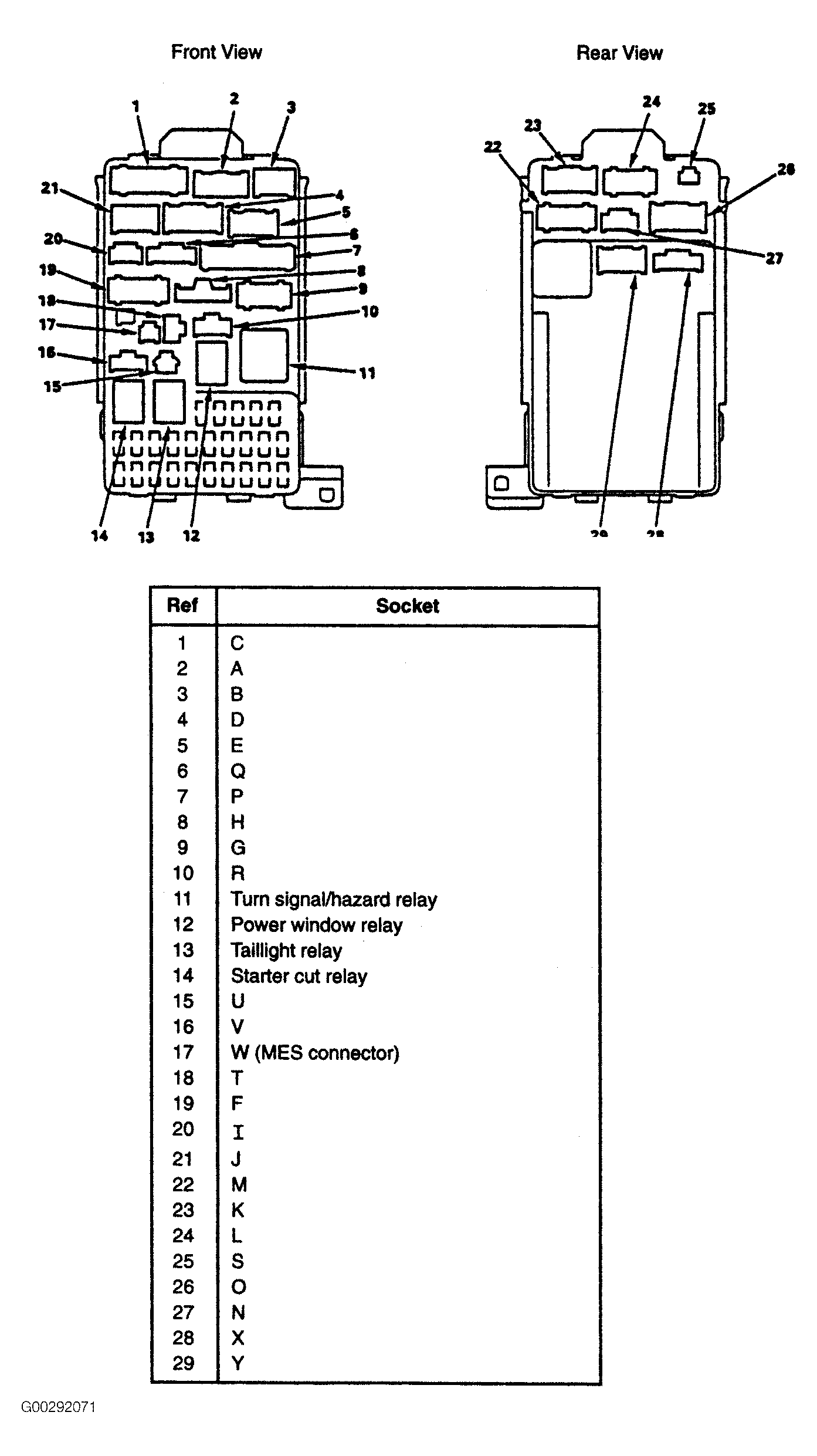

Fig 106: Underdash Fuse/Relay Box

G00292071

Courtesy of AMERICAN HONDA MOTOR CO., INC.

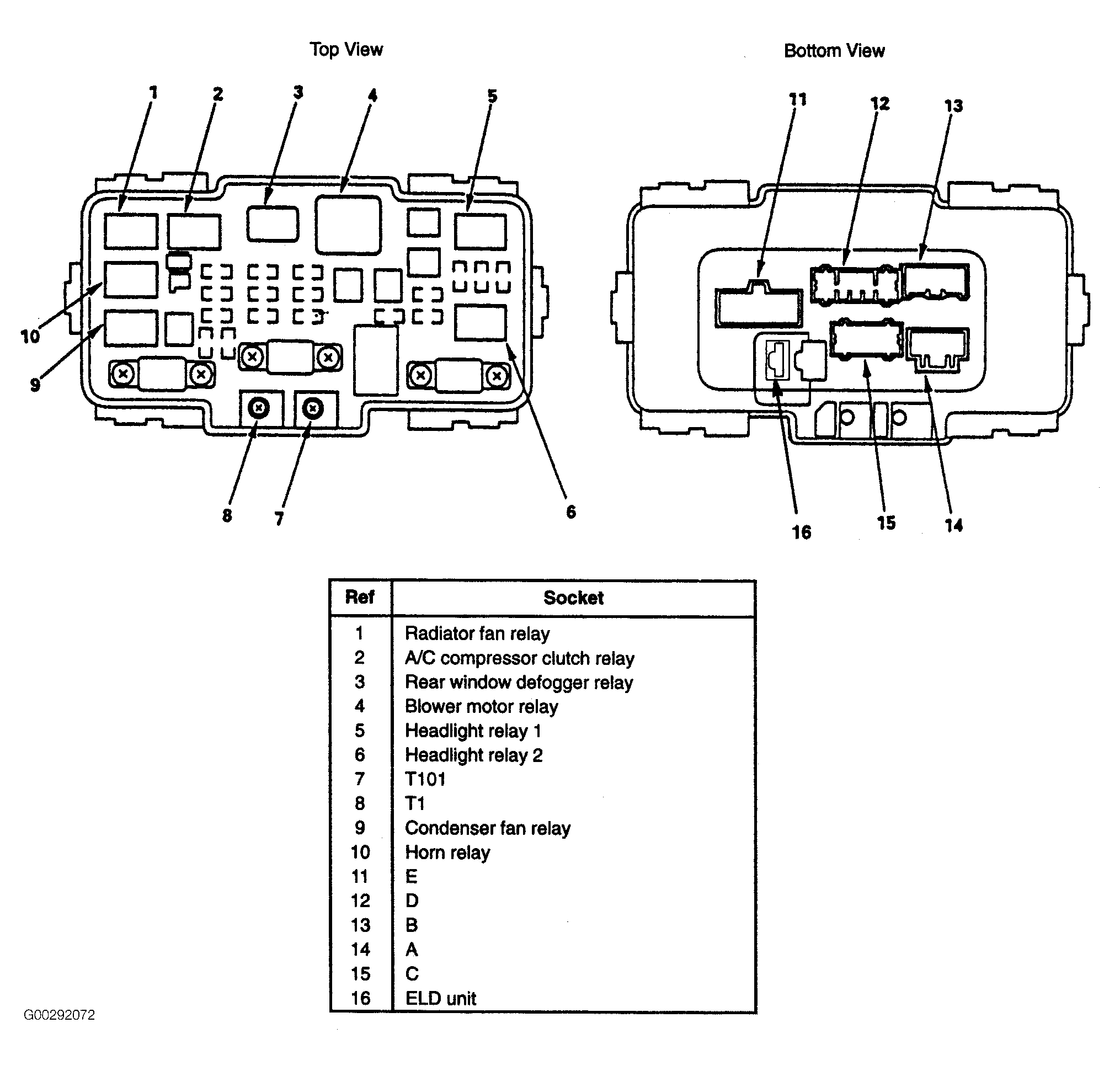

Fig 107: Underhood Fuse/Relay Box

G00292072

Courtesy of AMERICAN HONDA MOTOR CO., INC.

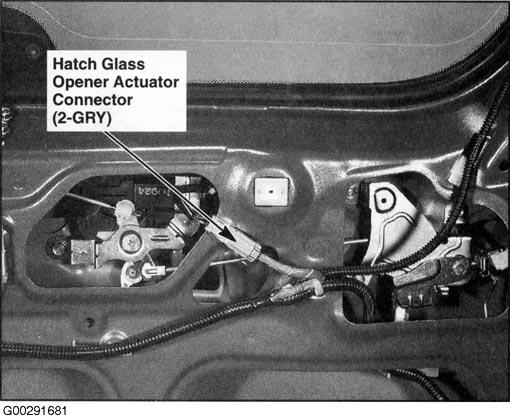

Fig 108: Middle Of Tailgate

G00291681

Courtesy of AMERICAN HONDA MOTOR CO., INC.

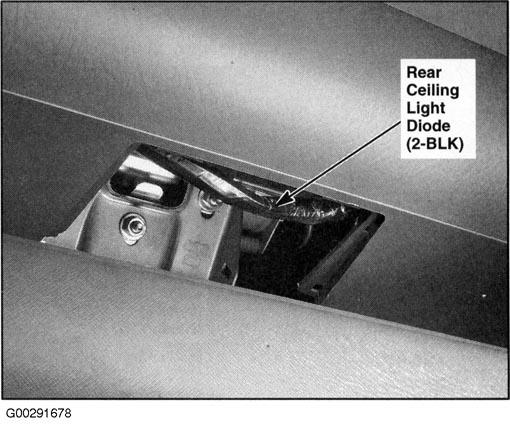

Fig 109: Under Right Side Of Dash

G00291678

Courtesy of AMERICAN HONDA MOTOR CO., INC.

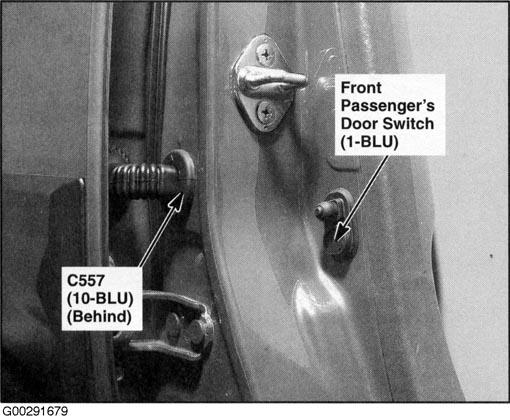

Fig 110: Right "B" Pillar

G00291679

Courtesy of AMERICAN HONDA MOTOR CO., INC.
