Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

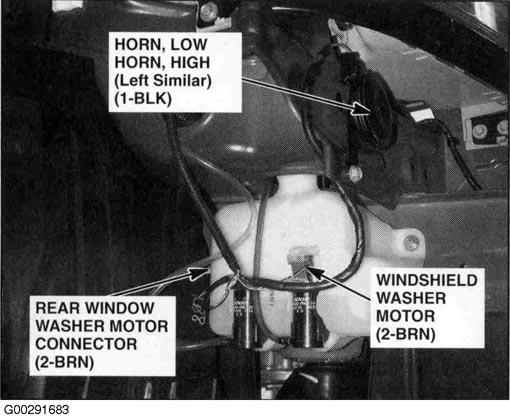

Fig 1: Behind Right Side Of Front Bumper

G00291683

Courtesy of AMERICAN HONDA MOTOR CO., INC.

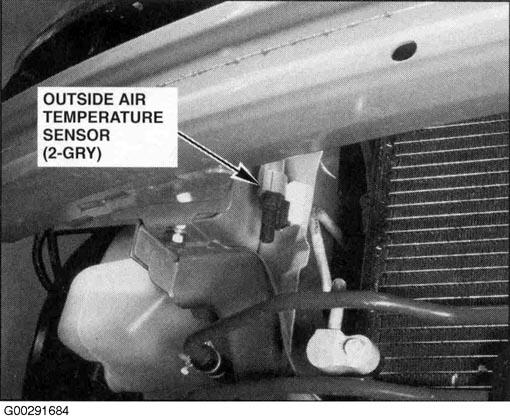

Fig 2: Behind Right Side Of Front Bumper (EX, EX-L)

G00291684

Courtesy of AMERICAN HONDA MOTOR CO., INC.

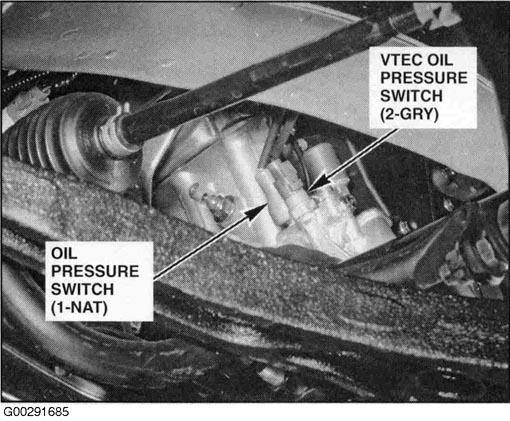

Fig 3: Under Right Side Of Vehicle

G00291685

Courtesy of AMERICAN HONDA MOTOR CO., INC.

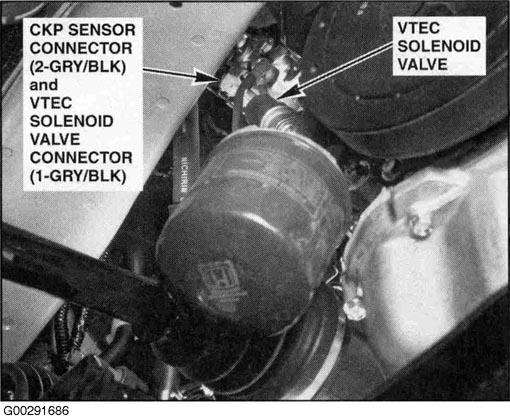

Fig 4: Under Right Side Of Vehicle

G00291686

Courtesy of AMERICAN HONDA MOTOR CO., INC.

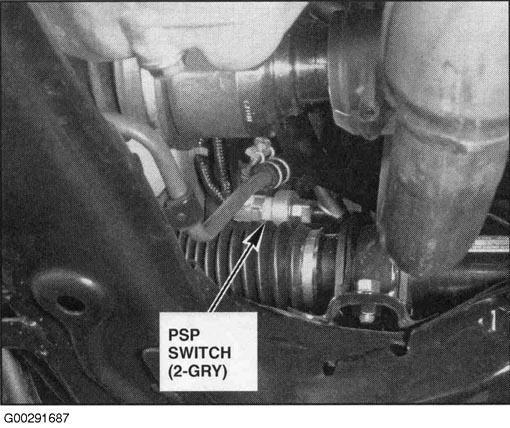

Fig 5: Under Vehicle, Right Side Of Engine

G00291687

Courtesy of AMERICAN HONDA MOTOR CO., INC.

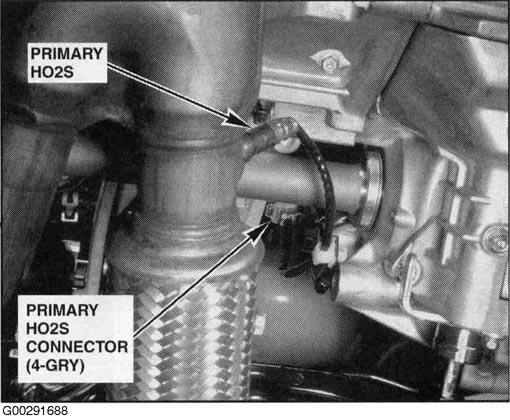

Fig 6: Under Vehicle, Forward Of Catalytic Converter

G00291688

Courtesy of AMERICAN HONDA MOTOR CO., INC.

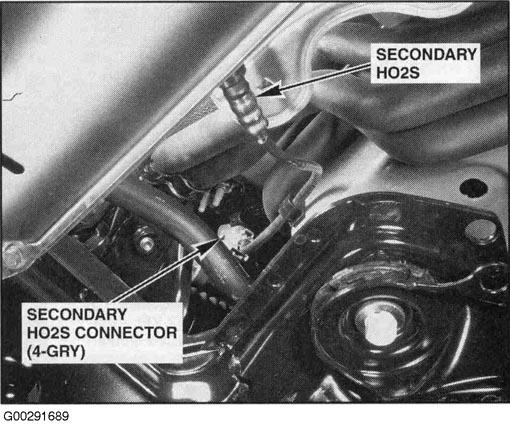

Fig 7: Under Vehicle, At Catalytic Converter

G00291689

Courtesy of AMERICAN HONDA MOTOR CO., INC.

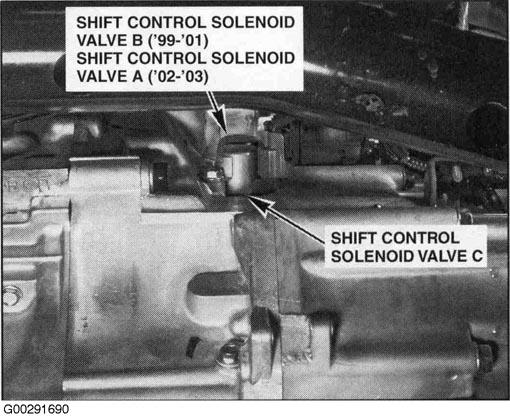

Fig 8: Under Vehicle, Front Of Transmission

G00291690

Courtesy of AMERICAN HONDA MOTOR CO., INC.

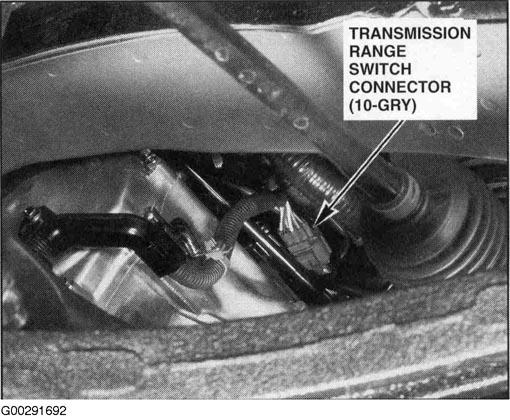

Fig 9: Under Vehicle, End Of Transmission

G00291692

Courtesy of AMERICAN HONDA MOTOR CO., INC.

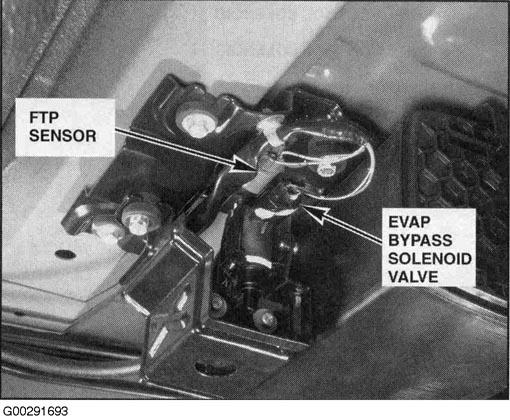

Fig 10: Under Vehicle, Behind Engine

G00291693

Courtesy of AMERICAN HONDA MOTOR CO., INC.

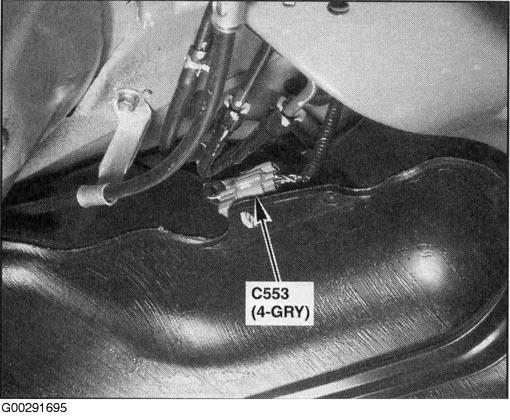

Fig 11: Left Rear Underside Of Vehicle

G00291695

Courtesy of AMERICAN HONDA MOTOR CO., INC.

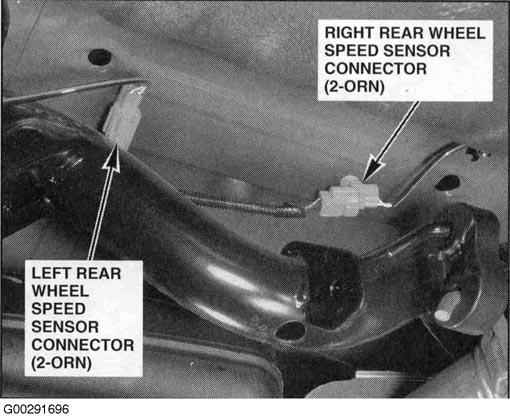

Fig 12: Rear Underside Of Vehicle

G00291696

Courtesy of AMERICAN HONDA MOTOR CO., INC.

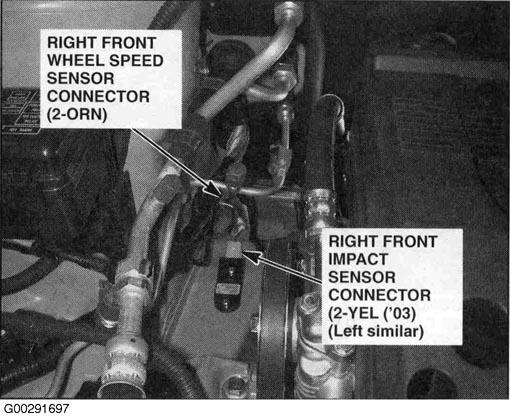

Fig 13: Right Rear Of Engine Compartment

G00291697

Courtesy of AMERICAN HONDA MOTOR CO., INC.

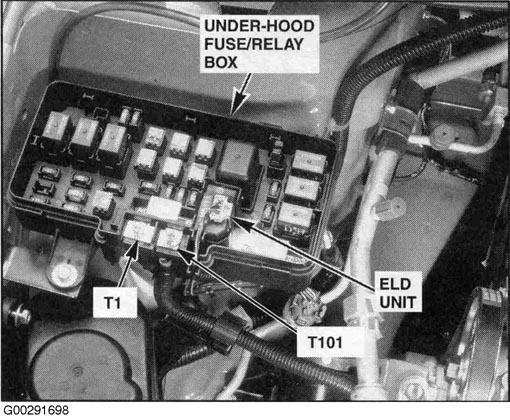

Fig 14: Right Side Of Engine Compartment

G00291698

Courtesy of AMERICAN HONDA MOTOR CO., INC.

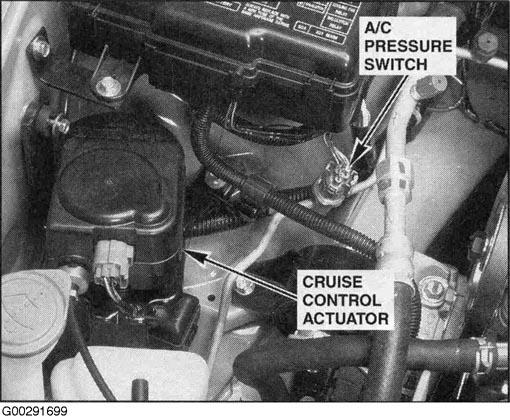

Fig 15: Right Side Of Engine Compartment

G00291699

Courtesy of AMERICAN HONDA MOTOR CO., INC.

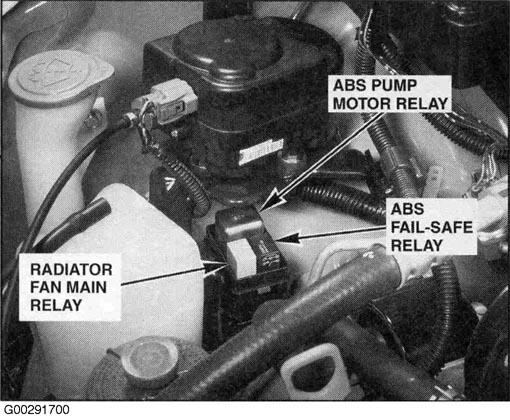

Fig 16: Right Side Of Engine Compartment

G00291700

Courtesy of AMERICAN HONDA MOTOR CO., INC.

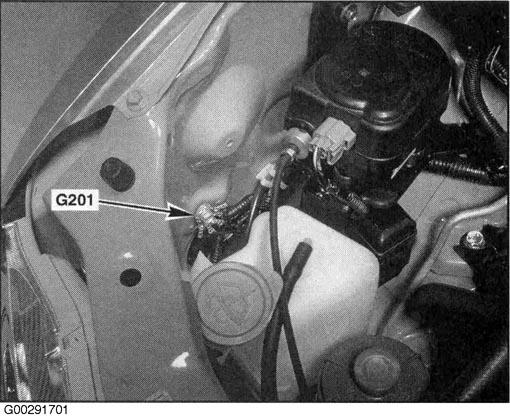

Fig 17: Right Front Of Engine Compartment

G00291701

Courtesy of AMERICAN HONDA MOTOR CO., INC.

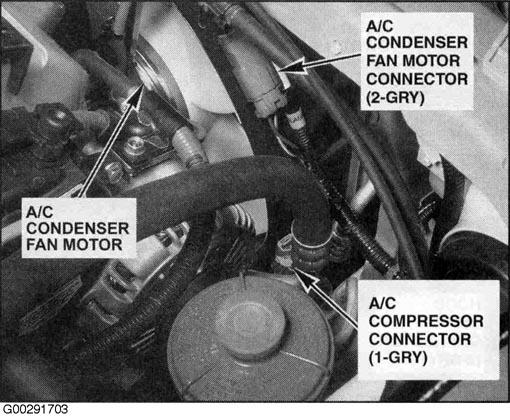

Fig 18: Right Front Of Engine Compartment

G00291703

Courtesy of AMERICAN HONDA MOTOR CO., INC.

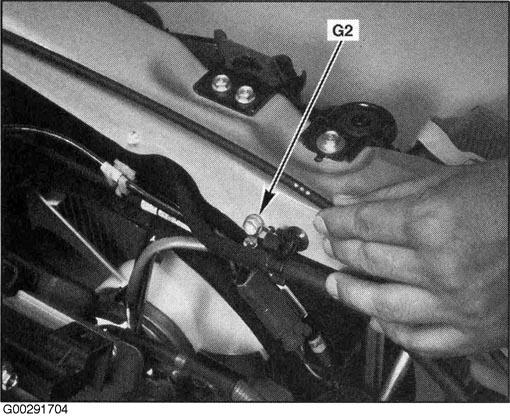

Fig 19: Right Front Of Engine Compartment

G00291704

Courtesy of AMERICAN HONDA MOTOR CO., INC.

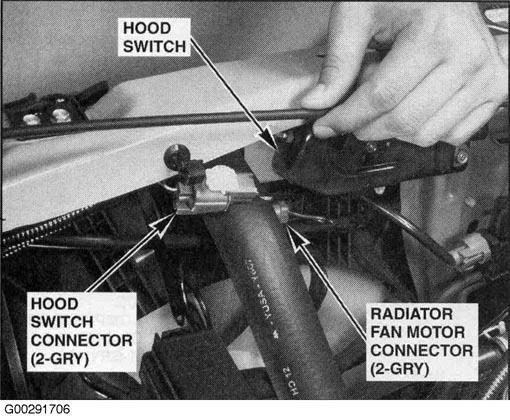

Fig 20: Left Front Side Of Engine Compartment

G00291706

Courtesy of AMERICAN HONDA MOTOR CO., INC.

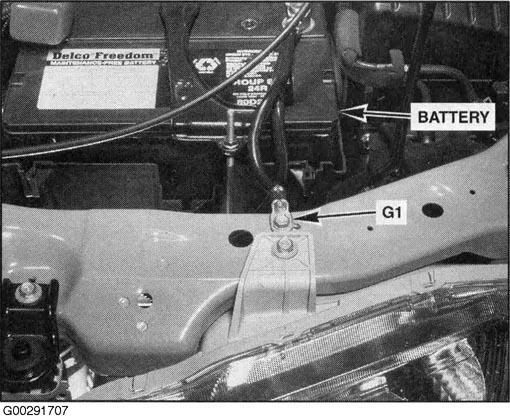

Fig 21: Left Front Of Engine Compartment

G00291707

Courtesy of AMERICAN HONDA MOTOR CO., INC.

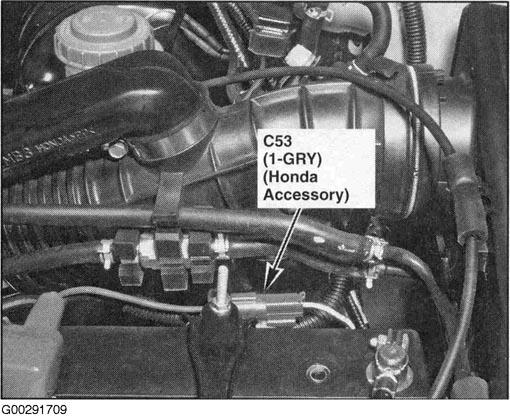

Fig 22: Left Front Of Engine Compartment

G00291709

Courtesy of AMERICAN HONDA MOTOR CO., INC.

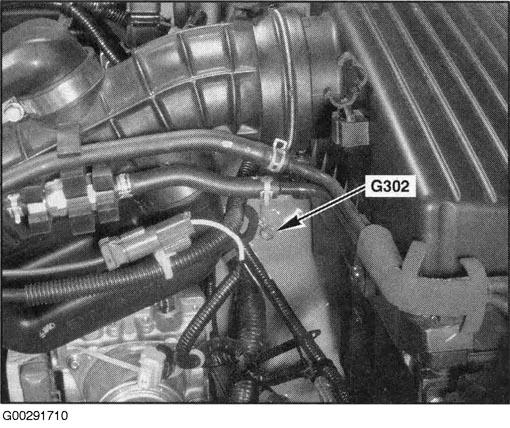

Fig 23: Left Side Of Engine Compartment (Battery Removed)

G00291710

Courtesy of AMERICAN HONDA MOTOR CO., INC.

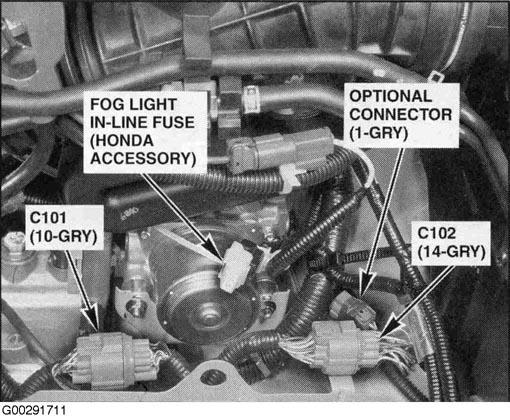

Fig 24: Left Side Of Engine Compartment (Battery Removed)

G00291711

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Left Side Of Engine Compartment (Battery Removed)

G00291712

Courtesy of AMERICAN HONDA MOTOR CO., INC.

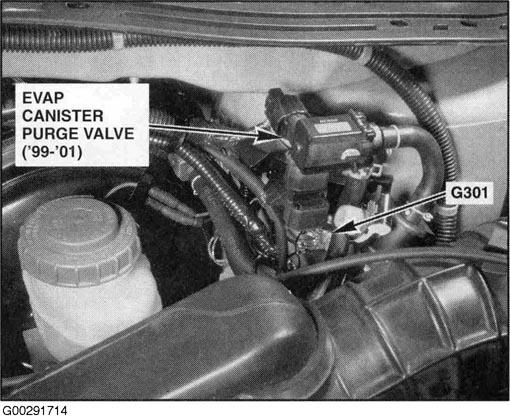

Fig 26: Left Rear Of Engine Compartment

G00291714

Courtesy of AMERICAN HONDA MOTOR CO., INC.

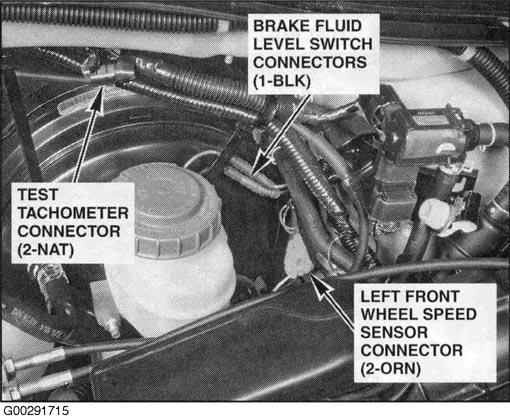

Fig 27: Left Rear Of Engine Compartment

G00291715

Courtesy of AMERICAN HONDA MOTOR CO., INC.

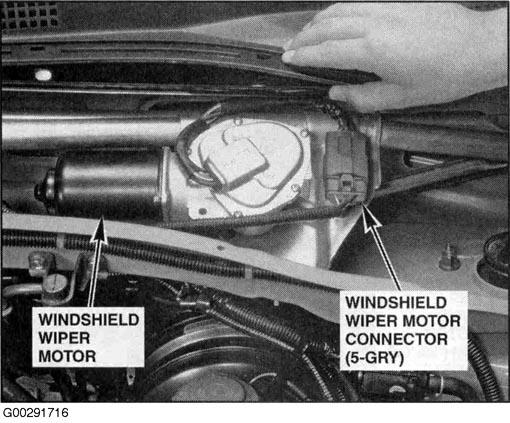

Fig 28: Behind Left Side Of Air Scoop

G00291716

Courtesy of AMERICAN HONDA MOTOR CO., INC.

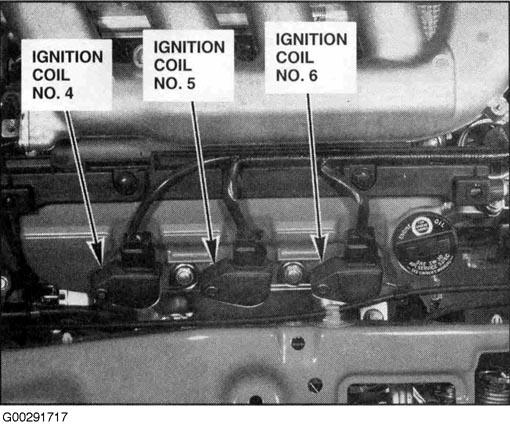

Fig 29: Left Side Of Engine

G00291717

Courtesy of AMERICAN HONDA MOTOR CO., INC.

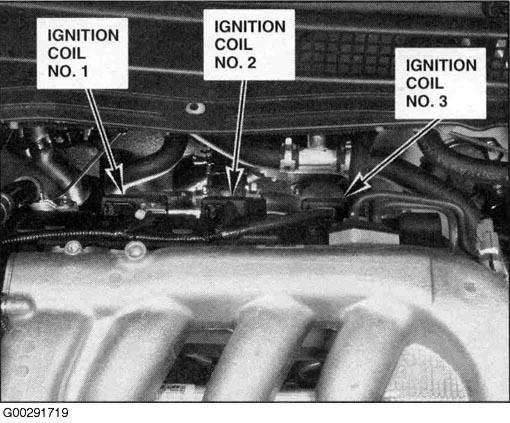

Fig 30: Right Side Of Engine

G00291719

Courtesy of AMERICAN HONDA MOTOR CO., INC.

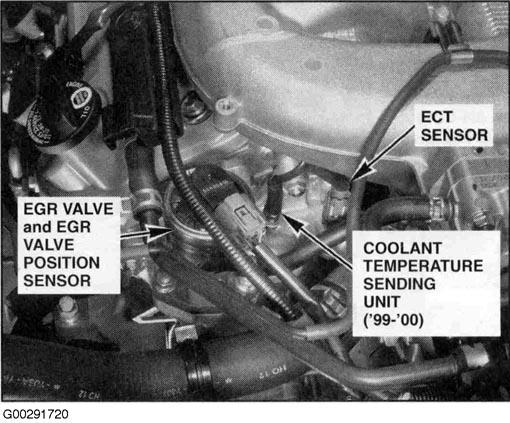

Fig 31: Rear Of Engine

G00291720

Courtesy of AMERICAN HONDA MOTOR CO., INC.

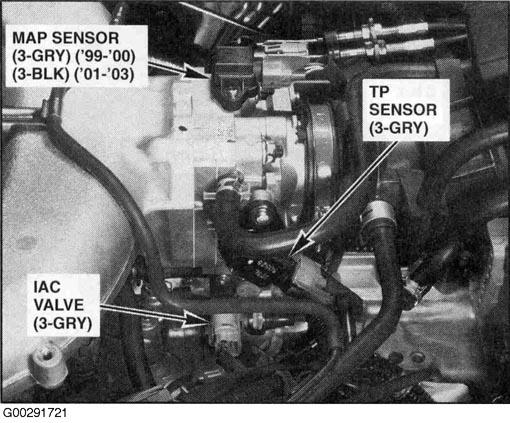

Fig 32: Rear Of Engine

G00291721

Courtesy of AMERICAN HONDA MOTOR CO., INC.

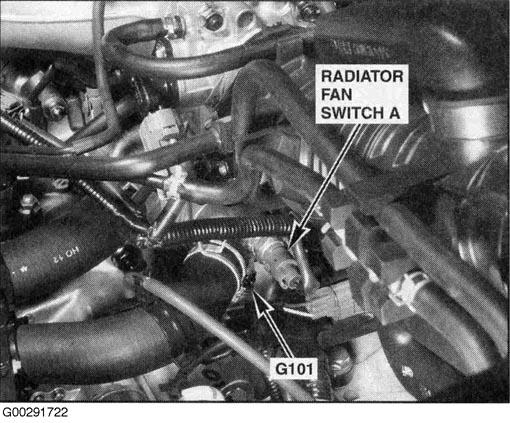

Fig 33: Rear Of Engine

G00291722

Courtesy of AMERICAN HONDA MOTOR CO., INC.

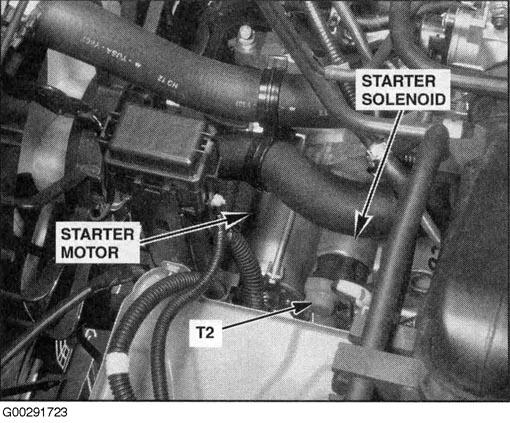

Fig 34: Lower Left Side Of Engine

G00291723

Courtesy of AMERICAN HONDA MOTOR CO., INC.

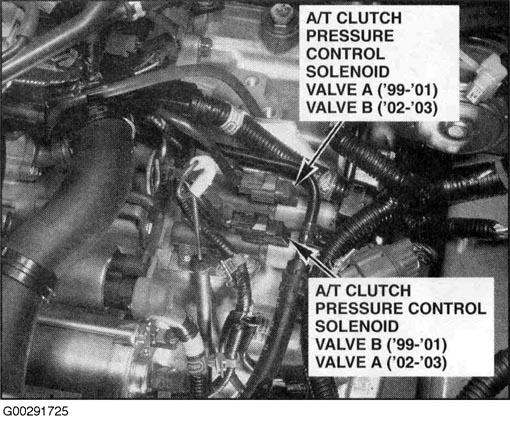

Fig 35: Top Of Transmission (Battery Removed)

G00291725

Courtesy of AMERICAN HONDA MOTOR CO., INC.

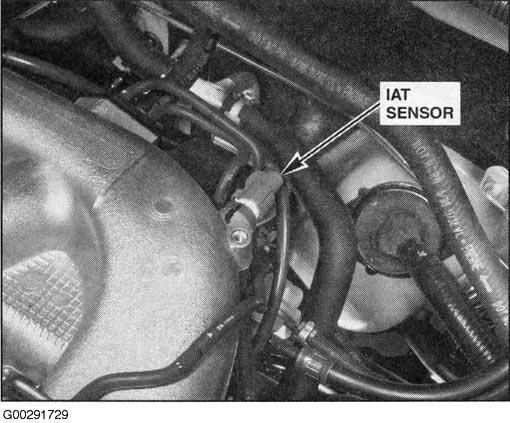

Fig 36: Right Rear Of Engine

G00291729

Courtesy of AMERICAN HONDA MOTOR CO., INC.

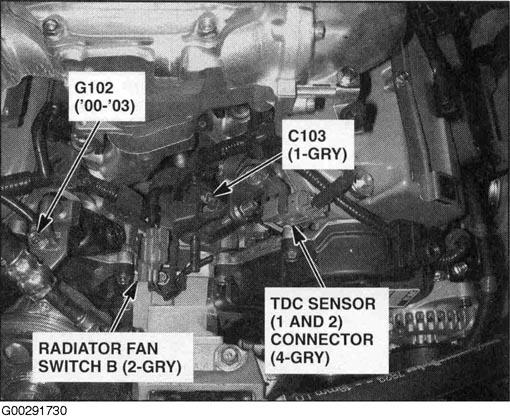

Fig 37: Top Front Of Engine

G00291730

Courtesy of AMERICAN HONDA MOTOR CO., INC.

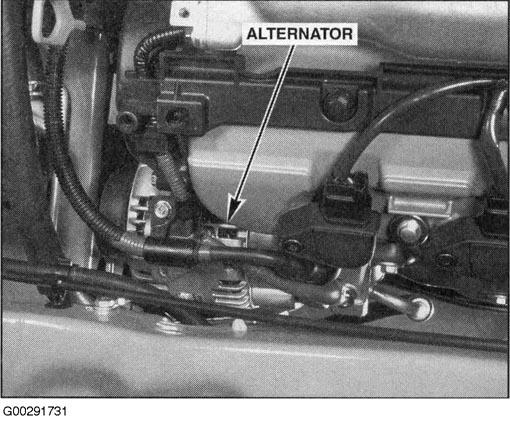

Fig 38: Front Left Side Of Engine

G00291731

Courtesy of AMERICAN HONDA MOTOR CO., INC.

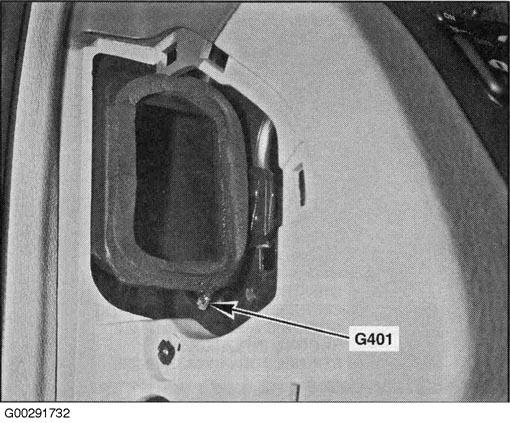

Fig 39: Left Side Of Dash (Panel Removed)

G00291732

Courtesy of AMERICAN HONDA MOTOR CO., INC.

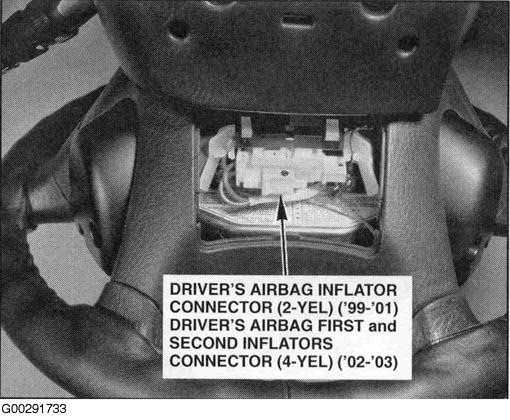

Fig 40: Underside Of Steering Wheel

G00291733

Courtesy of AMERICAN HONDA MOTOR CO., INC.

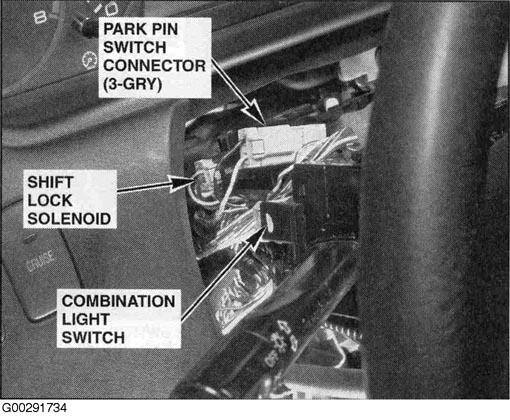

Fig 41: Top Of Steering Column

G00291734

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Right Side Of Steering Column

G00291735

Courtesy of AMERICAN HONDA MOTOR CO., INC.

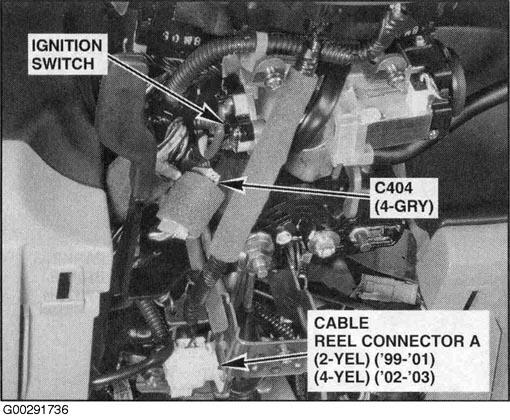

Fig 43: Steering Column

G00291736

Courtesy of AMERICAN HONDA MOTOR CO., INC.

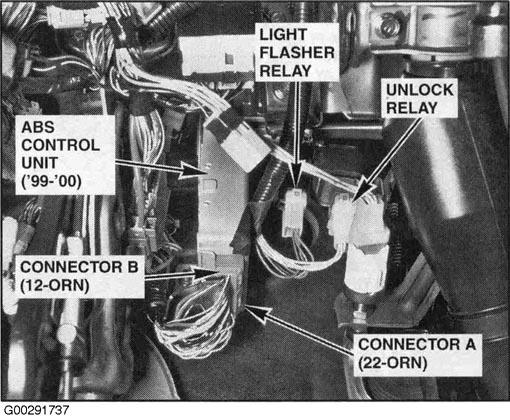

Fig 44: Below Left Side Of Dash (LX)

G00291737

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Below Left Side Of Dash

G00291738

Courtesy of AMERICAN HONDA MOTOR CO., INC.

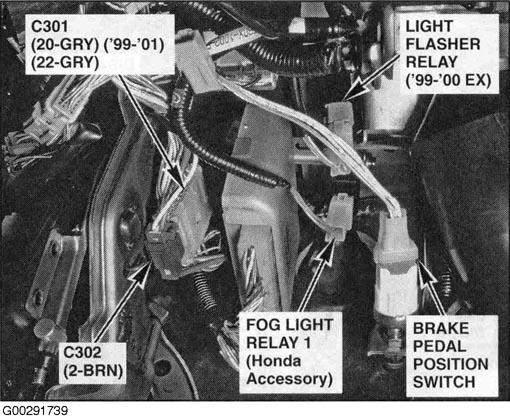

Fig 46: Below Left Side Of Dash

G00291739

Courtesy of AMERICAN HONDA MOTOR CO., INC.

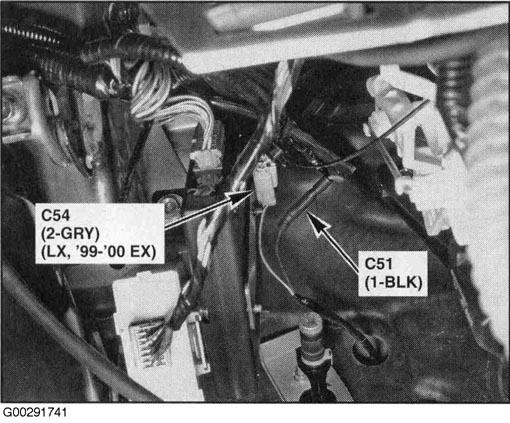

Fig 47: Right Of Steering Column (Honda Accessory)

G00291741

Courtesy of AMERICAN HONDA MOTOR CO., INC.

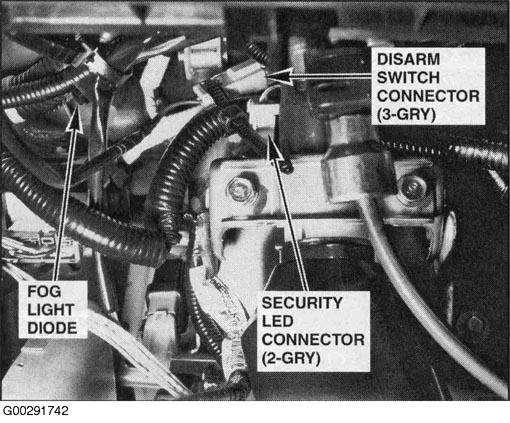

Fig 48: Below Steering Column (Honda Accessory)

G00291742

Courtesy of AMERICAN HONDA MOTOR CO., INC.

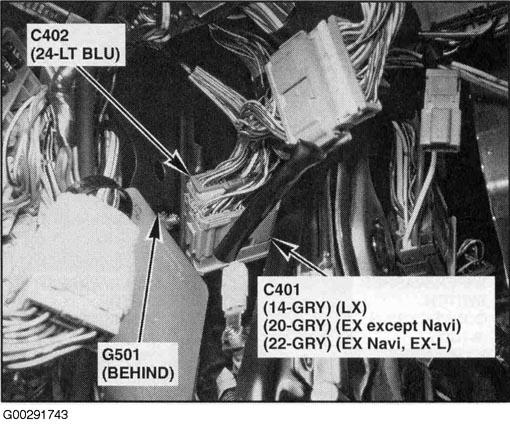

Fig 49: Below Left End Of Dash

G00291743

Courtesy of AMERICAN HONDA MOTOR CO., INC.

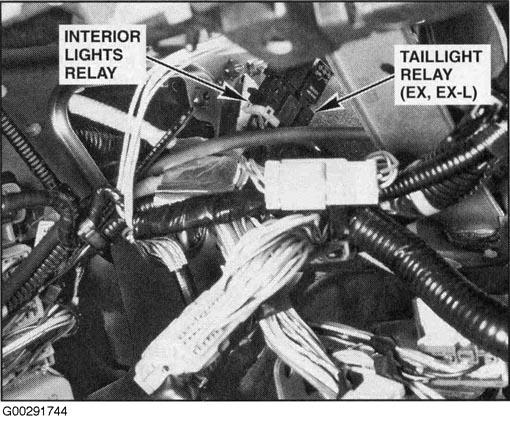

Fig 50: Behind Left Side Of Dash

G00291744

Courtesy of AMERICAN HONDA MOTOR CO., INC.

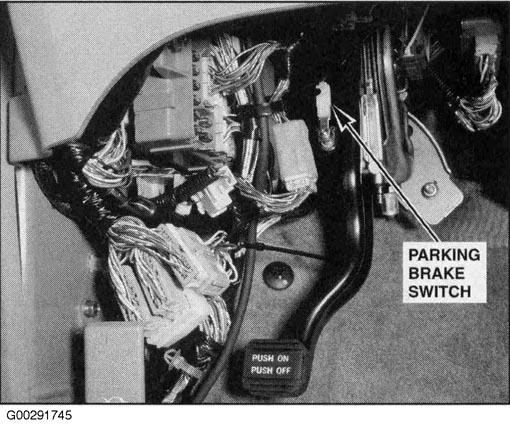

Fig 51: Below Left End Of Dash

G00291745

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Below Left End Of Dash

G00291746

Courtesy of AMERICAN HONDA MOTOR CO., INC.

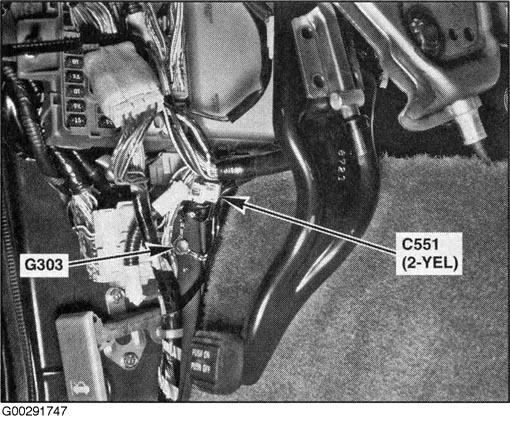

Fig 53: Behind Left Kick Panel

G00291747

Courtesy of AMERICAN HONDA MOTOR CO., INC.

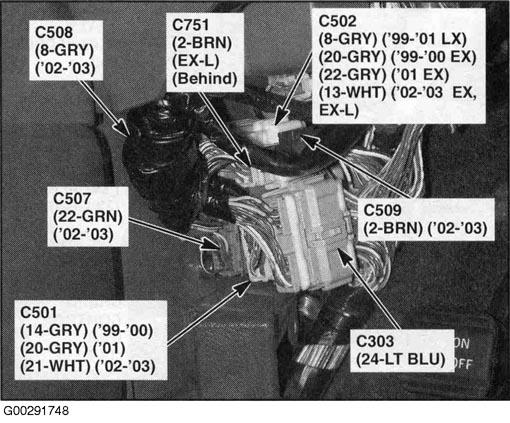

Fig 54: Behind Left Kick Panel

G00291748

Courtesy of AMERICAN HONDA MOTOR CO., INC.

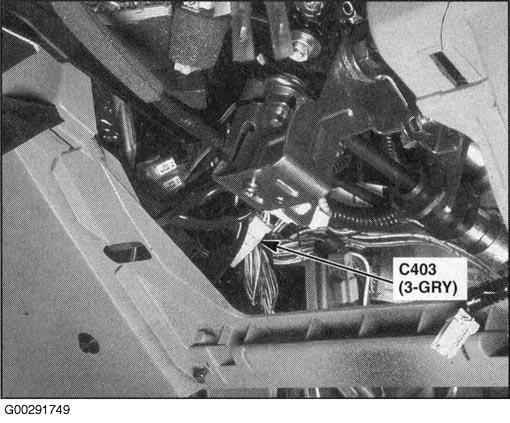

Fig 55: Behind Dashboard Lower Cover

G00291749

Courtesy of AMERICAN HONDA MOTOR CO., INC.

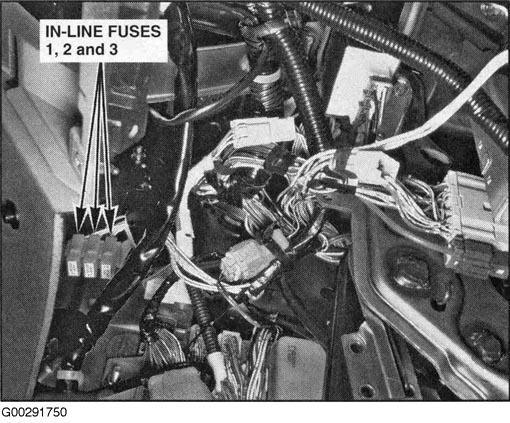

Fig 56: Behind Left Side Of Dash

G00291750

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Right Side Of Steering Column

G00291751

Courtesy of AMERICAN HONDA MOTOR CO., INC.

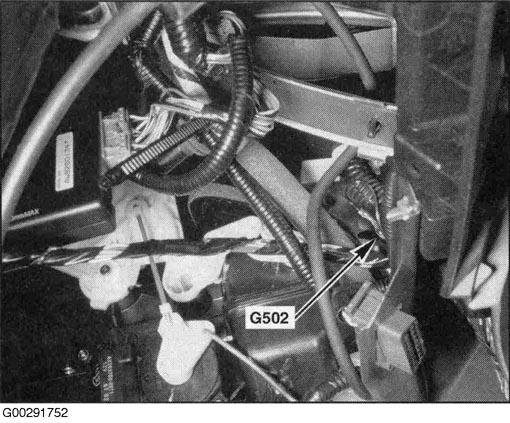

Fig 58: Above Heater Lower Cover

G00291752

Courtesy of AMERICAN HONDA MOTOR CO., INC.

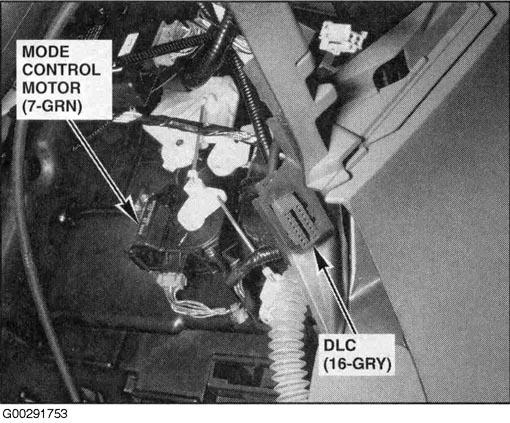

Fig 59: Above Heater Lower Cover

G00291753

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Behind Heater Lower Cover

G00291755

Courtesy of AMERICAN HONDA MOTOR CO., INC.

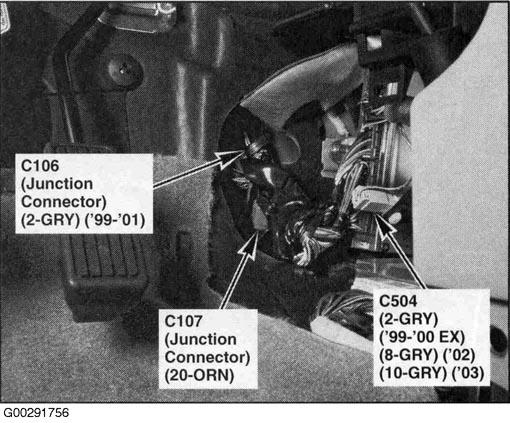

Fig 61: Behind Heater Lower Cover

G00291756

Courtesy of AMERICAN HONDA MOTOR CO., INC.

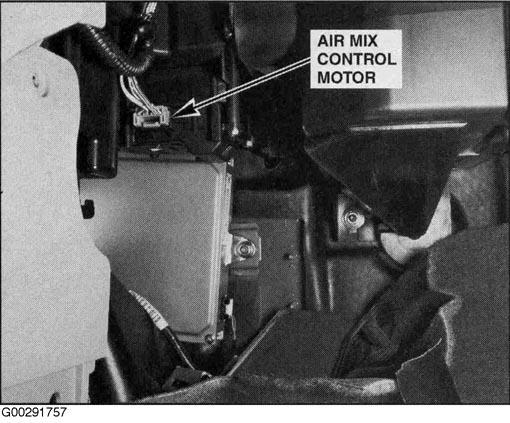

Fig 62: Below Center Of Dash

G00291757

Courtesy of AMERICAN HONDA MOTOR CO., INC.

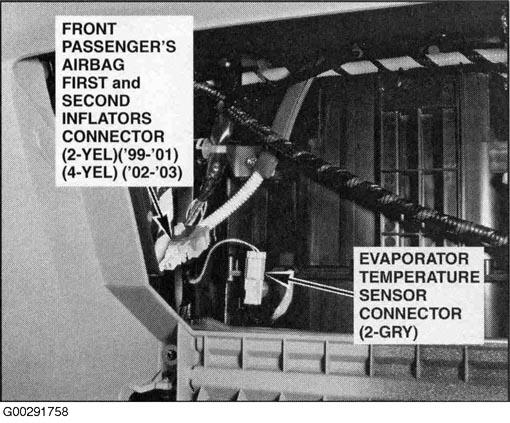

Fig 63: Behind Glove Box

G00291758

Courtesy of AMERICAN HONDA MOTOR CO., INC.

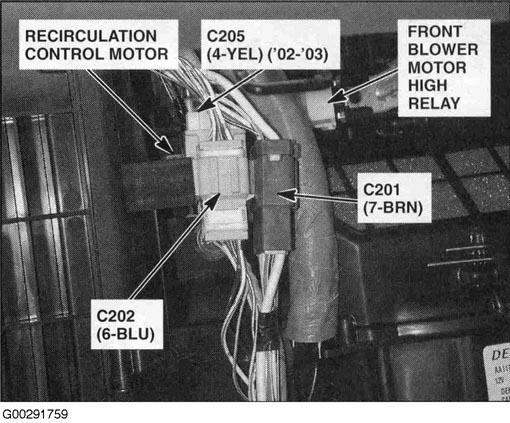

Fig 64: Behind Glove Box

G00291759

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Right End Of Dash (Glove Box Removed)

G00291760

Courtesy of AMERICAN HONDA MOTOR CO., INC.

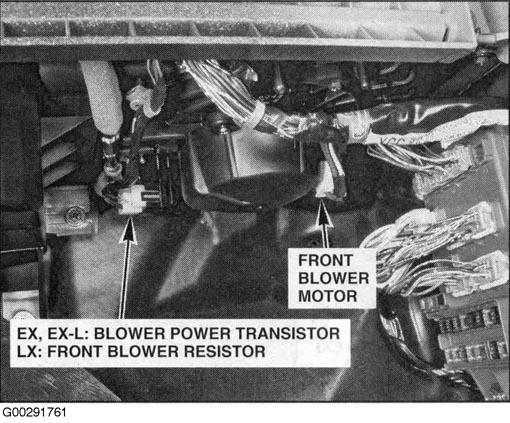

Fig 66: Below Glove Box

G00291761

Courtesy of AMERICAN HONDA MOTOR CO., INC.

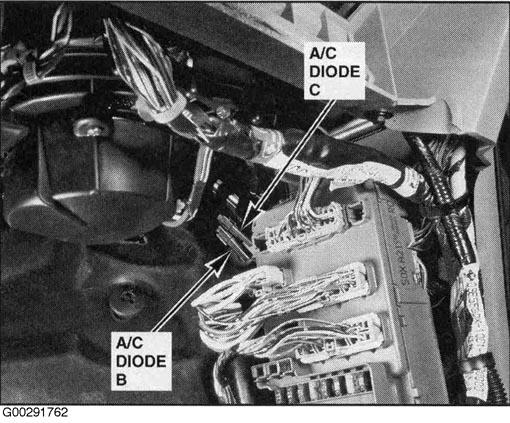

Fig 67: Below Right End Of Dash

G00291762

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Behind Right Kick Panel

G00291763

Courtesy of AMERICAN HONDA MOTOR CO., INC.

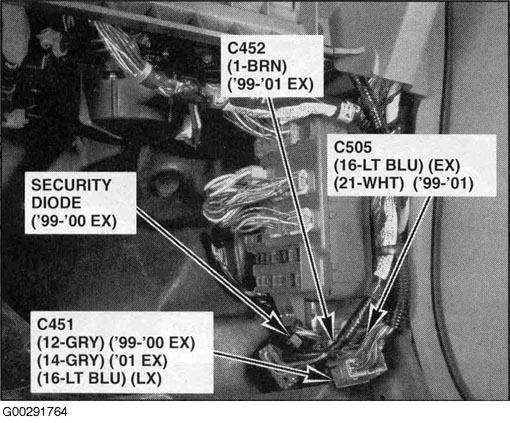

Fig 69: Behind Right Kick Panel

G00291764

Courtesy of AMERICAN HONDA MOTOR CO., INC.

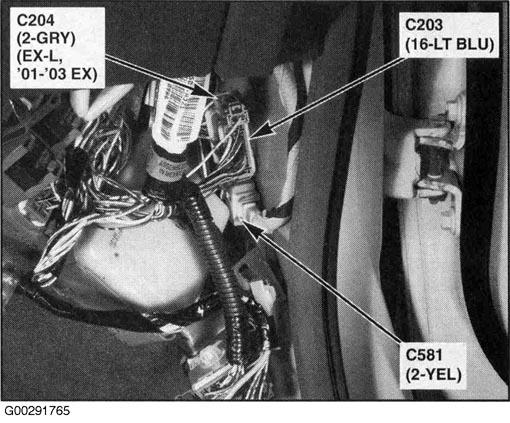

Fig 70: Behind Right Kick Panel (Fuse Box Removed)

G00291765

Courtesy of AMERICAN HONDA MOTOR CO., INC.

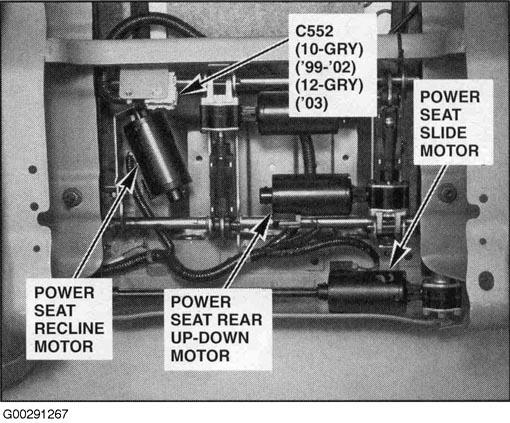

Fig 71: Bottom Of Driver's Seat

G00291767

Courtesy of AMERICAN HONDA MOTOR CO., INC.

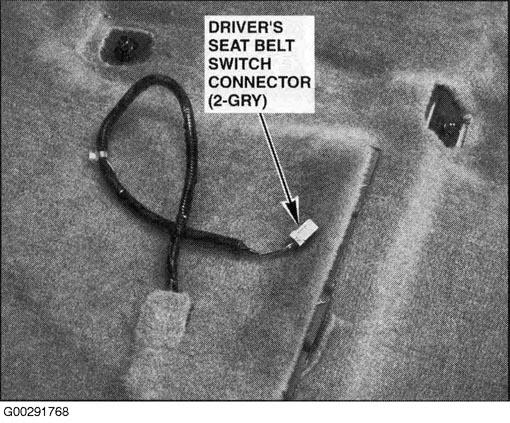

Fig 72: Below Driver's Seat (LX)

G00291768

Courtesy of AMERICAN HONDA MOTOR CO., INC.

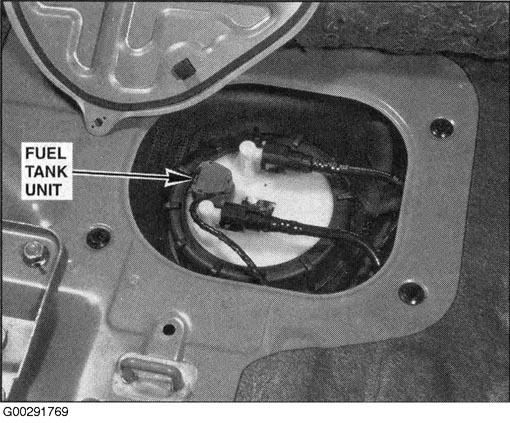

Fig 73: Center Of Floor (Carpet & Panel Removed)

G00291769

Courtesy of AMERICAN HONDA MOTOR CO., INC.

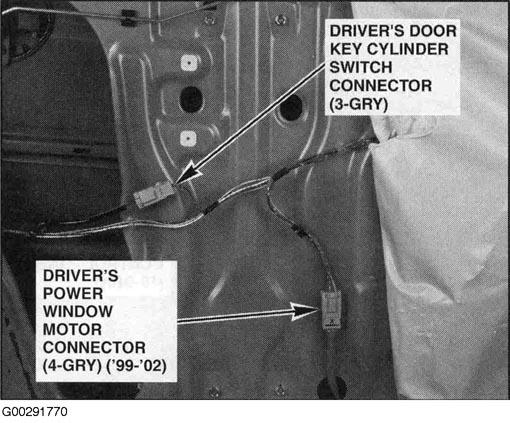

Fig 74: Driver's Door

G00291770

Courtesy of AMERICAN HONDA MOTOR CO., INC.

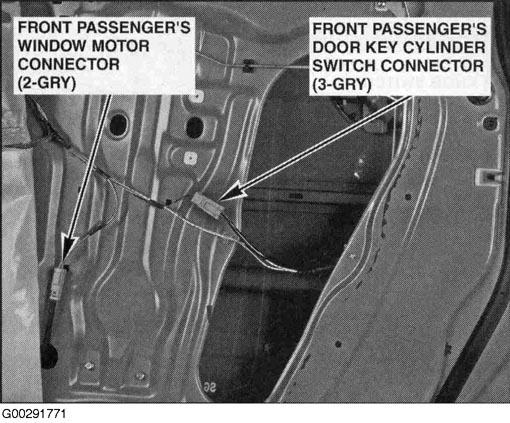

Fig 75: Front Passenger's Door

G00291771

Courtesy of AMERICAN HONDA MOTOR CO., INC.

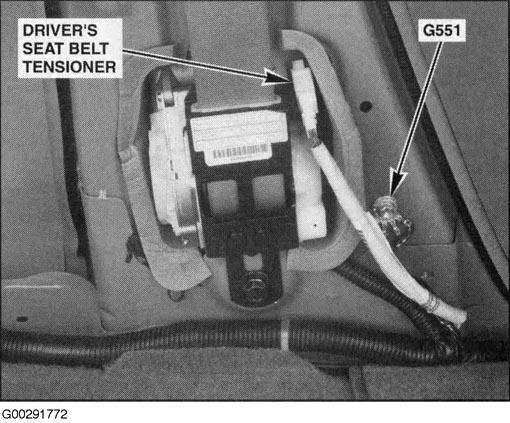

Fig 76: Left "B" Pillar

G00291772

Courtesy of AMERICAN HONDA MOTOR CO., INC.

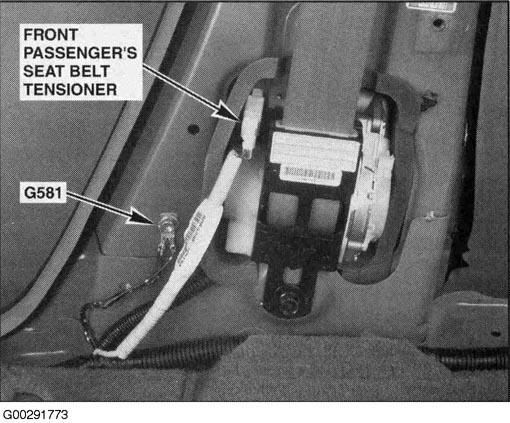

Fig 77: Right "B" Pillar

G00291773

Courtesy of AMERICAN HONDA MOTOR CO., INC.

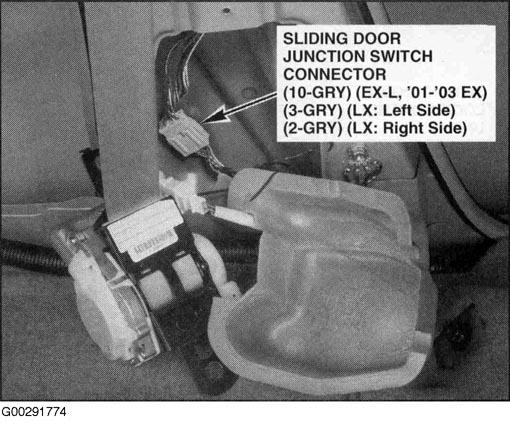

Fig 78: In Left "B" Pillar (Right Similar)

G00291774

Courtesy of AMERICAN HONDA MOTOR CO., INC.

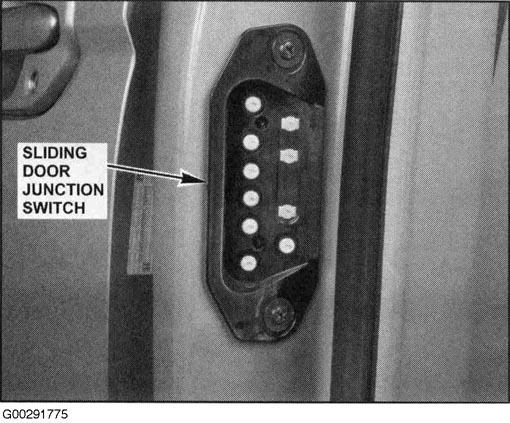

Fig 79: Left Sliding Door Striker (Right Similar)

G00291775

Courtesy of AMERICAN HONDA MOTOR CO., INC.

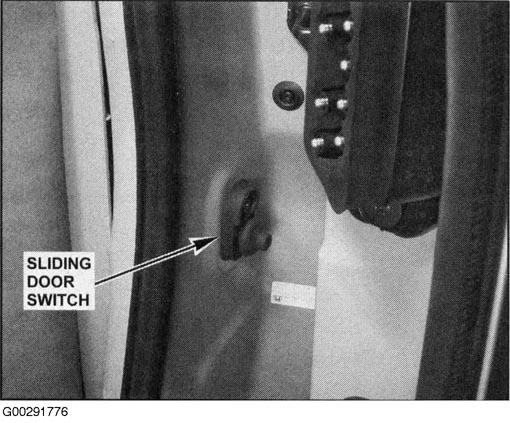

Fig 80: Near Left Sliding Door Striker (Right Similar)

G00291776

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Left Sliding Door

G00291777

Courtesy of AMERICAN HONDA MOTOR CO., INC.

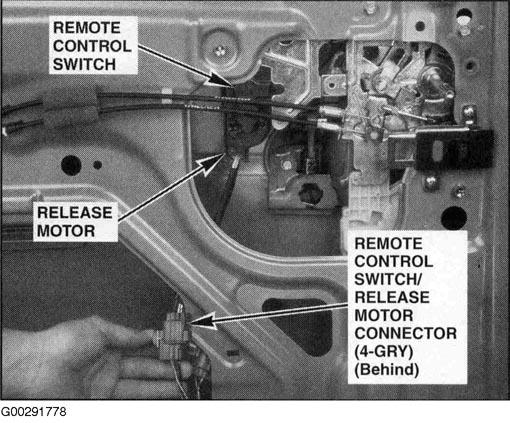

Fig 82: Left Sliding Door (Right Similar)

G00291778

Courtesy of AMERICAN HONDA MOTOR CO., INC.

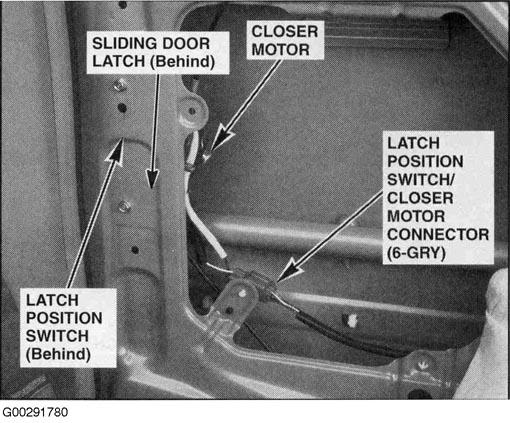

Fig 83: Left Sliding Door (Right Similar)

G00291780

Courtesy of AMERICAN HONDA MOTOR CO., INC.

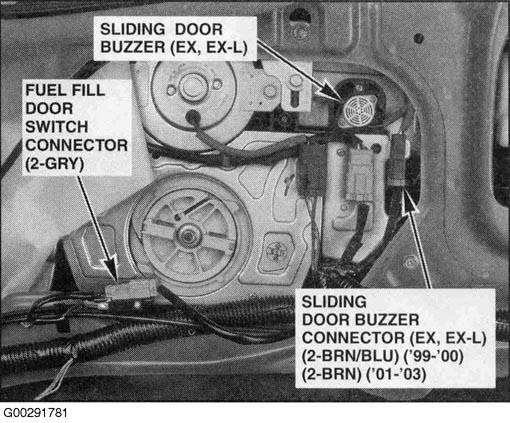

Fig 84: Behind Left Rear Side Trim Panel

G00291781

Courtesy of AMERICAN HONDA MOTOR CO., INC.

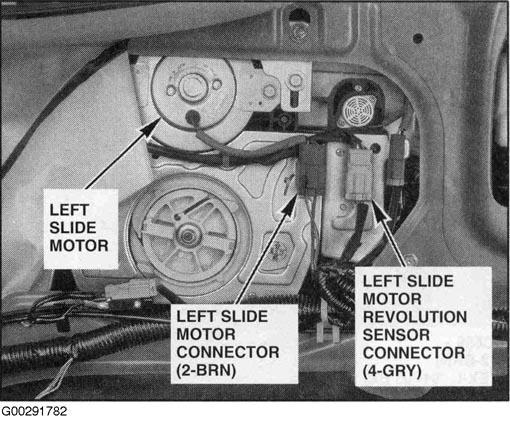

Fig 85: Behind Left Rear Side Trim Panel (EX, EX-L)

G00291782

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Behind Left Rear Side Trim Panel (Right Similar) (EX, EX-L)

G00291783

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: Behind Left Rear Side Trim Panel

G00291784

Courtesy of AMERICAN HONDA MOTOR CO., INC.

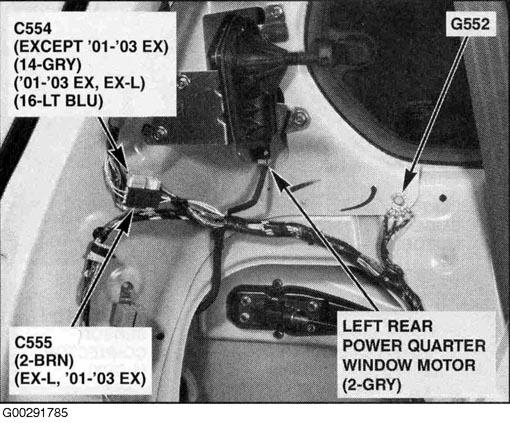

Fig 88: Behind Left Rear Side Trim Panel

G00291785

Courtesy of AMERICAN HONDA MOTOR CO., INC.

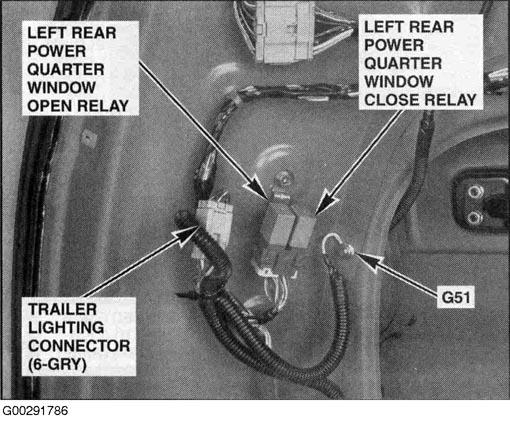

Fig 89: Upper Left Side Of Cargo Area

G00291786

Courtesy of AMERICAN HONDA MOTOR CO., INC.

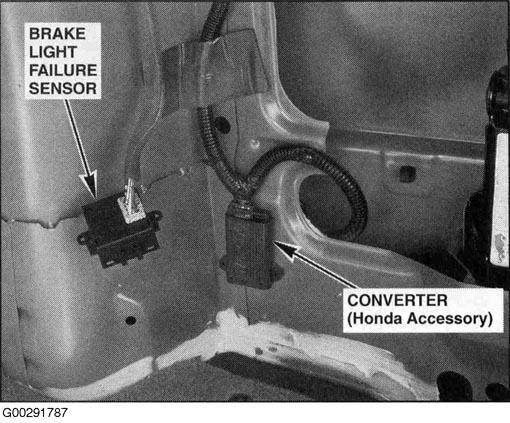

Fig 90: Left Rear Of Cargo Area

G00291787

Courtesy of AMERICAN HONDA MOTOR CO., INC.

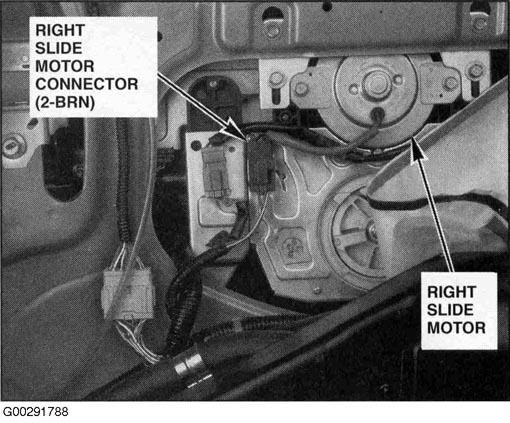

Fig 91: Behind Right Rear Side Trim Panel (EX, EX-L)

G00291788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

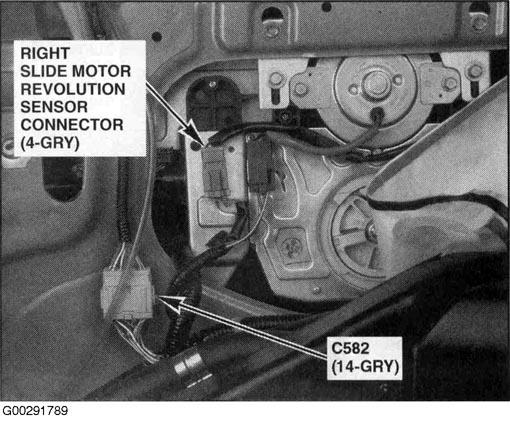

Fig 92: Behind Right Rear Side Trim Panel (EX, EX-L)

G00291789

Courtesy of AMERICAN HONDA MOTOR CO., INC.

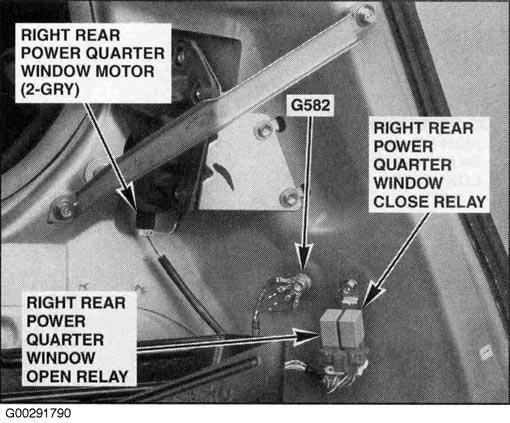

Fig 93: Behind Right Rear Side Trim Panel (Left Similar)

G00291790

Courtesy of AMERICAN HONDA MOTOR CO., INC.

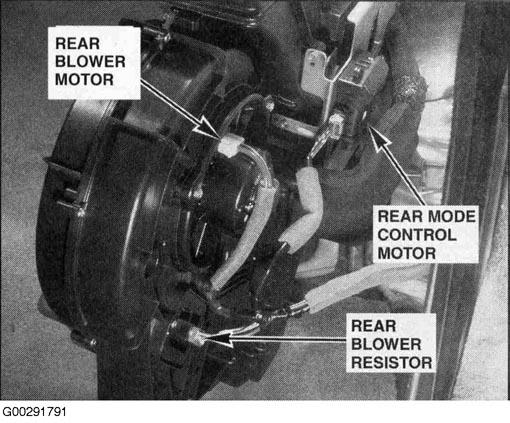

Fig 94: Back Side Of Rear Blower Unit

G00291791

Courtesy of AMERICAN HONDA MOTOR CO., INC.

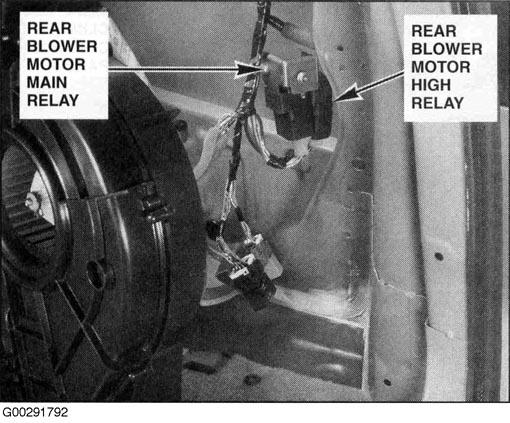

Fig 95: Behind Rear Blower Unit

G00291792

Courtesy of AMERICAN HONDA MOTOR CO., INC.

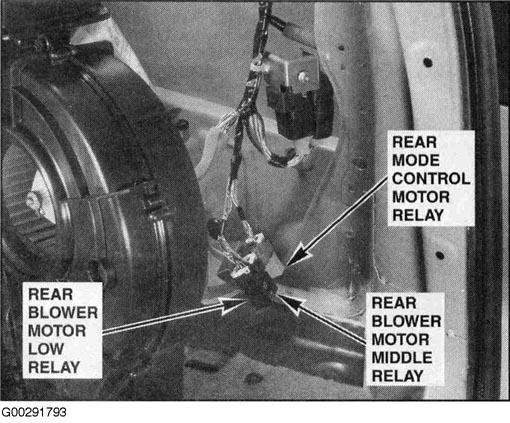

Fig 96: Behind Rear Blower Unit

G00291793

Courtesy of AMERICAN HONDA MOTOR CO., INC.

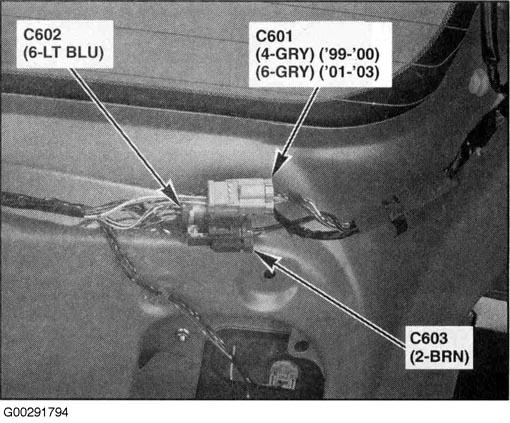

Fig 97: Behind Tailgate Trim Panel

G00291794

Courtesy of AMERICAN HONDA MOTOR CO., INC.

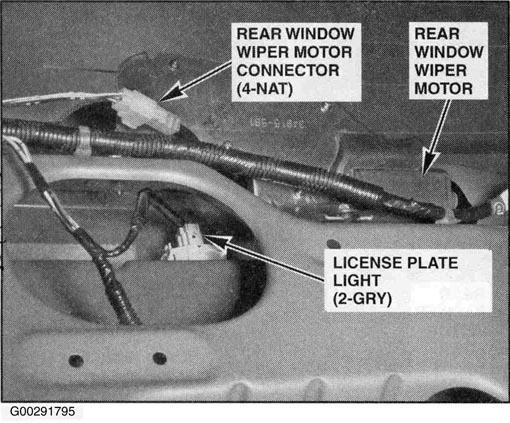

Fig 98: Behind Tailgate Trim Panel

G00291795

Courtesy of AMERICAN HONDA MOTOR CO., INC.

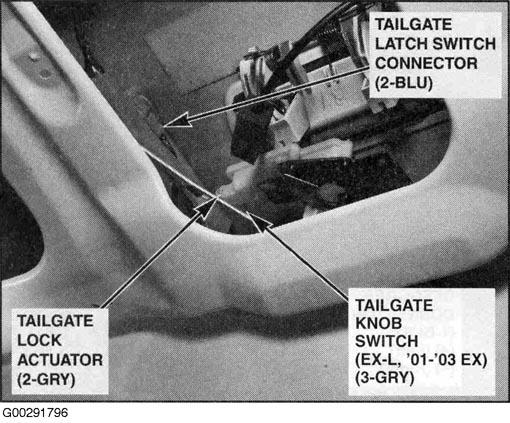

Fig 99: Behind Tailgate Trim Panel

G00291796

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Under Front Passenger's Seat

G00291797

Courtesy of AMERICAN HONDA MOTOR CO., INC.

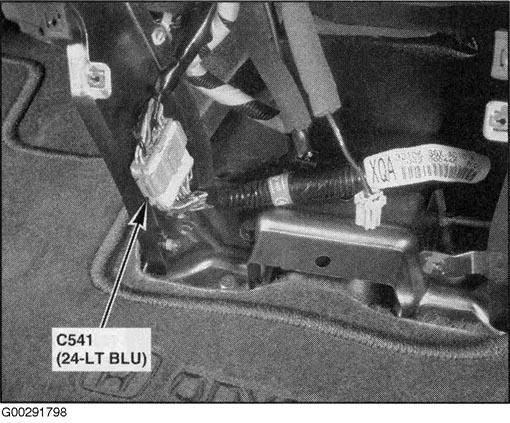

Fig 101: Behind Center Console Lower Pocket (W/Navigation)

G00291798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

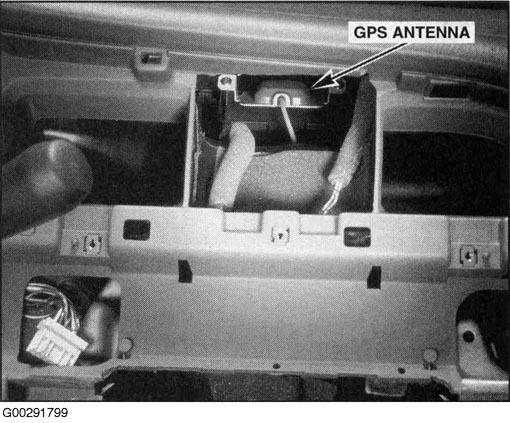

Fig 102: Center Of Dash (Panel Removed) (W/Navigation)

G00291799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

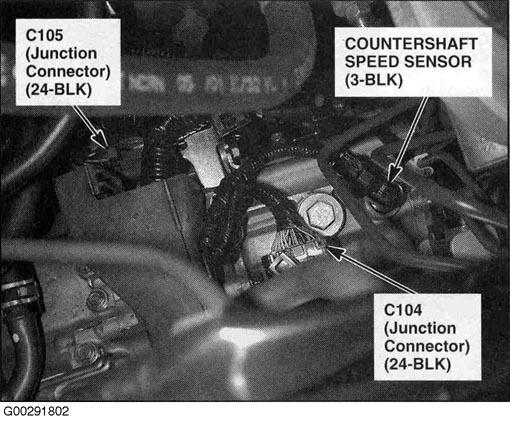

Fig 103: Lower Left Rear Of Engine Compartment

G00291802

Courtesy of AMERICAN HONDA MOTOR CO., INC.

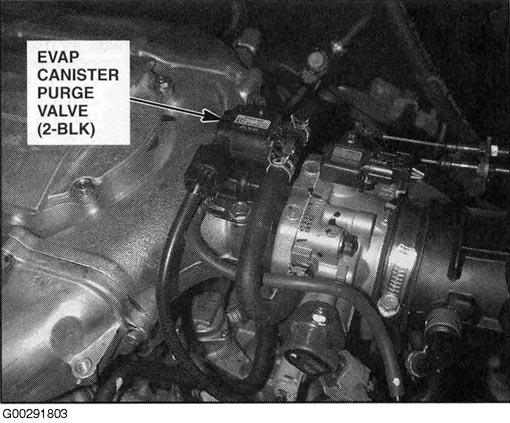

Fig 104: Top Of Engine

G00291803

Courtesy of AMERICAN HONDA MOTOR CO., INC.

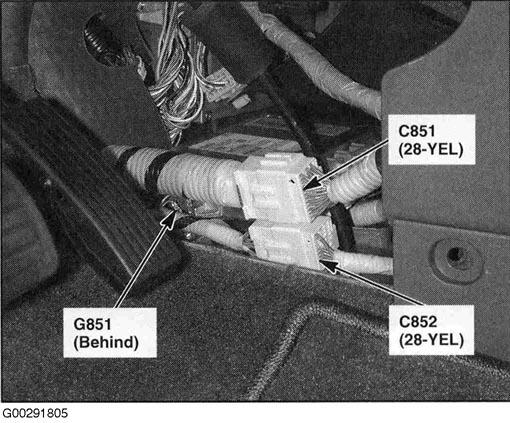

Fig 105: Under Middle Of Dash

G00291805

Courtesy of AMERICAN HONDA MOTOR CO., INC.

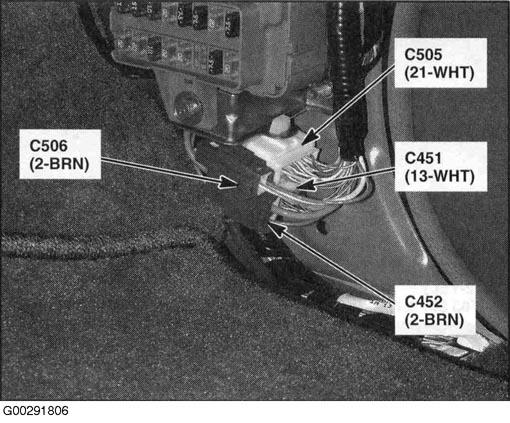

Fig 106: Behind Right Kick Panel

G00291806

Courtesy of AMERICAN HONDA MOTOR CO., INC.

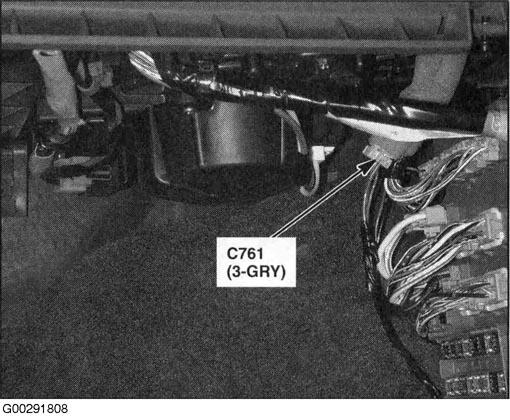

Fig 107: Under Right Side Of Dash

G00291808

Courtesy of AMERICAN HONDA MOTOR CO., INC.

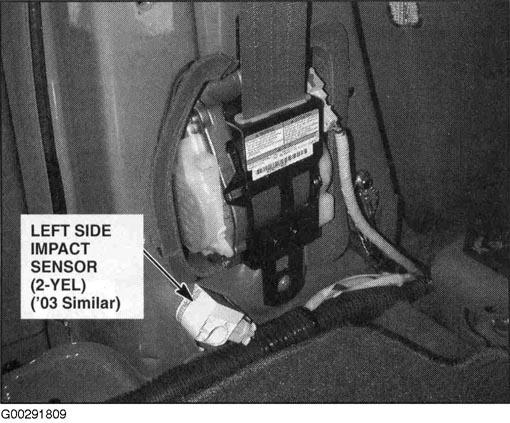

Fig 108: Behind Left "B" Pillar (Right Similar)

G00291809

Courtesy of AMERICAN HONDA MOTOR CO., INC.

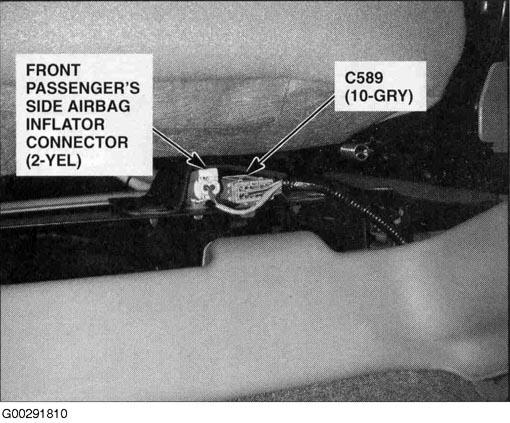

Fig 109: Under Front Passenger's Seat (EX, EX-L Except Navigation)

G00291810

Courtesy of AMERICAN HONDA MOTOR CO., INC.

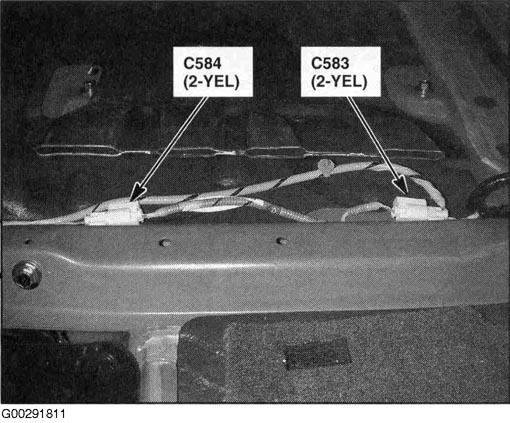

Fig 110: Under Passenger's Seat (Carpet Removed)

G00291811

Courtesy of AMERICAN HONDA MOTOR CO., INC.

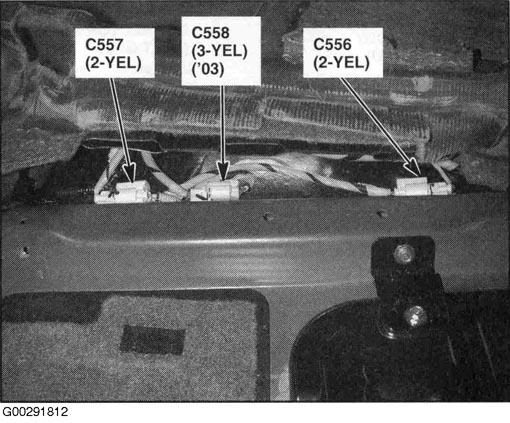

Fig 111: Under Driver's Seat (Carpet Removed)

G00291812

Courtesy of AMERICAN HONDA MOTOR CO., INC.

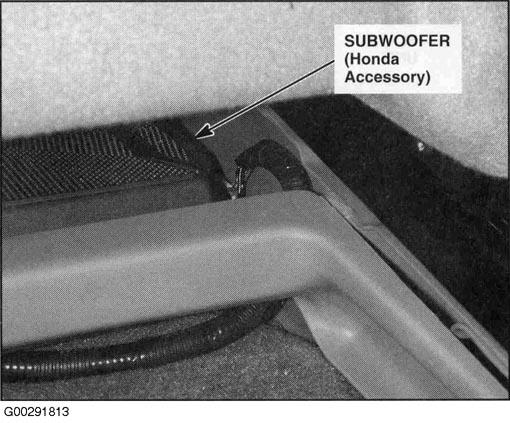

Fig 112: Under Driver's Seat

G00291813

Courtesy of AMERICAN HONDA MOTOR CO., INC.

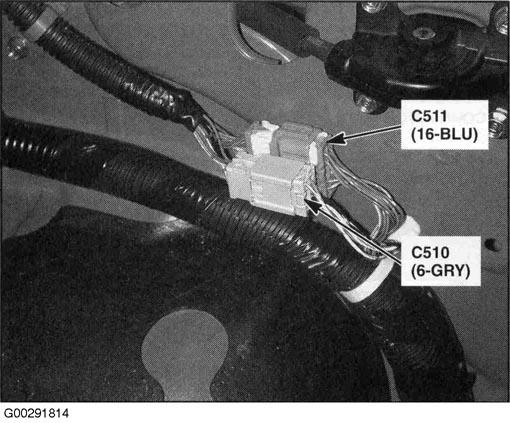

Fig 113: Behind Left Rear Side Trim Panel (W/Rear Entertainment)

G00291814

Courtesy of AMERICAN HONDA MOTOR CO., INC.

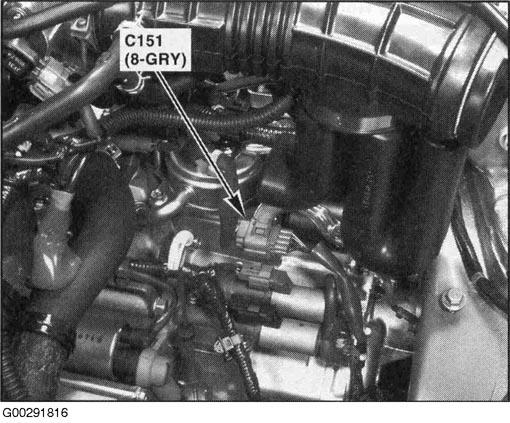

Fig 114: Rear Of Engine

G00291816

Courtesy of AMERICAN HONDA MOTOR CO., INC.

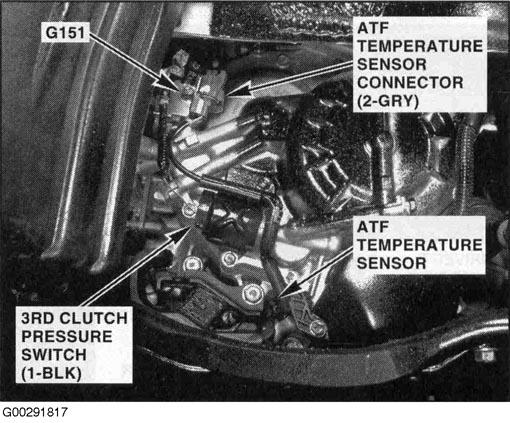

Fig 115: Left End Of Transmission

G00291817

Courtesy of AMERICAN HONDA MOTOR CO., INC.

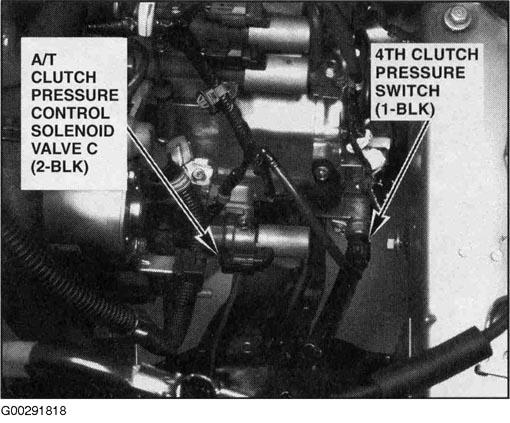

Fig 116: Left Front Of Transmission

G00291818

Courtesy of AMERICAN HONDA MOTOR CO., INC.

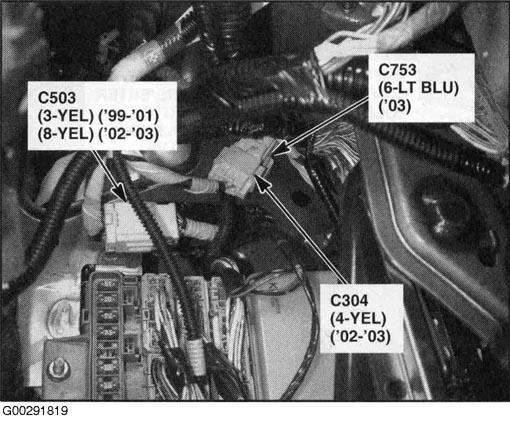

Fig 117: Behind Left Side Of Dash

G00291819

Courtesy of AMERICAN HONDA MOTOR CO., INC.

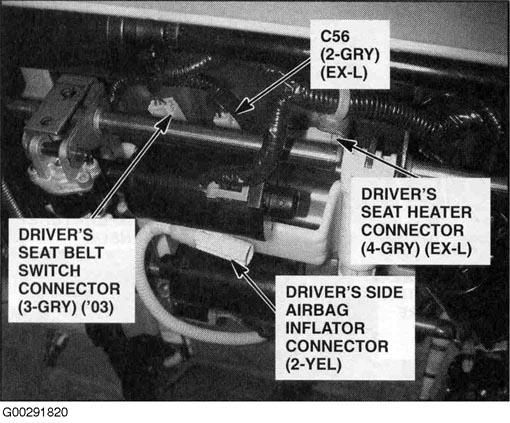

Fig 118: Under Driver's Seat

G00291820

Courtesy of AMERICAN HONDA MOTOR CO., INC.

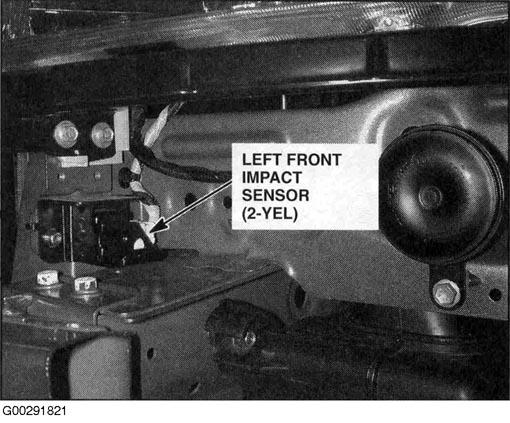

Fig 119: Behind Left Side Of Front Bumper

G00291821

Courtesy of AMERICAN HONDA MOTOR CO., INC.

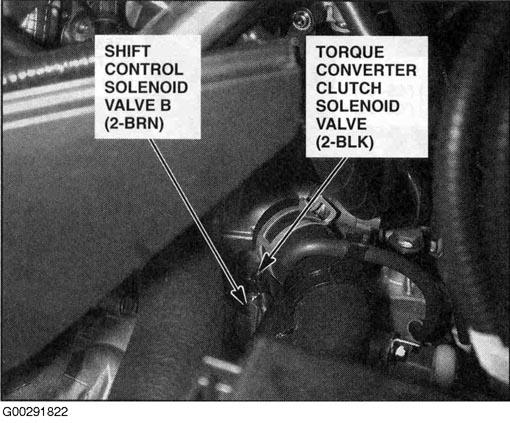

Fig 120: Top Of Transmission

G00291822

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 121: Inside Front Passenger's Seat

G00291823

Courtesy of AMERICAN HONDA MOTOR CO., INC.

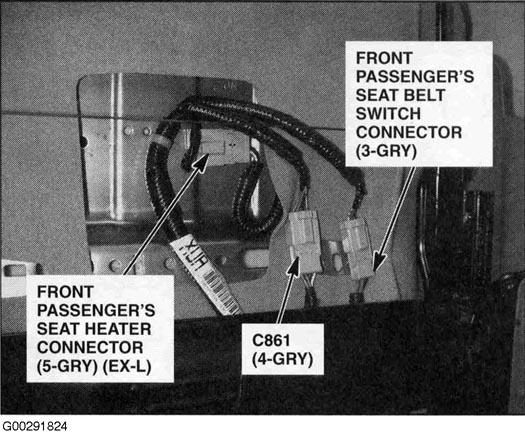

Fig 122: Under Front Passenger's Seat (EX, EX-L Except Navigation)

G00291824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

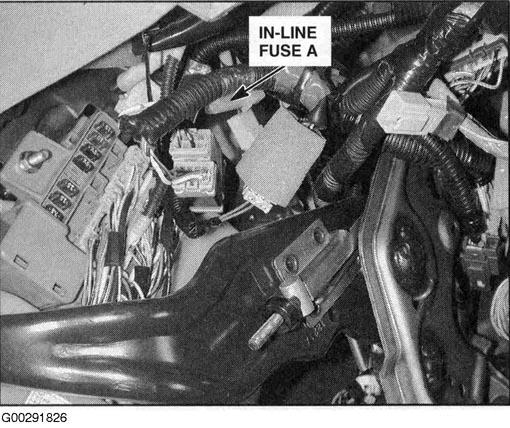

Fig 123: Left Kick Panel (Honda Accessory)

G00291826

Courtesy of AMERICAN HONDA MOTOR CO., INC.

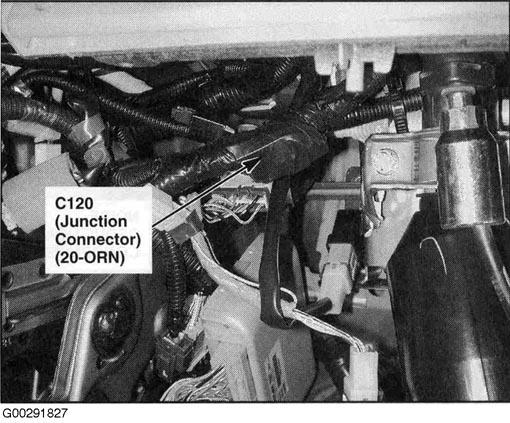

Fig 124: Left Side Of Steering Column (Honda Accessory)

G00291827

Courtesy of AMERICAN HONDA MOTOR CO., INC.

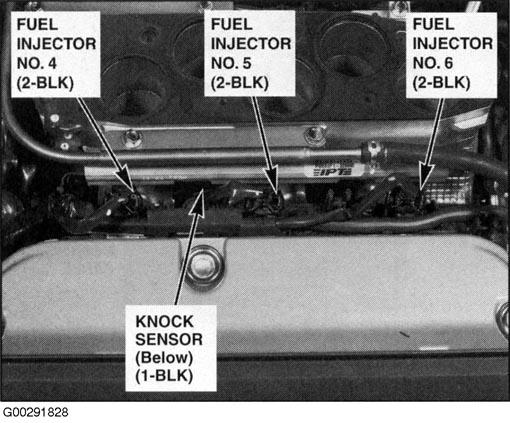

Fig 125: Middle Of Engine Compartment

G00291828

Courtesy of AMERICAN HONDA MOTOR CO., INC.

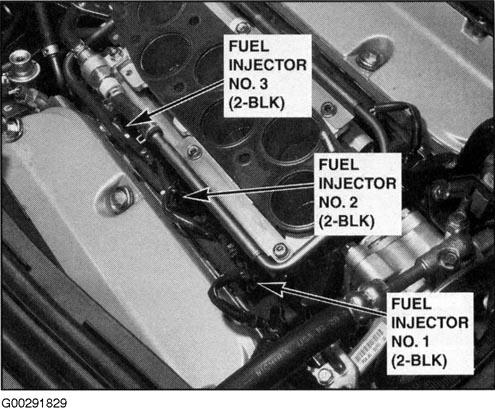

Fig 126: Middle Of Engine Compartment

G00291829

Courtesy of AMERICAN HONDA MOTOR CO., INC.

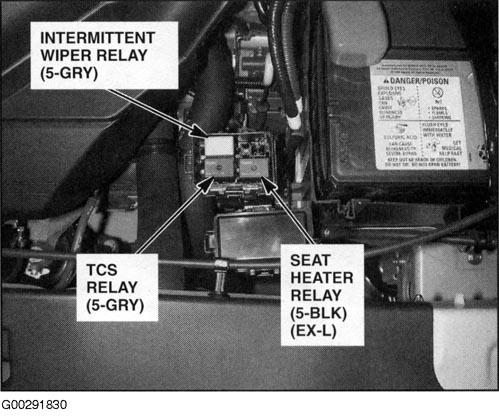

Fig 127: Left Front Of Engine Compartment

G00291830

Courtesy of AMERICAN HONDA MOTOR CO., INC.

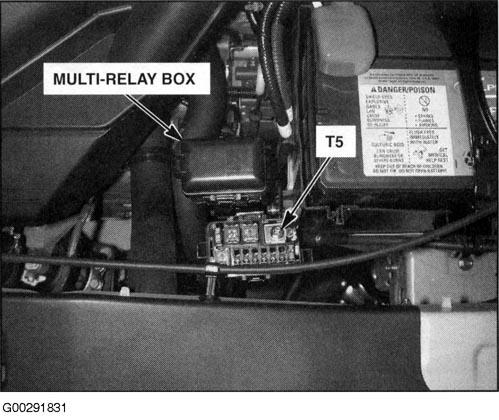

Fig 128: Left Front Of Engine Compartment

G00291831

Courtesy of AMERICAN HONDA MOTOR CO., INC.

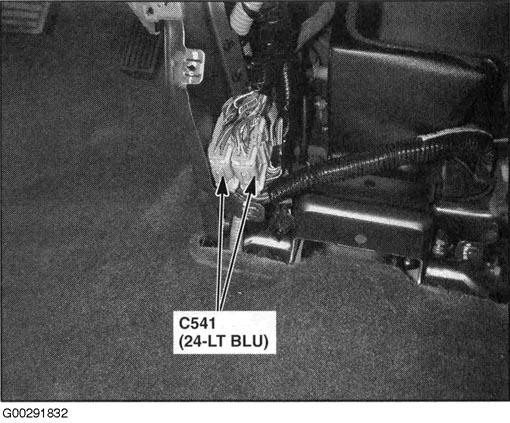

Fig 129: Behind Center Console Lower Pocket (Honda Accessory)

G00291832

Courtesy of AMERICAN HONDA MOTOR CO., INC.

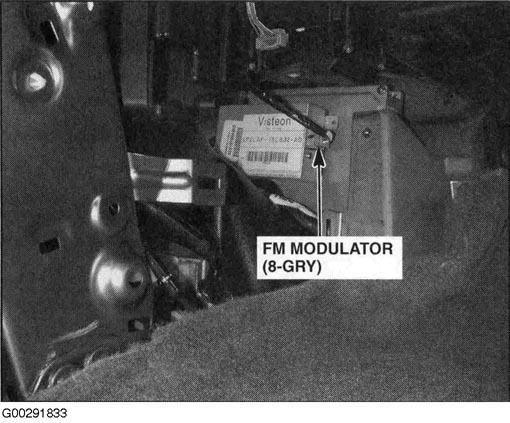

Fig 130: Below Center Of Dash (Honda Accessory)

G00291833

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Under Middle Of Dash

G00291834

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Driver's Door

G00291835

Courtesy of AMERICAN HONDA MOTOR CO., INC.

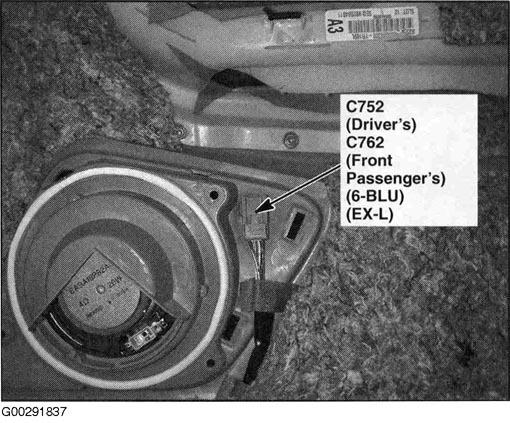

Fig 133: Driver's Door (Front Passenger's Similar)

G00291837

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Behind Left Rear Side Trim Panel (Honda Accessory)

G00291840

Courtesy of AMERICAN HONDA MOTOR CO., INC.

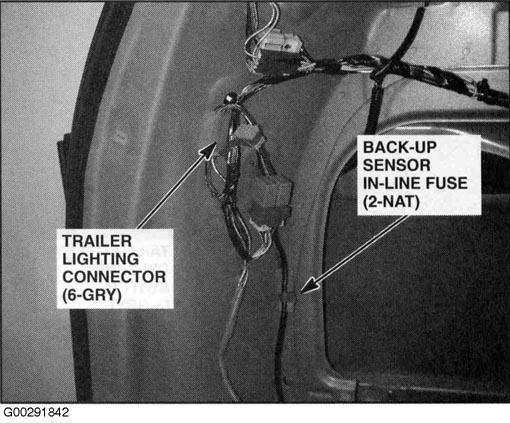

Fig 135: Behind Left Rear Side Trim Panel (Honda Accessory)

G00291842

Courtesy of AMERICAN HONDA MOTOR CO., INC.

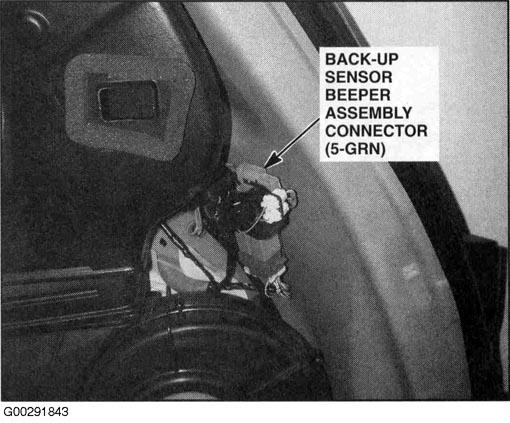

Fig 136: Behind Left Rear Side Trim Panel (Honda Accessory)

G00291843

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 137: Behind Right Rear Side Trim Panel (Honda Accessory)

G00291844

Courtesy of AMERICAN HONDA MOTOR CO., INC.

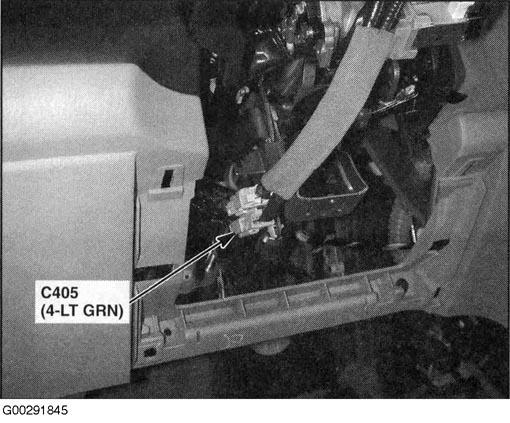

Fig 138: In Steering Column Cover

G00291845

Courtesy of AMERICAN HONDA MOTOR CO., INC.

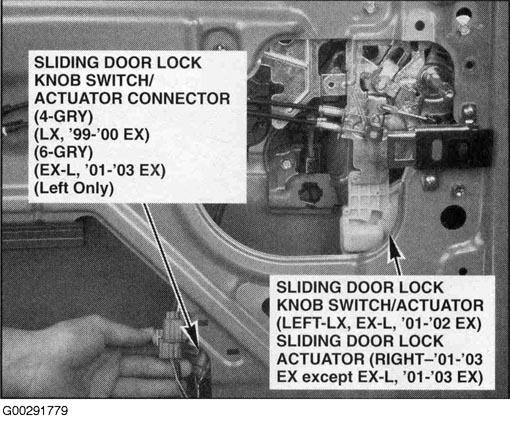

Fig 139: Left Sliding Door (Right Similar)

G00291779

Courtesy of AMERICAN HONDA MOTOR CO., INC.

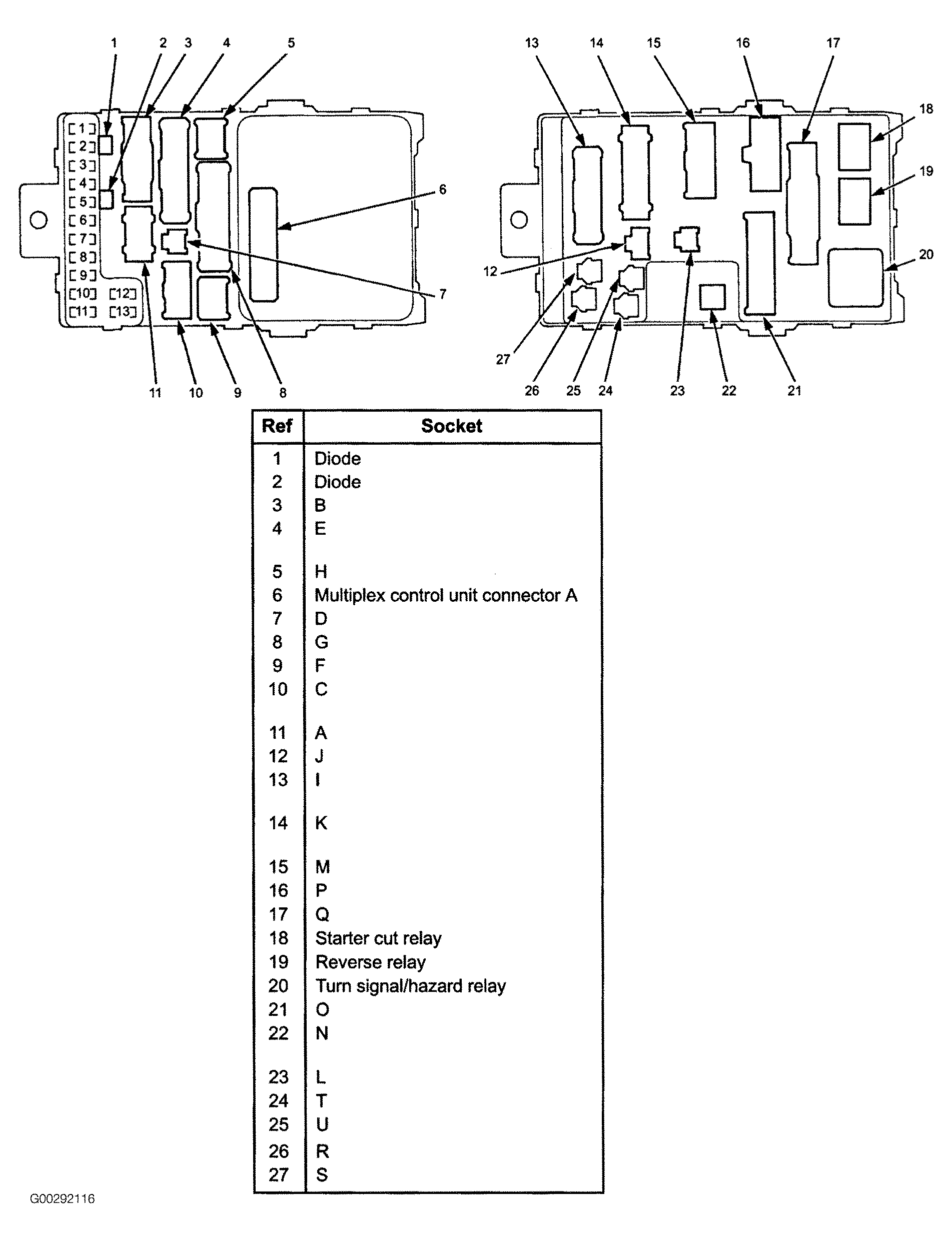

Fig 140: Driver's Underdash Fuse/Relay Box

G00292116

Courtesy of AMERICAN HONDA MOTOR CO., INC.

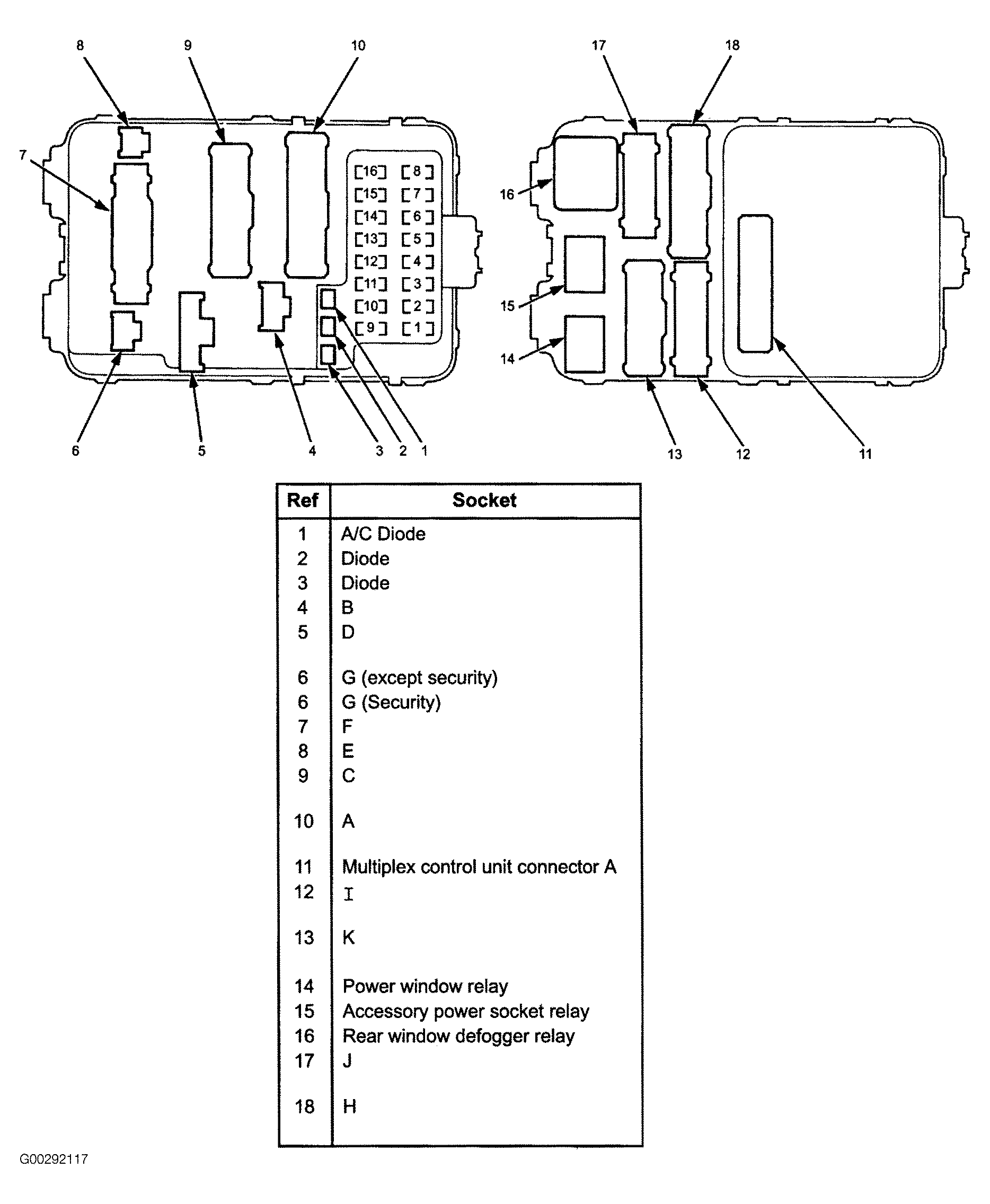

Fig 141: Passenger's Underdash Fuse/Relay Box

G00292117

Courtesy of AMERICAN HONDA MOTOR CO., INC.

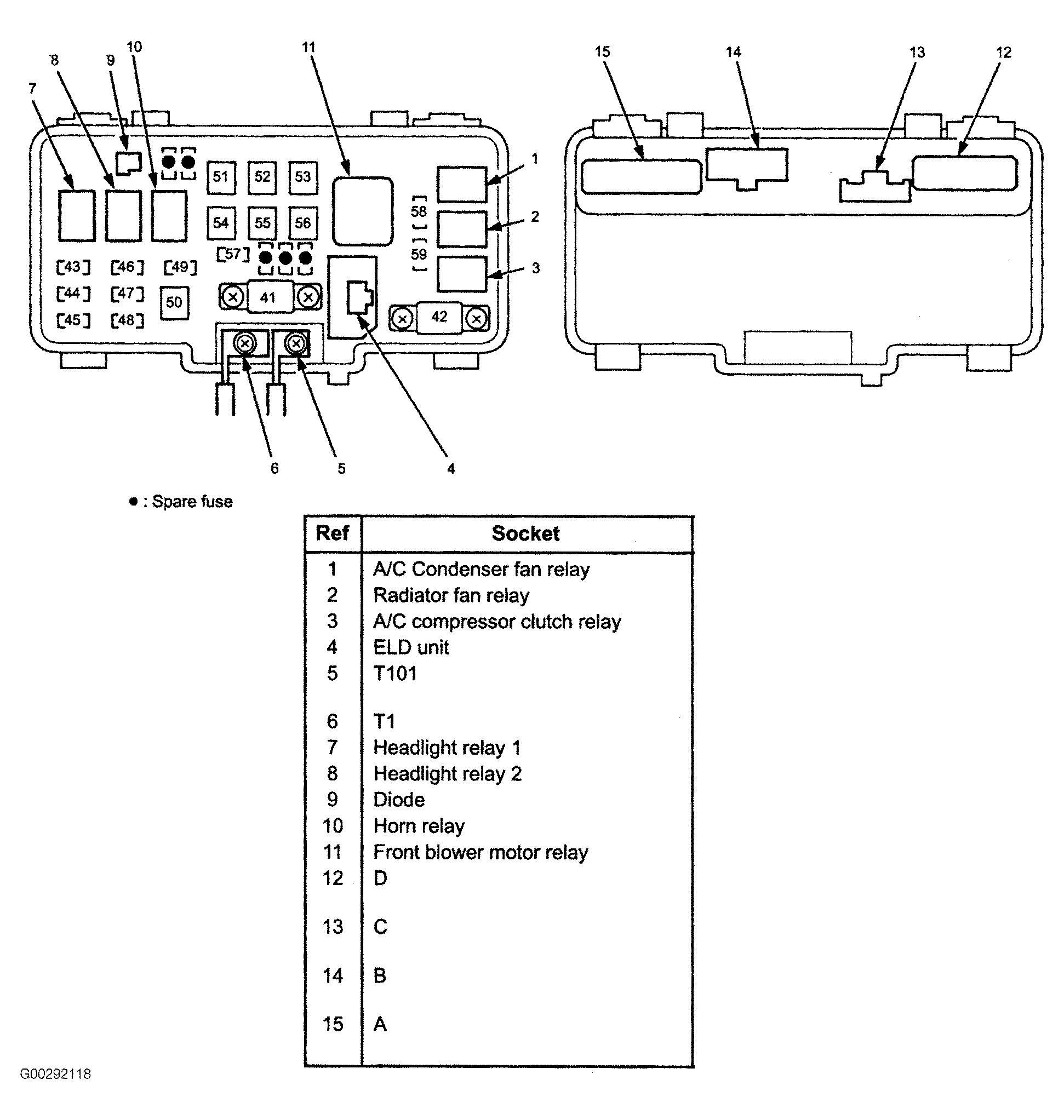

Fig 142: Underhood Fuse/Relay Box

G00292118

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 143: Identifying Exterior Lights Components

G01502967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

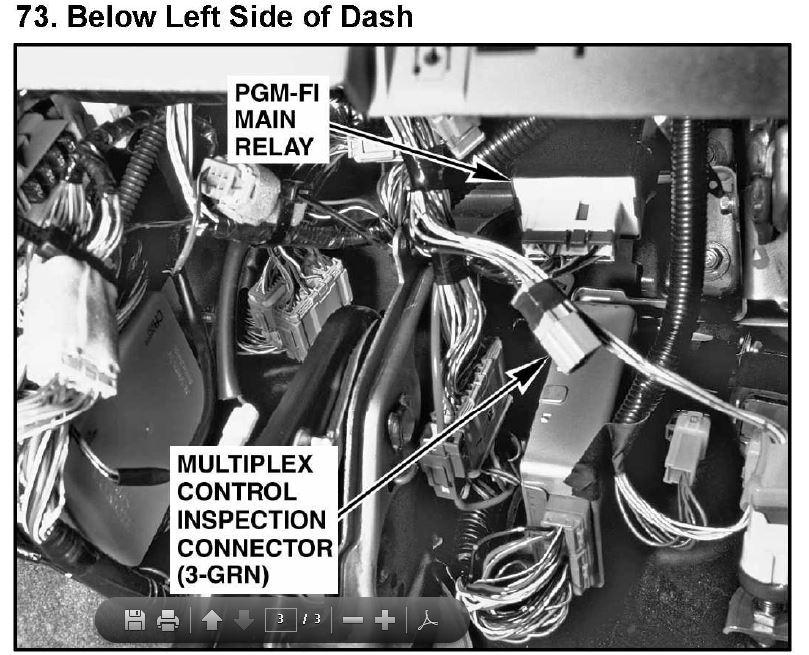

Fig 144: Below Left side of Dash

G00576846

Courtesy of AMERICAN HONDA MOTOR CO., INC.
