Knock Sensor Replacement

  1. Remove the intake manifold (see INTAKE MANIFOLD REMOVAL & INSTALLATION ).
  2. Disconnect the knock sensor connector, then remove the knock sensor (A).

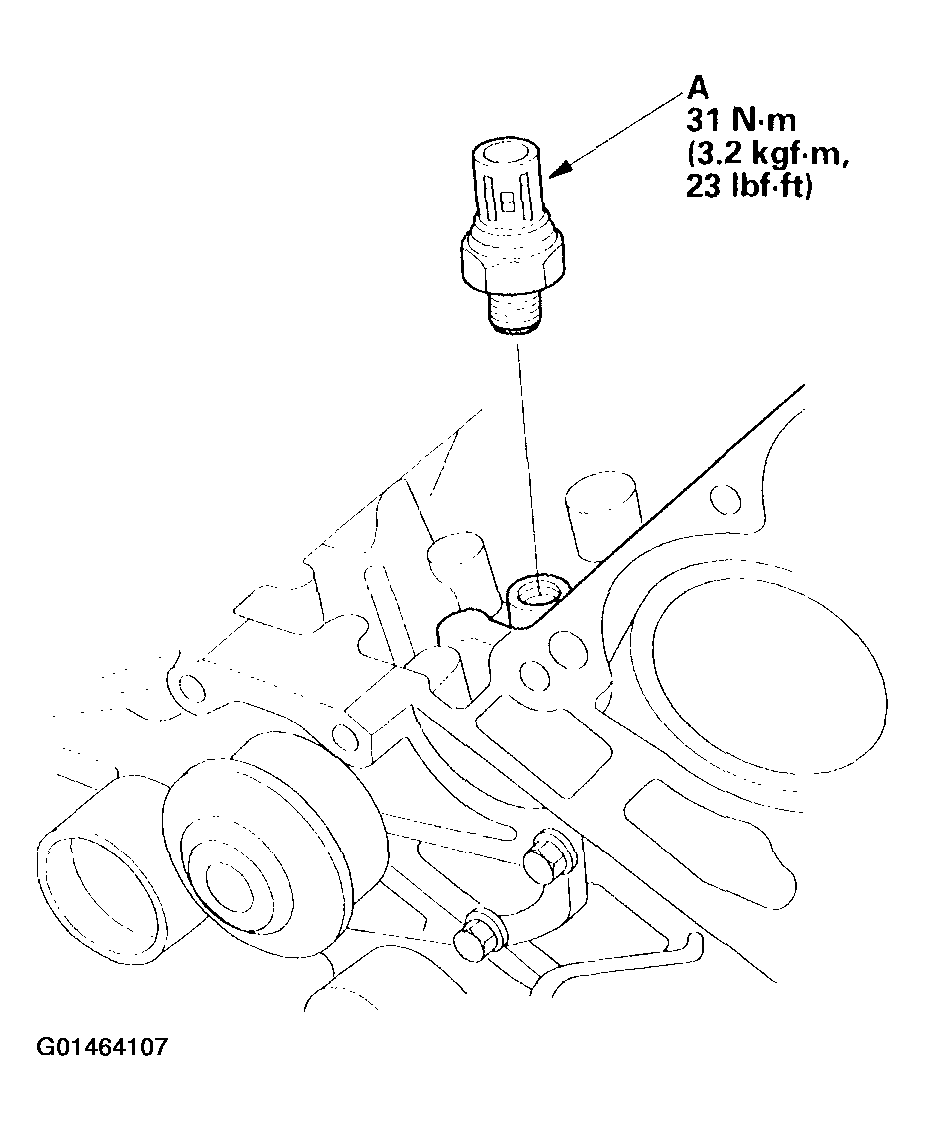

    Fig 1: Removing The Knock Sensor
    G01464107Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal.
