Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

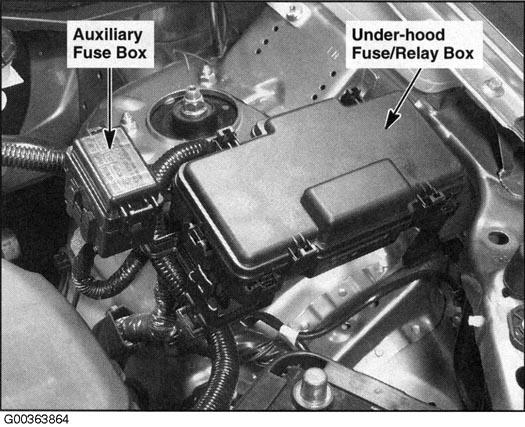

Auxiliary Fuse Box Left side of engine compartment. See Figure .
Security In-Line Fuse Under left side of dash. See Figure .
Under-Dash Fuse/Relay Box Behind left side of dash, right of steering column. See Figure .
Under-Hood Fuse/Relay Box On left side of engine compartment. See Figure .
