Home >> Honda >> 2005 >> CR-V EX, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter Overhaul >> Disassembly/Reassembly >> Notes

Starter Overhaul: Disassembly/Reassembly: Notes

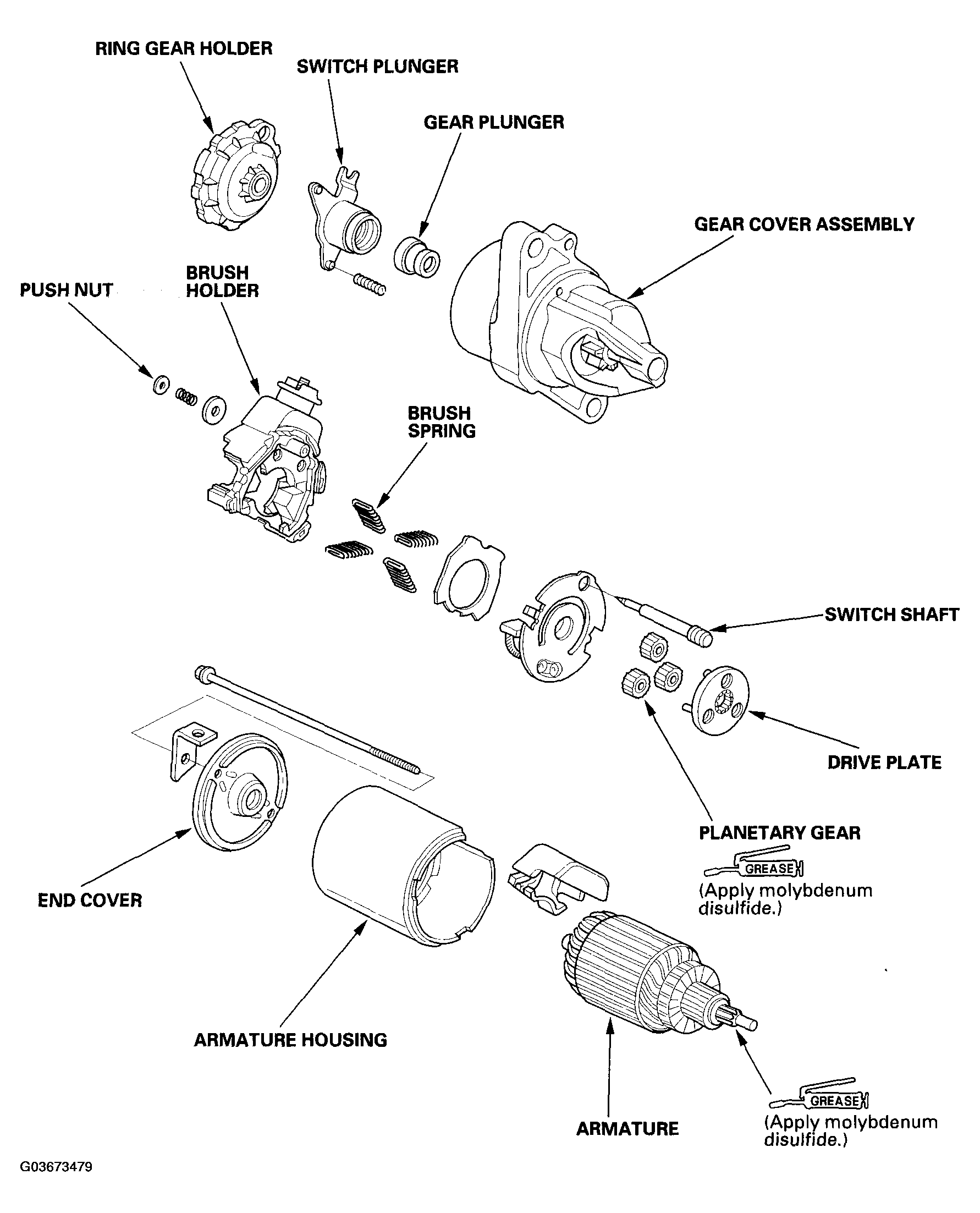

Fig 1: Disassembling/Reassembling Starter Overhaul

G03673479

Courtesy of AMERICAN HONDA MOTOR CO., INC.
