IMT Valve Position Sensor Replacement

  1. Remove the two screws (A) and the IMT position sensor (B).

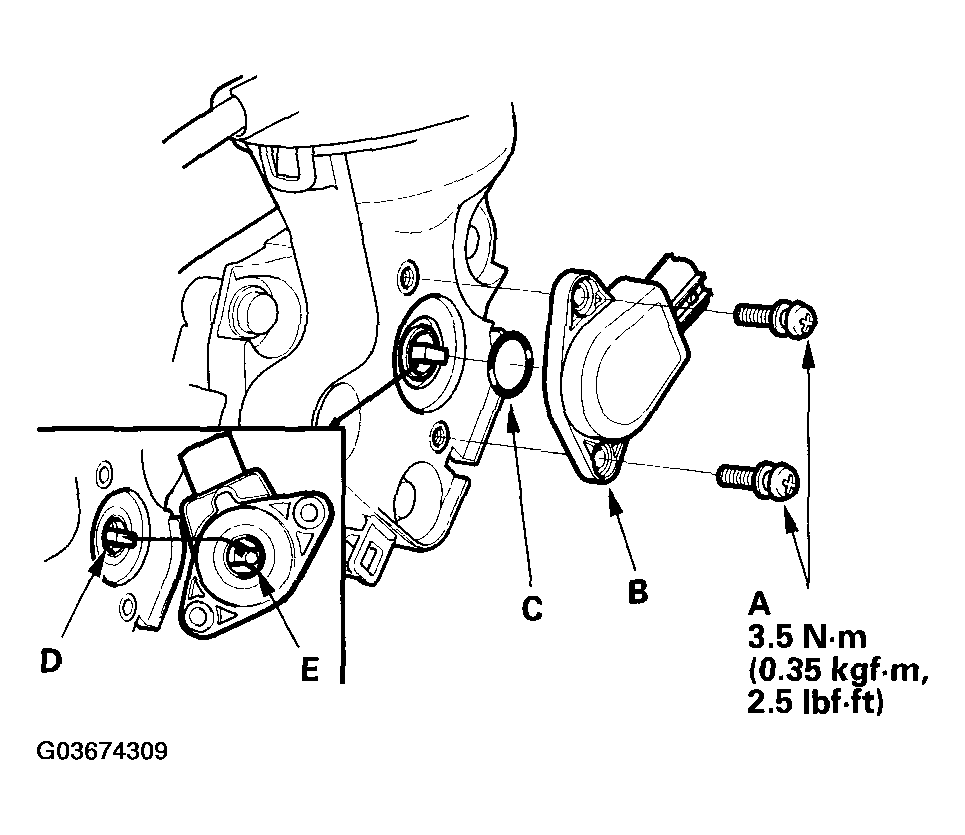

    Fig 1: Removing Two Screws And IMT Position Sensor With Torque Specifications
    G03674309Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor with a new O-ring (C), and make sure the projection (D) inside the IMT valve matches up with the groove (E) in the sensor.
