CKP Sensor Replacement

  1. Disconnect the CKP sensor 3P connector.
  2. Remove the CKP sensor (A).

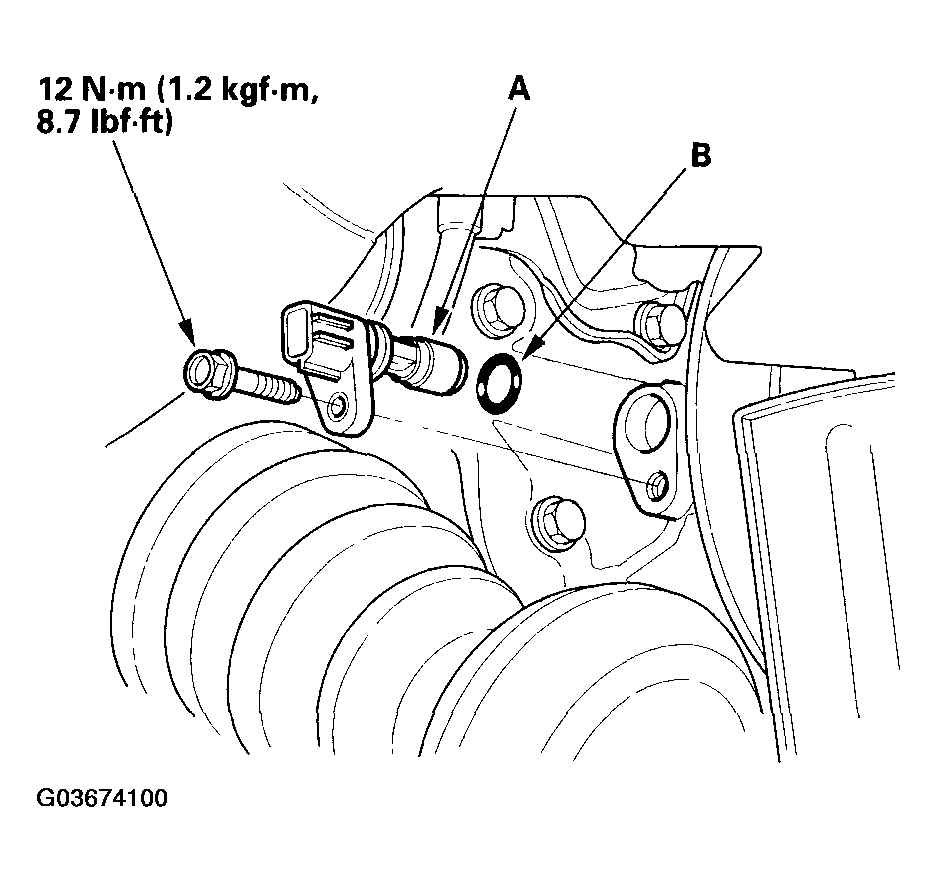

    Fig 1: Removing CKP Sensor With Torque Specifications
    G03674100Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal with a new O-ring (B).
  4. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
