Home >> Honda >> 2005 >> CR-V EX, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> PGM-FI System >> Knock Sensor Replacement

Knock Sensor Replacement

NOTE: Intake manifold removal may be necessary to gain access to component. Refer to INTAKE MANIFOLD REMOVAL AND INSTALLATION as needed.
  1. Remove the splash shield (see step 24 on ENGINE REMOVAL ).
  2. Disconnect the knock sensor 1P connector.
  3. Remove the knock sensor (A).

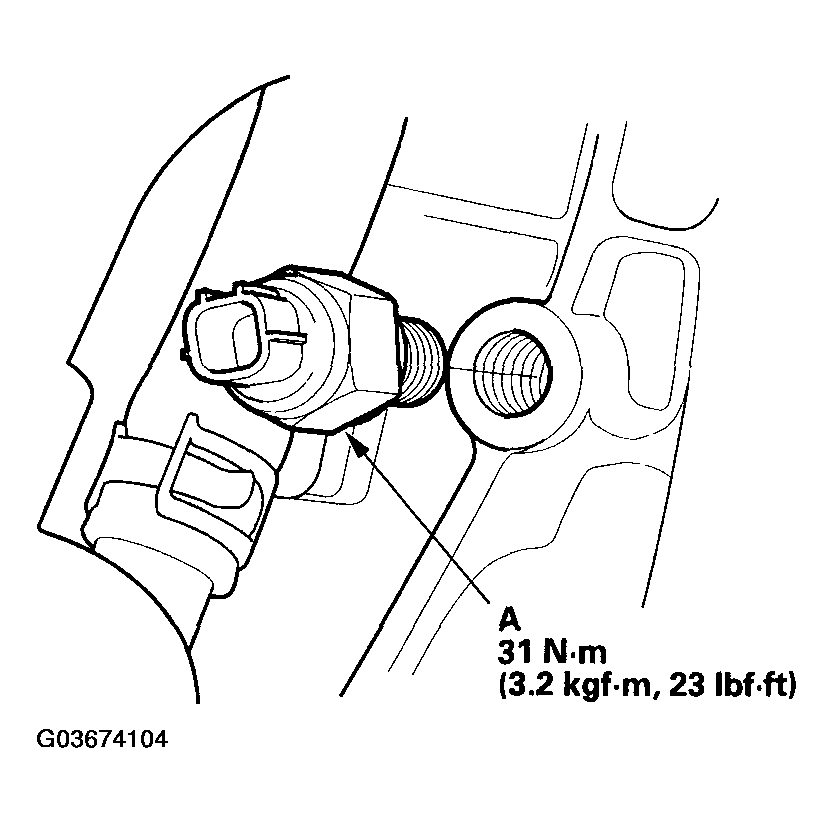

    Fig 1: Removing Knock Sensor With Torque Specifications
    G03674104Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the sensor in the reverse order of removal.
