Transfer Assembly: Inspection

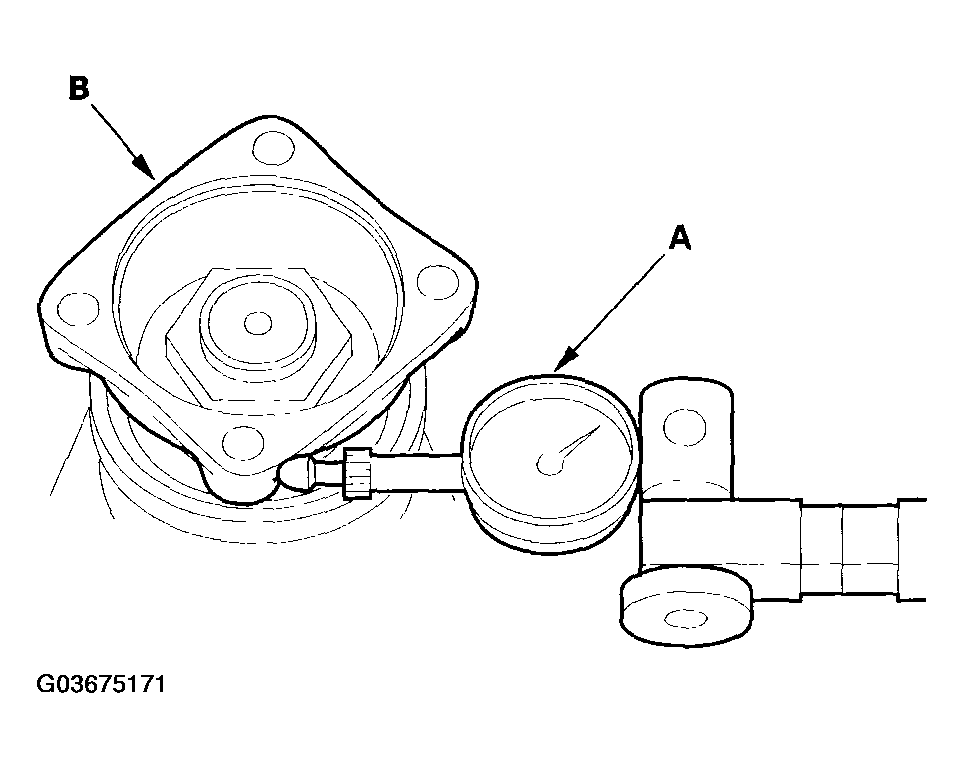

Set the dial indicator (A) on the companion flange (B).

Fig 1: Setting Dial Indicator On Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the transfer gear backlash.
Standard: 0.06-0.16 mm (0.02-0.06 in.)

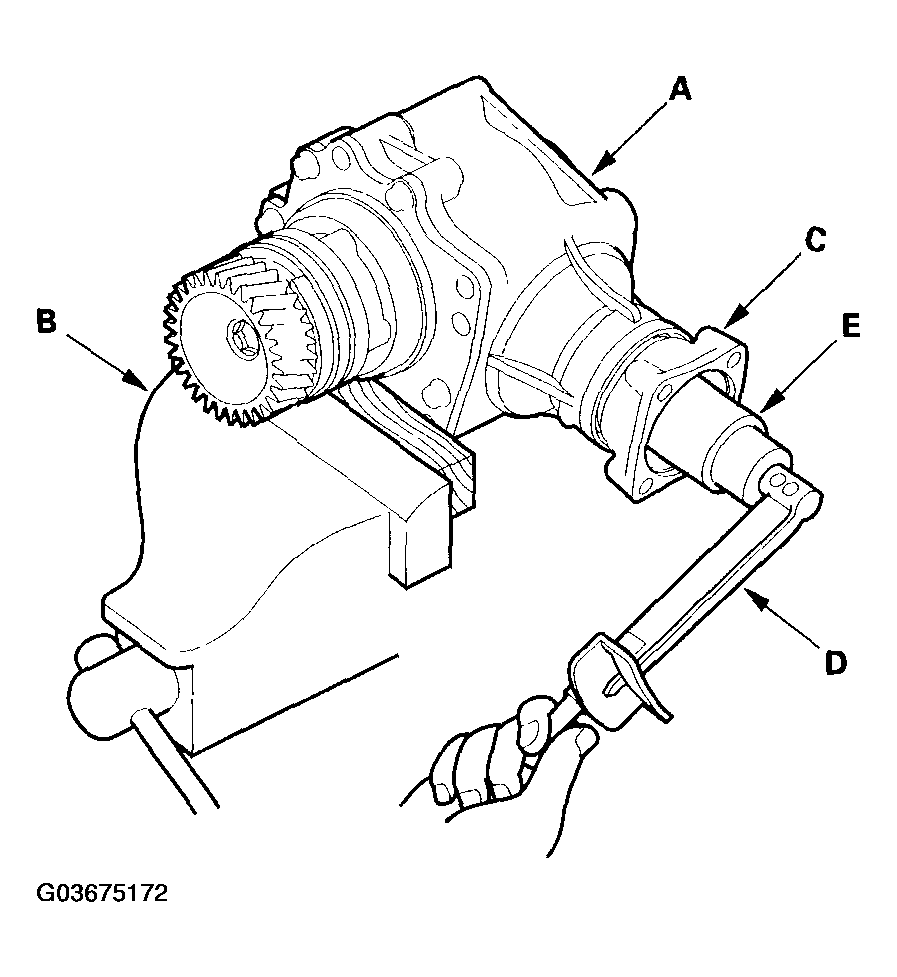

Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

Fig 2: Securing Transfer Housing In Bench Vise
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the companion flange several times to seat the tapered roller bearings.
Measure the starting torque at the companion flange (C) with a torque wrench (D) and a socket (E).
Standard: 2.75-4.22 N.m

(28.1-43.1 kgf.cm, 24.4-37.4 lbf.in.)
Remove the transfer assembly from the vise.

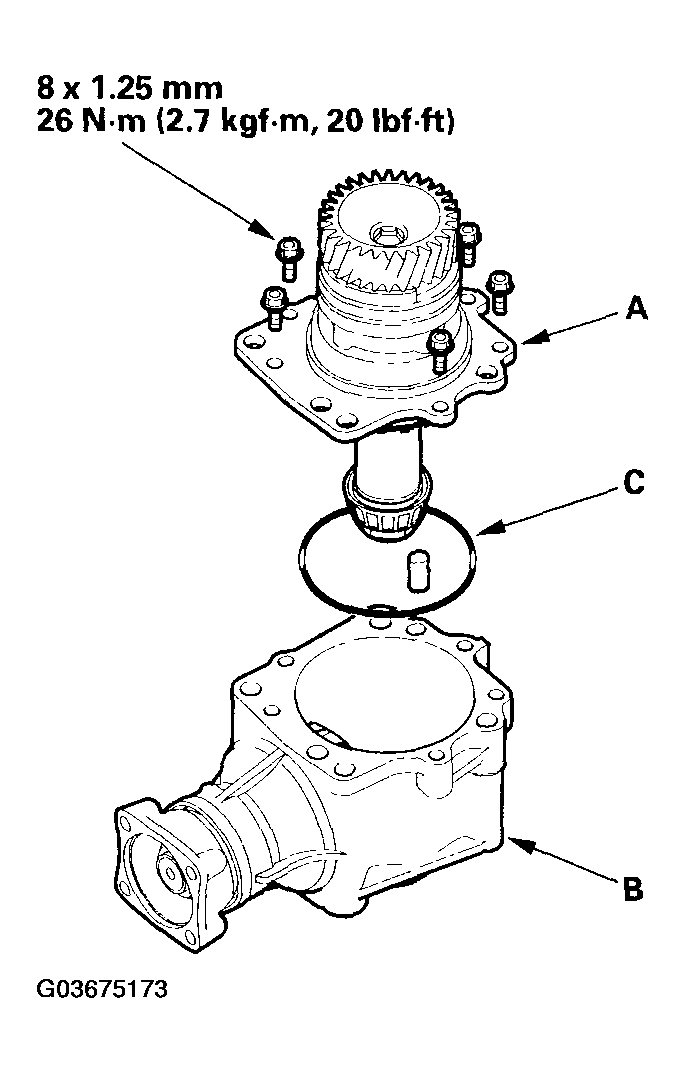

Remove the transfer holder (A) from the transfer housing (B), then remove the O-ring (C) from the transfer holder.

Fig 3: Removing Transfer Holder From Transfer Housing With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply Prussian Blue to both side of the transfer drive gear teeth lightly and evenly.
Install the transfer holder, and tighten the bolts. Do not install the O-ring on the transfer holder.
Rotate the companion flange in both directions until the transfer gears rotate one full turn in both directions.
Remove the transfer holder, and check the transfer drive gear tooth contact pattern. The pattern should be centered on the gear teeth as shown.

Fig 4: Inspecting Transfer Drive Gear Tooth Contact Pattern
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the measurements are out of standard or the tooth contact pattern are incorrect, disassemble the transfer assembly and repair.
