MICU-Rear Junction Box

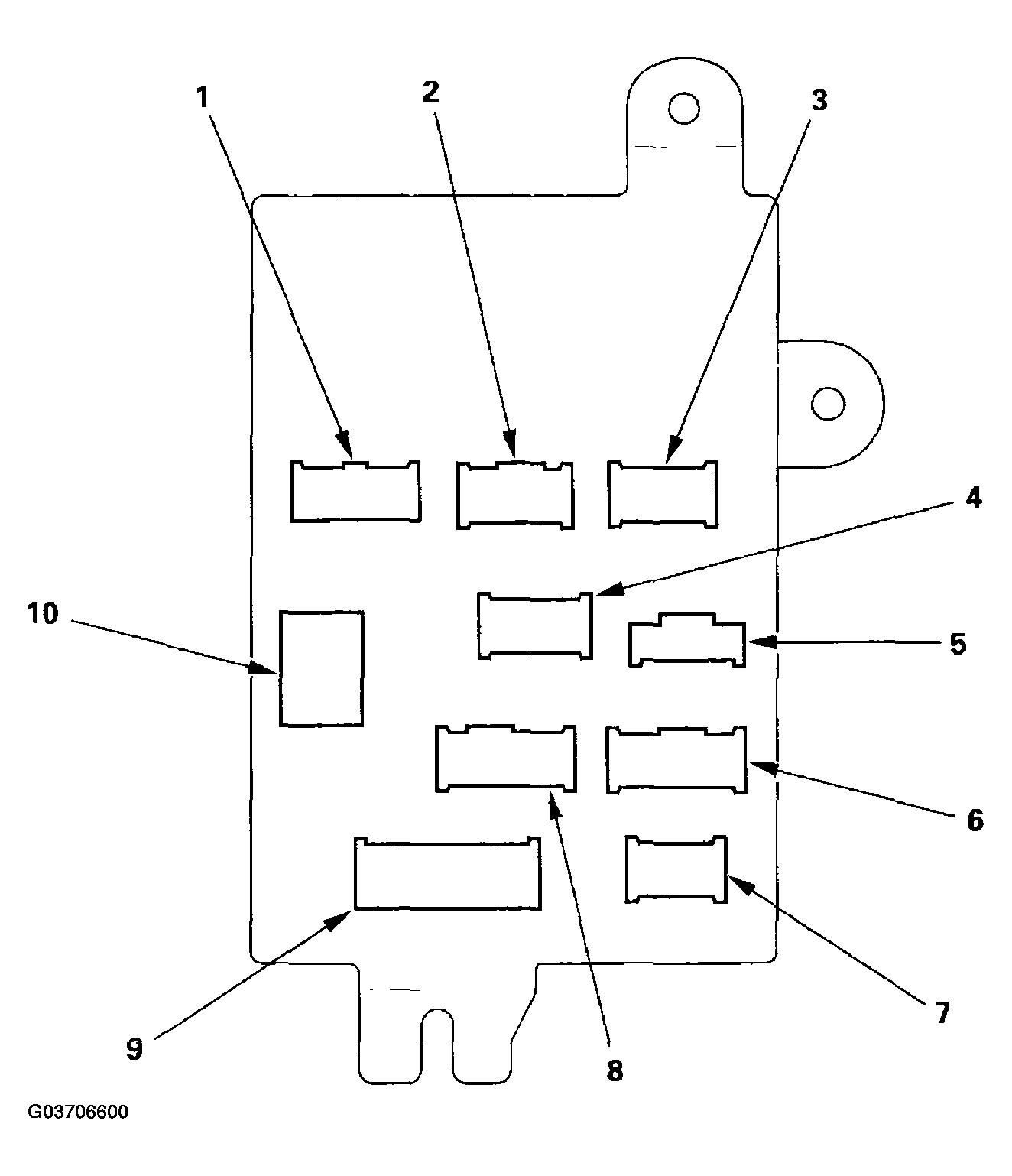

MICU-REAR JUNCTION BOX
| SOCKET | REF | Terminal | CONNECTION TO |
|---|---|---|---|
| A | 8 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT FRONT BRANCH) ) |
| B | 9 | 7 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT FRONT BRANCH) ) |
| C | 7 | 6 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT FRONT BRANCH) ) |
| D | 6 | 17 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT FRONT BRANCH) ) |
| E | 4 | 8 | Rear wire harness (see REAR WIRE HARNESS (RIGHT BRANCH) ) |
| F | 2 | 13 | Rear wire harness (see REAR WIRE HARNESS (RIGHT BRANCH) ) |
| G | 5 | 8 | Rear wire harness (see REAR WIRE HARNESS (RIGHT BRANCH) ) |
| H | 1 | 5 | Rear wire harness (see REAR WIRE HARNESS (RIGHT BRANCH) ) |
| J | 3 | 8 | Not used |
| Rear blower motor relay | 10 | 8 |
