Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Rear Of Engine Compartment

G00366257

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Rear Of Engine Compartment

G00366258

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Right Front Of Engine Compartment

G00366259

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Engine Compartment

G00366260

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Right Side Of Engine Compartment

G00366261

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Right Front Of Engine Compartment

G00366262

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Right Side Of Engine Compartment

G00366308

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Right Side Of Engine Compartment

G00366309

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Top Front Of Engine

G00366310

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Top Front Of Engine

G00366311

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Right Side Of Engine Compartment

G00366312

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Front Left Side Of Engine

G00366313

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Left Side Of Engine

G00366314

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Top Left Side Of Engine

G00366315

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Top Right Side Of Engine

G00366316

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Top Of Engine

G00366317

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Right Side Of Engine

G00366318

Courtesy of AMERICAN HONDA MOTOR CO., INC.

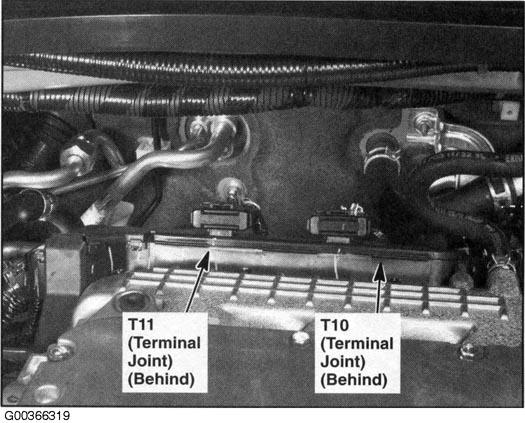

Fig 18: Right Side Of Engine

G00366319

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Right Side Of Engine

G00366320

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Front Of Engine Compartment

G00366321

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Top Rear Of Engine

G00366322

Courtesy of AMERICAN HONDA MOTOR CO., INC.

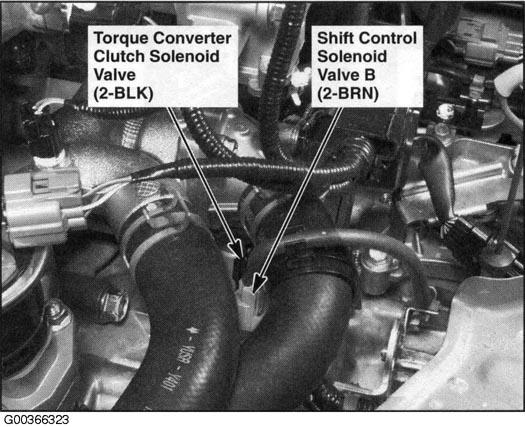

Fig 22: Top Of Transmission

G00366323

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Rear Of Engine

G00366324

Courtesy of AMERICAN HONDA MOTOR CO., INC.

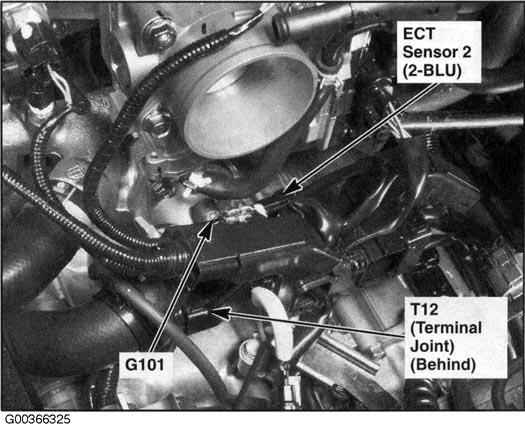

Fig 24: Rear Of Engine

G00366325

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Rear Of Engine

G00366326

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Left Rear Of Engine Compartment

G00366327

Courtesy of AMERICAN HONDA MOTOR CO., INC.

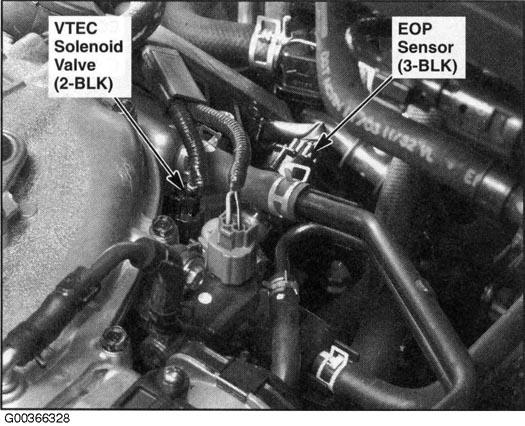

Fig 27: Right Rear Of Engine (EX-L, Touring)

G00366328

Courtesy of AMERICAN HONDA MOTOR CO., INC.

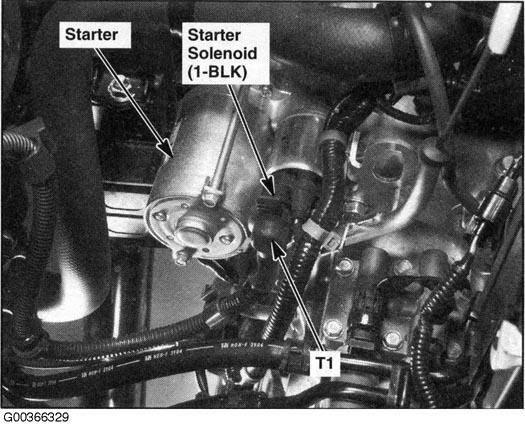

Fig 28: Left Rear Side Of Engine

G00366329

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Transmission Housing

G00366330

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Transmission Housing

G00366331

Courtesy of AMERICAN HONDA MOTOR CO., INC.

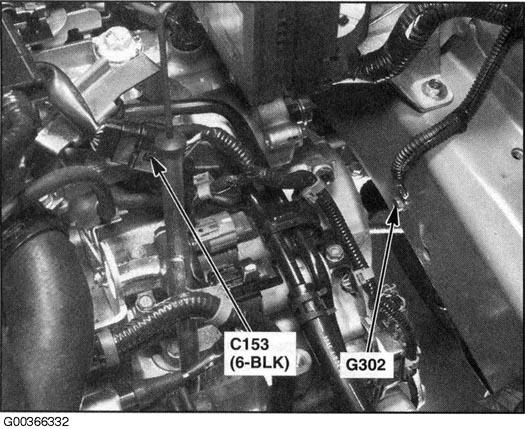

Fig 31: Transmission Housing

G00366332

Courtesy of AMERICAN HONDA MOTOR CO., INC.

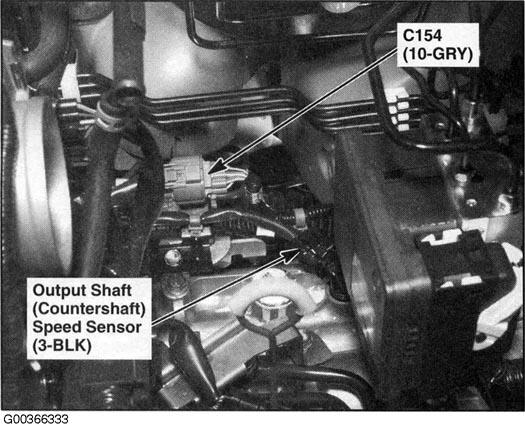

Fig 32: Transmission Housing

G00366333

Courtesy of AMERICAN HONDA MOTOR CO., INC.

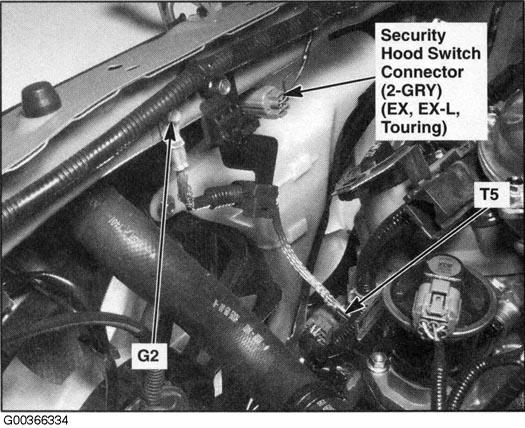

Fig 33: Left Side Of Engine Compartment

G00366334

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Left Front Of Engine Compartment

G00366335

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Left Front Of Engine Compartment

G00366336

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Behind Left Side Of Front Bumper (Right Similar)

G00366337

Courtesy of AMERICAN HONDA MOTOR CO., INC.

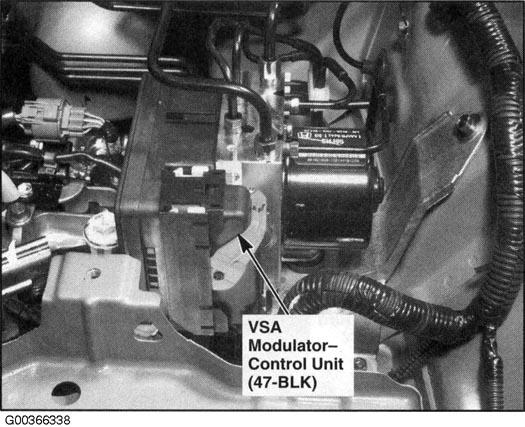

Fig 37: Left Side Of Engine Compartment

G00366338

Courtesy of AMERICAN HONDA MOTOR CO., INC.

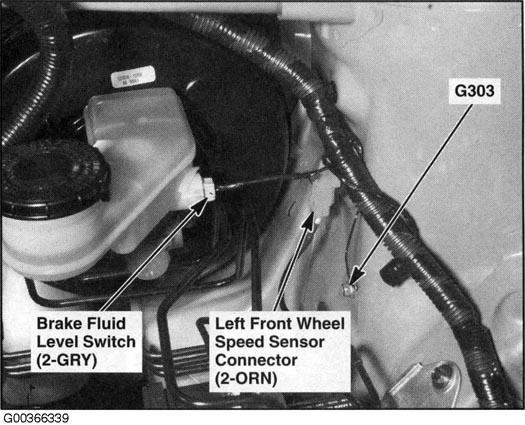

Fig 38: Left Rear Of Engine Compartment

G00366339

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Under Cowl Cover

G00366340

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Top Of Dash

G00366341

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Left Side Of Dash

G00366342

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Steering Column

G00366343

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Steering Column

G00366344

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Steering Column

G00366345

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Behind Left Side Of Dash

G00366346

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Under Left Side Of Dash

G00366347

Courtesy of AMERICAN HONDA MOTOR CO., INC.

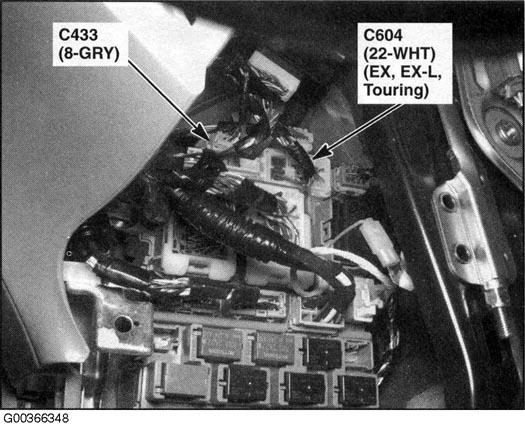

Fig 47: Under Left Side Of Dash

G00366348

Courtesy of AMERICAN HONDA MOTOR CO., INC.

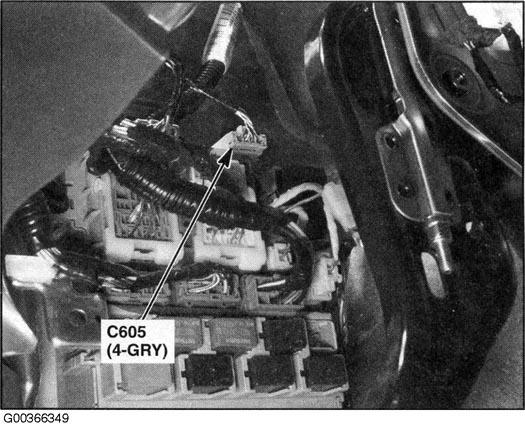

Fig 48: Under Left Side Of Dash (LX)

G00366349

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Under Left Side Of Dash (Touring)

G00366350

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Under Left Side Of Dash (Touring)

G00366351

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Under Left Side Of Dash

G00366352

Courtesy of AMERICAN HONDA MOTOR CO., INC.

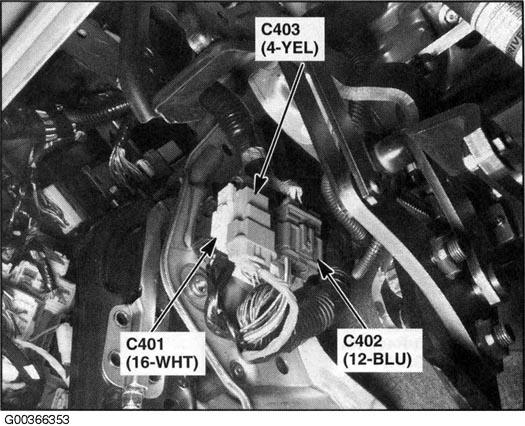

Fig 52: Under Left Side Of Dash

G00366353

Courtesy of AMERICAN HONDA MOTOR CO., INC.

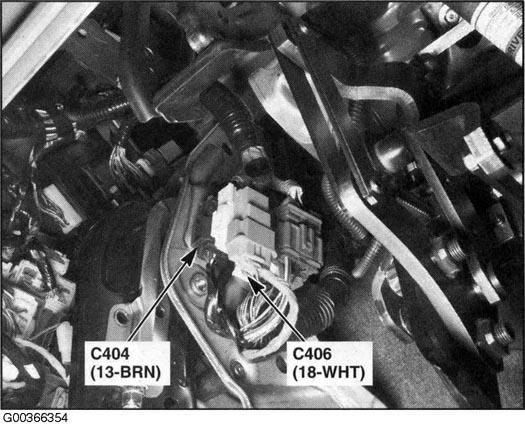

Fig 53: Under Left Side Of Dash

G00366354

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Under Left Side Of Dash

G00366355

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Under Left Side Of Dash (Touring)

G00366356

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Under Left Side Of Dash (Navigation)

G00366357

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Under Left Side Of Dash

G00366358

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Under Left Side Of Dash

G00366359

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Under Left Side Of Dash

G00366360

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Under Left Side Of Dash

G00366361

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Under Left Side Of Dash

G00366362

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Behind Left Kick Panel

G00366363

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Behind Left Kick Panel

G00366364

Courtesy of AMERICAN HONDA MOTOR CO., INC.

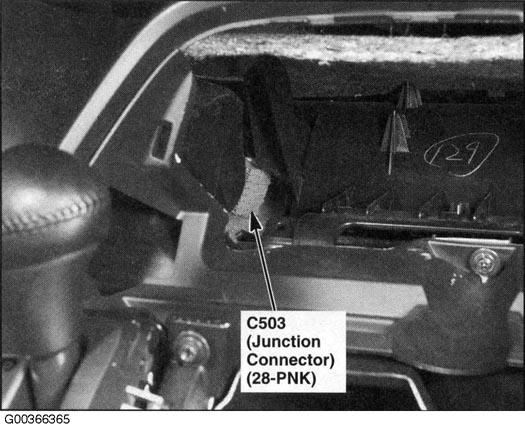

Fig 64: Behind Middle Of Dash

G00366365

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Behind Middle Of Dash

G00366366

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Behind Middle Of Dash (EX-L, Touring)

G00366367

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Behind Middle Of Dash (Navigation)

G00366368

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Behind Middle Of Dash

G00366369

Courtesy of AMERICAN HONDA MOTOR CO., INC.

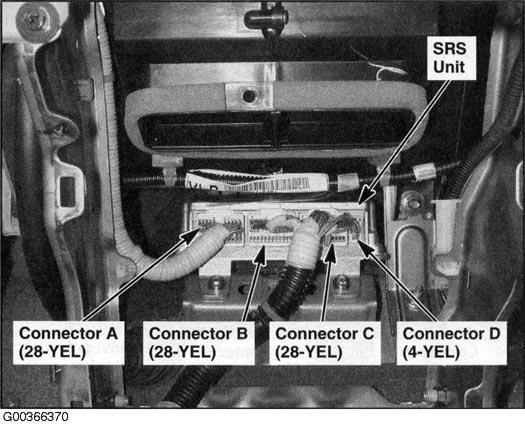

Fig 69: Behind Middle Of Dash

G00366370

Courtesy of AMERICAN HONDA MOTOR CO., INC.

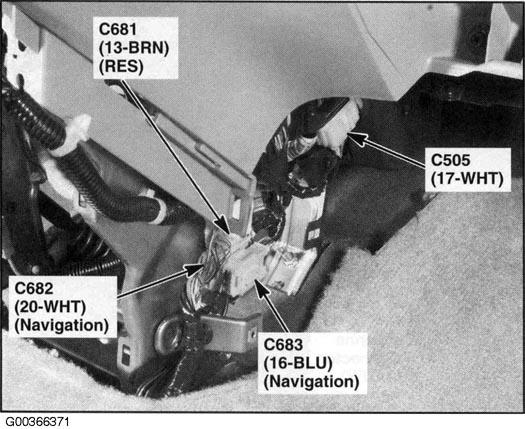

Fig 70: Under Middle Of Dash

G00366371

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Behind Glove Box

G00366372

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Behind Glove Box

G00366373

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Behind Glove Box

G00366374

Courtesy of AMERICAN HONDA MOTOR CO., INC.

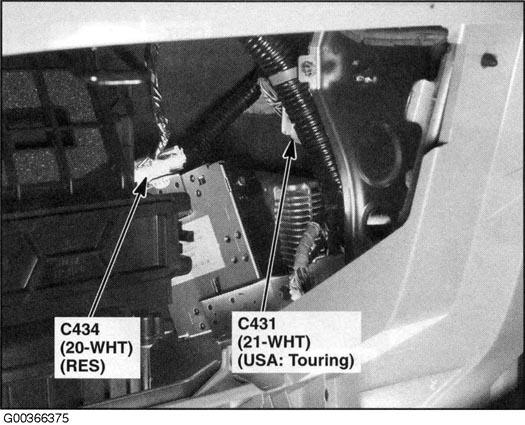

Fig 74: Behind Glove Box (RES, USA: Touring)

G00366375

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Behind Glove Box (EX, EX-L, Touring)

G00366376

Courtesy of AMERICAN HONDA MOTOR CO., INC.

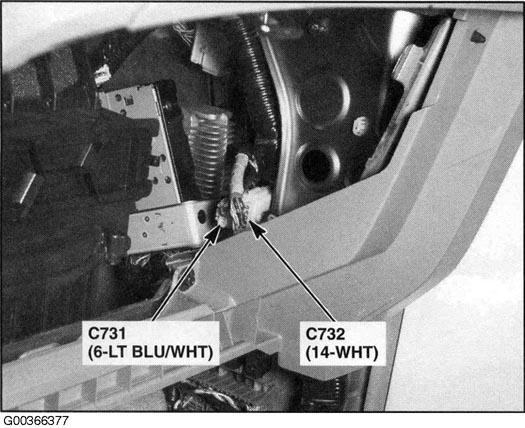

Fig 76: Behind Glove Box

G00366377

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Behind Glove Box

G00366378

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Behind Glove Box (EX-L, Touring)

G00366379

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Behind Right Kick Panel

G00366380

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Behind Right Kick Panel

G00366381

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Under Right Side Of Dash

G00366382

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Under Right Side Of Dash

G00366383

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Under Driver's Seat (Navigation)

G00366384

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Left Side Of Driver's Seat (EX, EX-L, Touring)

G00366385

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Right Side Of Driver's Seat (EX, EX-L, Touring)

G00366386

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Under Driver's Seat (LX)

G00366387

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: Under Driver's Seat (Touring)

G00366388

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Under Driver's Seat (EX, EX-L, Touring)

G00366389

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Under Driver's Seat (EX, EX-L, Touring)

G00366390

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Under Driver's Seat (EX, EX-L, Touring)

G00366391

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Under Front Passenger's Seat

G00366392

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Under Front Passenger's Seat

G00366393

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Under Front Passenger's Seat

G00366394

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: In Front Passenger's Seat

G00366395

Courtesy of AMERICAN HONDA MOTOR CO., INC.

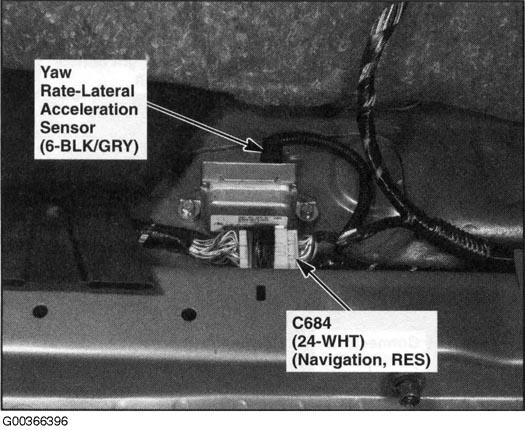

Fig 95: Left Side Of Floor

G00366396

Courtesy of AMERICAN HONDA MOTOR CO., INC.

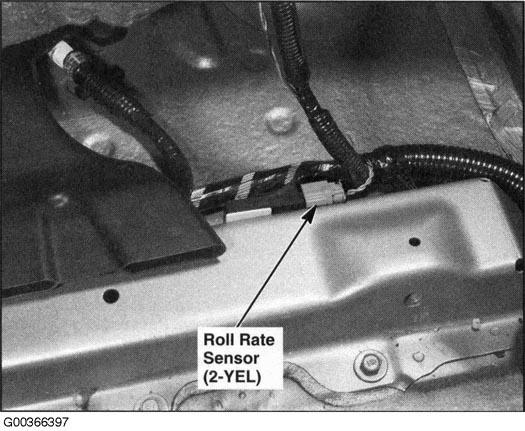

Fig 96: Right Side Of Floor

G00366397

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Middle Of Floor

G00366398

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Rear Of Floor

G00366399

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Left "B" Pillar (Right Similar)

G00366400

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Left "B" Pillar (Right Similar)

G00366401

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Left "C" Pillar (Right Similar)

G00366402

Courtesy of AMERICAN HONDA MOTOR CO., INC.

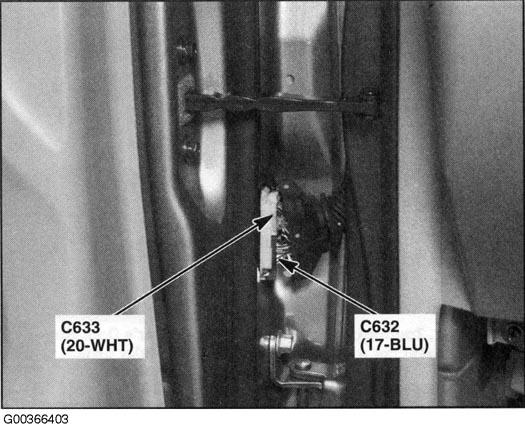

Fig 102: Left "A" Pillar

G00366403

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Driver's Door (Front Passenger's Similar)

G00366404

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Driver's Door

G00366405

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Driver's Door (Front Passenger's Similar)

G00366406

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 106: Left Sliding Door Sill (Right Similar)

G00366407

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Left Sliding Door (Right Similar)

G00366408

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Left Sliding Door (Right Similar)

G00366409

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 109: Left Sliding Door (Right Similar)

G00366410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 110: Left Sliding Door (Right Similar) (EX, EX-L, Touring)

G00366411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 111: Left Sliding Door (Right Similar) (EX, EX-L, Touring)

G00366412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Right Sliding Door

G00366413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

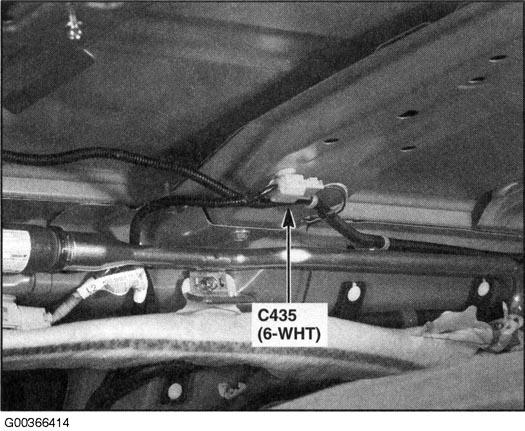

Fig 113: Left Middle Of Roof (RES)

G00366414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 114: Middle Of Roof (EX-L, Touring)

G00366415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 115: Middle Of Roof (USA: Touring)

G00366416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 116: Left Rear Of Roof (Right Similar)

G00366417

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 117: Rear Of Roof (USA: Navigation)

G00366418

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 118: Right "C" Pillar

G00366419

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 119: Left "D" Pillar (Touring)

G00366420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 120: Left "D" Pillar (EX-L, Touring)

G00366421

Courtesy of AMERICAN HONDA MOTOR CO., INC.

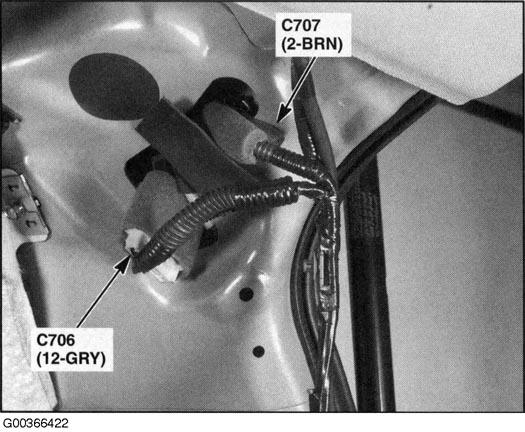

Fig 121: Right "D" Pillar

G00366422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

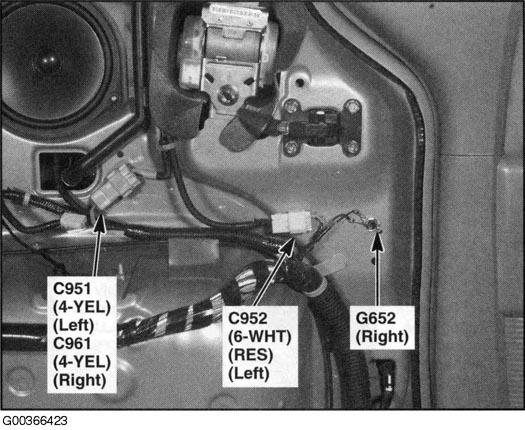

Fig 122: Left Rear Of Vehicle (Right Similar)

G00366423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 123: Left Rear Of Vehicle

G00366424

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 124: Left Rear Of Vehicle

G00366425

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Left Rear Of Vehicle (EX, EX-L, Touring)

G00366426

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Left Rear Of Vehicle (USA: Navigation)

G00366427

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 127: Left Rear Of Vehicle

G00366428

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 128: Left Rear Of Vehicle (Touring)

G00366429

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 129: Left Rear Of Vehicle (EX, EX-L, Touring)

G00366430

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 130: Left Rear Of Vehicle

G00366431

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Right Rear Of Vehicle

G00366432

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Right Rear Of Vehicle (EX, EX-L, Touring)

G00366433

Courtesy of AMERICAN HONDA MOTOR CO., INC.

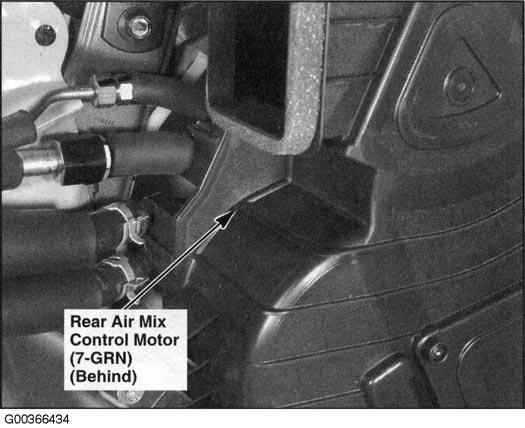

Fig 133: Right Rear Of Vehicle

G00366434

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Right Rear Of Vehicle

G00366435

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Right Rear Of Vehicle

G00366436

Courtesy of AMERICAN HONDA MOTOR CO., INC.

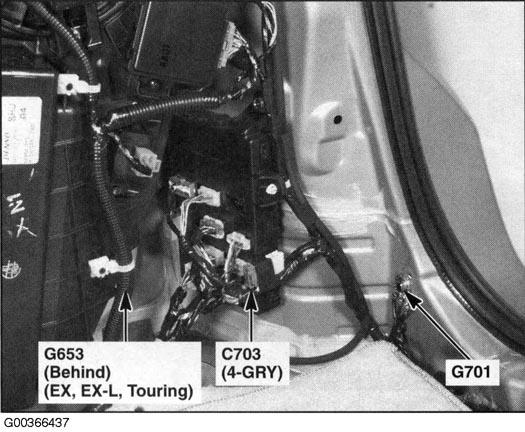

Fig 136: Right Rear Of Vehicle

G00366437

Courtesy of AMERICAN HONDA MOTOR CO., INC.

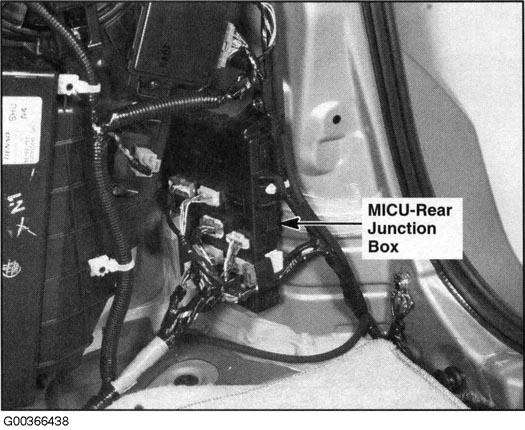

Fig 137: Right Rear Of Vehicle

G00366438

Courtesy of AMERICAN HONDA MOTOR CO., INC.

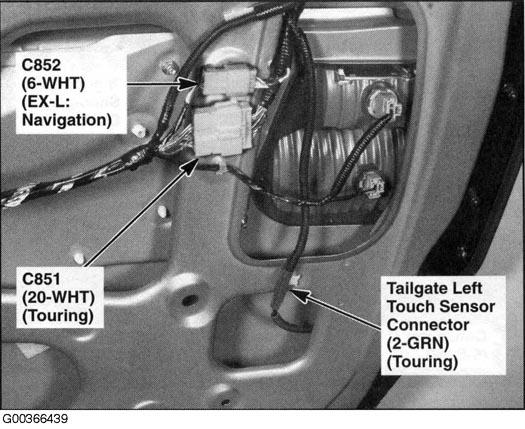

Fig 138: Left Side Of Tailgate

G00366439

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Middle Of Tailgate

G00366440

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 140: Middle Of Tailgate (LX, EX, EX-L)

G00366441

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 141: Middle Of Tailgate (Touring)

G00366442

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 142: Right Side Of Tailgate

G00366443

Courtesy of AMERICAN HONDA MOTOR CO., INC.

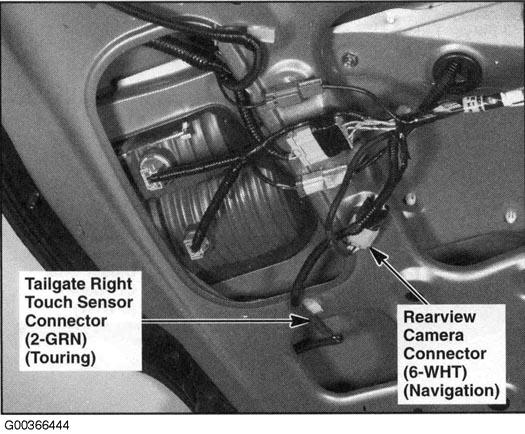

Fig 143: Right Side Of Tailgate

G00366444

Courtesy of AMERICAN HONDA MOTOR CO., INC.

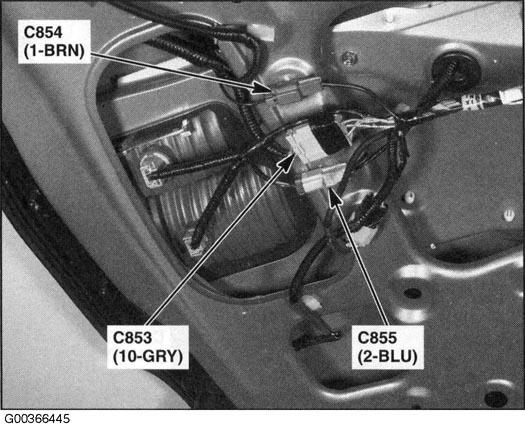

Fig 144: Right Side Of Tailgate

G00366445

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 145: Under Right Front Of Engine Compartment

G00366446

Courtesy of AMERICAN HONDA MOTOR CO., INC.

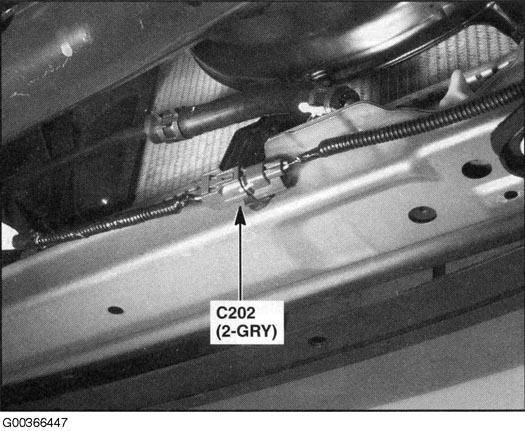

Fig 146: Under Front Of Engine Compartment (EX-L, Touring)

G00366447

Courtesy of AMERICAN HONDA MOTOR CO., INC.

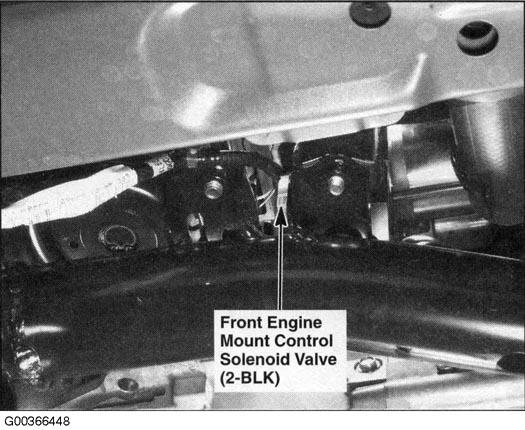

Fig 147: Under Front Of Engine Compartment (EX-L, Touring)

G00366448

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 148: Under Left Front Of Engine Compartment

G00366449

Courtesy of AMERICAN HONDA MOTOR CO., INC.

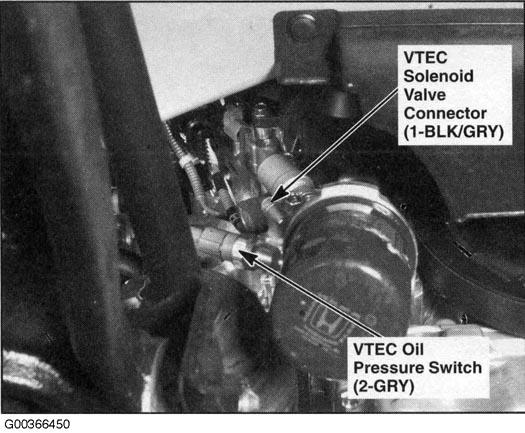

Fig 149: Lower Front Of Engine

G00366450

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 150: Lower Front Of Engine

G00366451

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 151: Transmission Housing

G00366452

Courtesy of AMERICAN HONDA MOTOR CO., INC.

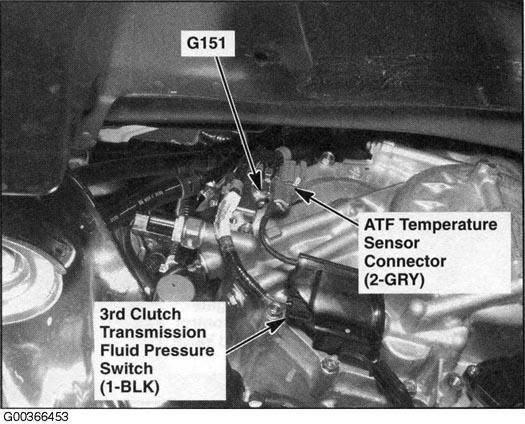

Fig 152: Transmission Housing

G00366453

Courtesy of AMERICAN HONDA MOTOR CO., INC.

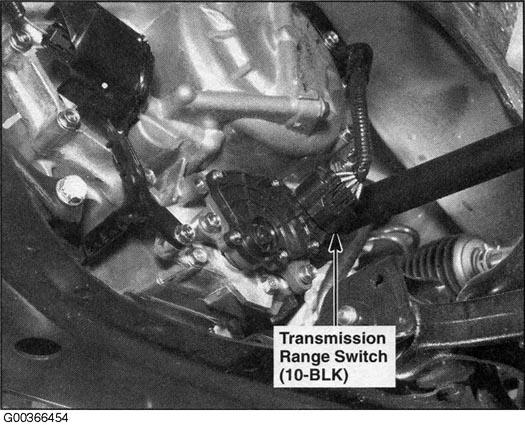

Fig 153: Transmission Housing

G00366454

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 154: Lower Right Side Of Engine

G00366455

Courtesy of AMERICAN HONDA MOTOR CO., INC.

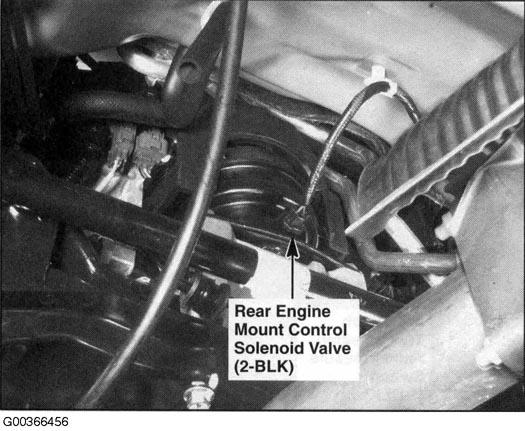

Fig 155: Lower Right Side Of Engine (EX-L, Touring)

G00366456

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 156: Lower Right Side Of Engine Compartment

G00366457

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 157: Behind Right Side Of Front Bumper

G00366458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 158: Left Side Of Front Bumper (Right Similar) (Touring)

G00366459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 159: Behind Left Side Of Front Bumper (EX, EX-L, Touring)

G00366460

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 160: Behind Left Side Of Front Bumper (Right Similar)

G00366461

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 161: Behind Left Side Of Front Bumper (USA: Touring)

G00366462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 162: Under Middle Of Vehicle

G00366463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 163: Under Rear Of Vehicle

G00366464

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 164: Left Rear Fenderwell (USA: Touring)

G00366465

Courtesy of AMERICAN HONDA MOTOR CO., INC.

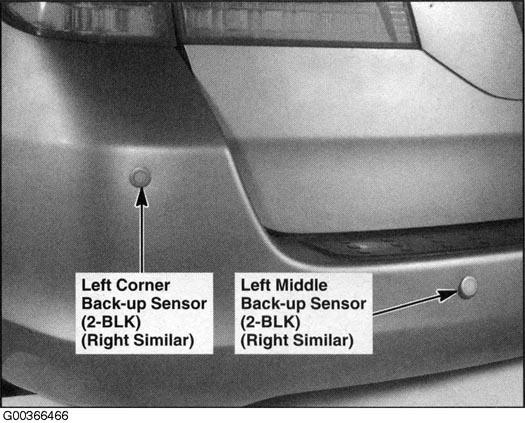

Fig 165: Left Side Of Rear Bumper (Touring)

G00366466

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 166: Behind Left Side Of Rear Bumper (Touring)

G00366467

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 167: Behind Right Side Of Front Bumper

G00366468

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 168: Middle Of Tailgate (EX, EX-L)

G00366469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 169: In Driver's Seat (EX, EX-L, Touring)

G00366470

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 170: Rear Of Roof (Touring: Except Navigation)

G00366471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 171: Behind Left Kick Panel (Honda Accessory)

G00366472

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 172: Under Left Side Of Dash (LX, Honda Accessory)

G00366473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 173: Behind Glove Box (Honda Accessory)

G00366474

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 174: Left Rear Of Vehicle (LX, EX, EX-L: Honda Accessory)

G00366475

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 175: Left Rear Of Vehicle (LX, EX, EX-L: Honda Accessory)

G00366476

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 176: Behind Right Side Of Rear Bumper (Left Similar) (Honda Accessory)

G00366477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 177: Left Kick Panel (Honda Accessory)

G00366478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 178: Front Of Roof (Honda Accessory)

G00366479

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 179: Left Rear Of Vehicle (Honda Accessory)

G00366480

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 180: Under Middle Of Rear Bumper (Honda Accessory)

G00366481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 181: Right Side Of Engine Compartment (Honda Accessory)

G00366482

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 182: Right Front Of Engine Compartment (Honda Accessory)

G00366483

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 183: Right Front Of Engine Compartment (Honda Accessory)

G00366484

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 184: Behind Left Side Of Front Bumper (Honda Accessory)

G00366485

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 185: Under Left Side Of Dash (Honda Accessory)

G00366486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

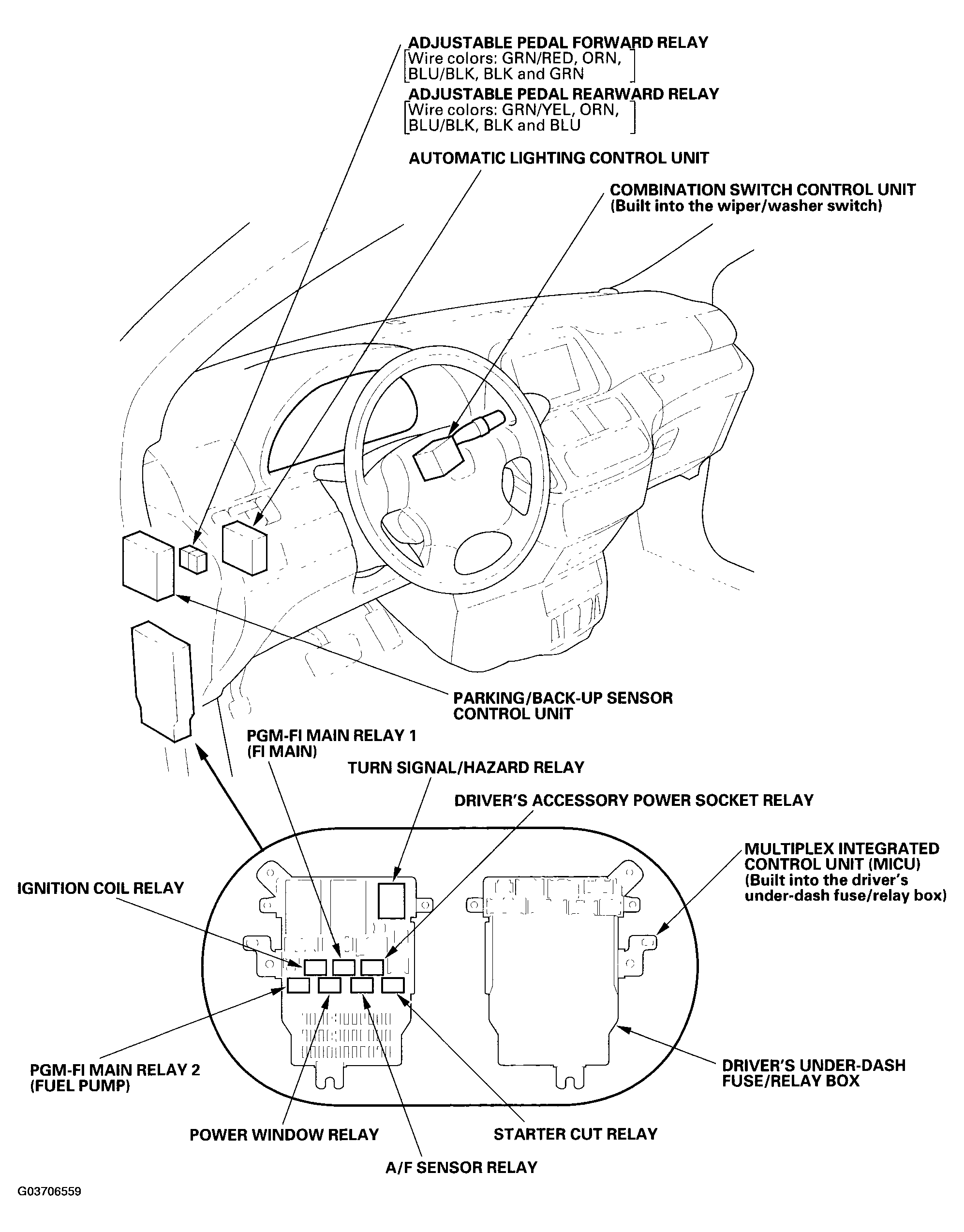

Fig 186: Under-Dash Fuse/Relay Boxes (1 Of 2)

G03706559

Courtesy of AMERICAN HONDA MOTOR CO., INC.

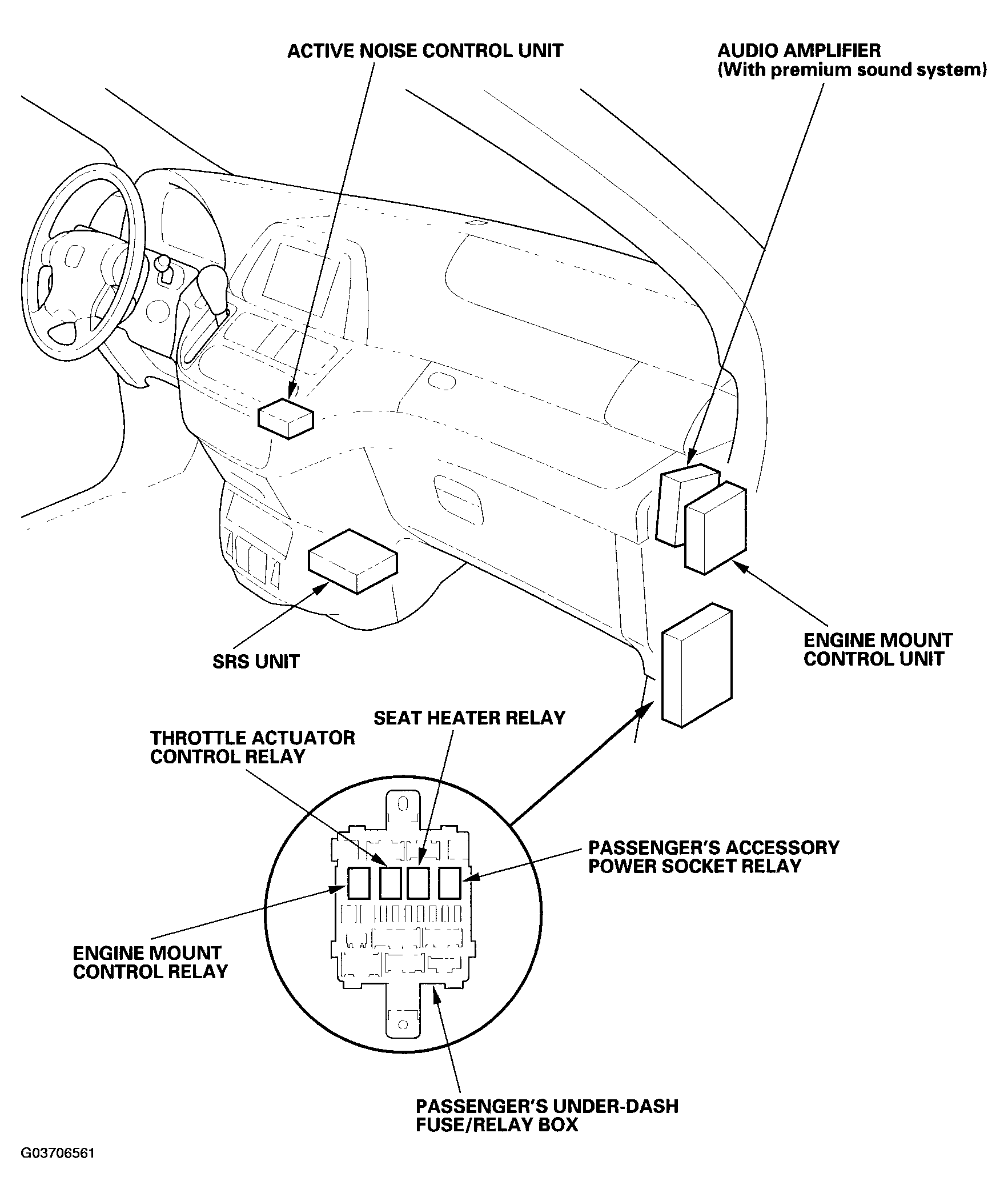

Fig 187: Under-Dash Fuse/Relay Boxes (2 Of 2)

G03706561

Courtesy of AMERICAN HONDA MOTOR CO., INC.

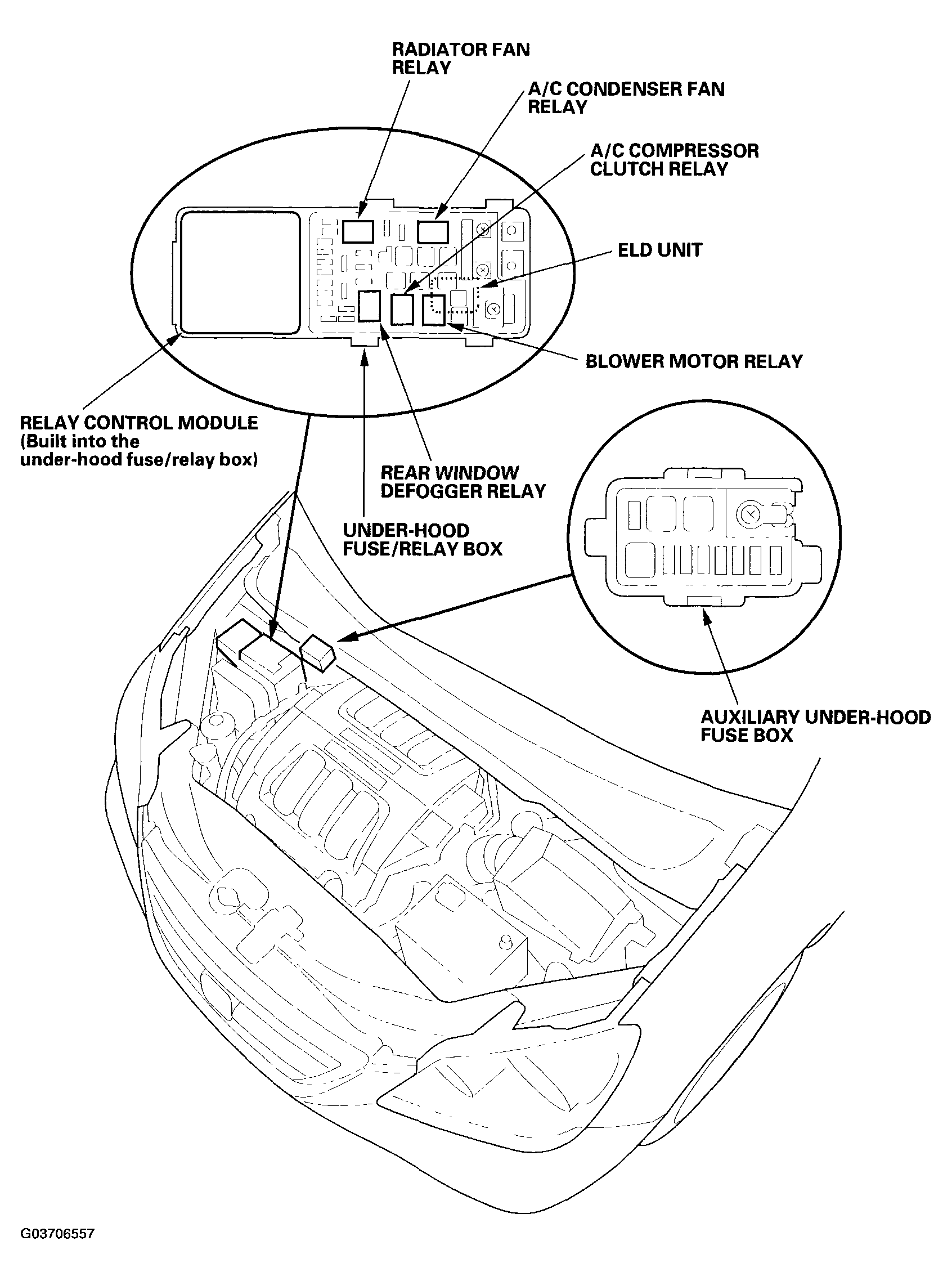

Fig 188: Under-Hood Fuse/Relay Box

G03706557

Courtesy of AMERICAN HONDA MOTOR CO., INC.
