Starter Overhaul: Disassembly/Reassembly: Notes

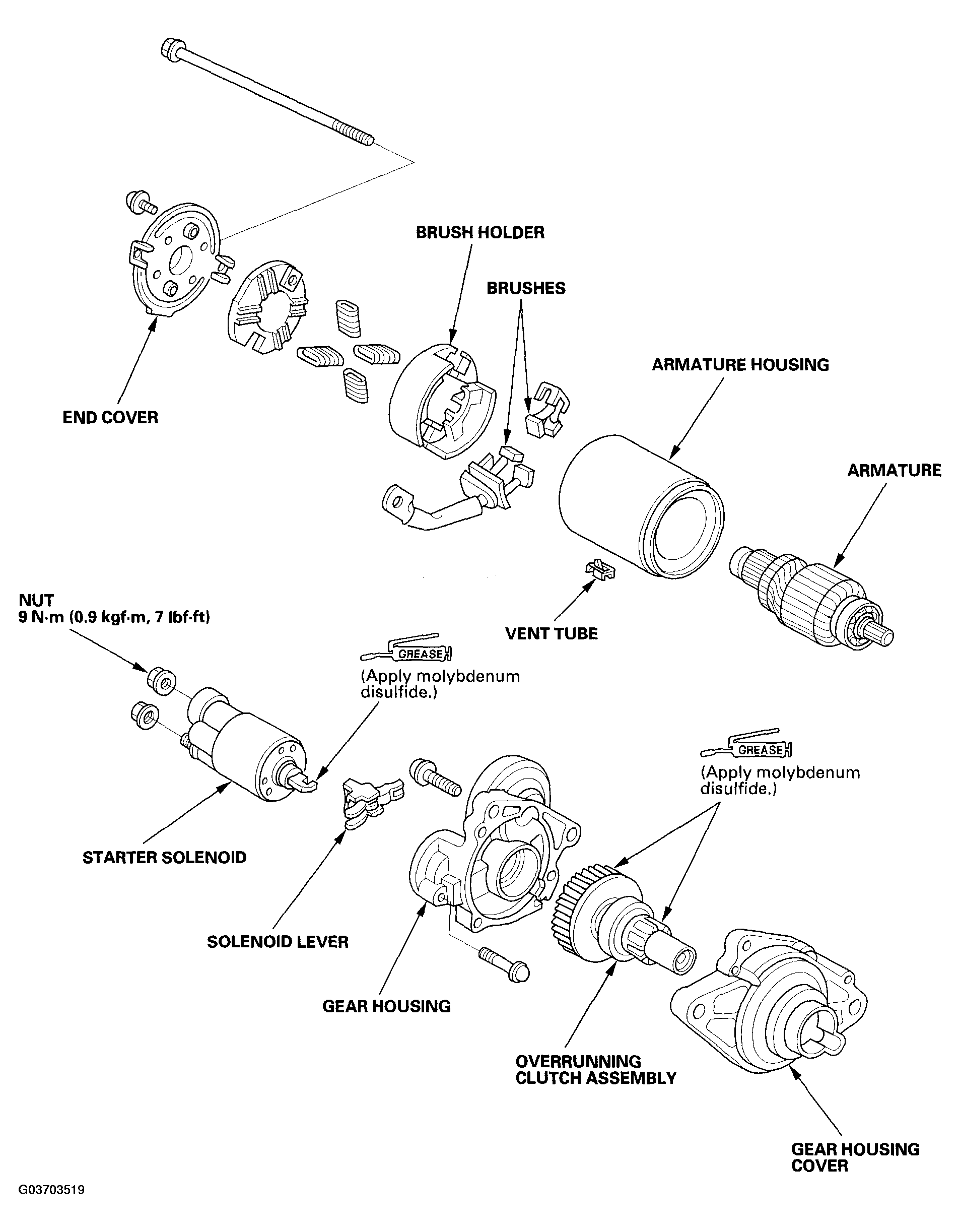

Fig 1: Exploded View Of Starter
G03703519Courtesy of AMERICAN HONDA MOTOR CO., INC.
