EVAP Canister Replacement

  1. Remove the EVAP canister cover (A).

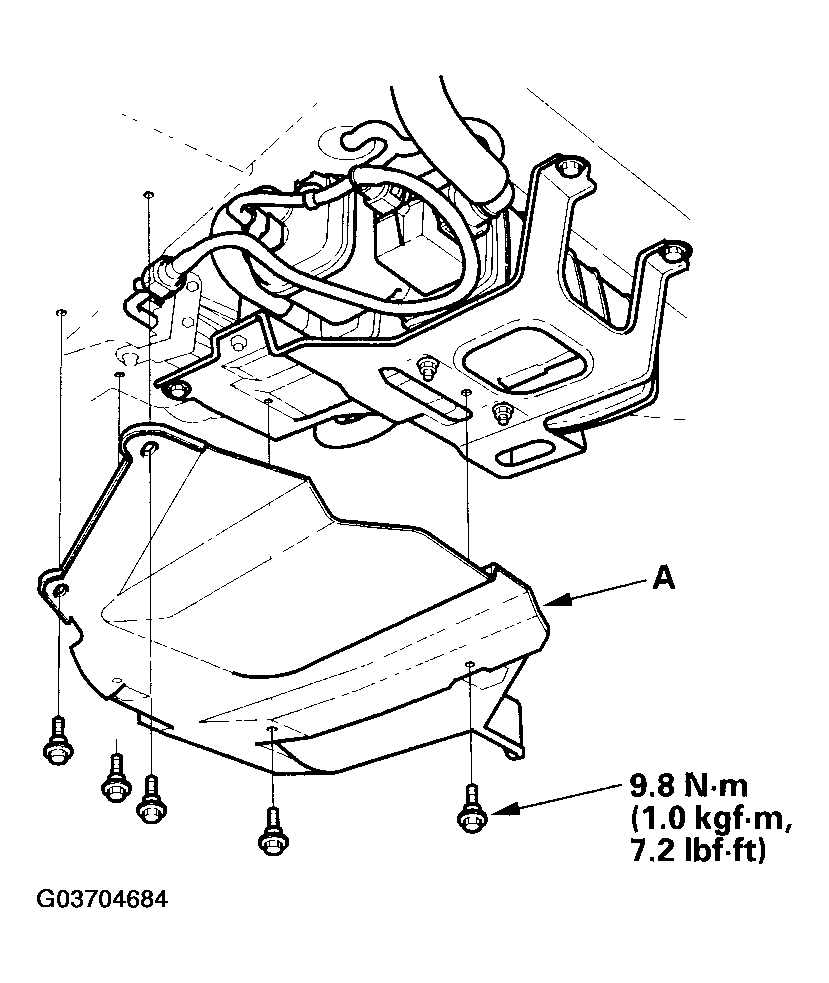

    Fig 1: Removing EVAP Canister Cover
    G03704684Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).

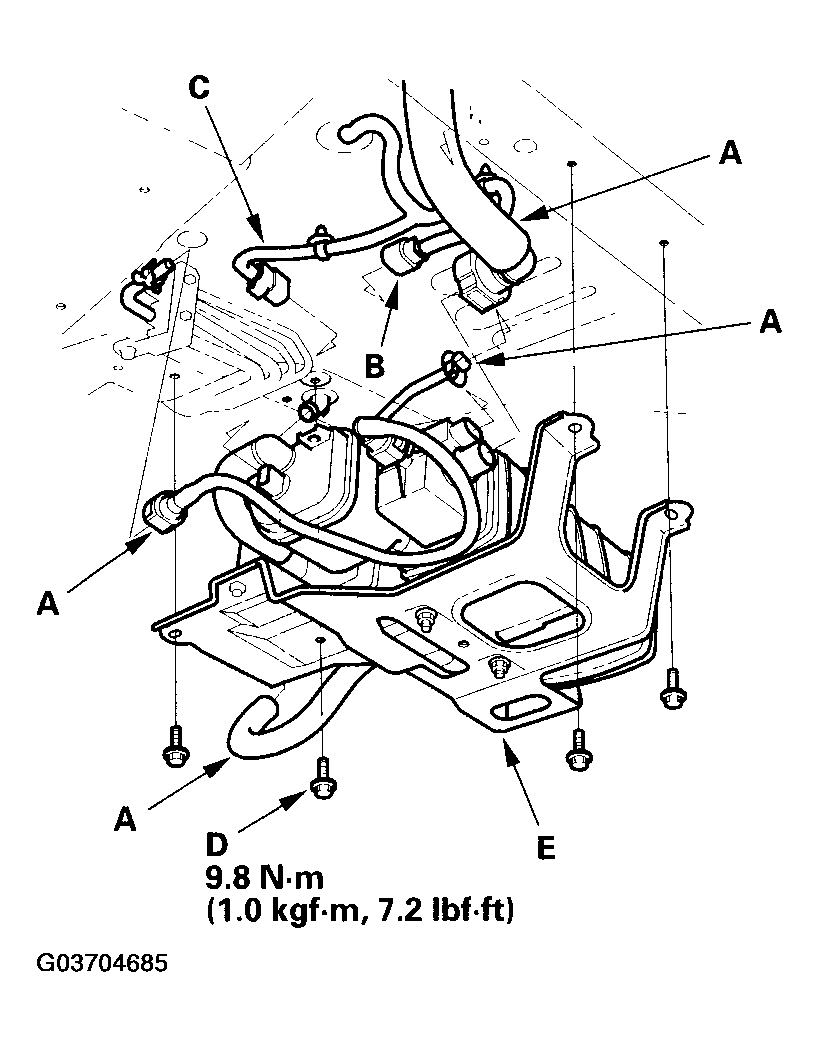

    Fig 2: Removing Hoses, FTP Sensor 3P Connector And EVAP Canister Vent Shut Valve 2P Connector
    G03704685Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolt (D).
  4. Remove the EVAP canister assembly (E).
  5. Remove the EVAP canister bracket (A).
    NOTE: The canister filter remains on the bracket.

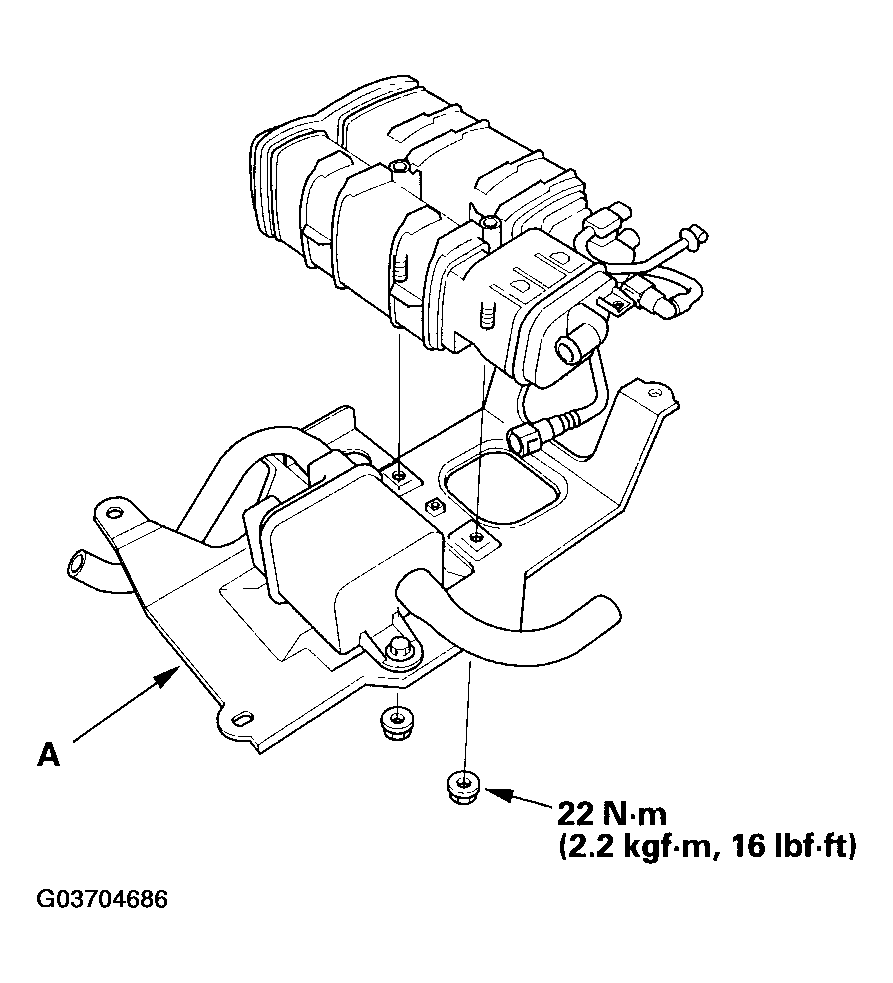

    Fig 3: Removing EVAP Canister Bracket
    G03704686Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the canister in the reverse order of removal.
