CMP Sensor Replacement
- Remove the timing belt, J35A6 engine (see TIMING BELT REMOVAL
), J35A7 engine (see TIMING BELT REMOVAL
).

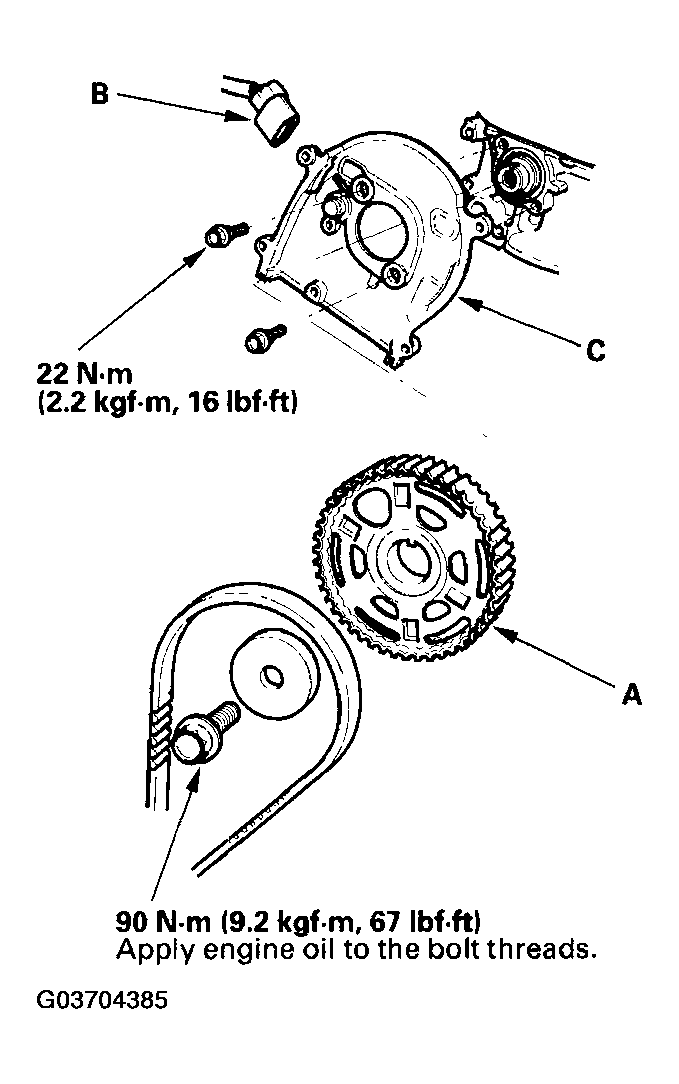

- Remove the front camshaft pulley (CMP sensor pulse plate) (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the CMP sensor connector (B), then remove the back cover (C).

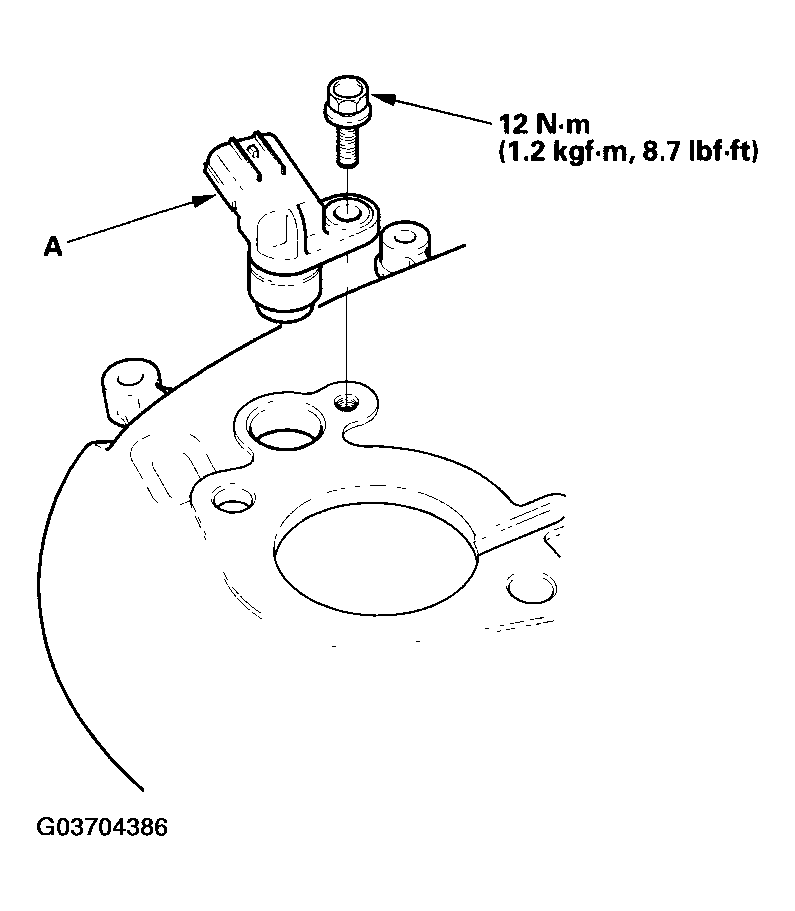

- Remove the CMP sensor (A) from the back cover.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the sensor in the reverse order of removal. Install the timing belt, J35A6 engine (see TIMING BELT INSTALLATION
), J35A7 engine (see TIMING BELT INSTALLATION
).
- Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN
).
